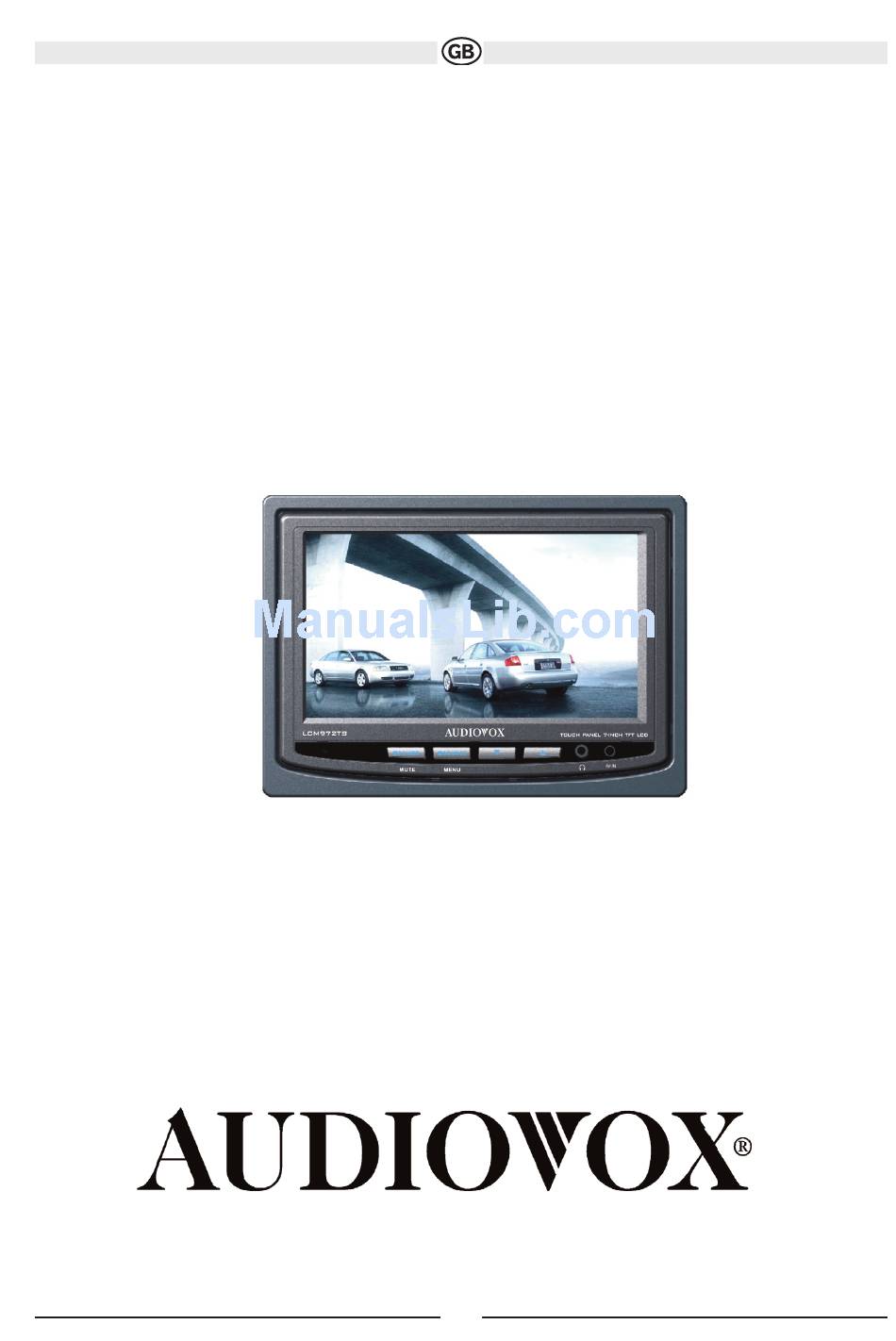

- Page 1 LCM972TS 7” Rearzone Touch Screen Monitor for: VME 9122 TS VME 9512 TS VME 9312 TS...
-
Page 2: Table Of Contents
Precaution Accessories Main Features Discription for keys Diagramm for connections Basis operations Parameters adjust Warranty Card... -
Page 3: Precaution
Precaution Warning: 1. Only connect the unit to a 12-volt power supply with negative grounding Warning: 2. Before installation, please make sure proper connections are conducted. Otherwise, the unit will be damaged by short circut. Warning: 3.Never install this unit where the operation & condition for safety driving is restrained Warning 4.Never use the video display function in the front when driving to prevent the violation of laws &... -
Page 4: Accessories
ACCESSORIES MAIN FEATURES • 7 inch true color TFT LCD display • Touch screen function • Auto Dimmer • English OSD • NORMAL / FULL / WIDE display mode • Image mirror function • Auto detect for NTSC / PAL •... -
Page 5: Discription For Keys
Description for Keys 1. Reset key 2. Induction window for surroundings rays 3. Receiving window for remote control 4. Power/Mute key 5. Source selection/Menu key 6. Volume down/down direction key 7. Volume up/up direction key 8. Output jack for earphone stereo 9. -
Page 6: Diagramm For Connections
Diagramm for connections... -
Page 7: Basis Operations
BASIC OPERATIONS Power on / off • Under standby mode, pressing the [POWER/MUTE] key briefly to turn the unit on. • Under work mode, pressing and holding the [POWER/MUTE] key to turn the unit off. Source switch • To switch mode between play mode and menu mode, press the [SOURCE/ MENU] key briefly. •... - Page 8 PARAMETERS ADJUST You can adjust the parameters according to the environment and your interest to get the best display effect. Enter Main Menu • To enter menu mode, press the [SOURCE/MENU] key or touch the top area of the display. The main menu will be displayed as follows: Enter Main Menu •...
- Page 9 PARAMETERS ADJUST Parameter items are displayed after entering a sub-menu. You can adjust the values by touching, (Need touch screen function to support.) or using the keys on the panel as well. The steps will be followings when you do the operation by pressing the keys on the panel: Pressing the [ ] [ ] key to select one item;...
-
