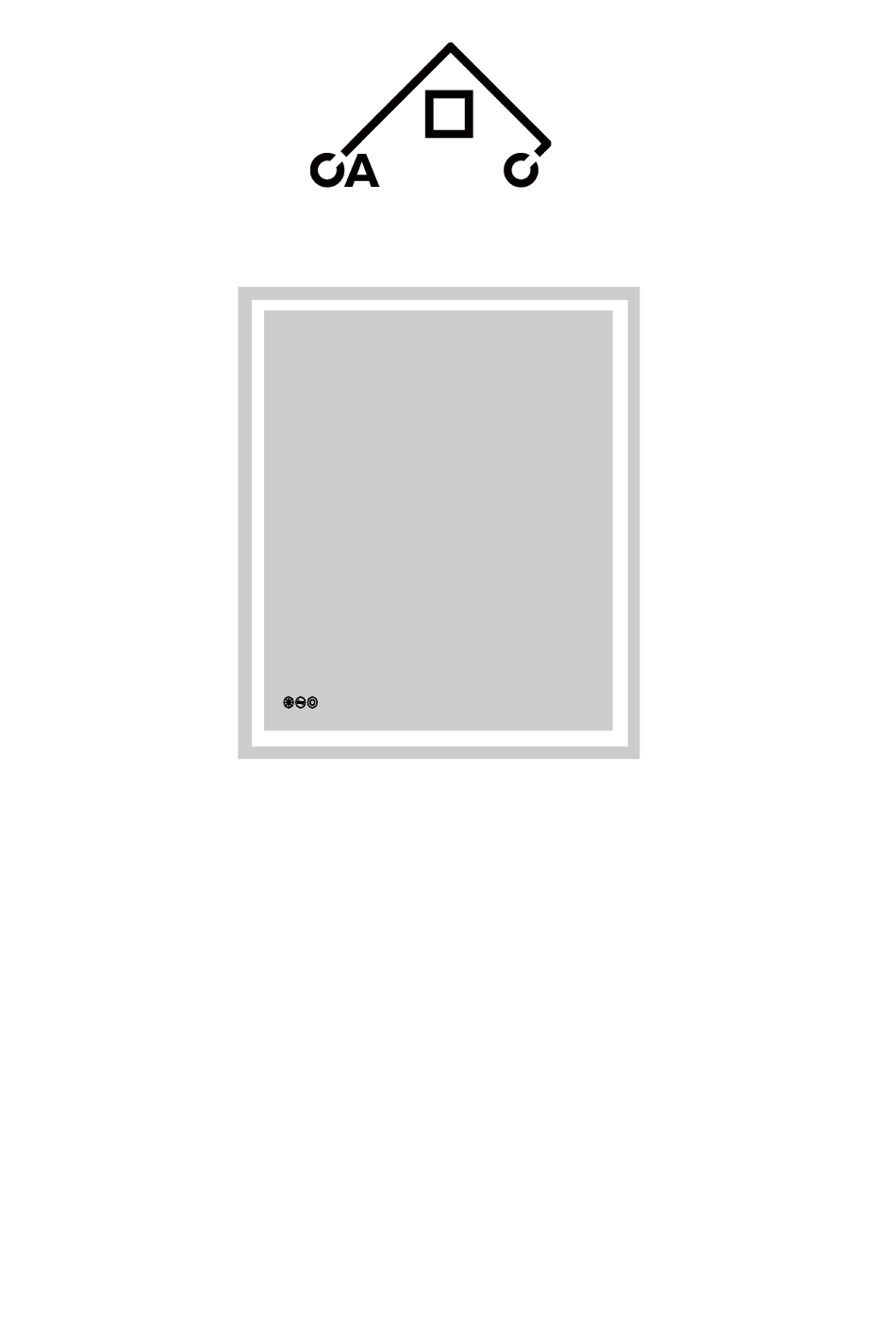

- Page 1 SAIN LED LIGHTED MIRROR MODEL:CA-JX22-3036F2 Thank you for purchasing this product. Before using the product, read through this user guide to ensure that you will use the product correctly. Please keep this guide for further reference.
-
Page 2: Warning And Safety Instructions
WARNING AND SAFETY INSTRUCTIONS Before assembling your LED Lighted Mirror fixture, please make sure that you carefully read through this instruction sheet, refer back to them during installation to ensure your product is fitted safely and correctly. Keep these instructions for future use. WARNING Risk of Fire Electric Shock... - Page 3 PRODUCT DESCRIPTION & INFORMATION CHECK PRODUCT LIST AFTER OPENING THE PACKAGE (TOOLS Y OU MAY NEED) NOT INCLUDED INSTALLATION PROCESS INCLUDED (According to actual needs)) • - - l pcs •Wall Mount Screw - - 8pcs (One as a spare part) - - 8pcs (One as a spare part) •Drywall Anchor...
-
Page 4: Electric Connections
ELECTRIC CONNECTIONS ALL WIRING SHOULD BE DONE BY A QUALIFIED LICENCED ELECTRICIAN ¢ WARNING: Shut off power before wiring the mirror. 令 WARNING: An Electr i rical option mirror must be wired to a 20 Amp GFI (Ground Fault Interrupter) protected circuit when used in bathrooms and all other locations required by the National Electric Code. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Measure the distance between the bottom of 2. Draw a horizontal line from the point a using a level. the mirror and point a. *HORIZONTAL & VERTICAL MOUNT OPTION AVAILABLE. WARNING: Mounting bracket must be attached to furring strip/ channel or wall stud. -
Page 6: Operation Process
OPERATION PROCESS Button 2: Button 3: Button 1: First short press ,anti-fog Press the button and hold Short Press to turn on the light. function works. on for 3-Sseconds to active the dimmer First press causes the neutral Second short press ,anti- function. - Page 7 LED Mirror Power Source FAQ Scenario 1 (Direct Wired) This is the most common way to connect the mirror. The LED light & anti fog pad are both controlled by the built-in touch switch on the mirror. *The LED light is dimmable. Scenario 2 (Wall SwitchJ By doing so, the mirror is now...
- Page 8 SAIN...
- Page 9 SAIN MODEL:CA-JX22-3036F2 Merci d'avoir acheté ce produit. Avant d'utiliser le produit, lisez ce guide de l'utilisateur afin de vous assurer que vous utiliserez le produit correctement. Conservez ce pour toute référence ultérieure.
- Page 10 AVERTISSEMENTS ET CONSIGNES DE SECURITE Avant d'assembler votre miroir lumineux LED, lisez attentivement cette fiche d'instructions et consultez-la pendant !'installation pour vous assurer que votre produit est monte correctement et en toute securite. Conservez ces instructions pour une utilisation ulterieure. AVERTISSEMENT Risque d'incendie et de choc electrique •Tous les raccords doivent etre installes conformement aux reglementations de c令blage...
- Page 11 DESCRIPTION DU PRODUIT ET INFORMATIONS VERIFIER LA LISTE DES PRODUITS APRES (OUTILS DONT VOUS POURRIEZ AVOIR BESOIN) NON COMPRIS PROCESS S D INS LL ION INCL DE (Selon les besoins réels)) -- l pcs • -- 8pcs (Une piece de rechange) •Vis de montage mural •Ancrage pour mur sec -- 8pcs (Une p伦ce de rechange)
- Page 12 ELECTRIC CONNECTIONS ALL WIRING SHOULD BE DONE BY A QUALIFIED LICENCED ELECTRICIAN ¢ WARNING: Shut off power before wiring the mirror. 令 WARNING: An Electr i rical option mirror must be wired to a 20 Amp GFI (Ground Fault Interrupter) protected circuit when used in bathrooms and all other locations required by the National Electric Code.
- Page 13 INSTALLATION INSTRUCTIONS 1. Measure the distance between the bottom of 2. Draw a horizontal line from the point a using a level. the mirror and point a. *HORIZONTAL & VERTICAL MOUNT OPTION AVAILABLE. WARNING: Mounting bracket must be attached to furring strip/ channel or wall stud.
- Page 14 PROCESSUS DE FONCTIONNEMENT Bouton 2 : Bouton 3 : Bouton 1 : Appuyer brièvement pour Première pression Appuyez sur le bouton et allumer la lumière. brève : la fonction maintenez-le enfoncé La première pression antibuée fonctionne. pendant 3 secondes pour provoque une lumière neutre, Deuxième pression activer la fonction de...
- Page 15 sur la source d'alimentation des miroirs F A Q Scenario 1 (Cable directement) C'est la fac;on la plus courante de connecter le miroir. La lumiere LED et l'antibrouillard sont taus deux controles par l'interrupteur tactile integre sur le mlrolr. *La lum伦re LED est reglable. Scenario 2 (lnterrupteur mural) En faisant cela, le miroir est maintenant...
- Page 16 SAIN...
