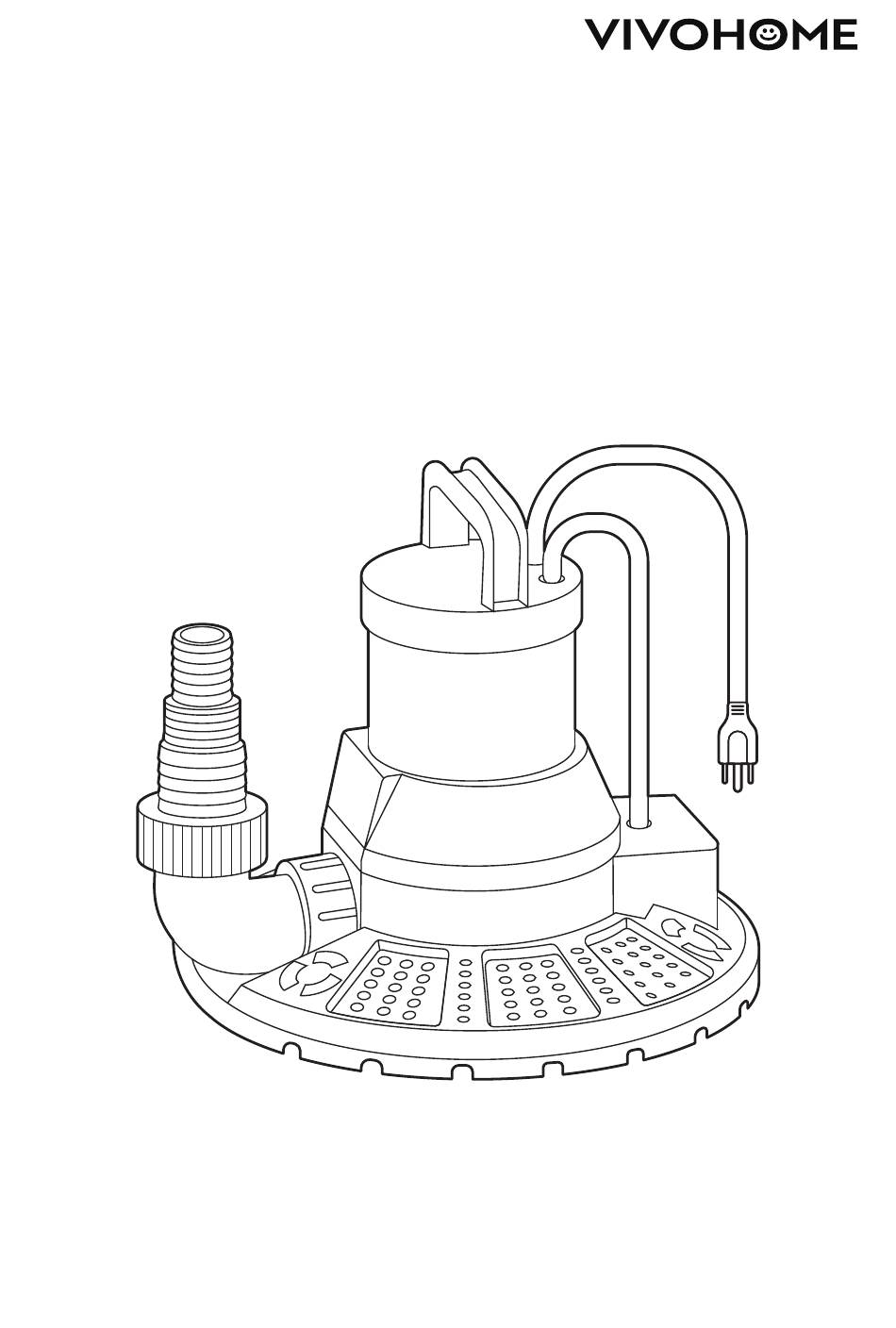

- Page 1 POOL COVER PUMP Instruction Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
-
Page 2: Technical Data
TECHNICAL DATA Property 1/3 HP Pool Cover Pump 1/2 HP Pool Cover Pump Model YH-8500B YH-12000B Voltage 120V 120V Frequency 60Hz 60Hz Horse Power 1/3 HP 1/2 HP Max. Head (ft.) 20ft 21ft Max. Flow (GPH) 2600 3200 Cord Length... -
Page 3: Safety Information
SAFETY INFORMATION ● This product complies with California Proposition 65 environmental testing requirements. ● Risk of sudden starts: This can cause electrical shock and personal injury. The pump motor is equipped with an automatic resetting thermal protector and may restart unexpectedly. ●... - Page 4 Power Supply: Pump is designed for 120V, 60 Hz. Operation an individual branch circuit of 15 amperes or more capacity. It is supplied with a 3-wire cord set with a grounding-type, GFCI-protected plug for use in a 3-wire, grounded outlet. For safety, pumps should always be electrically grounded to a suitable electrical ground, such as a grounded water pipe or a properly grounded metallic raceway or ground wire system.
-
Page 5: Troubleshooting
OPERATION INSTRUCTIONS WARNING: The risk of electric shock can shock, burn, or kill. Do not handle the pump or pump motor with wet hands, when standing on wet or damp surfaces, or in water. Disconnect power from the pump before handling, servicing, or attempting to repair it. The motor is equipped with an automatic resetting thermal overload protector. -
Page 6: Parts Diagram
PARTS DIAGRAM Part No. Part Name Part No. Part Name Motor House Outlet Connectors Auto Shut-off Sensor Gland Waterproof Ring 90° Outlet Connector Impeller Roller Ball Filter Screw Base... - Page 7 CLEANING STEPS Remove Part 6 (Base). Remove Part 5 (Filter). Loosen the screws. Rotate Part 1 (Motor House) and Part 8 (Gland) in opposite directions, as indicated by the arrow, to remove Part 8 (Gland). Remove Part 4 (Impeller) for cleaning. Please note that when reinstalling, install the waterproof ring first.
- Page 8 NOTE: To continuously improve its products, VIVOHOME reserves the right to modify this information without prior notification. For any questions regarding assembly, please watch the video on the product page or contact our customer service. Our customer service will gladly assist you with any additional questions, comments, or concerns.
