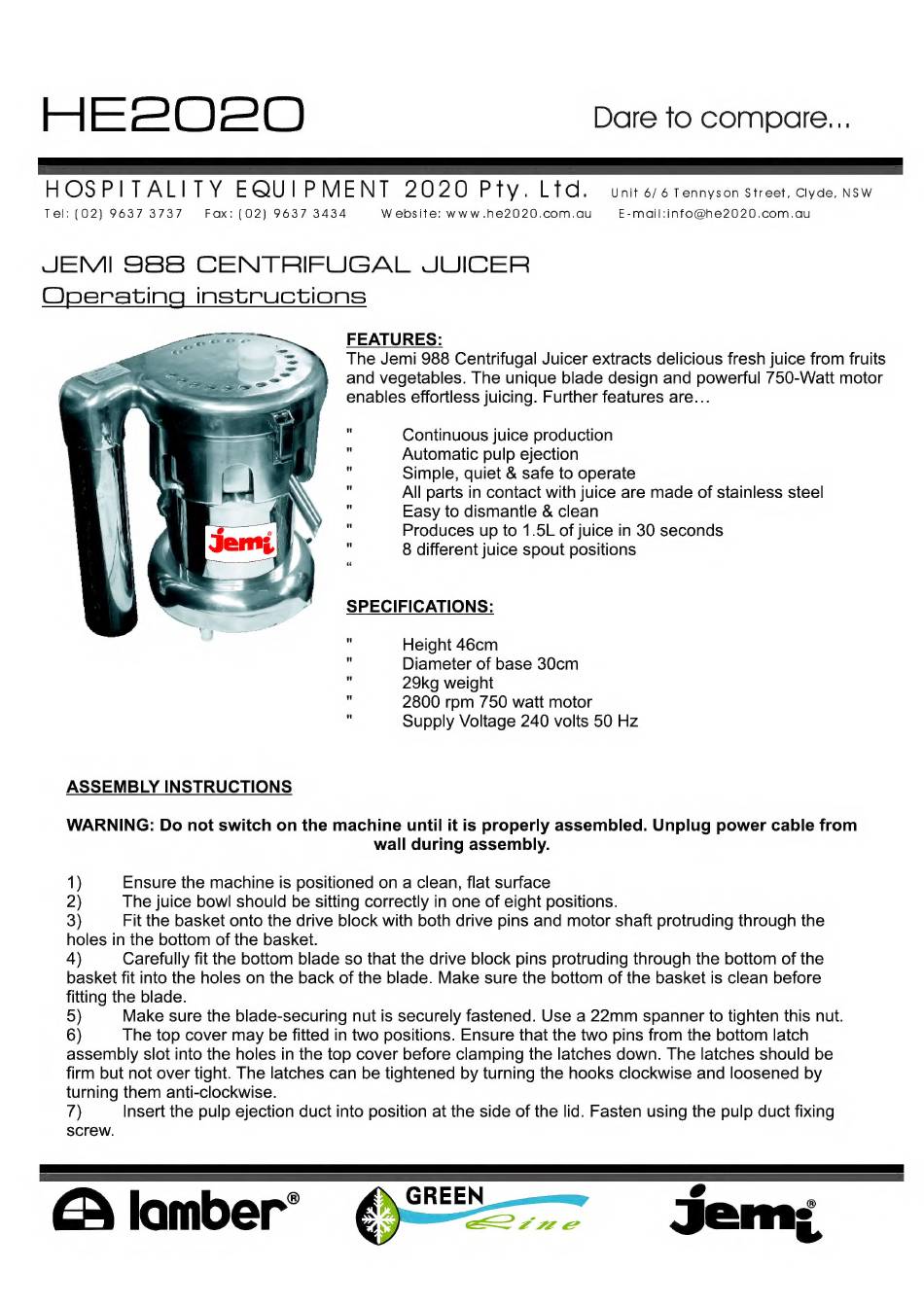

jemi 988 Operating Instructions

HOSPITALITY EQUI PMENT 2020 Pty. Ltd. Unit 6/ 6 Tennyson Street, Clyde, NSW
Tel: (02) 9637 3737 Fax: (02) 9637 3434 Website: www .he2020,com.au E-mail:info@he2020.com.au
JEMI 988 CENTRIFUGAL JUICER
Operating instructions
FEATURES:
The Jemi 988 Centrifugal Juicer extracts delicious fresh juice from fruits
and vegetables. The unique blade design and powerful 750-Watt motor
enables effortless juicing. Further features are...
Continuous juice production
Automatic pulp ejection
Simple, quiet & safe to operate
All parts in contact with juice are made of stainless steel
Easy to dismantle & clean
Produces up to 1.5L of juice in 30 seconds
8 different juice spout positions
SPECIFICATIONS:
" Height 46cm
Diameter of base 30cm
" 29kg weight
" 2800 rpm 750 watt motor
" Supply Voltage 240 volts 50 Hz
ASSEMBLY INSTRUCTIONS
WARNING: Do not switch on the machine until it is properly assembled. Unplug power cable from
wall during assembly.
1) Ensure the machine is positioned on a clean, flat surface
2) The juice bowl should be sitting correctly in one of eight positions.
3) Fit the basket onto the drive block with both drive pins and motor shaft protruding through the
holes in the bottom of the basket.
4) Carefully fit the bottom blade so that the drive block pins protruding through the bottom of the
basket fit into the holes on the back of the blade. Make sure the bottom of the basket is clean before
fitting the blade.
5) Make sure the blade-securing nut is securely fastened. Use a 22mm spanner to tighten this nut.
6) The top cover may be fitted in two positions. Ensure that the two pins from the bottom latch
assembly slot into the holes in the top cover before clamping the latches down. The latches should be
firm but not over tight. The latches can be tightened by turning the hooks clockwise and loosened by
turning them anti-clockwise.
T) Insert the pulp ejection duct into position at the side of the lid. Fasten using the pulp duct fixing
screw.
