fireworx FX-IDC2B Installation Sheet

FX-IDC2B Analog Dual Input Module
Installation Sheet
EN FR
EN: Installation Sheet
Operation
The module is an analog addressable device used to connect
two normally open, alarm, supervisory, or monitor type dry
contact initiating device circuits (IDCs) to a control panel. This
module is designed for Class B circuit operation.
The device address is set using the two rotary switches located
on the front of the module. Two consecutive device addresses
are required. The second device address is automatically
assigned one number higher that the value set on the rotary
switches.
The device can be preset for alarm or supervisory operation
using the slide switch located on the front of the module. The
module can also be configured for other device types through
front panel programming or the configuration utility.
Slide switch operation
The following slide switch settings determine the operation of
the module. Setting the initial slide switch position is generally
performed during module installation. This setting can be
changed while the system is operating, but the change must be
confirmed through front panel programming.
Slide switch P1 is used for IDC 1 and slide switch P2 is used
for IDC 2. The waterflow device type available through front
panel programming or the configuration utility can only be used
with slide switch P1.
Table 1: Slide switch settings
Setting Operation Device type description
1 Alarm
Alarm latching: Configures the module for
normally open dry contact initiating devices.
When the NO input contact of an initiating
device is closed, an alarm signal is sent to
the control panel and the alarm condition is
latched at the module. (Factory default)
2 Not used
© 2013 UTC Fire & Security. All rights reserved.
3 Supervisory
Note: Additional device types are available through front panel
programming or the configuration utility. Refer to applicable control
panel technical reference manual.

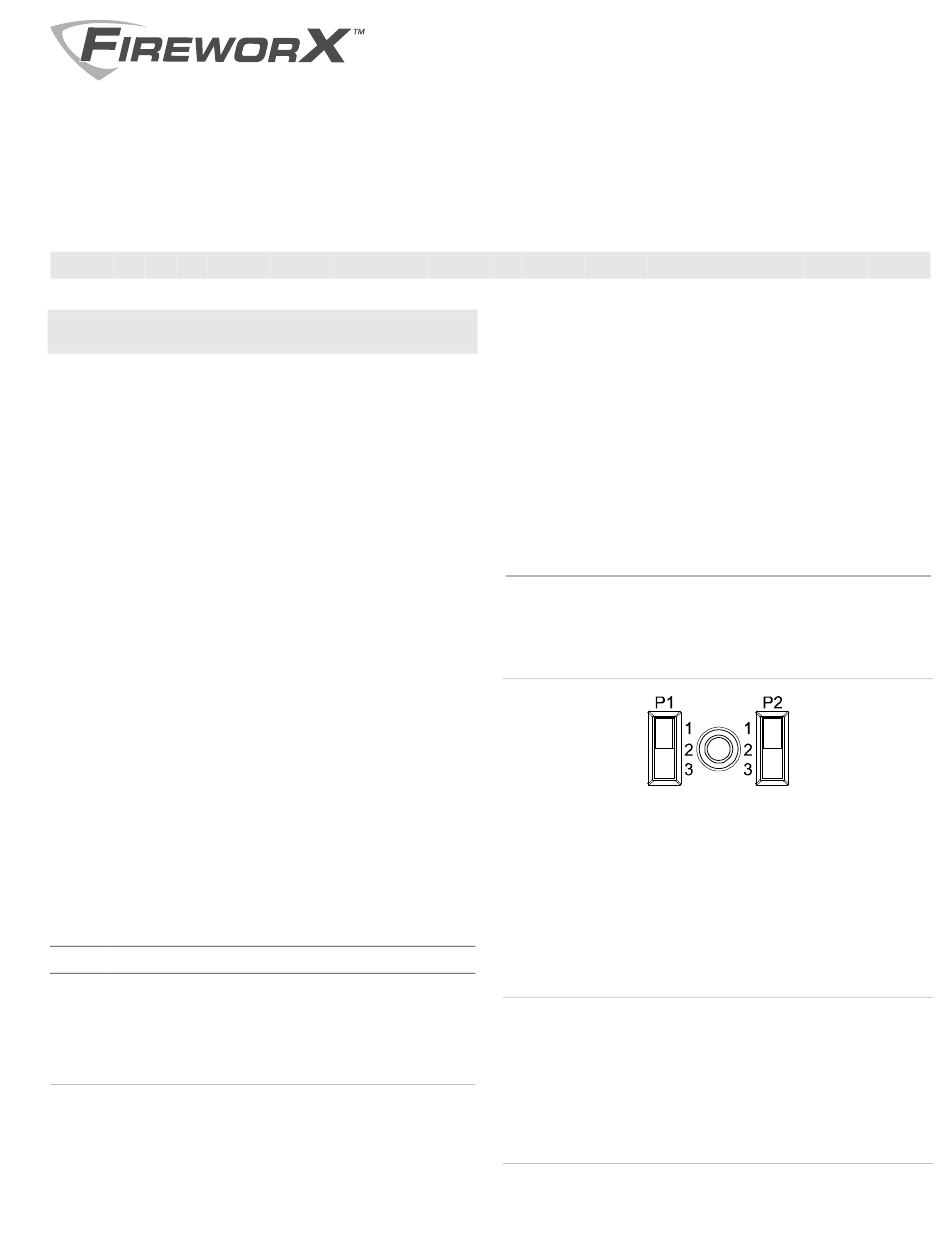

Figure 1: Slide switches
LED operation
The module provides a bicolor LED that shows its status.
Normal: Green LED flashes
Alarm/active: Red LED flashes
Installation
WARNINGS
• This module will not operate without electrical power. As
fires frequently cause power interruption, you should
discuss further safeguards with your local fire protection
specialist.
• This module does not support conventional smoke
detectors.
1 / 6
Supervisory nonlatching US marketplace:
Supervisory latching Canadian marketplace:
Nonlatching: Configures the module for
normally open dry contact initiating devices.
When the NO input contact of an initiating
device is closed, a supervisory signal is sent
to the control panel and the supervisory
condition is not latched at the module.
Latching: Configures the module for
normally open dry contact initiating devices.
When the NO input contact of an initiating
device is closed, a supervisory signal is sent
to the control panel and the supervisory
condition is latched at the module.
P/N 3101083 • REV 03 • REB 23JAN13
