1. Description
The CP6-RX is a metal anti-vandal proximity reader with Wiegand output,
suitable for installing indoors or outdoors and capable of reading EM, HID &
Mifare cards & fobs.
2. Packing list
Specification:
3.
• Operating voltage: 9-18Vdc
• Standby current: <25mA
• Card frequency: 125KHz (EM & HID) and 13.56MHz Mifare
• Output format: EM Wiegand 26 bits, Mifare Wiegand 34 bits, HID Wiegand 26-37
bits automatic
• Reading distance: 1-5cm
• Operating temperature: -40 to +60 °C
• Waterproof rating: IP66
• Pre-wired with 50cm cable
• Dimensions: 103 x 48 x 19mm
sales@cproxltd.com
Wiegand Proximity Reader
CP6-RX

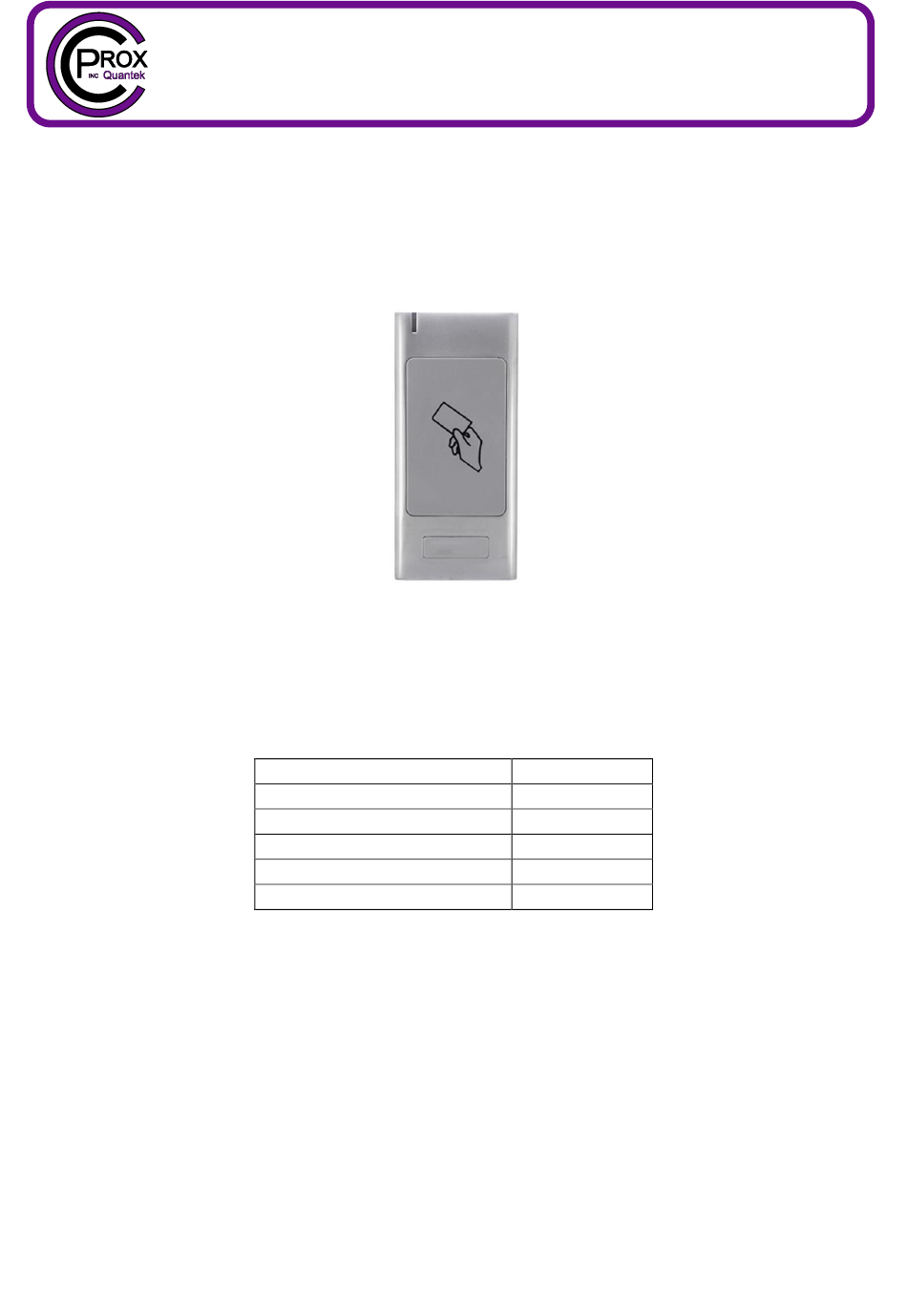

User Manual
Name
Reader
Manual
Security driver
Wall fixing plugs
Self tapping screws
www.quantek.co.uk
Quantity
1
1
1
2
2
Advertisement
Summary of Contents for Quantek C Prox CP6-RX
- Page 1 C Prox Ltd (inc Quantek) Unit 11 Callywhite Business Park, Callywhite Lane, Dronfield, S18 2XP +44(0)1246 417113 sales@cproxltd.com www.quantek.co.uk Wiegand Proximity Reader CP6-RX User Manual 1. Description The CP6-RX is a metal anti-vandal proximity reader with Wiegand output, suitable for installing indoors or outdoors and capable of reading EM, HID &...
- Page 2 4. Installation • Unscrew the backplate from the reader and use the backplate to mark the 2 fixing holes (A & C) and the cable entry hole (B). • Drill the holes using the correct sized bit. • Insert the wall plugs and fix the back plate to the wall with 2 screws.
