User's Manual of 5TH WHEEL Electric Bicycle
Mate
This QR code is a video tutorial for product installation. lt is recommended
to scan this QR code to leam more about how to use the product.
The illustrations and function descriptions in this user manual are for illustration purposes and reference only, and the products
are subject to the real product. The mentioned technical performance indicators are based on the specific experimental
environment, and the actual indicators may vary depending on the setting and environment. Do not use this product for any
illegal purpose. Some services are provided and supported by third parties, which may change at any time. Invanti does not
provide any guarantee for third-party services. Please read the terms of the third-party service and privacy policy carefully
before use.
The text and logo of INVANTI are trademarks or registered trademarks of enterprises affiliated with Invanti.
Other company, product or service names mentioned may be trademarks or registered trademarks of their respective owners.
The picture is for reference only.
© 2024 Invanti (Beijing) Technology Co., Ltd all rights reserved.
Before using the product, please read this manual.
V1.1
IMPORTANT! Read carefully and keep for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for 5th Wheel Mate EB17
Summary of Contents for 5th Wheel Mate EB17
- Page 1 Model No. EB17 Original Instructions User's Manual of 5TH WHEEL Electric Bicycle Mate This QR code is a video tutorial for product installation. lt is recommended to scan this QR code to leam more about how to use the product.
-
Page 2: Table Of Contents
Welcome Thanks for choosing the INVANTI Electric Bicycle, and experiencing the pleasure brought to you by travel and fitness. Contents Shall ride legally in accordance with the local laws and regulations in case of any special local laws and regulations. Electronic Display 1.Products &... -
Page 3: Products & Accessories
2. Precautions for Use 1. Products & Accessories Obey traffic regulations and traffic safety. Product name: INVANTI Electric Bicycle • Persons under the age of 16 are prohibited to to ride E-bike on the road; Model: EB17 • Do not lend the E-bike to persons who cannot ride to avoid injury; mplementation standard: UL2849:2020 •... -
Page 4: Operation And Use
3. Operation & Use Step2: Install the handlebar NOTICE: The following steps are only a general guide to assist in the assembly of your ebike and are ① not a complete or comprehensive manual of all aspects of assembly, maintenance, and repair. Consult ②... - Page 5 Step 3 : Install the front wheel. Step 4 : Install the pedals. Both ends of the left and right pedals are marked. First, install the right pedal by tightening the pedal clockwise. Tighten the left pedal by turning the pedal counterclockwise. Both pedals should be tightened with a torque wrench.
- Page 6 Step 6 : Install the reflector Step 8 : Start the e-bike Snap the reflector bracket onto the handlebar and tighten the screw with a cross screwdriver. Press “ ” to switch on the battery, then press and hold the “ ”...
-
Page 7: About Charging
4.About charging Protection To extend the battery life and intelligent use of li-ion battery, here are the regulations for care: Requirements on charging and discharging Please Only use the provided charger. A. Connect the power to the charger. B. Insert the charger's out-put connector to the battery's input connector. C. -
Page 8: Display Operation
Button Definition 5. Display Operation Buttons Long press Short press Press in setting mode Functional area layout Gear up Add value AVG: Average speed MAX: Maximum speed Switch display: SPEED: Real-time speed Motor Fault Power on/off Switch parameters ODO/TRIP/VOL/TIME Light indication Brake indication Push mode on/off Gear down... - Page 9 Error code indicator Headlight and Taillight on/off When a fault occurs in the electronic control system of your e-bike, the display will automatically indicate the By pressing the button “ ” , the controller will turn on the headlight and taillight ; by pressing the button “ ”...
-
Page 10: Check Before Use
6. Check before Use Adjusting the height of the seat Unlock the lever (OPEN), adjust the seat height to the desired position without ever exceeding the mark carved onto the seat's tube, lock the lever (LOCK). The seat's height must be set So that your leg is stretched out when the Final Check Before Each Ride: corresponding pedal is in the lower position. -
Page 11: Technical Parameters
7. Technical Parameters 8. Maintenance & Repair Regularly check the complete E-bike Product name Electric Bicycle • Check whether the fasteners are locked and whether the joints of various parts are normal; Model EB17 • Check whether the pattern of the outer tire is worn or cracked, whether the front and rear tire pressure is Main technical parameters appropriate (Suggested tire pressure: 35~45 psi) , and whether the drive system is smooth;... - Page 12 9.Authentication Trademark and Legal Statements INVANTI and the INVANTI logo are trademarks of Invanti (Beijing) Technology Co., Ltd，used under license. The products involved in the registered trademark of INVANTI are protected by relevant patent laws. For relevant The EU Compliance Statement is as follows: patent information, please visit the website: https://5thwheelebike.com.
- Page 13 Model No. EB17 EB17说明书 Original Instructions 服务品牌 骑马订 书型 140×140mm 尺寸 1： 1 User's Manual of 5TH WHEEL Electric Bicycle 比例 2024年4月 时间 Mate 单色 C:0 M： 0 Y:0 K： 85 颜色 技术要求： 1、 材质： 封面封底内页105g铜版纸。 2、 印刷图文颜色： 单色印刷， 不得见坑纹/黑点/褶皱/杂物， 外观整洁，...
Need help?
Do you have a question about the Mate EB17 and is the answer not in the manual?
Questions and answers

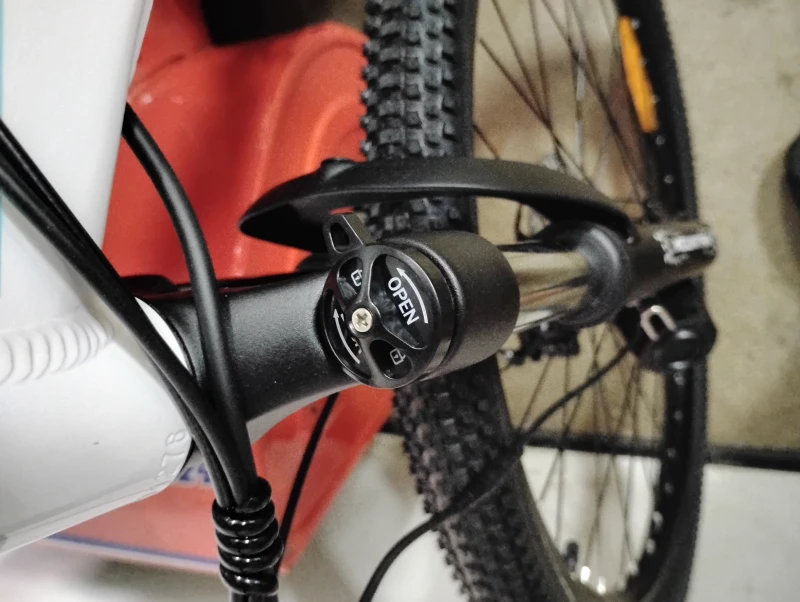

What does the locked and unlocked positions on the top of the front shocks mean? The front fork assembly is backwards, ie: headlight mount is behind the steering stem and the brake rotor is on the right side instead of the left.
