Summary of Contents for Admiral Staging L

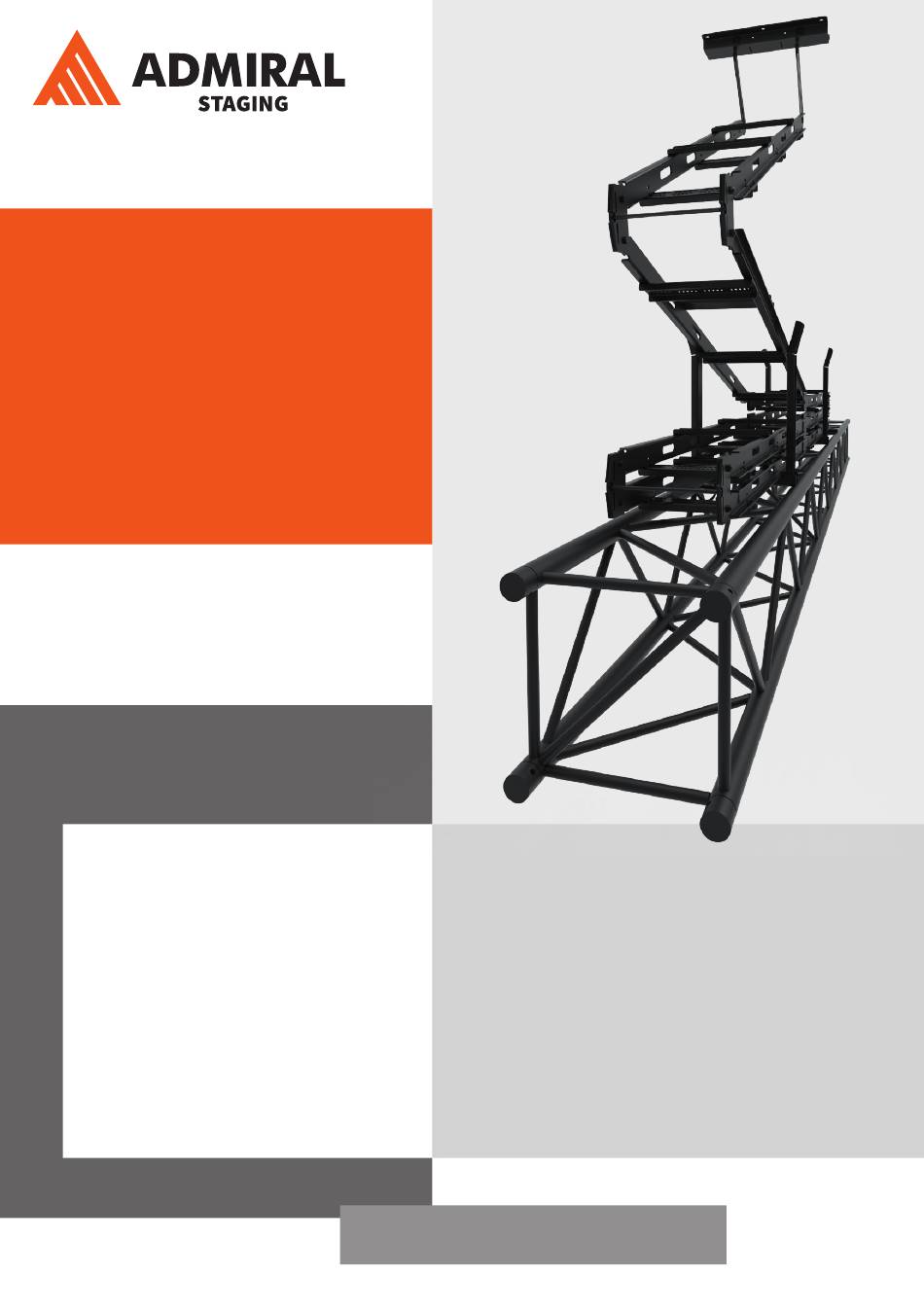

- Page 1 Original user manual L&XL CABLE GUIDES Manufacturer: Rolight Theatertechniek B.V. Josink Kolkweg 10 7545 PR Enschede, The Netherlands Phone (+31)53 432 06 44 info@rolight.nl www.rolight.nl VERSION 01 November 2024 Distributed by ADMIRAL SKU: RIKGL... RIKGXL... www.admiralstaging.com...
-
Page 2: Table Of Contents
WARNING: Indicates a hazardous situation which, if not avoided, could result in death which, if not avoided, could result in death The ADMIRAL L & XL CABLE GUIDES are used as or serious injury. or serious injury. a guide for cabling during the lifting operation of trusses or truss structures. -
Page 3: Scope
339 mm to 350 mm. • The L & XL CABLE GUIDES can be operated from The intended use of the L & XL CABLE GUIDES is to -20° up to 60° Celsius. guide power and signal cables safely and securely •... - Page 4 The support structure, on which the L & XL CABLE GUIDES are used, might need to have electric potential bonding. • Do not use the L & XL CABLE GUIDES to guide currents for electric potential bonding. • Make sure the L & XL CABLE GUIDES, supporting structure and truss are dry and free of dirt.
-
Page 5: Technical Data
5. TECHNICAL DATA Top view L guide catch arm L length part XL length part Front view Side view 253 mm 108 mm 220 mm 161 mm 54 mm 338 mm Top view 253 mm XL guide catch arm Front view... - Page 6 L cable guide base 3m - H 4.5m Article code: RIKGL304B 108 mm EAN: 8720094420981 Weight: 22.4 kg Material: hinges: steel lengths parts: aluminium Colour: black 30% gloss (RAL 9005) Finish: powder coated 3031 mm L cable guide base 3m - H 7.5m...
- Page 7 L cable guide base 3m - H 16.5m Article code: RIKGL315B 108 mm EAN: 8720094421025 Weight: 61 kg Material: hinges: steel lengths parts: aluminium Colour: black 30% gloss (RAL 9005) Finish: powder coated 3048 mm L cable guide base 3m - H 19.5m...
- Page 8 L cable guide base 4.5m - H 10.5m Article code: RIKGL410B 108 mm EAN: 8720094421131 Weight: 42 kg Material: hinges: steel lengths parts: aluminium Colour: black 30% gloss (RAL 9005) Finish: powder coated 4554 mm L cable guide base 4.5m - H 12m...
- Page 9 L cable guide base 4.5m - H 19.5m Article code: RIKGL419B 108 mm EAN: 8720094421193 Weight: 70.4 kg Material: hinges: steel lengths parts: aluminium Colour: black 30% gloss (RAL 9005) Finish: powder coated 4554 mm L cable guide base 4.5m - H 21m...
- Page 10 XL cable guide base 3m - H 4.5m Article code: RIKGXL304B 220 mm EAN: 8720094421223 Weight: 24.3 kg Material: hinges: steel lengths parts: aluminium Colour: black 30% gloss (RAL 9005) Finish: powder coated 3048 mm XL cable guide base 3m - H 7.5m Article code: RIKGXL307B 220 mm...
- Page 11 XL cable guide base 3m - H 16.5m Article code: RIKGXL315B 220 mm EAN: 8720094421322 Weight: 68 kg Material: hinges: steel lengths parts: aluminium Colour: black 30% gloss (RAL 9005) Finish: powder coated 3048 mm XL cable guide base 3m - H 19.5m Article code: RIKGXL319B 220 mm...
- Page 12 XL cable guide base 4.5m - H 10.5m Article code: RIKGXL410B 220 mm EAN: 8720094421612 Weight: 46.6 kg Material: hinges: steel lengths parts: aluminium Colour: black 30% gloss (RAL 9005) Finish: powder coated 4554 mm XL cable guide base 4.5m - H 12m Article code: RIKGXL412B 220 mm...
- Page 13 XL cable guide base 4.5m - H 19.5m Article code: RIKGXL419B 220 mm EAN: 8720094421650 Weight: 75.8 kg Material: hinges: steel lengths parts: aluminium Colour: black 30% gloss (RAL 9005) Finish: powder coated 4554 mm XL cable guide base 4.5m - H 21m Article code: RIKGXL421B 220 mm...
-
Page 14: Identification
6. IDENTIFICATION ASSEMBLY ADAPTER TRUSS 40 The L & XL CABLE GUIDES are designed to fit truss 30 as standard and can be mounted using the included U-bolts. If you are installing your L & XL CABLE GUIDE on truss 30, you can skip this section and continue to the “ASSEMBLY OF HINGES”... - Page 15 ASSEMBLY CABLE GUIDE Step 1 Place the 30 or 40 truss on the ground. Determine the position of the L & XL CABLE GUIDE on the truss. Place the catch arms ( on the truss so that they end up in the middle of the longitudinal sections each time.
-
Page 16: Storage
NOTICE To assemble an L& XL CABLE GUIDE with 8. STORAGE divider inserts, follow the setup instructions The L & XL CABLE GUIDES must be stored in a dry, provided in the Divider Insert manual. non-aggressive environment. • Make sure the parts cannot bend. -
Page 17: Maintenance & Rejection Criteria
Check welds for cracks. If cracked, replace. • The hinges consist of moving metal parts with a The L & XL CABLE GUIDES shall be checked small gap between them. These should be cleaned in compliance with the local law by a during periodic maintenance. -
Page 18: Warranty
The manufacturer is not liable for indirect conse quential damage and financial loss. • The manufacturer shall not be liable for any changes made to the L & XL CABLE GUIDES parts nor for any damage resulting from such changes. - Page 19 | www.admiralstaging.com | Josink Kolkweg 10 | 7545 PR Enschede | | The Netherlands | Tel: +31 53 4 301 201 |...
