Summary of Contents for GAS MAD M100-BT

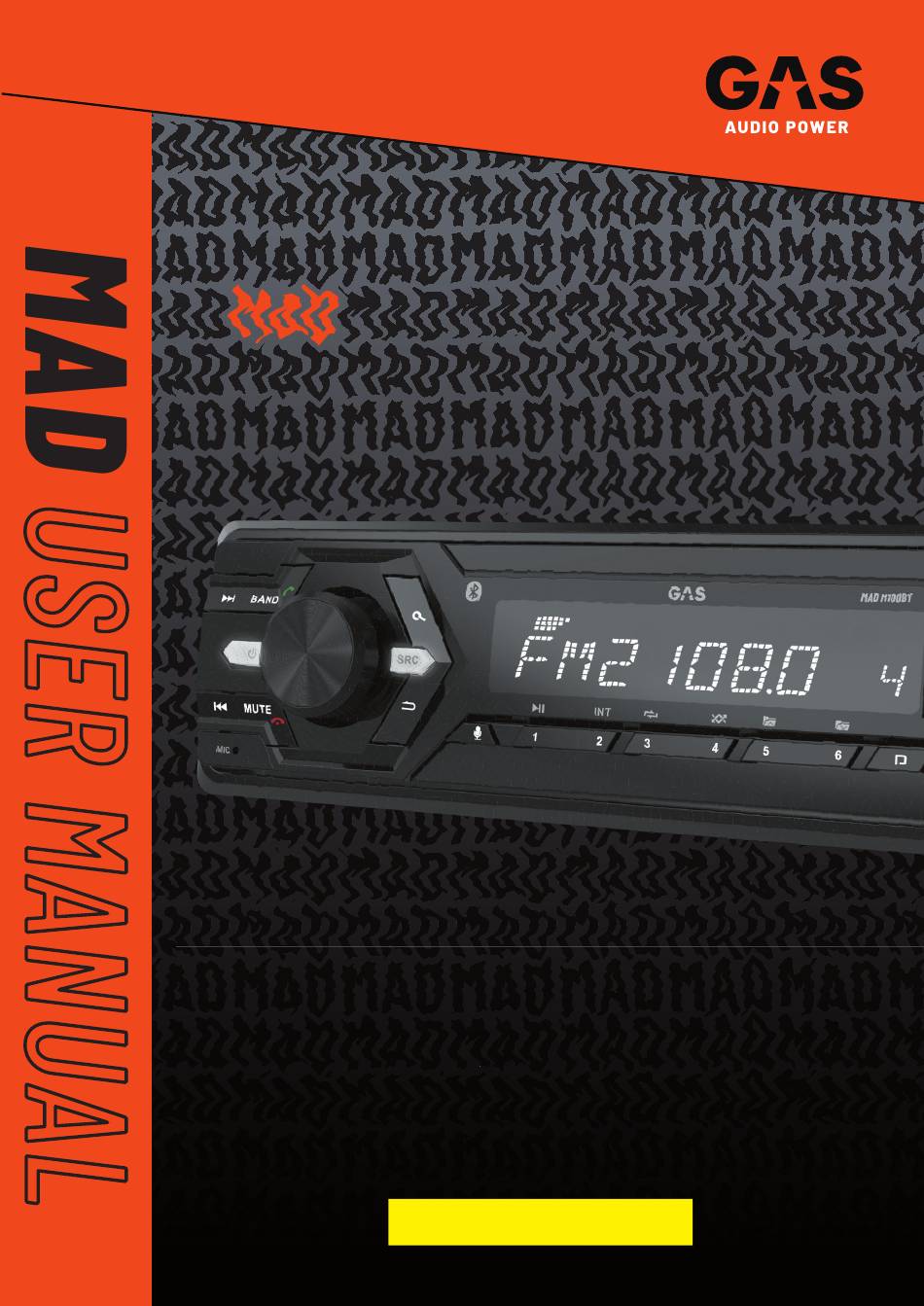

- Page 1 M100-BT MADE TO PLAY LOUD...
- Page 2 We are the NO BULLSH!T car audio brand! Every single product with the GAS logo on it is born out of passion, the same that has driven us for two generations and that will keep us rolling up to your...
-
Page 3: Table Of Contents
TABLE OF CONTENT SAFETY....................UNPACKING..................DIMENSIONS....................SPECIFICATIONS................. FUNCTIONS....................Panel key function................HOW TO......................Quick start..................Audio setting................... EQ settings..................Tuner..................Bluetooth..................System..................... TROUBLESHOOTING..................No power..................Unwanted noise................Distortion..................WARRANTY & DISPOSAL................THE GAS WORLD................... -
Page 4: Safety
There’s a first time for everything, if you need help - ask a friend or contact your local GAS AUDIO POWER dealer/installer. We want you to experience your product’s MAD sound, but we don’t want you to injure yourself or others. -
Page 5: Unpacking
UNPACKING MAD M100BT BAND MUTE DIMENSIONS... -
Page 6: Specifications
SPECIFICATIONS GENERAL AUDIO Power source 14.4V (11-16V) MAX output level 2V RMS Maximum current 15A MAX MAX power output 50W x 4ch consumption Load impedance 4 Ohm Operational temp. -10ºC to +60ºC 20Hz to 20kHz Frequency response LED backlighting 7 colors BAS -7dB / +7dB Tone Controls Illuminated buttons... -
Page 7: Functions
We want to help you and your vehicle to be as LOUD as possible. We´ve packed the head unit with a bunch of interesting features. We know you’re itching to get your new sound system going, but make sure to read through these pages - so you can get the most out of your setup! MAD M100BT BAND MUTE... - Page 8 MAD M100BT BAND MUTE Short press: Mute the sound. During phone call: End call.
-
Page 9: Quick Start
A well-built sound system will set you aside from the rest and eleavate your vehicle! It´s important that you carefully read the instructions on the following pages. This is to make sure that you use the head unit correctly, so your system is as LOUD as possible! QUICK START Press Press... - Page 10 HOW TO Storing radio station Select the desired preset with the BAND-button. Set the desired station by pressing one of the preset buttons [1]-[6] for approximately 3 seconds to store the current station at the button. Up to 6 stations can be stored in each bank (there are 3 banks), so up to 18 stations can be stored in total.
-
Page 11: How To
HOW TO AUDIO SETTINGS The audio settings make it possible to adjust the performance of the sound system. Press the Volume knob repeatedly to browse the menu and select the function you want to change. There are six different settings you can adjust. When you have selected a setting, turn the volume knob to change the value. -
Page 12: Tuner
TUNER This menu setting includes options to adjust the settings of the head unit’s FM radio. Press the Volume knob repeatedly to browse the menu and select the function you want to change. When you have selected a setting, turn the volume knob to change the value. Press the volume knob to confirm the change. -
Page 13: Bluetooth
[”PHONE”/ BAND] button on the head. To end the phone call you press the [MUTE] button on the head unit. If you wish to make a phone call directly through the MAD M100-BT head unit, press the [”PHONE”/ BAND] button on the unit to call the latest phone number in your call-log. -
Page 14: System
HOW TO SYSTEM The menu include options to adjust the unit’s system settings. Use the volume knob to browse the menu and select between the system options. Press the Volume knob repeated- ly to browse the menu and select the function you want to change. When you have selected a setting, turn the volume knob to change the value. -
Page 16: Warranty & Disposal
Alternative arrangements may apply in other jurisdictions. GAS Audio Power is a global partner of the European Mobile Media Association, an organization that focus on promoting the custom made mobile media installations to consumers. -
Page 17: The Gas World
THE GAS WORLD You’ve entered the world of GAS. We aim to please, and we’ve made sure to have products made for you. No matter what stage of the LOUD-addiction you might find yourself in, there is a GAS product to fill your need. - Page 18 THANKS FOR JOINING GAS AUDIO POWER! GAS AUDIO POWER and SHAKY are registered trademarks by Winn Scandinavia AB and is protected by relevant laws and jurisdictions such as Copyright and Trademark laws. Winn Scandinavia AB Idrottsvägen 37, 70232 Örebro, Sweden www.winnscandinavia.com Winn Scandinavia AB reserves for possible typos, factual or numeric errors that may have been printed on any products, package designs, user manuals and/or other included accessories.
