Standalone biometric access control with EM card
TW-SF7

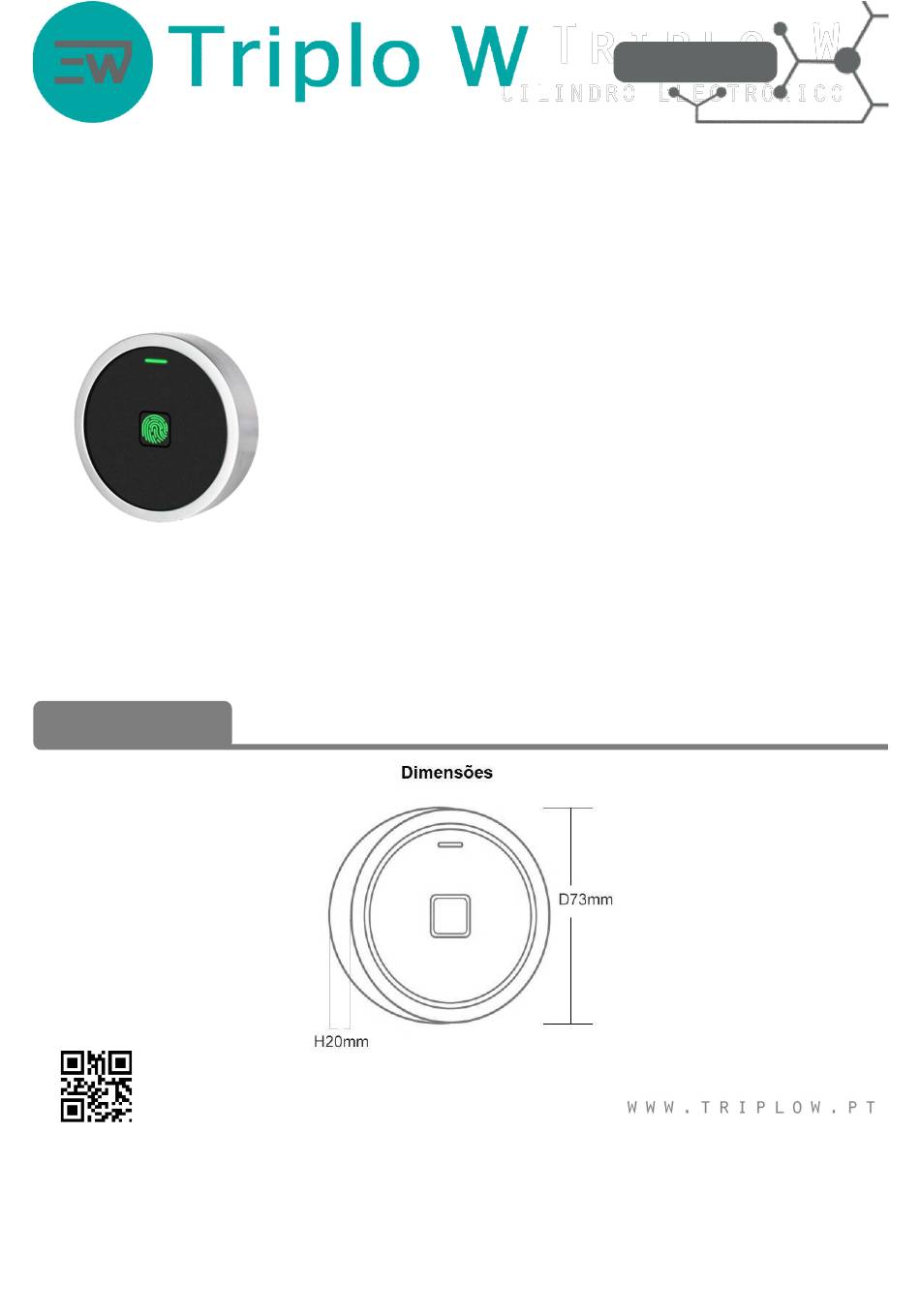

Dimensions
TECHNICAL SHEET
Metal access control, water-proof, IP66
•
Power supply: 12V DC
•
Standby current: <30mA
•
•
Capacity:
–
100 Fingerprints (capac500 DPI capacity)
–
890 RF ID 125KHz cards
Allowable operating temperature: -25 ℃ to 60 ℃
•
Dimensions
Size: 73 x 73 x 20 mm
•
Timer: 0-99 seconds
•
Invalid card/fingerprint alarm
•
Several operating modes:
•
Standalone
–
–
Toggle mode: Present the card once and the door opens, present the card again and the
door closes.
1
TW-SF7

Advertisement

loading
Need help?

Need help?

Do you have a question about the TW-SF7 and is the answer not in the manual?

Questions and answers

Summary of Contents for TRIPLO W TW-SF7

  • Page 1 TW-SF7 TECHNICAL SHEET Standalone biometric access control with EM card Metal access control, water-proof, IP66 • Power supply: 12V DC • Standby current: <30mA • • Capacity: – 100 Fingerprints (capac500 DPI capacity) – 890 RF ID 125KHz cards Allowable operating temperature: -25 ℃ to 60 ℃...
  • Page 2 TW-SF7 Material list and installation Lista de material e Instalação Programming control Screws and wall anchors Allen wrench IN4004 diode...

  • Page 3: Programming Code

    TW-SF7 Setting and Operating Mode Enter the programming mode (Programming password) # Enter the programming mode NOTE: The pre-set programming password is 123456 Exit the programming mode Press * Modify the programming mode Instruction Programming code 1. Enter the programming mode * 123456 # 2.
  • Page 4 TW-SF7 Add cards with automatic ID designation Instruction Programming code 1. Enter the programming mode * (Programming password) # 2. Add card (with automatic ID) 1 (Read card) 3. Exit the programming mode Add card with specific ID Instruction Programming code 1.
  • Page 5 TW-SF7 Timer Instruction Programming mode 1. Enter the programming mode * (Programming password) # Timer: 4 (1 to 99 seconds) # 2. Timer or Toggle mode Toggle mode (present the card once and the door opens, present the card again and the door closes): 40 # 3.
  • Page 6 TW-SF7 Resetting Unplug the power supply. Link the yellow wire to the black one (or if there is an output button, press it). Plug the power supply (with linked wires or by pressing the button) until hearing 2 beeps and the led stays in yellow.
