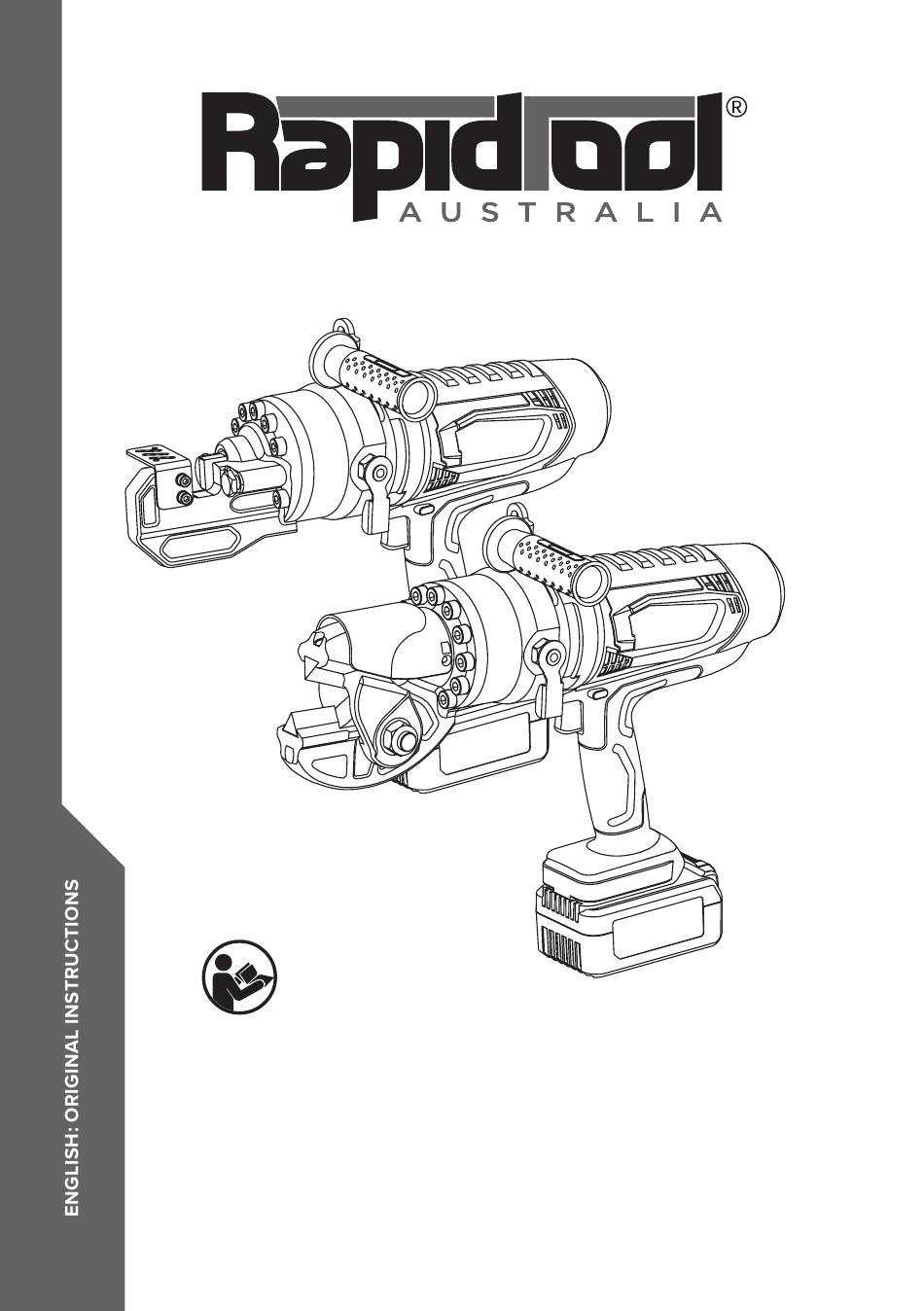

- Page 1 PREMIUM SERIES READ BEFORE USE INSTRUCTION MANUAL CORDLESS REBAR CUTTERS BRC-20X / BSC-18X V1 10/24...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Parts and Specifications 6. Cordless Rebar Cutter General Safety 2. Tool Safety Labels 7. Tool Storage 3. Intended Use 8. Battery and Charger Safe Operation 4. Disposal of Waste Electrical 9. Cordless Rebar Cutter Safe Operation and Electronic Equipment 10. -
Page 3: Tool Specifications
Applicable Battery Pack and Charger Battery Pack BA-18-5X Charger CH-18X WARNING: Only use the RAPIDTOOL battery packs and chargers listed above. Use of any other battery packs and chargers may cause injury and/or fire. Charger Specifications Battery Pack Specifications MODEL CH-18X... -
Page 4: Tool Safety Labels
Do not short battery. Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. RAPIDTOOL will not be responsible or assume Double insulation. liability for any unintended damages or personal injuries arising from negligence or due to the disregard of warnings and safety instructions Do not expose battery to water or rain. -
Page 5: Intended Use
Reference to rebar in this instruction manual includes other steel materials that meet Tool Specifications Section 1. Material hardening process may effect suitability of the tool and blades. Please contact RAPIDTOOL for confirmation your material meets design specifications. -
Page 6: General Power Tool Safety Warnings
5. GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL SAFETY WARNINGS, INSTRUCTIONS, ILLUSTRATIONS, AND SPECIFICATIONS PROVIDED WITH THIS POWER TOOL. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 7 7. If devices are provided for the connection of dust 8. Keep handles and grasping surfaces dry, clean extraction and collection facilities, ensure these and free from oil and grease. Slippery handles and are connected and properly used. Use of dust grasping surfaces do not allow for safe handling collection can reduce dust-related hazards.
-
Page 8: Cordless Rebar Cutter General Safety
6. CORDLESS REBAR CUTTER GENERAL SAFETY RAPIDTOOL cordless rebar cutter models BRC-20X The appliance is not to be used by persons (including and BSC-18X are handheld battery-operated tools. children) with reduced physical, sensory or mental Reference to the tool includes tool body, battery pack, capabilities, or lack of experience and knowledge, and charger. -
Page 9: Battery And Charger Safe Operation
Only use genuine RAPIDTOOL Battery Charger Model RT-CH-18X and RAPIDTOOL Model BA-18-5X Li-Ion type rechargeable batteries with the tool. Use of an unauthorised battery or charger may cause risk of fire, personal injury and damage. It will also void any RAPIDTOOL warranty for the tool and charger. Battery Safety Tool and battery have advanced warning protection systems and emit a sound when specific issues are encountered. -
Page 10: Battery Saving Function
Battery Saving Function The tool is equipped with a battery saving function and will automatically shut down after 10 minutes of no use. Press battery indicator button to reconnect power supply to tool before use. Installing or Removing Batteries from the Tool WARNING: •... -
Page 11: Charger Safety
(protective insulation). They have no connection to the grounded conductor. RAPIDTOOL battery charger model CH-18X should be used for charging RAPIDTOOL model BA-18-5X and BA-18-2.5X battery packs only. Use of any other battery packs may cause injury and/or fire. Extension Cord... - Page 12 5. If during charging, there is an abnormal generation resulting in fire. To avoid safety hazard, contact of heat, stop charging immediately. Continuing an authorised RAPIDTOOL service centre for charging may cause smoke, fire or explosion. assessment and replacement if charger power cord or plug is damaged.
-
Page 13: Cordless Rebar Cutter Safe Operation
If battery is too hot - remove battery WARNING: and allow to cool. Alternatively, charger cooling fan will cool battery before Indicators Meaning charging operation begins. If battery is too cold allow battery to warm Quick flashing Battery too hot red light or cold up to specified temperatures. - Page 14 Refer to Intended Use Section 3 for details. 16. Only use RAPIDTOOL approved spare parts and accessories with the tool. Using unauthorised parts and accessories may cause personal injury...
-
Page 15: Safety Features
Safety Features Safety Guards WARNING: Tool and battery have advanced warning Ensure safety guards are installed correctly before protection systems and emit a sound when use. Failure to do so can cause tool damage and specific issues are encountered. Refer to General serious personal injury to operators and bystanders. -
Page 16: Pre-Use Checks
2. Ensure trigger lock is activated. 3. Check tool for damage. Do not use a damaged tool. Contact an authorised RAPIDTOOL service centre for assessment. 4. Check battery charger power cord, extension cord and plug for damage or entanglement before use. -
Page 17: Pressure Release Valve
Pressure Release Valve BRC-20X only: (Fig. 11) 3. Ensure rebar (1) is seated flat on U-Shaped support Tools are equipped with a pressure release valve lever (4). for retracting the cutter rod if it doesn’t return to the initial cutting position. 4. -
Page 18: General Maintenance
10. GENERAL MAINTENANCE Cutter Blocks We recommend servicing machines at an authorised RAPIDTOOL service agent every 24 months or after heavy use. CAUTION: • Check and tighten loose cutter block screws CAUTION: before use. Ensure trigger lock is activated and battery removed •... - Page 19 Fig. 13: 1. Screws 2. Washers 3. Safety guard 4. Tool head 5. Cutter block 6. Cutter rod 7. Screws 8. Washers 9. Cutter block. Remove BSC-18X Cutter Blocks (Fig 14): 1. Remove top screw (1) and cutter block screw (2) from top jaw (3).
- Page 20 2. Activate trigger lock and remove battery. 3. Loosen the two screws on both sides of the safety guard to remove the safety guard before wiping any debris away from the cutter rod, top jaw and tool head area (ensure cutter rod and top jaw interface maintains sufficient lubrication).
- Page 21 Bleeding Procedure (removing air bubbles) CAUTION: Method One: Hydraulic oil is highly flammable. Keep away from 1. Stand tool vertically with head facing down. sparks and open flames. Do not smoke around Complete full cut cycle. hydraulic oil. 2. Rotate tool 180° so head is facing upwards. •...
-
Page 22: Troubleshooting
The details below highlight standard issues and remedial measures that may be carried out by the operator. For any other issues please stop using the tool immediately and contact RAPIDTOOL on +61 2 9098 8943 to arrange an authorised service centre to assist. - Page 23 Low power or speed POSSIBLE CAUSES POSSIBLE MEASURES Tool cold Perform warm up cuts (pg 16) Tool too hot Allow tool to cool Battery voltage low Charge battery (pg 11-13) Pressure relief valve open Shut pressure relief valve (pg 17) Oil level low Top up oil and bleed tool (pg 20-21) Air pocket in oil...
- Page 24 RAPIDTOOL Taren Point NSW 2229 Australia www.rapidtool.com.au © Rapid Tool Australia Pty Ltd All Rights Reserved.
