Summary of Contents for PRV Audio PS15 CLIP

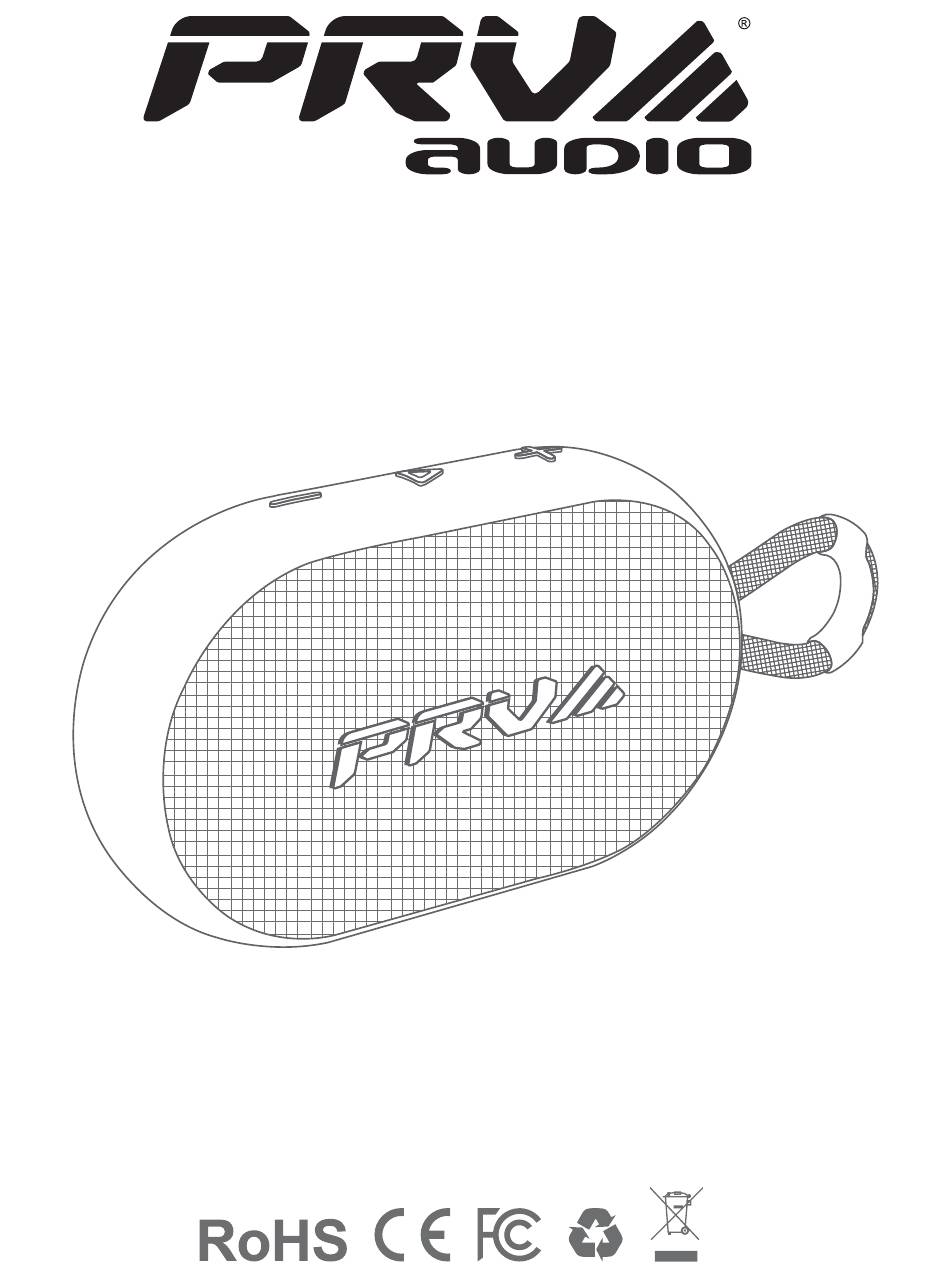

- Page 1 PS15 CLIP USER MANUAL...
- Page 2 BLUETOOTH SPEAKER AND ACCESSORIES A: Bluetooth speaker B: Type-C charging cable C: User manual D: Clip PS15 CLIP USER MANUAL...
-
Page 3: Basic Function
BASIC FUNCTION Short press 1 time: Volume - Long press 2s: Last song Long press 2s: Power on/Power o Short press 1 time: Pause/play/Pick up/Hang up the call Short press 2 times: Protect call privacy/Reject incoming calls/TWS connect/TWS disconnect Short press 3 times: Bluetooth disconnect Short press 1 time: Volume + Long press 2s: Next song... -
Page 4: Bluetooth Mode
OPERATION GUIDE 1. Power on/o Long press “ ” for 2 seconds for power on, long press pressing again to power o . 2. Bluetooth Mode After powering on, the speaker is on Bluetooth mode and automatically enters Bluetooth pairing status. The indicator light ashes blue. Turn on the Bluetooth device, search for “PRV PS15”... -
Page 5: Call Function
The speaker supports TWS connection function. Under the power-on status but no Bluetooth connection, short press “ ” button of both two “PS15 CLIP” speakers to turn on TWS pairing. There will be a voice prompt for successful pairing and the slave device's blue LED keeps on and the master one's blue LED ashes. -
Page 6: Power Saving
OPERATION GUIDE 6. Power Saving If no devices are connected within 10 minutes the speaker will turn o automatically for power-saving. 7. Charging/Power Supply Important note： Do not use power adapters without safety certi cation. It is recommended to use an adapter in output 5V/1A (or above) to charge. 1. -
Page 7: Function Guide
FUNCTION GUIDE Status indicator Bluetooth Mode: Blue Indicator Light Charging Status: Red Low Battery Status: Flashing Red... -
Page 8: Specifications
SPECIFICATIONS Product Name PS15 CLIP Bluetooth Version Battery Capacity 3.7V/2600mAh Playing Time 15 - 20 hours (50% volume) Talking Time 15 - 20 hours Charging Time 4 hours Charging Current 1.0A Speaker Unit Product Size 2.87” x 4.80” x 1.77” (73 x 122 x 45 mm) Product Weight 0.45 lb (206.5g) -
Page 9: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Q1: What kind of charger should I use for the speaker? A: All common USB 5V chargers can be used, while we suggest 5V/1A or above 1A. Q2: What if there is noise or intermittent sound during playing? A: The speaker can be normally used within 30ft (10m) under no obstruction environment. - Page 10 5. In order to protect the internal circuit and the performance of your PRV Audio PS15 Clip, we recommend to avoid using the product in an extremely cold or hot environment, such as temperature beyond the range of -23°F to 95°F (5°C to° 35°C).
