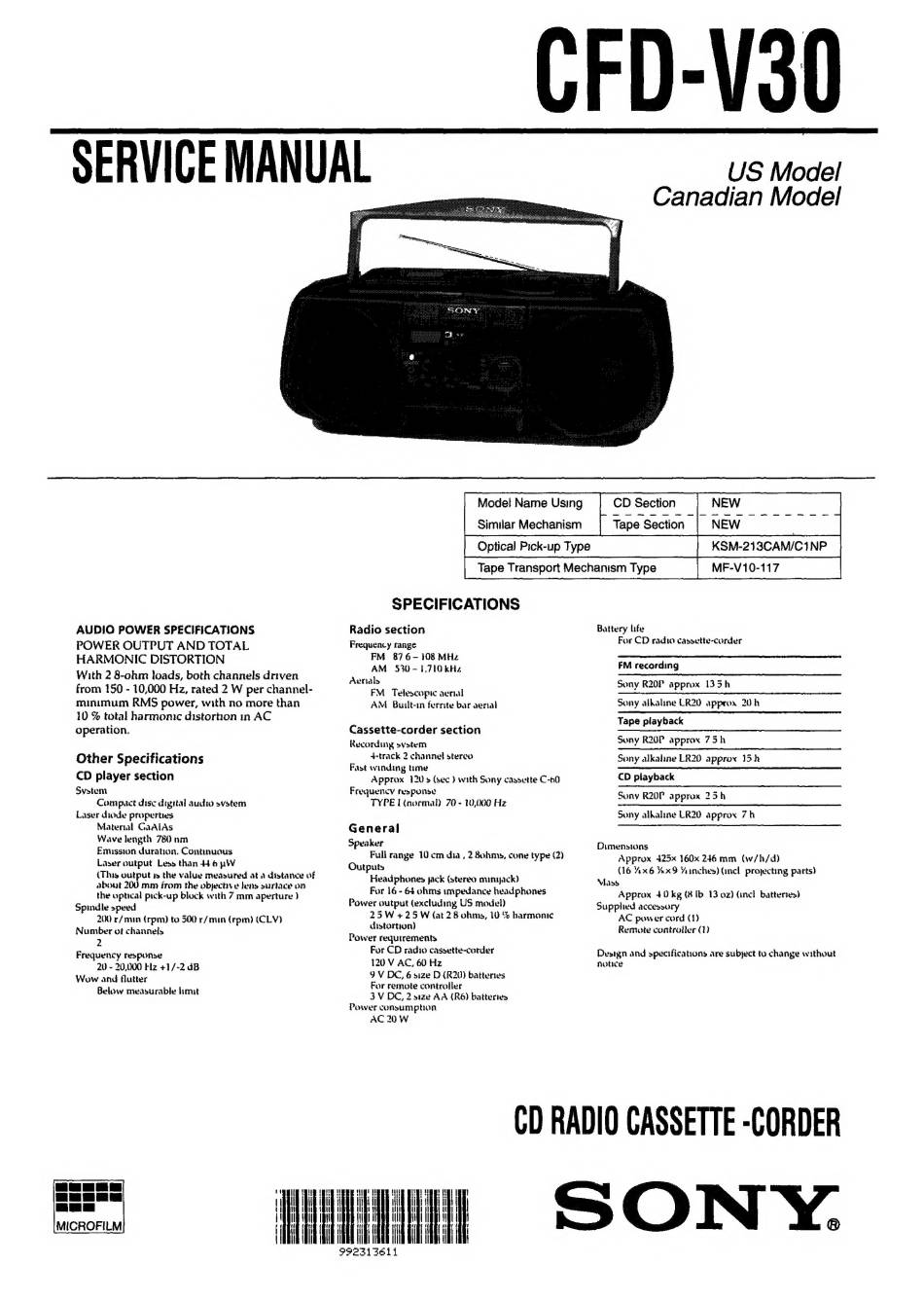

Sony CFD-V30 Service Manual

SERVICE MANUAL
CFD-V30
US Model
Canadian Model
CD Section
Tape Section
Mode! Name Using
Similar Mechanism
KSM-213CAM/C1NP
MF-V 10-117
Optical Pick-up Type
Tape Transport Mechanism Type
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 2 8-ohm loads, both channels driven
from 150 - 10,000 Hz, rated 2 W per channel-
minimum RMS power, with no more than
10 % total harmonic distornon in AC
operation.
Other Specifications
CD player section
System
Compact dise digital audio system
Laser diode properties
Maternal GaAlAs
Wave length 780 nm
Emission duration. Continuous
Laser output Less than + 6 pW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture )
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLY)
Number of channels
2
Frequency response
20 - 20,000 Hz +1/-2 dB
Wow and flutter
Below measurable limit
| vy i) it |
it IPL
at AR AG AG
oeesiae 1
SPECIFICATIONS
Radio section
Frequency range
FM 876-108 MHz
AM 530- 1,710 kHz
Aerials
FM. Telescopic aerial
AM Built-in ferrite bar aerial
Cassette-corder section
Recording svstem
4-track 2 channel sterco
Fast winding time
Approx 120 5 (sec ) with Sony cassette C-60
Frequency response
TYPE L(normal) 70 - 10,000 Hz
General
Speaker
Full range 10 cm dia , 2 8ohms, cone type (2)
Outputs
Headphones jack (stereo minyack)
For 16 - 64 ohms impedance headphones
Power output (excluding US model)
25 W +25 W (at 28 ohms, 10 % harmonic
distortion)
Power requirements
For CD radio cassette-corder
120 V AC, 60 Hz
9 V DC, 6 size D (R20) battenes
For remote controller
3 V DC, 2 size AA (R6) batteries
Power consumption
AC 20 W
Battery life
For CD radio cassette-corder
FM recording
Sony R20P approx 135h
Sony alkaline LR20 approx 20h
Tape playback
Sony R20P approx 75h
Sony alkahne LR20 approx 15h
CD playback
Sony R20P approx 23h
Sony alkaline LR20 approx 7h
Dimensions
Approx 425x 160x 246 mm (w/h/d)
(16 %x6 %*x9 Yinches) (incl projecting pacts)
Mavs
Approx 40 kg (8 Ib 13 oz) (incl batteries)
Supplied accessury
AC power cord (1)
Remote controller Q)
Design and specifications are subject to change without
notice
CD RADIO CASSETTE -CORDER
SONY.
