SMITH SYSTEM FLOWFORM PLAY ROCKET SHIP Assembly Instructions

Download this manual

Assembly Instructions

FLOWFORM PLAY – ROCKET SHIP

• Check that all components are accounted for and undamaged before assembling.

• Please assemble the product in a clean and dry area.

• Clean the product with a mild cleaner and a damp cloth.

Document #: 179089

If you have damaged or missing components,

please contact customer service at 1-800-328-1061

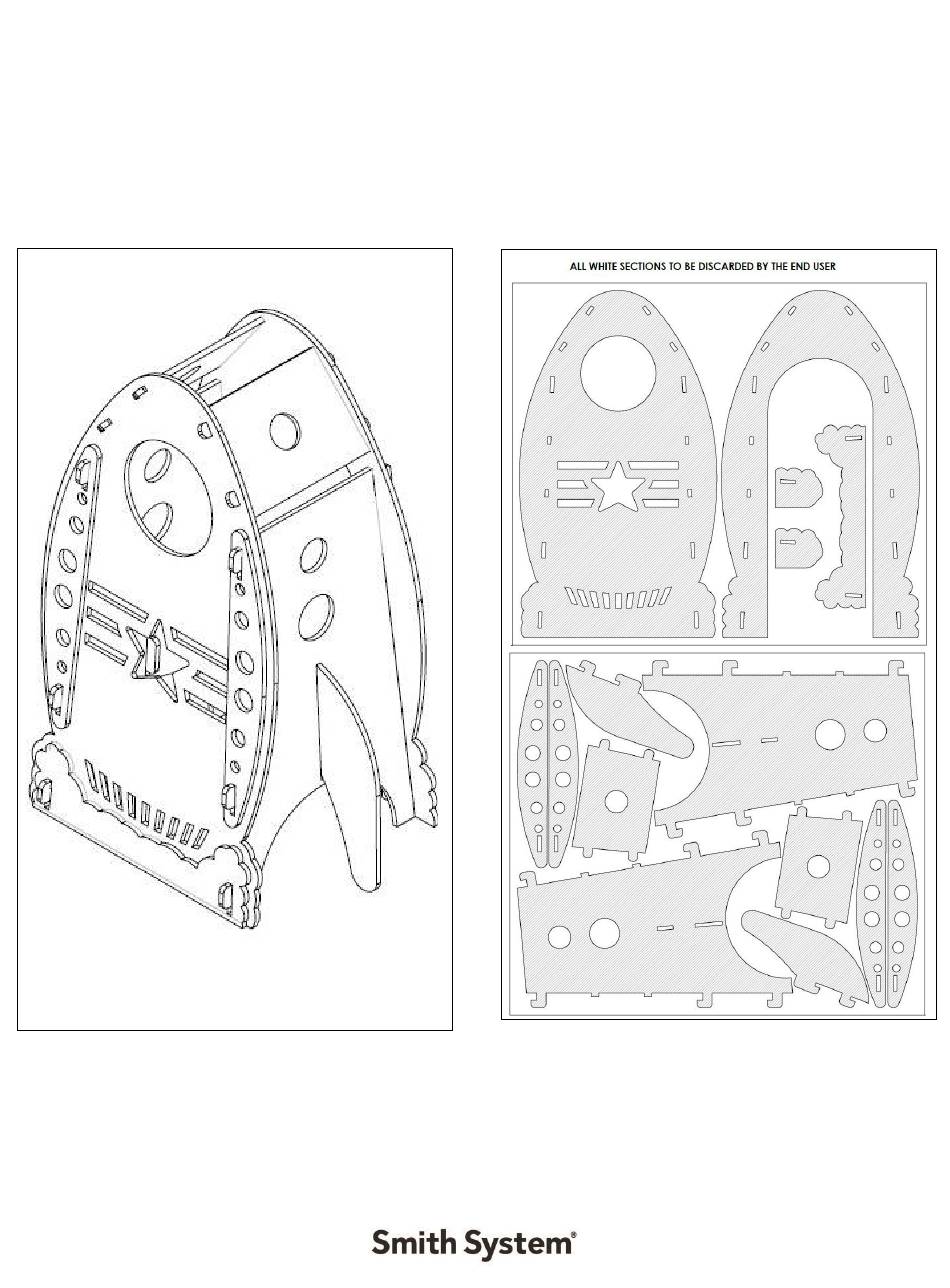

Components

PANEL A

PANEL B

REVISED: 10/2024

Need help?

Do you have a question about the FLOWFORM PLAY ROCKET SHIP and is the answer not in the manual?

Page 1 Assembly Instructions FLOWFORM PLAY – ROCKET SHIP Components PANEL A PANEL B • Check that all components are accounted for and undamaged before assembling. • Please assemble the product in a clean and dry area. • Clean the product with a mild cleaner and a damp cloth. If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179089...
Page 2 Assembly Instructions 1. Remove all PET felt sections shown in white on the supplied model specific maps. Take care when removing the components, the felt components can bend and crease if handled roughly. 2. Align the mating geometry as shown, the parts should mate without gaps. 3.
Page 3: Correct Orientation
Assembly Instructions 6. Install the 4x connectors from panel B, push over the nubs then push down to lock the connector in place. Note, the large gap on the connector must be facing up. Correct Orientation 5. Install the lower connectors by pushing over the nubs then pushdown to lock the connector in place.
Page 4 Assembly Instructions 6. Install the 2x fins by pushing the fins nubs into the slots and sliding the fins up ASSEMBLY COMPLETE Document #: 179089 REVISED: 10/2024...
Page 5 FLOWFORM PLAY – ROCKET SHIP - 55056...

55056
