WMS Sensor Splitter AP
Operating and installation instructions
General information

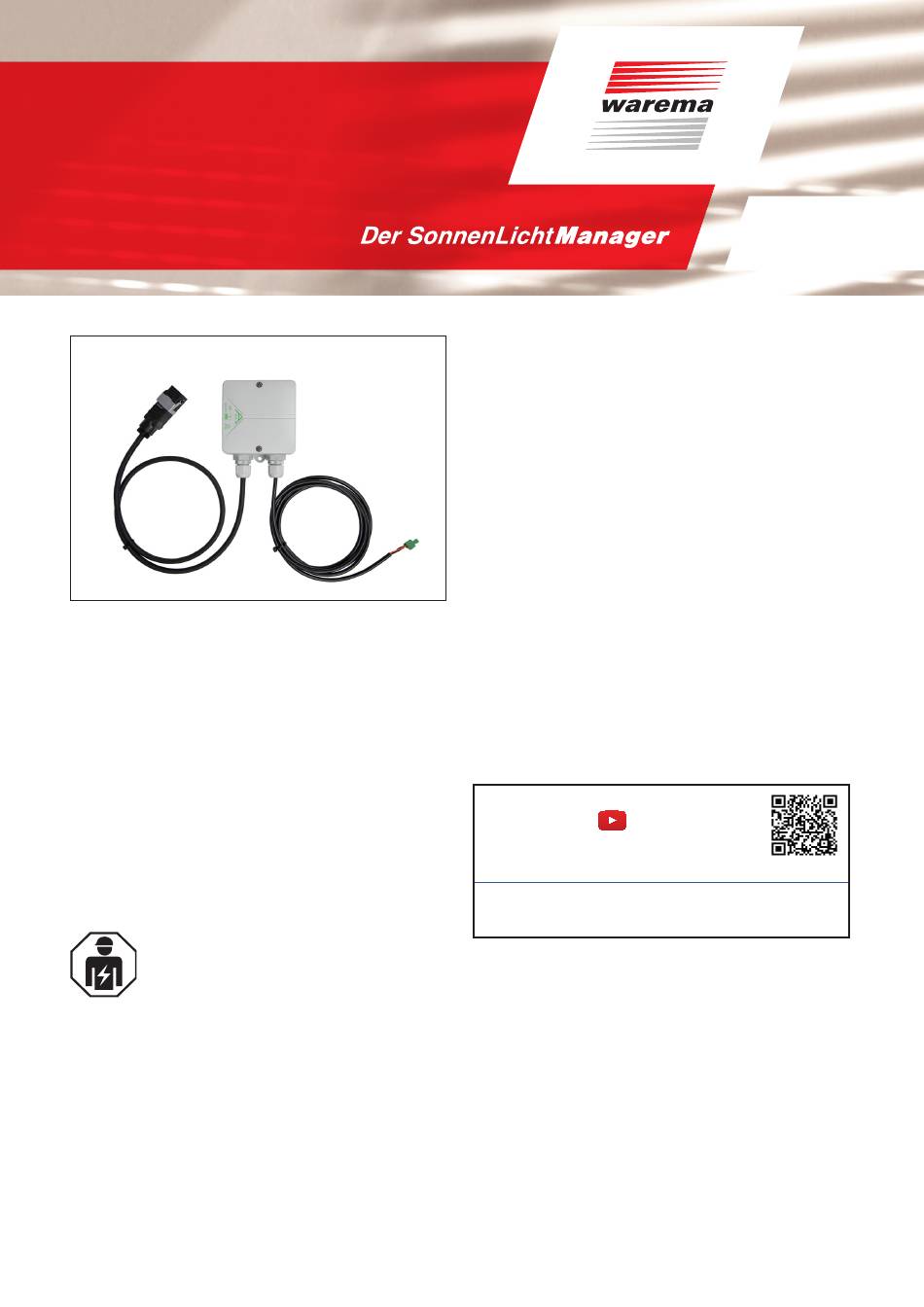

Fig. 1
WMS Sensor Splitter AP
The WMS Sensor Splitter AP is a surface-mounted device
that allows weather data to be transmitted from a weather
station multisense to the WMS network. To do this, the
WMS Sensor Splitter AP is connected to the weather
station multisense.
Intended use
The WMS Sensor Splitter AP is an electronic device
for forwarding weather data and thus controlling WMS
receivers. Any use other than the purpose described in
these instructions requires approval from the manufacturer.
Safety instructions
These instructions address persons mounting, wiring or
connecting the WMS Sensor Splitter AP and all necessary
parts. Please contact your specialist dealer if you need
additional information.
WARNING
The electrical installation (assembly)/
dismantling must be performed by a cer-
tified electrician in accordance with VDE
0100 and/or with the standards and legal
requirements of the country in which the
device is being installed. The electrician
must observe the installation notes and
instructions included with the electrical
devices supplied.
warema_2046989_alhb_en_v1•2022-04-01
Due to both the legal regulations for radio systems and
structural factors, the operating range of radio remote
controls is limited. Sufficient radio reception must be
ensured when planning the project. This is especially the
case where the radio signal has to pass through walls
and ceilings. The control should not be installed in the
immediate vicinity of metal components (steel beams,
reinforced concrete, fire doors).
Therefore, check that the receiver is functioning
properly before the final installation.
Strong local transmitter systems (e.g. WLAN) with
transmission frequencies identical to those of the control
may interfere with reception.
Installation
This device is designed for outdoor surface installation.
Electrical connection
An on-site overload current protection device (fuse) and a
disconnecting and isolating switch to switch off the entire
unit must be provided.
The unit is electrically connected according to the wiring
diagram on the reverse (Fig. 2 on page 4).
Commissioning
You can find instruction videos on our
YouTube channel
at:
http://www.youtube.com/user/SonnenLichtManager/videos
Commissioning is done via the
WMS studio pro PC software!
We reserve the right to make technical modifications
Valid from
1 April 2022
Keep for future use.
1
