SUPPLIED ACCESSORIES
This unit comes with the following accessories. Please confirm that
all the accessories are included.
P
Remote Control
(NF104UD)
INSTRUCCIONES EN ESPAÑOL INCLUDAS
IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING
AFTER READING OWNER'S MANUAL,
PLEASE CALL TOLL FREE 1-800-605-8610 OR VISIT OUR WEB SITE AT
http://www.funai-corp.com
I
I
I
P
P
AA batteries x 2
Owner's Manual
(1EMN21760)
PLEASE READ BEFORE USING THIS EQUIPMENT

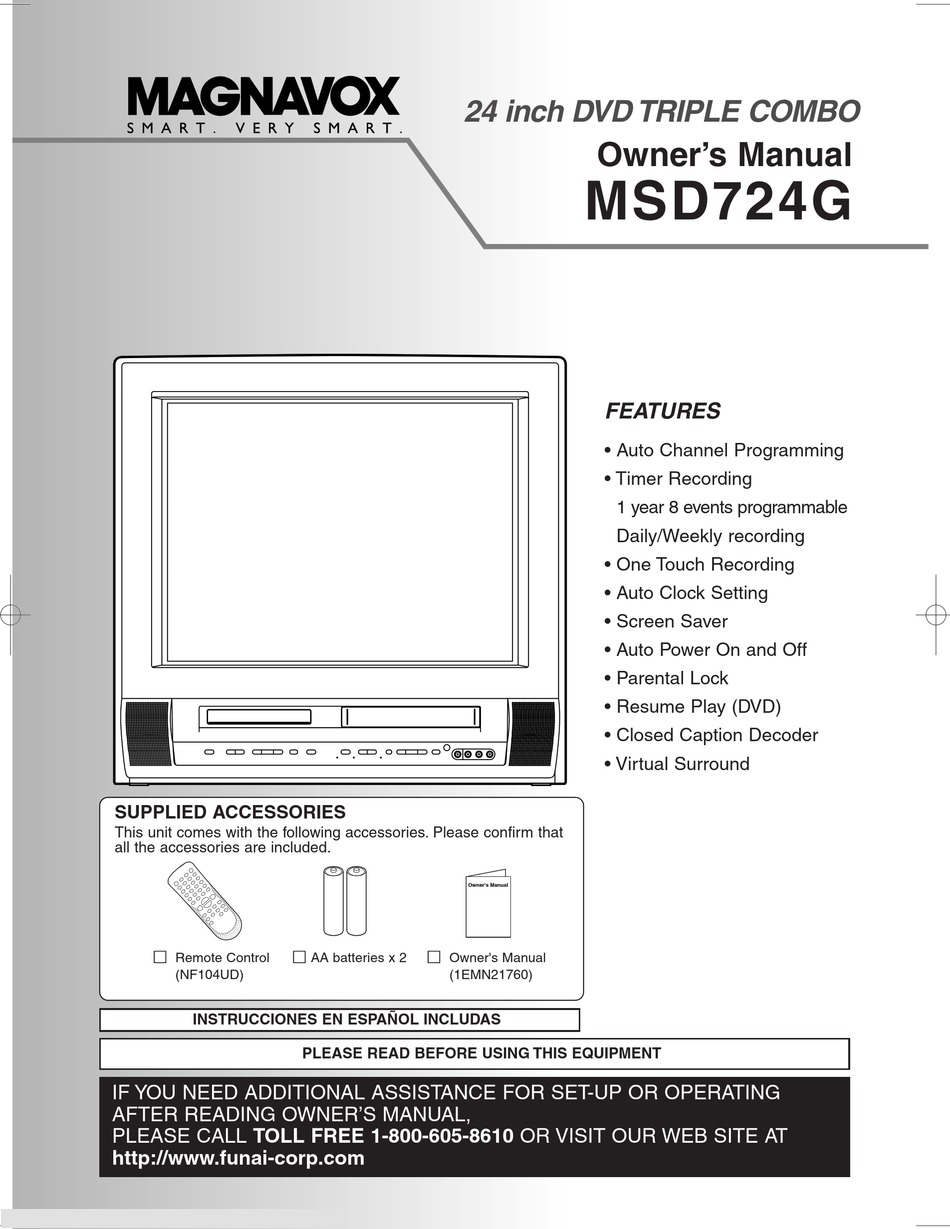

24 inch DVD TRIPLE COMBO
Owner's Manual
MSD724G
FEATURES
• Auto Channel Programming
• Timer Recording
1 year 8 events programmable
Daily/Weekly recording
• One Touch Recording
• Auto Clock Setting
• Screen Saver
• Auto Power On and Off
• Parental Lock
• Resume Play (DVD)
• Closed Caption Decoder
• Virtual Surround
Owner's Manual
Advertisement
Chapters
Table of Contents
Related Manuals for Magnavox MSD724G
Summary of Contents for Magnavox MSD724G
- Page 1 24 inch DVD TRIPLE COMBO Owner’s Manual MSD724G FEATURES • Auto Channel Programming • Timer Recording 1 year 8 events programmable Daily/Weekly recording • One Touch Recording • Auto Clock Setting • Screen Saver • Auto Power On and Off •...
-
