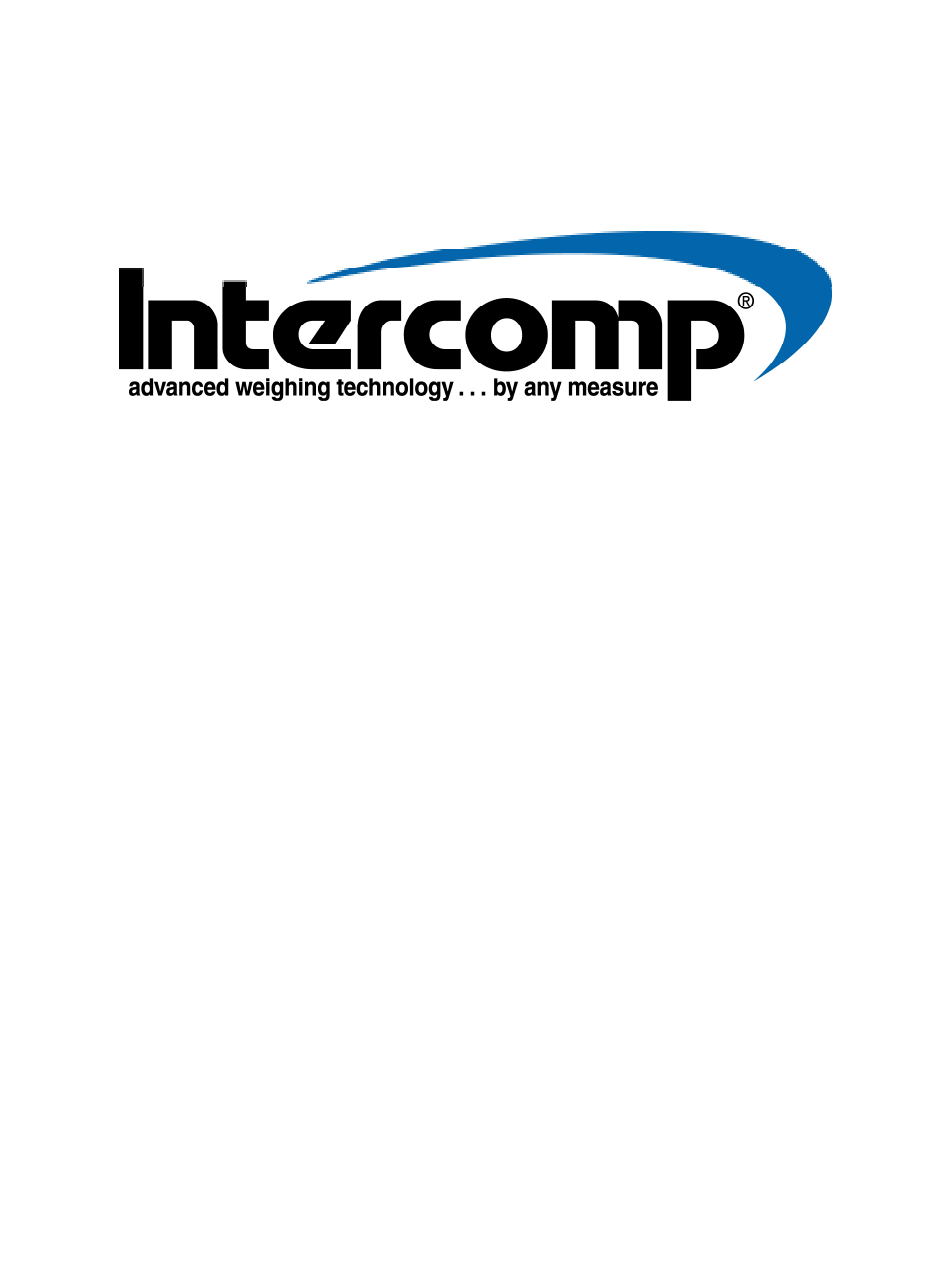

Tire Pyrometer / Timer
Users Manual
Intercomp Co.
3839 County Road 116
Medina, MN 55340, U.S.A.
(763)-476-2531
1-800-328-3336
Fax: 763-476-2613
www.intercompracing.com
Manual #: 700176-G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 102034 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intercomp 102034

  • Page 1 Tire Pyrometer / Timer Users Manual Intercomp Co. 3839 County Road 116 Medina, MN 55340, U.S.A. (763)-476-2531 1-800-328-3336 Fax: 763-476-2613 www.intercompracing.com Manual #: 700176-G...
  • Page 2: Table Of Contents

    POWER BATTERIES .............................. 24 HOW TO REACH INTERCOMP SERVICE ......................25 "This document is the property of Intercomp Co. It contains material and information that is confidential and protected under federal and/or state trade secret, unfair competition, and copyright law. Any reproduction, use or disclosure without written permission from Intercomp Co.
  • Page 3: Declaration Of Conformity

    The related technical construction files are held for inspection in the U.K. at Intercomp Europe Limited. The CE mark and WEEE marks must be affixed as required in the directives.
  • Page 4: Introduction

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Introduction This manual contains specifications and operating instructions for the Tire Pyrometer / Timer system. Specifications Controls General: On/Off, Mode, Read, Store Memory, Clear Memory, Print, backlight, Clear Display, Re-Read, Right Front, Right Rear, Left Rear, Left Front, numerical keypad Displays (2): 2 X 24 X 0.22”...
  • Page 5: Display

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Display Contrast To adjust the contrast of either display press the keys simultaneously. To decrease the contrast of the top display press and to increase the contrast press . To decrease the contrast of the bottom display press and to increase the contrast press To save the contrast settings of both displays, press the...
  • Page 6: Tire Pyrometer

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Tire Pyrometer Tire Temperatures (with averages) This Mode will take three readings per tire and display 3 averages on the bottom of both displays. 220 223 248 213 243 245 234 (+ 6) °F 230 204 222 240...
  • Page 7 Tire Pyrometer / Timer Users Manual Rev G, October 2008 7. When the right side readings are complete, the “TEMPS SAVED” message will be displayed and the LR tire is ready to be measured. 8. After the left side readings have been measured, the display will show either 6 right with 2 right Averages or 6 left with 2 left averages and will toggle about every 3 seconds.
  • Page 8: Tire Temperatures (4 Fronts)

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Tire Temperatures (4 fronts) This mode allows 4 readings on each of the front tires and three readings on the rear two tires. 211 243 255 222 223 248 204 222 240 230 232 244 2 center readings 1.
  • Page 9: Store Memory

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 7. When the left front readings are complete, the “TEMPS SAVED” message will be displayed and the LR tire is ready to be measured. 8. After the left side readings have been measured, the measurements displayed (either the 8 front or the 6 rear) will be toggled about every 3 seconds.
  • Page 10: Averages

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Averages After tire temperatures have been taken or recalled from memory, go to the Average Mode by pressing MODE and then the ‘3’ key. This display will show the following averages: FRONT: 186 RIGHT: 171 °F LEFT:...
  • Page 11: Switch From °Cor °F

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Switch from ° ° ° ° C or ° ° ° ° F To toggle from °C to °F or vice versa, press MODE and then press ‘5’. The temperature unit setting will be saved in memory and the Tire Pyrometer will return to Normal Mode.
  • Page 12: Brake Mode

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Brake Mode The brake mode is designed for use with the brake probe (part #: 360026). You may also use this mode with the standard tire probe if you wish to only take one reading per tire. Brake Mode (with averages) This Mode will show 1 brake temperature per tire and display the averages and compute the biases and show the average temperature difference between front and back brakes..
  • Page 13: Brake Temperatures (No Averages)

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 beeps when the measurement is stable enough to be taken. Make sure you wait for this to happen before removing the probe from the tire. If you feel you have taken a bad reading or made a mistake while reading, you may press RE-READ to back up one positionWhen you have completed taking your set of readings you may wish to store your readings in one of the 10 brake memory banks.
  • Page 14: Store Memory

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 happen before removing the probe from the tire. If you feel you have taken a bad reading or made a mistake while reading, you may press RE-READ to back up one position. 7.
  • Page 15: Averages

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Averages Once brake temperatures have been taken or recalled from memory, go to the Average Mode by pressing MODE and then the ‘3’ key. This display will show the following: FRONT: 1050 RIGHT: 1176 °F LEFT: 1067 REAR: 1194 BR...
  • Page 16: Switch From °Cor °F

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Switch from ° ° ° ° C or ° ° ° ° F To toggle from °C to °F or vice versa, press MODE and then press ‘5’. The temperature unit setting will be saved in memory and the Tire Pyrometer will return to brake Mode.
  • Page 17: Lap Timer

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Lap Timer To get into Lap Timer mode press MODE and then ‘6’. The Tire Pyrometer has 4 independent lap timers that can be displayed all at once. To start one of the four lap timers, press the corresponding number (1-4) on the numeric keypad.
  • Page 18: Clear Lap Time

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 Clear lap time To clear a car’s lap time (while in lap timer mode) press the CLEAR DISPLAY key. The Tire Pyrometer will display “CLEAR THE LAP TIMES OF WHICH CAR NUMBER?, ENTER 1-4 TO CLEAR (ANY OTHER KEY TO EXIT)”.
  • Page 19: General Operations

    Serial Output The Intercomp Tire Pyrometer may be connected to a printer, computer, or other RS-232 accepting device. The output receptacle is located on the bottom and accepts 3.5mm stereo mini-plugs. The outer ring is GND, the middle ring is TXD, and the center post is CTS. NOTE: The CTS signal is only required when the baud rate is set to 1200.
  • Page 20 Tire Pyrometer / Timer Users Manual Rev G, October 2008 Tire Tire (4 fronts) INTERCOMP, U.S.A. INTERCOMP, U.S.A. TEL: 763-476-2531 TEL: 763-476-2531 DEG F INSIDE CENTER OUTSIDE INSIDE CENTER OUTSIDE LF AVG: 212 DEG F LR AVG: 209 RF AVG: 160...
  • Page 21 Tire Pyrometer / Timer Users Manual Rev G, October 2008 Lap Timer INTERCOMP, U.S.A. TEL: 763-476-2531 ***CAR #1*** 1 min 2.56 sec 1 min 12.67 sec 1 min 22.50 sec 1 min 5.66 sec up to 100 laps LAP 100: 2 min 3.90 sec...
  • Page 22: Hyperterminal Software

    Tire Pyrometer / Timer Users Manual Rev G, October 2008 HyperTerminal Software There is software available that will read and display RS232 serial data. Microsoft Windows 95, 98, and NT include a software program called HyperTerminal. Usually this program is started by this sequence: Start Menu→ Programs→ Accessories→ HyperTerminal→...
  • Page 23 Tire Pyrometer / Timer Users Manual Rev G, October 2008 To output data to HyperTerminal press PRINT. Note: Nothing will print if you do not have data saved or laps recorded. To save your connection settings, go to File→ Save As. Page 23 of 25...
  • Page 24: Power Batteries

    Rev G, October 2008 Power Batteries Intercomp recommends using a 9VDC alkaline cell in the Tire Pyrometer. The battery cover is located on the bottom side of the Tire Pyrometer. Slide it off to replace the 9V cell. If the battery power is low, the top display will flash “*** LOW BATTERY ***”. If the battery level becomes too low the Tire Pyrometer will shut down.
  • Page 25: How To Reach Intercomp Service

    What is the version #? (The version number is displayed for 2 seconds during power-up.) For Intercomp Service call or fax: FAX # (763)-476-2613 (763)-476-2531 1-800-328-3336 or fill out Service Support Form at : www.intercompcompany.com Copyright Intercomp Company    2008 ALL RIGHTS RESERVED Page 25 of 25...
