GENLED Acolyte Flexible BackLyte Installation Manual

WARNINGS
Light Surface
Min. Bending Radius:
2.95 in. (75 mm)
x
Don't over-fold BackLyte

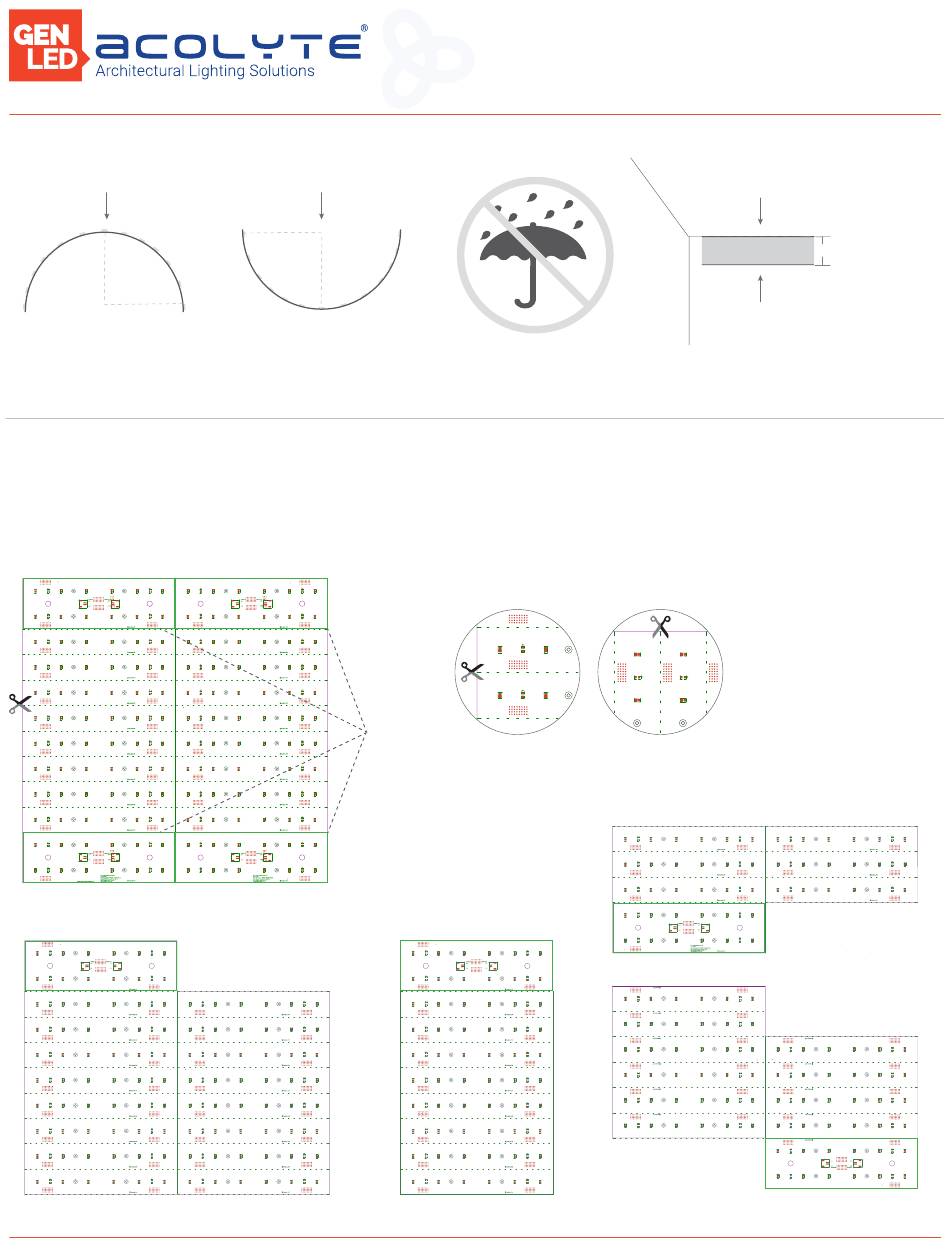

TRIMMING AND INPUT CORNERS
* The Flexible BackLyte can be trimmed into the desired shape along the dotted lines and be powered up with any one of
the 4 power input corners. Any of the 4 power input corners (outlined in green) can supply power to the entire sheet of
Flexible BackLyte. See examples below:
Acolyte | Architectural Lighting Solutions
Light Surface
Min. Bending Radius:
2.95 in. (75 mm)
x
Don't over-fold BackLyte
Power
Input
Corners
Example 1
F L E X I B L E B A C K L Y T E I N S T A L L A T I O N G U I D E
Protection Rating: IP20
Cut along the dotted lines
Example 3
Acolyte is a quality division of GENLED
Tech Support: (+1) 212 629 6830 *301
Tech@GENLEDBrands.com
Light Surface
≥ 3.15 in. (80 mm)
Acrylic Surface
Recommended distance from BackLyte to
polycarbonate/acrylic surface ≥80mm
Brands™ | www.GENLEDBrands.com/Acolyte |
Example 4
Example 2
Page 1
