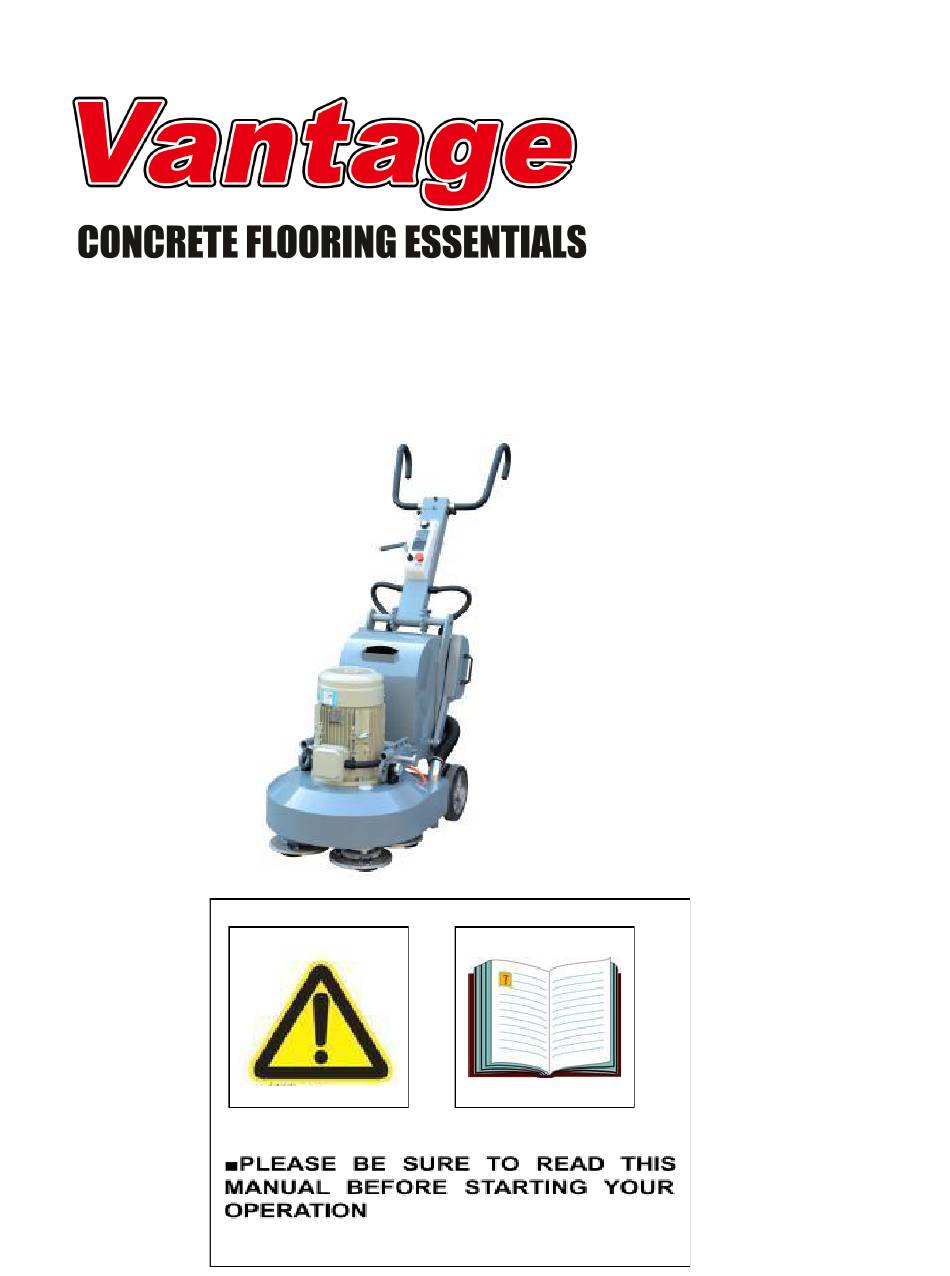

- Page 1 Operator’s Manual FG-4H25-P INDUSTRIAL VACUUM...
-
Page 2: Model Specifications
Operating Manual FG-4H25-P FG-4H25-P GRINDER Operating Manual This book has important information for use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your concrete Grinder could result in injury to you or other personnel, damage to the machine or to other property could occur as well. - Page 3 Operating Manual FG-4H25-P FG-4H25-P Parts Description Picture 1-800-822-1801 www.vantageproductsinc.com...
- Page 4 Operating Manual FG-4H25-P 1-800-822-1801 www.vantageproductsinc.com...
- Page 5 Operating Manual FG-4H25-P 1-800-822-1801 www.vantageproductsinc.com...
- Page 6 Operating Manual FG-4H25-P 1-800-822-1801 www.vantageproductsinc.com...
-
Page 7: Main Feature
Operating Manual FG-4H25-P Main feature： Aluminum casting gear box, better quality with good looking as well Each gear box has an individual series number The motors and inverters are global well-known brands Stainless steel water tank With an external vacuum port Components through precision lathe processing With emergency stop button and forwarder/reverse button etc. - Page 8 Operating Manual FG-4H25-P Lay the machine back to the floor slowly to let the grinding pads reach the floor. (Please lay lightly). Put the added weight down to the back of the machine, and wear the dust-band. Fix the power supply wire. (Safety operation) Hold the machine handle, pull out the bolt, then pull and push the handle adjuster bar to adjust the handle in a proper position for operation, fix the handle by the bolt at last.
-
Page 9: Specification Table
Operating Manual FG-4H25-P Function The products are specialized for marble, granite, artificial stone, terrazzo etc stone floor, they are the advanced construction equipment specialize in renewing, grinding, polishing and crystallize the floor. They are high in efficiency and low in labor intensity. - Page 10 Operating Manual FG-4H25-P Attention for using Warning: To safely use the machine, please take care and comply with below mention; Don’t let a person who can’t understand and operate correctly; take the instructions with a machine often. 1. Before operation Under the condition of rain outside, wet places and places where the water and oil easily come into the interior of the machine please don’t use the machine utterly to avoid...
- Page 11 Operating Manual FG-4H25-P Damage, bad operation check ATTENTION: Please let the people who get certificate of electrical equipment operation confirm power supply, check, adjust and repair the wiring and electric motor parts. Checking place Relevant solution 1. If power supply for the machine is 1.Confirm if the power supply with power...
- Page 12 Operating Manual FG-4H25-P 5. If the connect point loosen, and 1. Power line pull badly will cause inner wire cutoff. wiring cutoff 2. Please confirm by power on test. 3. Don’t connect by resolution using the naked rubber plug, when connecting the power supply plate.
- Page 13 Operating Manual FG-4H25-P 1-800-822-1801 www.vantageproductsinc.com...
- Page 14 Operating Manual FG-4H25-P 1-800-822-1801 www.vantageproductsinc.com...
- Page 15 Operating Manual FG-4H25-P Daily check and maintenance and regular Maintenance To use the machine under the good condition, please take careful check and To use the machine under the good condition, please take careful check and maintenance as below. Checking time...
- Page 16 Operating Manual FG-4H25-P Check the electric equipment of electric motors witch etc Check 6、Check and replace the velcro Replace 7、Check and adjust the elasticity of conveyor belt and replace Check Replace 8、Overhaul and maintenance *Check Remarks：Where the check and replacement mark with "*" all need the conduct of expertise, so please contact with our technical department.
- Page 17 Operating Manual FG-4H25-P 1-800-822-1801 www.vantageproductsinc.com...
