Summary of Contents for OGI FUN 400

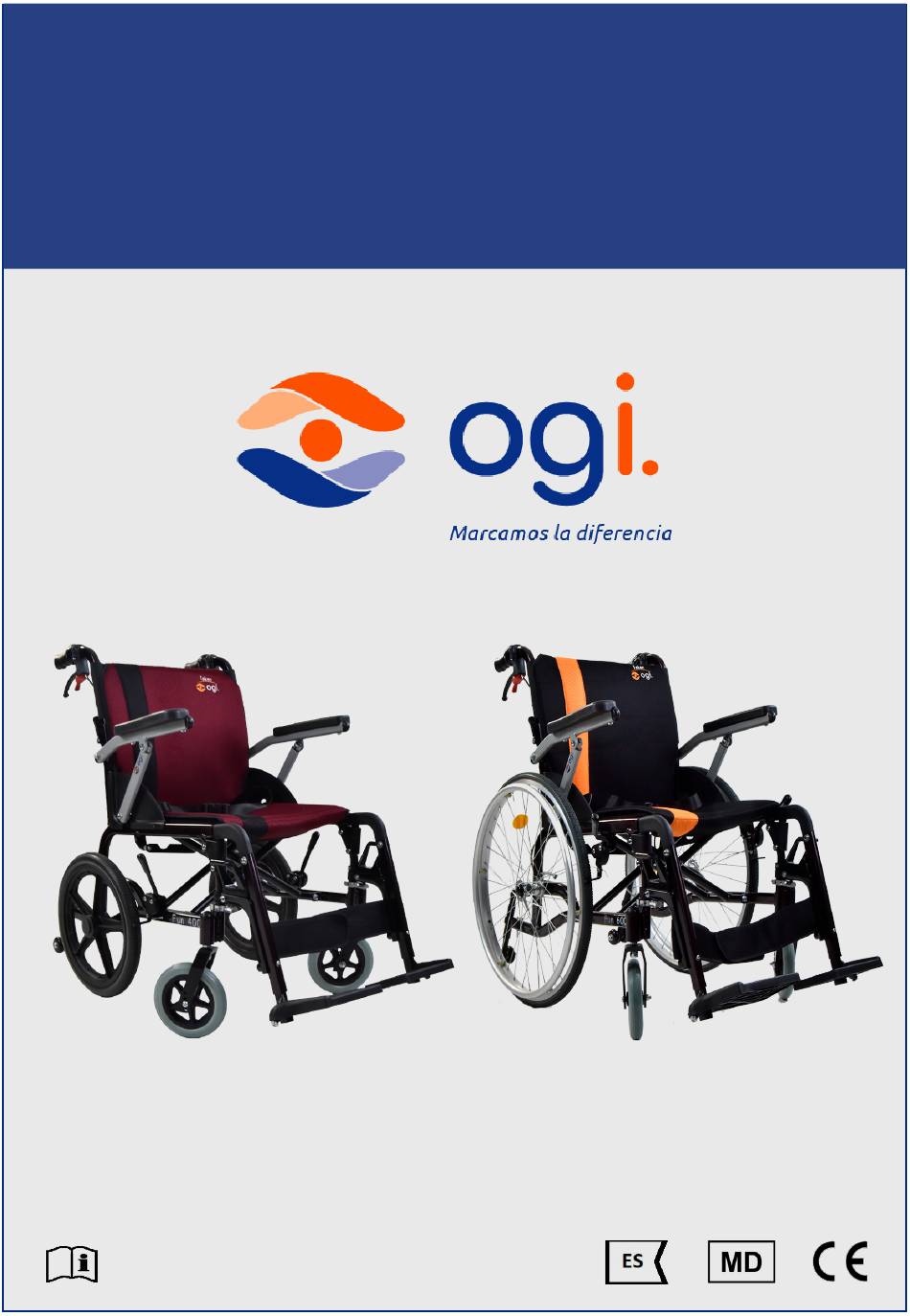

- Page 1 OGI FUN Aluminum wheelchair Manual de instrucciones Last updated 01/25...
-
Page 2: Table Of Contents
Pueden existir pequeñas variaciones estéticas debido a actualizaciones de modelo que no afectarán ni a la utilidad ni al funcionamiento del producto. TABLE OF CONTENTS OGI FUN SERIES PACKAGE CONTENTS PARTS LISTING TECHNICAL DATA BACKREST FOLDING... - Page 3 SAFETY BELT ADJUSTMENT CURB CLIMBING SAFETY INSTRUCTIONS ACCIDENT NOTIFICATION CLEANING AND CARE MAINTENANCE STORAGE REPAIR WASTE DISPOSAL DECLARATION OF CONFORMITY DISCLAIMER WARRANTY...
-
Page 4: Ogi Fun Series
OGI FUN SERIES The OGI FUN model, available in two versions—“OGI FUN 400” and “OGI FUN 600QR”— has been designed to meet the needs of each user. This product is also intended as a support for rehabilitation therapies, thanks to its flip-up function, which includes foldable armrests and a split backrest. -
Page 5: Wheelchair Parts
WHEELCHAIR PARTS... -
Page 6: Technical Data
TECHNICAL DATA MODEL OGI FUN 400 OGI FUN 600 QR SIZE AND WEIGHT LENGTH 95 cm ± 0,5 cm 104 cm ± 0,5 cm TOTAL LENGTH 85 cm 95 cm (WITH FOLDED FOOTRESTS) TOTAL LENGTH 69 cm 80 cm (WITHOUT FOOTRESTS) TOTAL HEIGHT 92 ±... - Page 7 MODEL OGI FUN 400 OGI FUN 600 QR COMPONENTS FRAME Aluminum UPHOLSTERY Black nylon with a gray stripe. Optional seat cushion ARMRESTS Foldable BACKREST Foldable backrest Removable, height-adjustable, with outward-folding footplates FOOTREST Weight: 1.6 kg BRAKE Dual: on companion handles and hand-operated on the rear wheels FRONT WHEEL 7”...
-
Page 8: Folding The Backrest
FOLDING THE BACKREST • Press both black levers located at the middle height of the tubes on each side of the backrest to unlock the backrest folding mechanism. Hold the backrest and fold it backward. • To return the backrest to its original position, lift it until it is vertical. You will hear a click, indicating that the levers have locked the backrest back into place. -
Page 9: Using The User And Companion Brakes
Release the lever to release the wheel. • OGI FUN is equipped with a wheel auto-lock function. To activate it, press the small red lever (Image 2) downward until you hear a click. The wheels will remain locked without needing to hold the brake lever. -
Page 10: Armrest Adjustment
SWINGING AWAY THE FOOTREST • The footrests of the OGI FUN are swingable both inward and outward. To do so, unlock the footrest by pulling up the handle (Image 1). While holding the handle, rotate the footrest inward or outward as needed (Image 2). -
Page 11: Installing And Removing The Footrest
INSTALLING AND REMOVING THE FOOTRESTS • The footrests are installed on the wheelchair using two key components: the locking piece (Image 1) and the crescent-shaped piece (Image 2). • To begin, ensure the locking piece is properly aligned with the designated hole, while the crescent piece fits onto the chassis tube. -
Page 12: Swinging Away The Footplates
SWINGING AWAY THE FOOTPLATES • The footrest plates are swingable outwards. This way, they do not reduce the available space for the legs and help reduce the total length of the wheelchair. • To fold them, simply push the plate outward with your foot or hand. You will notice how the plate aligns parallel to the footrest tube of the wheelchair. -
Page 13: Soft-Cushion
Dry the item by laying it flat on a surface to prevent deformation. Do not twist or wring out. Do not iron. QUICK-RELEASE SYSTEM (OGI FUN 600QR) The OGI FUN 600QR model allows for easy, quick removal of the rear wheel without the need for tools. •... -
Page 14: Safety Belt Adjustment
SAFETY BELT ADJUSTMENT The wheelchair’s safety belt is factory-fitted. The function of the safety belt is to restrict sliding and provide cushioning, preventing the user from sliding forward. During use, the belt can be adjusted for the user’s comfort. In the event of an accident, the belt will securely hold the user in the seat, preventing secondary injuries from any type of collision. -
Page 15: Safety Precautions
SAFETY PRECAUTIONS • Do not allow children to play with the packaging. • This product is not a toy. Keep it out of reach of children. There is a risk of choking and injury from tipping. • Avoid leaning or bending while seated in the wheelchair. There is a risk of tipping over. - Page 16 • The wheelchair is designed for both indoor and outdoor use, but only on solid and even surfaces. Do not use it on roads. Always use sidewalks or designated pedestrian pathways. Exercise extreme caution. • Navigating on icy, wet, oily, or uneven surfaces increases the risk of falls.
-
Page 17: Accident Notification
ACCIDENT NOTIFICATION The Medical Devices Regulation (MDR) 2017/745 and Appendix 9 state the following: The manufacturer “will encourage users or persons specifically responsible for reporting incidents related to medical devices that meet the criteria of this Directive to report the incidents to the manufacturer and/or the competent authority, in accordance with applicable national laws and regulations.”... -
Page 18: Repair
REPAIR For any operational issues, defects, or repair needs, contact our Authorized Technical Service. Request and use only replacement parts provided by the manufacturer. Do not repair or modify the wheelchair without the authorization of our technical department. Doing so may cause further damage. WASTE DISPOSAL The product can typically be removed by your distributor after consulting with them. -
Page 19: Warranty
WARRANTY Ortho Global Ideas adheres to the regulations of Royal Decree 7/2021 on warranties, which covers all material and/or manufacturing defects in the event of non-conformity of its product. WARRANTY CONTENT UNDER RD 7/2021 In any case, the consumer warranty will be processed by the seller (business entity) for the end user. This warranty does not cover claims for repair or replacement of the product or product parts for the following reasons: 1. - Page 20 PROOF OF DELIVERY for the user MODEL: I, ___________________________________ SERIAL/BATCH NUMBER: _____________________________________ with ID _____________________________, DATE OF PURCHASE: have inspected the product and I confirm that it is in conformity. INVOICE NUMBER: It has been received in good condition and in accordance with the specifications NAME, ADDRESS, PHONE NUMBER, AND EMAIL OF THE COMPANY: agreed upon on date...
