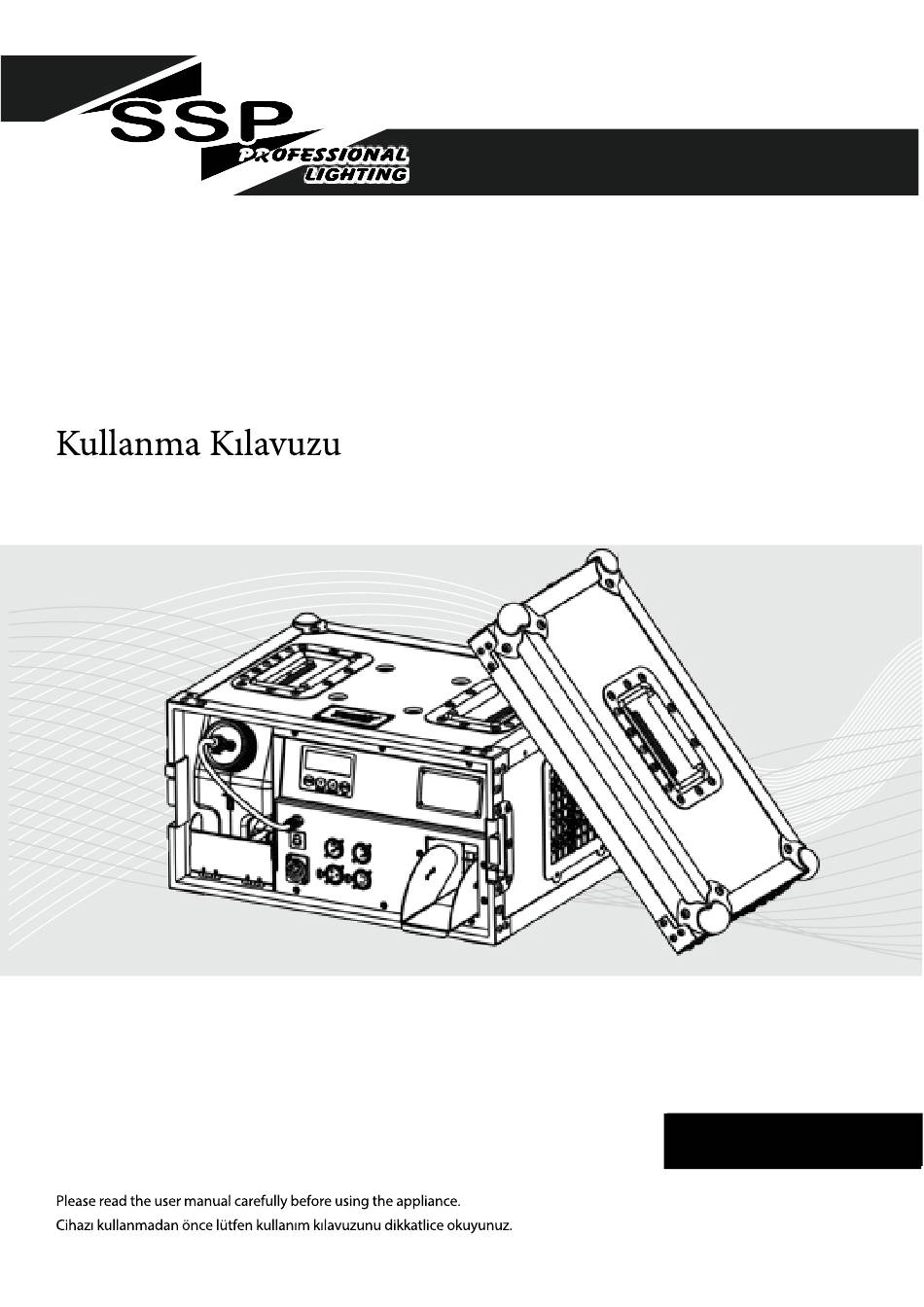

- Page 1 H-3 PRO HAZE MACHINE User’s Manual English Pro Haze Machine...
- Page 2 Introduction H-3 is a top of the range water-based haze machine designed for the highly demanding professional market. It comes pre built-in aluminum alloy flight case and can be stacked one on another.
- Page 3 If any parts appear damaged or mishandled from shipping, please do not power on the machine. Contact with the shipper immediately. What is included 1 x H-3 PRO Haze Machine 1 x Power Cord 1 x User Manual Installation After ensuring all the accessories are intact, position the machine on a flat surface, and open the cover of the road case in front.
- Page 4 UP and DOWN button to change the address. There are two DMX channels. Channel 1: Fan output. 0~5 OFF; 6~255 increase Channel 2: Haze output. 0~5 OFF; 6~255 increase Service and Maintenance Please use fluid. It will prolong the lifetime of machines. To avoid SSP Lighting www.sspworld.com...
- Page 5 515/475/330 mm Consumable: PRO-C 、 PRO-J Product Overview Flightcase Quick Lock Lifting Hole Fluid Container Door Latch Safety Door Fluid Inlet Breaker Power Socket 3-pin DMX Socket 5-pin DMX Socket Nozzle LCD Display 6 7 8 9 10 SSP Lighting www.sspworld.com...
- Page 6 When the nozzle being fixed well, there are three adjustable angles. Schematic diagram of hook Fix hook seats with pliers Fog machine fluid blowout and heater blocking phenomenon analysis Please use the original consumables, protect your health and life of machine SSP Lighting www.sspworld.com...
- Page 7 Pipeline has covered by dirt, that heat transfer result in water-spraying. results in blocked heater. Dirty covered on Dirty covered on pipeline. pipeline. Fluid can not receive all heat. Fluid can not pass. Fig 1 Fig 2 SSP Lighting www.sspworld.com...
