ER4-001-Y
User Manual
Version 1.4 ENG
Product information and support:

Advertisement

loading
Need help?

Need help?

Do you have a question about the YOYOPower ER4-001 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for YOYOMOTION YOYOPower ER4-001 Series

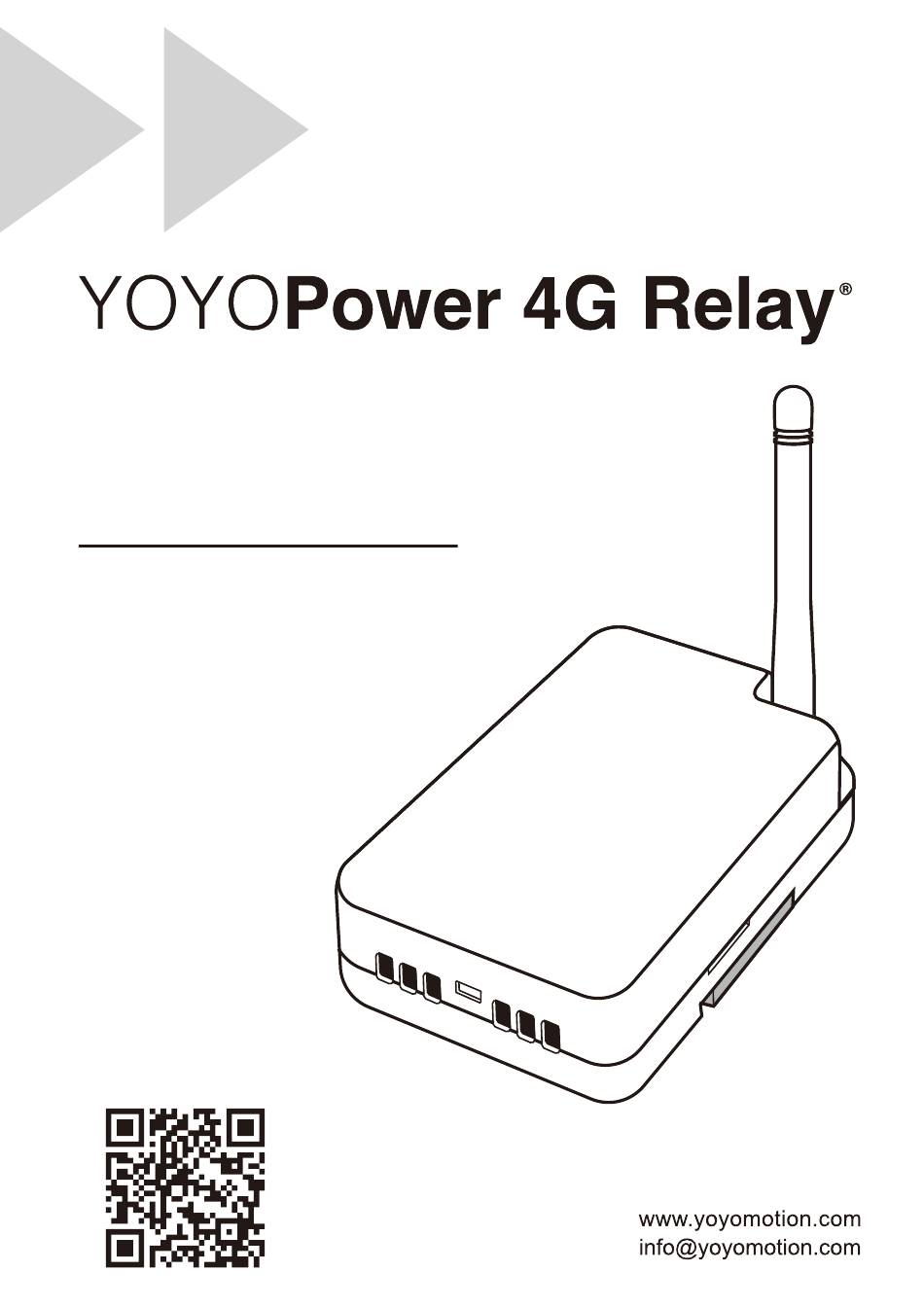

  • Page 1 ER4-001-Y User Manual Version 1.4 ENG Product information and support:...
  • Page 2 Control of high- and low-voltage circuits remotely, automatically or with sensors. YOYOPower 4G Relay (ER4) is designed in a box format. It can be mounted on a wall or on a DIN rail in an electrical cabinet. It has screw terminals for con- necting two electrical circuits (either 5-24V or 110-230V) and a wired sensor (NO/NC type) as well as a socket for a temperature sensor on cable (included).
  • Page 3: Main Technical Specifications

    CONTENT 1 Get to know YOYOPower 4G Relay 1.1 Kit content 1.2 Status indicators 1.3 Ports 2 Prepare YOYOPower 2.1 Install the SIM-card 2.2 Power up the device 3 Start using YOYOPower 3.1 Register the Master and activate the device 3.2 Add User phone numbers 3.3 Connect and configure an optional Wired Sensor 3.4 Rename Line 1 and Line 2...
  • Page 4 1 Get to know YOYOPower 4G Relay 1.1 Kit content 4G Relaybox Temperature sensor Power adaptor Mounting plate Figure 1.1...
  • Page 5: Status Indicators

    1.2 Status indicators Antenna Network indicator Line 2 indicator Line 1 indicator Figure 1.2 LED indicator Behaviour Status Connected to mobile network Slow transitions and in standby Slow flash (once/sec) Searching for mobile network Network - SIM card error - Network connection failed Fast flash (twice/sec) - Processing…...
  • Page 6 1.3 Ports Reset button Line 2 Temp sensor 12V DC input 12V DC output (For wired sensor power supply) Line 1 NO/NC Wired sensor input SIM card slot Figure 1.3: connectors and ports (cover removed) 1.3.1 Ports for control of electrical circuits YOYOPower 4G Relay can support and control two electrical circuits.
  • Page 7 NC Open / NO Closed NO Open / NC Closed COM2 COM1 Line 2 Line 1 Figure 1.3.1: Line 1 is in NO mode (NO and COM are connected) and Line 2 is in NC mode (NC and COM are connected) 1.3.2 Ports for power supply and sensors NO/NC 12V DC 200 mA OUT...
  • Page 8: Install The Sim Card

    2 Prepare YOYOPower 2.1 Install the SIM-card 1.Hold the SIM card with the golden contacts facing downwards 2.Insert the SIM card gently with the short end that has a cut corner first, until you feel a spring pressing back. 3.Push the SIM card a little further until the SIM locks into place with a click.
  • Page 13 Minutes Minutes Minutes Minutes Minutes Minutes...
  • Page 14 Day: one digit, 0-9 (see table below)
  • Page 19 By default, YOYOPower notifies by SMS when a connected wired sensor triggers. These notifications can be turned OFF or ON by SMS commands. By default, the wired sensor triggers when the sensor circuit “closes” (connect i.e. changes from open to closed) and when it “opens” (disconnect, i.e. changes from closed to open).
  • Page 28 Power Supply 12V AC / DC 1A Latching relay Relay type 16A 250V AC Connections Terminal block wiring Operating temperature -10℃~+35℃ Store temperature -20℃~+60℃ Relative humidity 10-90%,without condensation Temperature -30℃~100℃ Sensor, measuring range “Mini” format, SMS service required Cat1 4G LTE bands LTE FDD: B1, B3, B5, B7, B8, B20 LTE TDD: B40 900MHz,1800Mhz...
  • Page 29 ER4-001-Y © Copyright, Aug 2024, Yoyomotion AB. All rights reserved. Subject to change without notice. Rev 20240831...
