iPro Rack User Interface
The iPro Rack is a unit controller designed to manage compressors, fans, and control valves used in refrigeration systems. The Visograph user
interface allows for navigation and acquisition of system information. This guide provides an overview of the information provided by the
Visograph user interface.

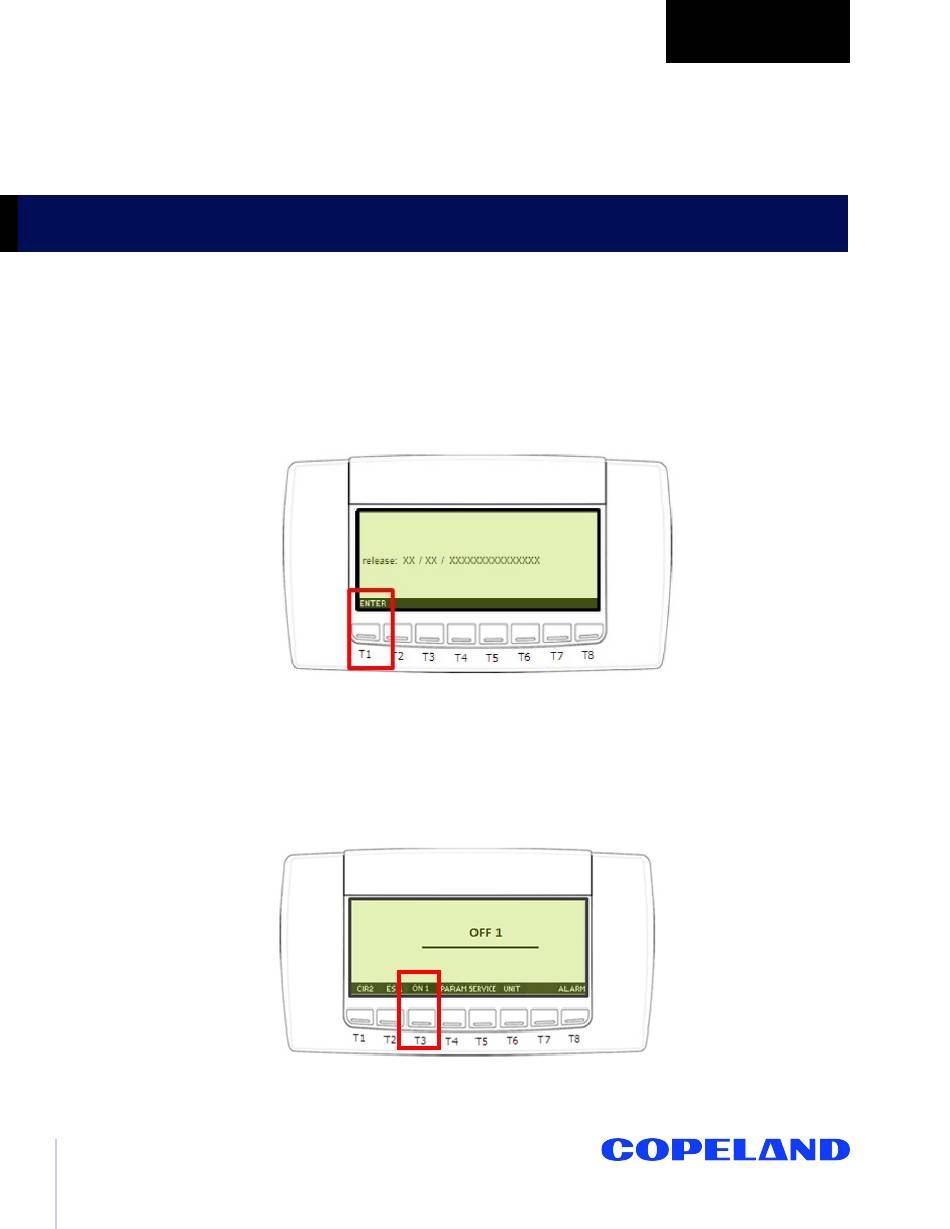

STEP 1: Enter the Top Screen
To enter the main screen to access system status and navigation, press T1 under the ENTER prompt.
STEP 2: Activate the Application
If the application is inactive, press and hold T3 under the ON 1 prompt for five seconds.
026-4962 R1
©2024 Copeland LP.
Figure 1 - Top Screen
Figure 2 - Inactive Application
QUICK START GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the iPro Rack and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Copeland iPro Rack

Summary of Contents for Copeland iPro Rack

  • Page 1 Rack User Interface The iPro Rack is a unit controller designed to manage compressors, fans, and control valves used in refrigeration systems. The Visograph user interface allows for navigation and acquisition of system information. This guide provides an overview of the information provided by the Visograph user interface.
  • Page 2 Digital unloader active capacity Suction pressure, Suction set point d. Number of fans running / Number of fans available Variable speed fan capacity Temperature differential, Temperature differential set point g. Compressor alarms active Fan alarms active Navigation buttons 026-4962 R1 ©2024 Copeland LP.

  • Page 3: Step 4: View Active Alarms

    T5 under the Service prompt. The list below defines what is available in the service menu. To enter any service submenu, scroll over the desired menu with arrow keys T1/T2/T4/T5 and press T3 under the Enter prompt. Figure 6 - Service Menu 026-4962 R1 ©2024 Copeland LP.
  • Page 4 Scroll to the ANALOG OUTPUTS menu using the T1/T2 keys, then press ENTER (T3). Figure 8 - Analog Outputs Menu • Column A - Analog output designation • Column B - Configuration of analog output • Column C - Value of analog output (0-100%) 026-4962 R1 ©2024 Copeland LP.
  • Page 5 Scroll to the LOAD STATUS menu using the T1/T2 keys, then press ENTER (T3). Figure 10 - Load Status Menu • Column A - Digital output designation • Column B - Configuration of digital output • Column C - Value of digital output (ON/OFF) 026-4962 R1 ©2024 Copeland LP.
  • Page 6 Scroll to the COMPRESSOR SERVICE menu using the T1/T2 keys, then press ENTER (T3). Figure 12 - Compressor Service Menu Compressor Service information is listed for each configured compressor. Figure 13 - Compressor Service Menu Commands 026-4962 R1 ©2024 Copeland LP.
  • Page 7 Scroll to the DIGITAL INPUTS menu using the T1/T2 keys, then press ENTER (T3). Figure 15 - Digital Inputs Menu • Column A - Digital input designation • Column B - Configuration of digital input • Column C - Value of digital input (ON/OFF) 026-4962 R1 ©2024 Copeland LP.
  • Page 8 Probe values are divided by two groups. Group 1 (PB1-PB20) shows probe values for inputs landed on the iPro controller. Group 2 (PB21-PB39) shows probe values for inputs landed on XEV30 valve drivers. Figure 18 - Probe Values 026-4962 R1 ©2024 Copeland LP.
  • Page 9 Column C - Value of analog output (0-100%) Superheat: Displays Calculated Rack Superheat Figure 19 - Superheat Scroll to the SUPERHEAT menu using the T1/T2 keys, then press ENTER (T3). Figure 20 - Superheat Menu 026-4962 R1 ©2024 Copeland LP.
  • Page 10 To change values, scroll to the desired value using the T1/T2 arrow keys, then press SET (T3). The value will flash when it is ready to be edited. Use the arrow keys T1/T2 to change the value, then press SET (T3) to save changes. 026-4962 R1 ©2024 Copeland LP.
  • Page 11 CORESENSE INFORMATION displays the following input values: • Compressor Current • Locked Rotor Peak Current • Discharge Temperature • Number of Running Hours • Number of Compressor Switching Cycles • Total Number of Short Cycles • Alarm Status 026-4962 R1 ©2024 Copeland LP.
  • Page 12 Figure 27 - Analog Outputs Override Menu • Column A - Analog output designation • Column B - Configuration of analog output • Column C - Override value of analog output (0-100%) • Column D - Override status (disabled/enabled) 026-4962 R1 ©2024 Copeland LP.
  • Page 13 Digital Output Override: Allows for Override of Digital Outputs Figure 29 - Digital Output Override Scroll to the DIGITAL OUTPUT OVERRIDE menu using the T1/T2 keys, then press ENTER (T3). Figure 30 - Digital Output Override Menu 026-4962 R1 ©2024 Copeland LP.
  • Page 14 SET (T3). The value will flash when it is ready to be edited. Use the arrow keys T1/T2 to change the value from disable to enable, then press SET (T3) to save changes. XEV30 Override: Allows for Override of XEV30 Values Figure 32 - XEV30 Override 026-4962 R1 ©2024 Copeland LP.
  • Page 15 SET (T3). The value will flash when it is ready to be edited. Use the arrow keys T1/T2 to change the value from disable to enable, then press SET (T3) to save changes. 026-4962 R1 ©2024 Copeland LP.
  • Page 16 Column A - XEV valve output location • Column B - Valve assignment • Column C - Valve status (0-100%) Subcooler Control: Allows for Viewing Status of Subcooler Operation and Input Values Figure 37 - Subcooler Control 026-4962 R1 ©2024 Copeland LP.
  • Page 17 The contents of this publication are presented for informational purposes only and they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. Copeland reserves the right to modify the designs or specifications of such products at any time without notice.
