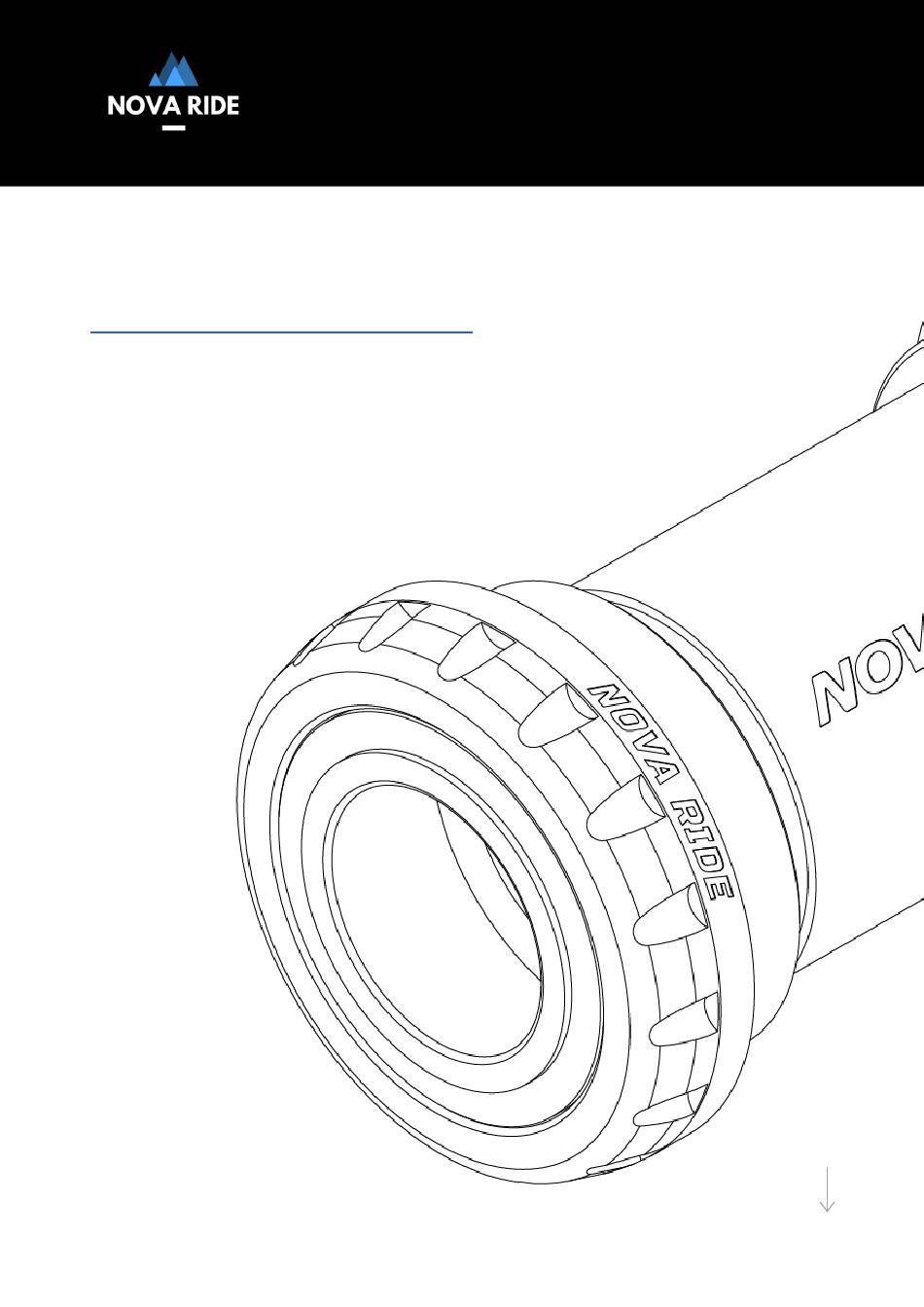

- Page 1 INSTALLATION MANUAL REV 2.0 - 07.11.24 Installation guide PRESS-FIT BOTTOM BRACKET BB86 / BB386 / BB-RIGHT / PF30 / BB30 / PF MTB...
-
Page 2: Tools Needed
TOOLS NEEDED Degreaser 2. Lithium grease Mounting press 4. Nova Ride Tool 5. Torque wrench and big Nova Ride Tool INSTALLATION VIDEO For installation tutorial video, please follow the instructions in the pressfit installation video to properly mount your new bottom bracket on our Nova Ride Youtube channel. -
Page 3: Quick Installation
QUICK INSTALLATION Clean and grease frame threads and the bottom bracket cups threads. 2. Remove the cover. If you don’t, you may damage the bearing during installation. Press the right cup (Drive Side) into the frame, crankset side, using a press. 4. - Page 4 STEP BY STEP INSTALLATION 1 - Install your Nova Ride bottom bracket. 2 - Insert the left part of 29mm crankset into the Nova Ride bottom bracket. 3 - Insert the Nova Ride spacer into the left 29mm crankset. 4 - Install the right part of your 29mm crankset...
-
Page 5: Warranty Terms
If a defect is found, our sole liability and your sole remedy will be, at our option, the repair or replacement of the Nova Ride product free of charge. Return shipping to the user is handled by Nova Ride and is automatically to the address indicated on your order form. - Page 6 READY TO PUSH YOUR LIMITS. www.novatoride.com 2024 © Nova Ride. All rights reserved.
