Summary of Contents for Redarc ICMS-012 Series

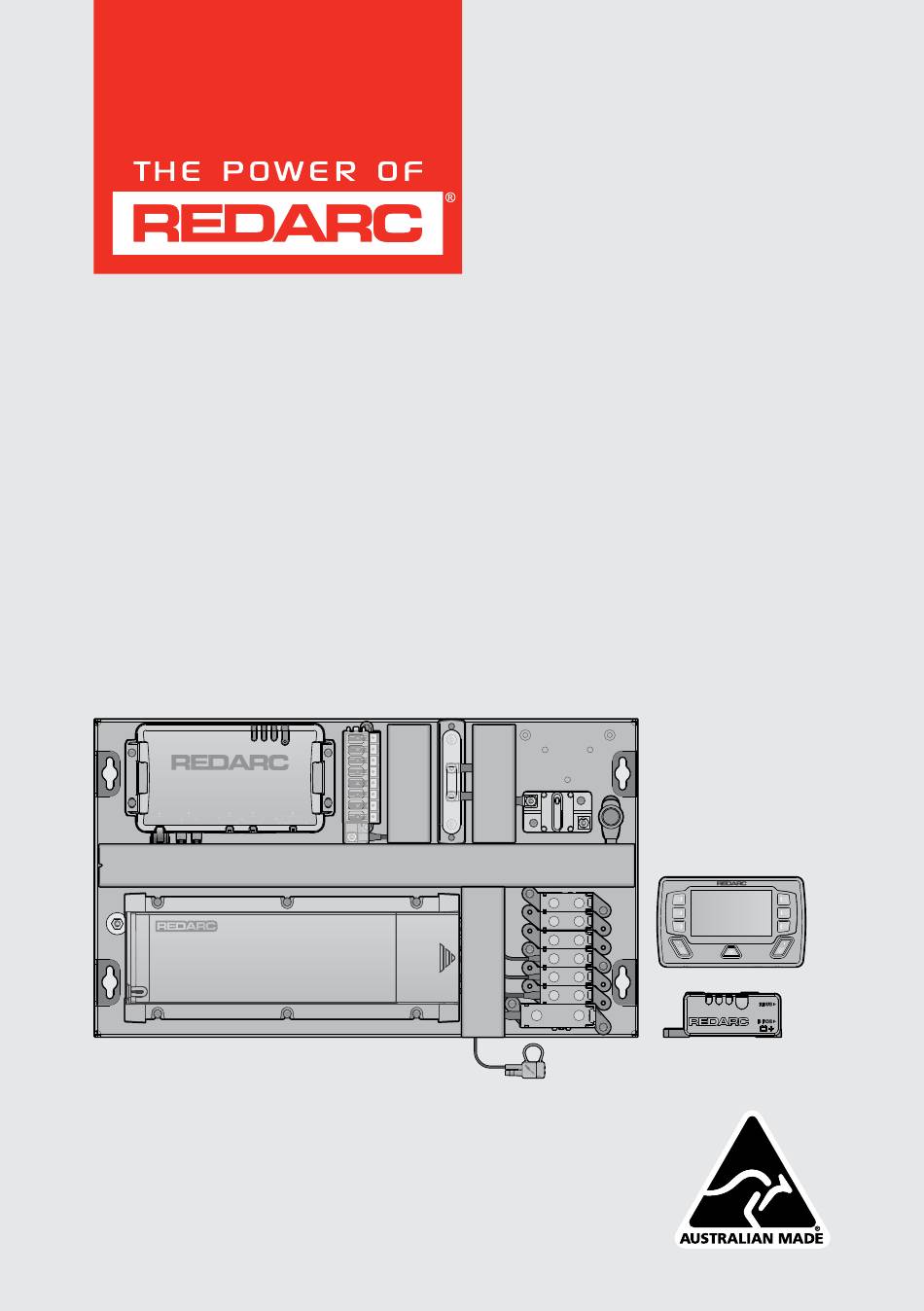

- Page 1 ICMS‑012 QuickFit X40 Integrated Power System MODELS: ICMS‑012‑50 ICMS‑012‑50‑NA ƒ ƒ ICMS‑012‑75 ICMS‑012‑75‑NA ƒ ƒ ICMS‑012‑100 ICMS‑012‑100‑NA ƒ ƒ...
- Page 2 ICMS‑012 QuickFit X40 Integrated Power System The QuickFit X40 Integrated Power System is a fully integrated power management solution, engineered by REDARC to meet the demands of modern off-grid recreational vehicles, including caravans, motor-homes, and travel trailers. Designed to create a truly smart RV experience, the QuickFit system, featuring REDARC's trusted RedVision Display, offers users the ultimate convenience.
-
Page 3: Table Of Contents
CONTENTS WARNINGS & SAFETY INSTRUCTIONS ..................OVERVIEW ............................Kit Contents ............................Parts of the ICMS-012 ........................INSTALLATION — MOUNTING ......................Mounting Checklist — Before You Begin .................... Mounting the ICMS-012 ........................Mounting the Display and Battery Monitor ..................Cable Pass-Through Holes ....................... -
Page 4: Warnings & Safety Instructions
REDARC recommends that the products referenced in this manual be installed by a suitably qualified person. Disclaimer: REDARC accepts no liability for any injury, loss or property damage which may occur from the improper or unsafe installation or use of its products. - Page 5 12. Remove personal metal items such as rings, bracelets, necklaces, and watches before working with a vehicle battery. A vehicle battery can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn. 13.
-
Page 6: Overview
OVERVIEW 8a or 8b KIT CONTENTS Ref. Part Qty. ICMS‑012 Integrated Module 4.3" Display (DISP4300) Optional Mounting Spacer Draw String Bag Smart Battery Monitor (BSEN500) M10 × 10 mm Alternative Terminal Bolt Battery Sense Lead a. AU Mains Cable — 1.8 m (5'11") b. -
Page 7: Parts Of The Icms-012
(×2) (×4) (×4) PARTS OF THE ICMS-012 Ref. Part Mounting Panel Mounting Points ×4 Cable Ducts (with removable covers) TVMS Rogue ×2 (TVMS1240) Outputs Interface C /D (10 A outputs) Inputs Interface (Sensor and Switch inputs) Manager Alpha (BMS12050 / BMS12075 / BMS12100) Earth Grounding Stud Blade Fuse Holder (8 way blade fuse holder with removable cover, not shown) Negative Busbar (with removable cover, not shown) -
Page 8: Installation - Mounting
INSTALLATION — MOUNTING WARNING: Risk of electric shock. Do not expose the ICMS‑012 to rain, snow, liquid, or dust. Doing so may result in damage to the ICMS‑012 and other appliances installed in the system or result in electric shock or fire. CAUTION ƒ... -
Page 9: Mounting The Icms-012
MOUNTING THE ICMS-012 RECOMMENDED FASTENERS The following fasteners are recommended for secure and safe mounting of the ICMS-012. If you choose to use alternative fasteners, make sure they are equivalent. High‑tensile bolt × 4 M8 (5/16") — metric class 8.8 or imperial grade 5 minimum. Length determined by mounting surface thickness. -
Page 10: Mounting The Display And Battery Monitor
MOUNTING THE DISPLAY AND BATTERY MONITOR Refer to the Manager Alpha Instruction Manual for mounting instructions for the RedVision Display and Battery Monitor — see 'Full-Length Instruction Manuals' (page 22). NOTE: The Battery Monitor can be mounted on the top right of the ICMS-012 Panel providing that the Battery Negative cable (B NEG) does not exceed 1 m (3'3"). -
Page 12: Wiring Diagram - As Supplied
WIRING DIAGRAM — AS SUPPLIED The following wiring diagram shows the ICMS-012 in its as-supplied state with pre-wired connections, excluding all R-Bus wiring. See page 16 for all pre-wired R-Bus connections. 12 | Installation — Wiring... -
Page 13: Wiring Diagram - Typical Setup
*2 These fuses must be suitably rated for the cable gauge used. REDARC recommends using MEGA type fuses. *3 Refer to the full-length Manager Alpha and Battery Monitor manual for lug, cable and fuse sizing — see 'Full-Length Instruction Manuals' (page 22). -
Page 14: Wiring Steps
WIRING STEPS CAUTION: Selecting the wrong cable or fuse size could result in harm to the installer or user and/or damage to the battery or other equipment installed in the system. The installer is responsible for ensuring that all installer supplied cables and fuses are the correct size and type (i.e. -
Page 15: Connect The Negative Busbar To Chassis Ground
2. CONNECT THE NEGATIVE BUSBAR TO CHASSIS GROUND Purchase a cable rated to carry the maximum charge current and lugs suitable for the Negative Busbar stud (6 mm (1/4")) and chassis ground connection point. 2.1 Connect the cable between the Negative Busbar and the vehicle common ground (usually vehicle metal body). 2.2 Using a hex driver, torque the terminal nut on the Negative Busbar to 6.8 N·m (5 lbf·ft). -
Page 16: Connect Ignition
4. CONNECT IGNITION The Ignition wire is used to turn the DC charging source on with ignition via the Wago Boot. This feature allows ® vehicles with variable-voltage alternators to trigger the DC Input. This feature must be activated via the RedVision Display in the 'BMS Settings' screen. -
Page 17: Connect Solar
6. CONNECT SOLAR Refer to the supplied Manager Alpha Instruction Manual for solar specifications, limits and cable sizing before making any solar connections — see page 22. Purchase the correct cable size and connector type for your solar and ground connection, and an M6 lug for the Solar Circuit Breaker connection on the ICMS-012. - Page 18 CONNECTING AN INVERTER The Remove Control Terminal on REDARC Inverters allows an Output from the TVMS Rogue to act as an on/off switch for the inverter. To connect a REDARC RS3 Inverter into the ICMS system: 1. Connect the Chassis Ground to the same common ground connection point of the system.
- Page 19 Up to 4 tank level sensors can be connected to the TVMS Rogue for measuring tank levels including grey water or clean water tanks. REDARC's Tank Level Sensors are recommended. 1. Connect the Input Wiring Loom into the Input Interface on the TVMS.
-
Page 20: Configuration And Testing
8. CONFIGURATION AND TESTING Refer to the Manager Alpha and TVMS Rogue manual for configuration information — see page 22. This step is important to configure your battery type, capacity, and more. Once configured, test the system to make sure it is operating safely and correctly. -
Page 21: System Strain-Relief And Cable Management
SYSTEM STRAIN-RELIEF AND CABLE MANAGEMENT CAUTION: Do not route cables over hot surfaces and sharp objects, or over/through parts of the vehicle that move during operation or maintenance. PROTECT AND SECURE THE CABLES Once all wiring is completed, do the following to protect and secure the cables: Route all cabling through the Cable Ducts where possible. -
Page 22: Full-Length Instruction Manuals
REDARC Electronics Pty Ltd, 23 Brodie Road (North), Lonsdale SA 5160, Australia. Design, product configuration and technical specifications are subject to change without notice. | Copyright © 2024 REDARC Electronics Pty Ltd. All rights reserved. REDARC®, THE POWER OF REDARC® and Alpha® are trademarks of REDARC Electronics Pty Ltd. -
Page 23: Warranty
WARRANTY LIMITED WARRANTY For full warranty terms and conditions, visit the Warranty page of the REDARC website: www.redarcelectronics.com/warranty Australia, New Zealand, UK & Europe North America REDARC Electronics Pty Ltd REDARC Corporation 23 Brodie Road (North), Lonsdale SA c/o Shallco, Inc., 308 Component Dr., Smithfield, NC... - Page 24 Tech Support 1300 REDARC (1300-733-272) Australia +61 8 8322 4848 New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 +1 (704) 247-5150 Canada +1 (604) 260-5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST344-1...
