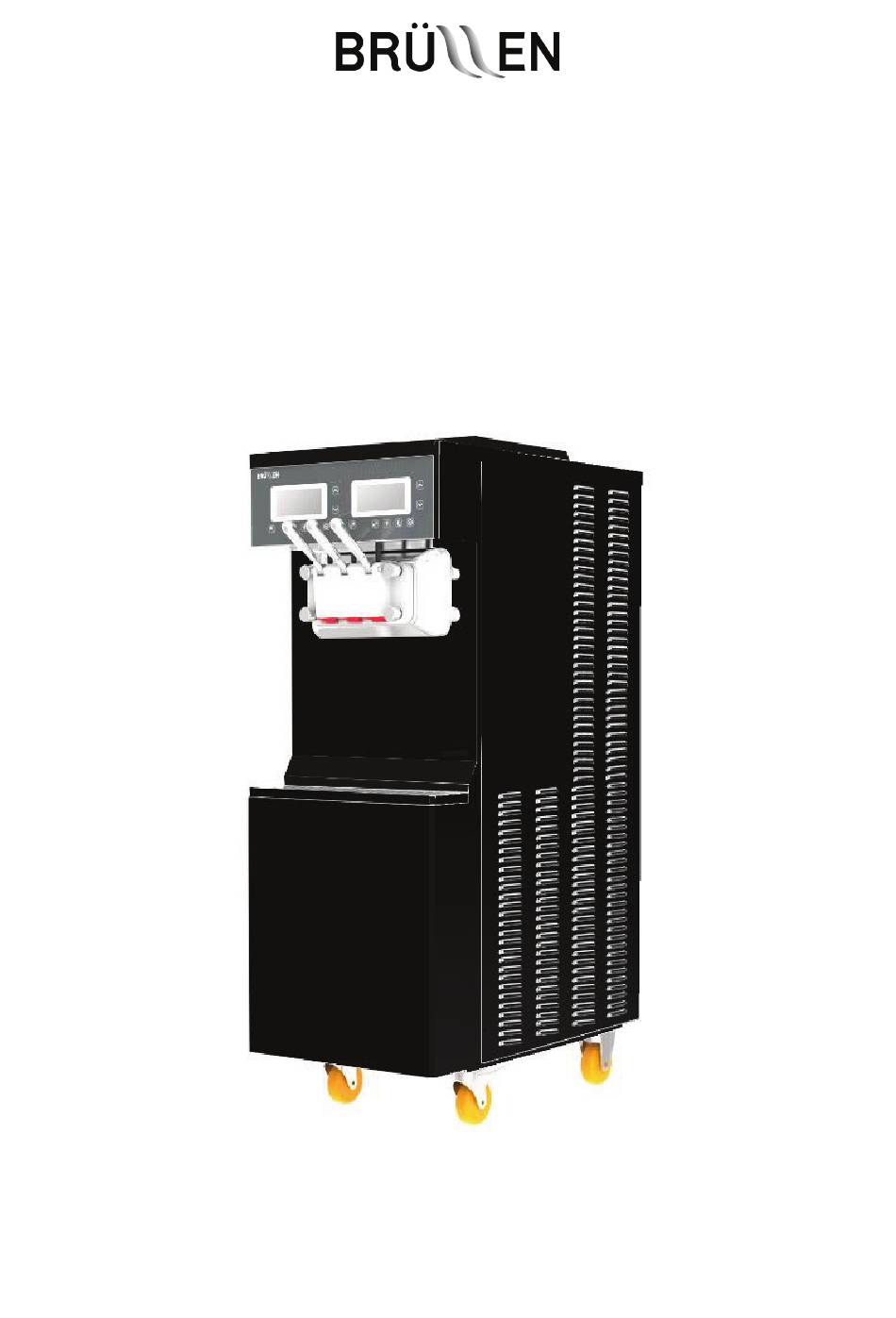

- Page 1 Brüllen i95 Pro User Manual (International) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 2 Welcome to Brullen! Table of Contents 1. Operational Environment Power Plug Dimensions Ventilation Power/Earthing 2. Menu Operation and Function 3. Lcd Symbol Indicators 4. Names Of Parts and Assembly Drawing 5. Gravity Feed Tube Instruction and Operation Gravity Feed Tube Installation 6.
- Page 3 A minimum of 30cm is required on all sides for proper ventilation. Ensure reasonable care is taken whilst moving the machine. The weight of Brullen machines range from 60kg – 245kg. If the unit is dropped or damaged it will void warranty.
- Page 4 All electrical work and repairs must be completed by a Brullen certified engineer. Any work completed by a non Brullen certified engineer will void warranty. Be sure to use a Brullen approved electrician to install earth wire. Must be installed with an earth wire to avoid possible electric shock or injury in the event of malfunction or leakage.
- Page 5 The machine must be able to breathe. If the unit is starved of air, the condenser will not get enough airflow and overheat. If positioned without enough room and complications occur, this will void your warranty. A minimum of 30cm is required on all sides for proper ventilation. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 6 Power/Earthing Unit: Be sure to use a Brullen approved electrician to install earth wire. Must be installed with an earth wire to avoid possible electric shock or injury in the event of malfunction or leakage. (Int) +61 2 8599 7998 (Australia) 02 8599 7998...
- Page 7 Softness The hardness scale is 1 – 8. 1 being the softest, and 8 being the hardest. Stop Stops the machine. This is also used to change modes. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 8 Overnight Mode When you press the overnight function, the light will stay on and the machine will keep the product refrigerated overnight. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 9 Middle draw valve O- ring Handle Front display Shaft pin Door screw Beater assembly Freezer door Design caps Overflow tube Drip tray freezer door O- ring Air vent Omni-directional wheel Brake wheel (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 10 To achieve the desired overrun. Please check the operational steps of the gravity feed tube below. Air tube Mark 3 Mark 1 Inner Tube Mark 2 Marks Closed, No hole High overrun Middle overrun Low overrun Outer tube Ⅲ (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 11 Gravity feed tube installation Install or remove vertically Ensure tube is pushed all the way in. If not installed correctly will cause barrel freeze and no product will be dispensed. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 12 (blades and o-rings come in the quarterely Tune Up Kits). Blade A Blade B Blade B Beater body Beater shoe Boot seal (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 13 (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 14 Step 2. Pour the product into the mix hopper before installing the gravity feed tube. Then prime the machine and draw 500ml of product from the freezer door, then pour it back into the hopper. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 15 Step 3. Choose your desired over run size and install the gravity feed tube into the hopper. Air tube Mark 3 Mark 1 Mark 2 Inner Tube Mark Close, No High hole Middle overrun Outer overrun overrun tube (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 16 Step 4. Press the production button. Approximately After 8 – 10 minutes, the ready light will appear, which means the product is ready to dispense. Ready (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 17 After overnight mode and before production mode. You must press stop and dispense 500ml of product. Pour the dispensed product back into the mix hopper. Put the machine into production mode. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 18 Step 2. Press the wash button to dispense the product out. Step 3. Add lukewarm water to the mix hopper and press the wash button for two minutes. This will flush the product out. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 19 Step 4. Add lukewarm water in again and use Brullen certified chemicals to clean everywhere inside of the mix hopper with a non-scratch pad and then dispense the wastewater out. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 20 Step 7. Clean all parts with Brullen approved chemicals one by one (do not place any parts inside a dishwasher). Example of parts to be cleaned below. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 21 Step 6. Once the unit has been cleaned and reassembled add Brullen approved sanitised water to flush through unit according to step 2 and 3. It is imperative that all sanitised water is flushed out of machine by pressing the wash button.
- Page 22 Air Mix Pump Assembly (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 23 GP060 Drive Gear Air Pressure Valve GP053 GP061 Driven Gear Air Pressure Spring GP054 GP062 Pump Body Air Pump Body Screw GP055 Pump Feed Tube GP063 Pump Body O-Ring (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 24 Ensure the pump is dispensing mix by pressing the pump button on the front of the unit, this must be done before installing the pump feed tube. Once the pump is dispensing product turn pump off. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 25 Step 3. Install the pump feed tube and connect with pump body (ensure sealing O-ring gp057 is between feed tube and pump body). (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 26 Step 5. Press production mode and then the pump button. After 8 – 10 minutes, the ready light will come on and product is ready. Ready (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 27 Freezer Door Assembly Air Mix Pump (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 28 Freezer Door Assembly Note: Middle Draw Valve is different. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 29 Air Mix Pump Overrun Adjustment Overrun adjustment dial Lubricate either side of pump body. Lowest Overrun setting Highest Overrun setting (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 30 5 minutes to allow the machine to reset. Check hardness is not set to high. If this does not resolve the issue, please contact Brullen or your local Brullen distributor. Gravity Feed - No mix in the hopper / Cylinder is frozen, too hard.
- Page 31 3 months If this does not resolve the issue, please contact Brullen or your local Brullen distributor. Temperature sensor problem Please contact Brullen or your local Brullen warning distributor. (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
- Page 32 (a) The manufacturer’s recommended schedule maintenance programs are performed at the required intervals, the Brullen “Tune Up Kit” is to be installed every 3 months and all corresponding components are to be replaced, and a record of the performance of these tasks is maintained; and (b) The manufacturer’s approved cleaning products are used to perform the required...
- Page 33 (b) Damage to the Goods or parts related to abuse, misuse, insects, vermin, foreign bodies, neglect, lime scale problems, and cleaning related issues. (c) Costs related to the Goods or spare parts being sent to or from Brullen to place of business or any of Brullen accredited technicians’ places of business.
- Page 34 All Warranty and other services, (other than ongoing system cleaning cycles) are to be carried out by Brullen or a Brullen Accredited Technician. 14.12 To the maximum extent permitted by law, the decision of Brullen in all Warranty matters will be final. 14.13 If this Warranty is void by reason of paragraphs 6 and 7 above, this Warranty may be tendered as a complete defense to any legal proceedings.
- Page 35 This is because they need to cut off the nice firm aerated soft serve. Warranty is also void if you are not using Brullen approved cleaning chemicals, i.e., dairy food grade lubricant and cleaning brushes (soft-bristled Brullen cleaning brushes).
- Page 36 Most of our customers have the videos open on their phone when they are initially learning about the machine for extra peace of mind. To learn… Assembly Cleaning Menu Operation Priming Follow this link: https://brullen.com.au/training-videos/ (Int) +61 2 8599 7998 (Australia) 02 8599 7998 hello@brullen.com.au www.brullen.com.au...
