Summary of Contents for Matrix Appliances MXTE60SS

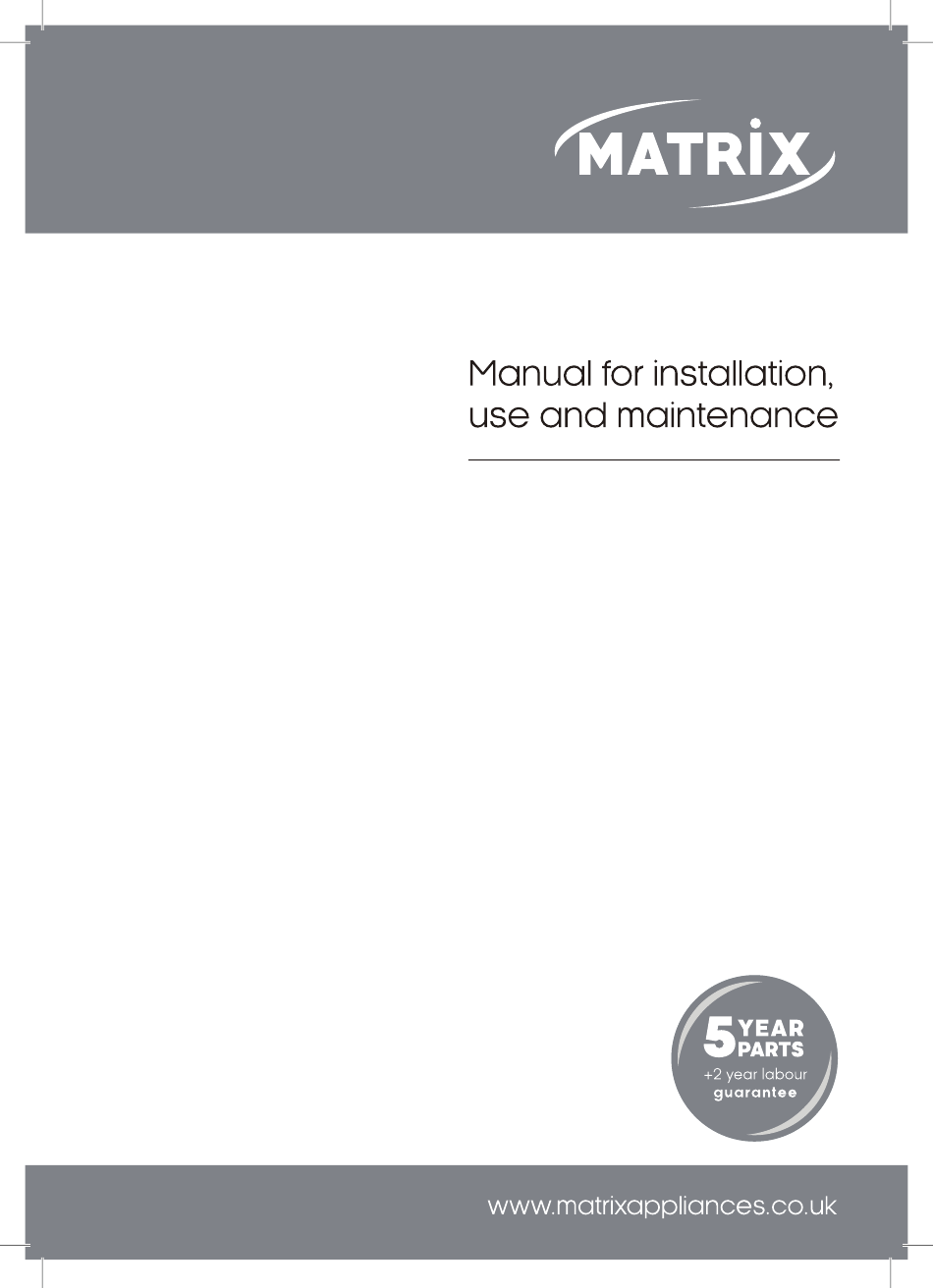

- Page 1 MXTE60SS 60cm Telescopic Extractor Cod:0103094776-00.02...
- Page 2 Declarations of Conformity: This appliance has been manufactured to comply with all EU & UK statutory requirements and complies with all applicable legislation and the following European Directives: • The Low Voltage Directive 2014/35/EU • Electromagnetic Compatibility Directive 2014/30/EU The product has been marked with the UKCA and CE symbols.
- Page 3 This appliance is marked according to the European directive 2004/104/EC on Waste Electrical and Electronic equipment (WEEE).
-
Page 4: Using Your Extractor
• The performance of your extractor will vary depending on a number of factors. These include: type of extraction, length of ducting, room volume, ventilation available and cleanliness of the filters. Using your extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. - Page 5 Fig.2...
- Page 6 IMPORTANT:DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. DO NOT CHANGE THE LIGHT BULB IMMEDIATELY AFTER USE AS THE BULB WILL BE HOT. ALLOW IT TO COOL BEFORE REMOVING IT. Fig.3-I Fig.3-II Fig.3-III 1.
- Page 7 Replaceable (LED only) light source by an end-user E14 LED 4Wx1 DR-4-H-E14-37 The light is designed for use during cooking and not for general room illumination. Extended use of the light can reduce its life span. Please contact your local retailer in order to purchase a new LED lamp when replacing a damaged or a faulty one.
-
Page 8: Mains Electricity Connection
Mains electricity connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. Warning! This appliance must be earthed The appliance should be connected by a qualified electrician, who is a member of the N.I.C.E.I.C. - Page 9 When installing this product we recommend you seek the help of another individual. Do not mount the isolation switch behind the chimney section. It is a requirement that you must be able to isolate the extractor from the mains electrical supply after installation. This appliance is intended to be connected to the mains electrical supply by means of an isolation switch and fused spur and is intended to be protected by a 3A fuse.
- Page 10 Gas: 750mm recommend Electric: 650mm recommend Fig.5 lf the instructions provided with your gas hob state that the required distance between the hob and extractor must be greater than 700mm, then that is the distance that should be observed; this is a legal requirement and may lead to your hob being disconnected from the gas supply and the installation being reported under RIDDOR (The height should be measured from the top of the burners).
-
Page 11: Ducting And Ventilation
Ducting and ventilation For best performance and lowest noise output, we recommend the use of 125mm ducting. Using ducting of a lesser diameter will reduce performance. Wherever possible utilise rigid circular pipe which has a smooth interior, rather than the expanding concertina type ducting. The lengths of ducting with minimal effect on performance are as follows: •... -
Page 12: Installation Steps
Installation steps Before installing the cooker hood, please first fix the damper flap on the air outlet of the hoods. IMPORTANT SAFETY WARNING: ONLY USE THE SCREWS PROVIDED WITH THE EXTRACTOR TO MOUNT THE DUCTING ADAPTOR. THE USE OF LONGER SCREWS MAY CAUSE DAMAGE TO THE INTERNAL WIRING WHICH WILL NOT BE COVERED BY THE WARRANTY... - Page 13 When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities. ø7 ø6 s t r i v e r a t s t r a t i i n e t h o l u d i t h I n c...
- Page 14 The cooker hood can be vented in different ways according to requirements: Connect the hose(not supplied) with the air duct (Fig.11). Vertical is the most common. lf your kitchen has an attic space above, the ducting may be run up through the cupboard and attic to the roof (Fig.12).
- Page 15 Energy Efficiency Information Attribute Symbol Value Units Model Identification MXTE60SS Annual Energy Consumption 26.7 Hood Time increase factor Hood 69.2 Hood 92.5 Point Point Maximum airflow 200.5 Measured electric power at Best 38.4 Nominal lighting power Average illumination of the lighting...
- Page 16 Serviced by For our Customer Care Department, or for Service, please contact us on: The CDA Group Ltd. Harby Road, Langar, Nottinghamshire, NG13 9HY Tel: 01949 862012 Fax: 01949 862003 Email: customer.care@cda.eu...
