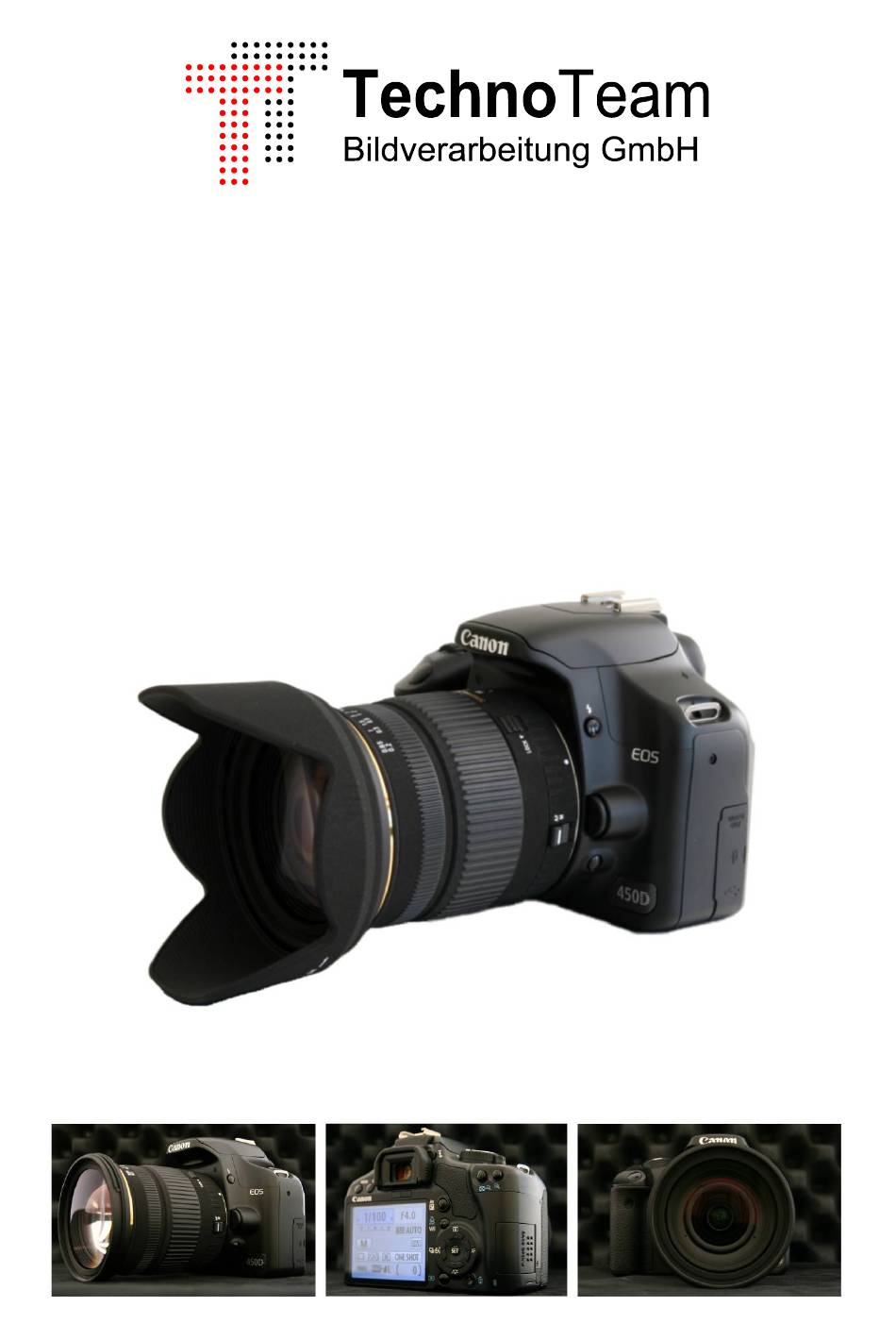

- Page 1 Operating instructions for the mobile luminance measuring system LMK mobile advanced based on the Canon EOS 450D digital reflex camera...
-
Page 2: Table Of Contents
Table of contents ........................II Technical data: LMK mobile advanced ............... 3 List of components: LMK mobile advanced............5 How to handle the LMK mobile advanced ................ 7 Overview of the control elements ................7 Useful information about the camera ................. 8 Instructions and useful information on a quick start to luminance measurements .. -
Page 3: Technical Data: Lmk Mobile Advanced
Technical data: LMK mobile advanced page 3 2 Technical data: LMK mobile advanced Manufacturer: Canon Type: EOS 450D Main principle: Lens: Sigma 18-50mm F2.8 EX DC Macro Electronics Sensor CMOS Canon APS-C Resolution 4272(H) x 2848(V) Read out regime progressive scan... - Page 4 ∆L in % 0.25ms (for standard illuminant A) 2.5ms 25ms 0.25s 2.5s Operating data Memory SDHC - card memory chip Memory per image appr. 12.5 MB Operating system Windows 2000/XP/Vista Software LMK 2000 copyright by TechnoTeam Bildverarbeitung GmbH © 2008...
-
Page 5: List Of Components: Lmk Mobile Advanced
List of components: LMK mobile advanced page 5 3 List of components: LMK mobile advanced Number Quantity Name Digital SLR camera Canon EOS 450D Lens SIGMA 18-50mm F2.8 EX DC Macro + lens hood & dust cover Mobility case Samsonite + carrying strap... - Page 6 List of components: LMK mobile advanced page 6 copyright by TechnoTeam Bildverarbeitung GmbH © 2008...
-
Page 7: How To Handle The Lmk Mobile Advanced
How to handle the LMK mobile advanced page 7 4 How to handle the LMK mobile advanced This chapter summarizes important rules and empirical values to help the user to handle the camera and the LMK software properly. The non-observance of some advice could result in a considerably higher expenditure of time. -
Page 8: Useful Information About The Camera
How to handle the LMK mobile advanced page 8 4.2 Useful information about the camera Aperture: The camera is calibrated for luminance measurements with adjusted apertures between F4 ≤ Fx ≤ F11. For these aperture values a compensation for the vignetting effect inside the lenses was carried out (shading compensation). - Page 9 How to handle the LMK mobile advanced page 9 Live-View Shooting: It is possible to shoot while viewing a real-time image on the camera’s LCD monitor. This is called Live View shooting. For using the Live View function the Mode dial must be set to the Manual mode ’M’.
-
Page 10: Instructions And Useful Information On A Quick Start To Luminance Measurements
Choose the exposure time with the main dial near the shutter button. After that or meanwhile check the result of the exposure measurement in the viewfinder or on the LCD display (see chapter 7 in this manual). copyright by TechnoTeam Bildverarbeitung GmbH © 2008... - Page 11 Attention! This AEB setting must be repeated each time the camera is switched on again! Setting the camera to serial capture mode: This setting can be achieved using the picture frequency key, and checked in the LCD display. copyright by TechnoTeam Bildverarbeitung GmbH © 2008...
- Page 12 • Switch off the camera and connect the camera via USB cable connector to the PC. • Switch on the camera. • Start the software ’EOS Utility 450D’ (software starts automatically if the operating system can associate the connected hardware with the program, normally with the second start). copyright by TechnoTeam Bildverarbeitung GmbH © 2008...
- Page 13 HighDyn luminance image from them. After that, the resulting image will be displayed in the ’Luminance image’ tab of the software, and the measuring data can be used for further evaluation purposes (see chapter 7 in this manual). copyright by TechnoTeam Bildverarbeitung GmbH © 2008...
-
Page 14: Further Information On How To Make Luminance Measurements With The Camera
These include scenes presenting a largely homogeneous level of brightness. For this kind of luminance measurements, the evaluative metering is recommendable. Here, attention must be paid to the fact that the autofocus of the camera is activated. copyright by TechnoTeam Bildverarbeitung GmbH © 2008... -
Page 15: Checking The Exposure Settings
In the examples given, on the left-hand side you can see an image, with shooting information and the histogram of the brightness distribution. The right image shows the histogram for each R,G and B channel separately. copyright by TechnoTeam Bildverarbeitung GmbH © 2008... -
Page 16: Manual Exposure Compensation
HighDyn luminance image. Compared with single shots, this type of image capture offers the advantage that scenes presenting high interesting luminance dynamics (high contrast range) can be captured with copyright by TechnoTeam Bildverarbeitung GmbH © 2008... -
Page 17: Setting The Iso Speed
’Blinking’ of the overloaded image area in the playback function for the captured images. Now, it is necessary to adapt the measuring range of the camera to the light conditions by using optional neutral density filters (ND-filters). copyright by TechnoTeam Bildverarbeitung GmbH © 2008...
