Summary of Contents for mitty dairy MD-01

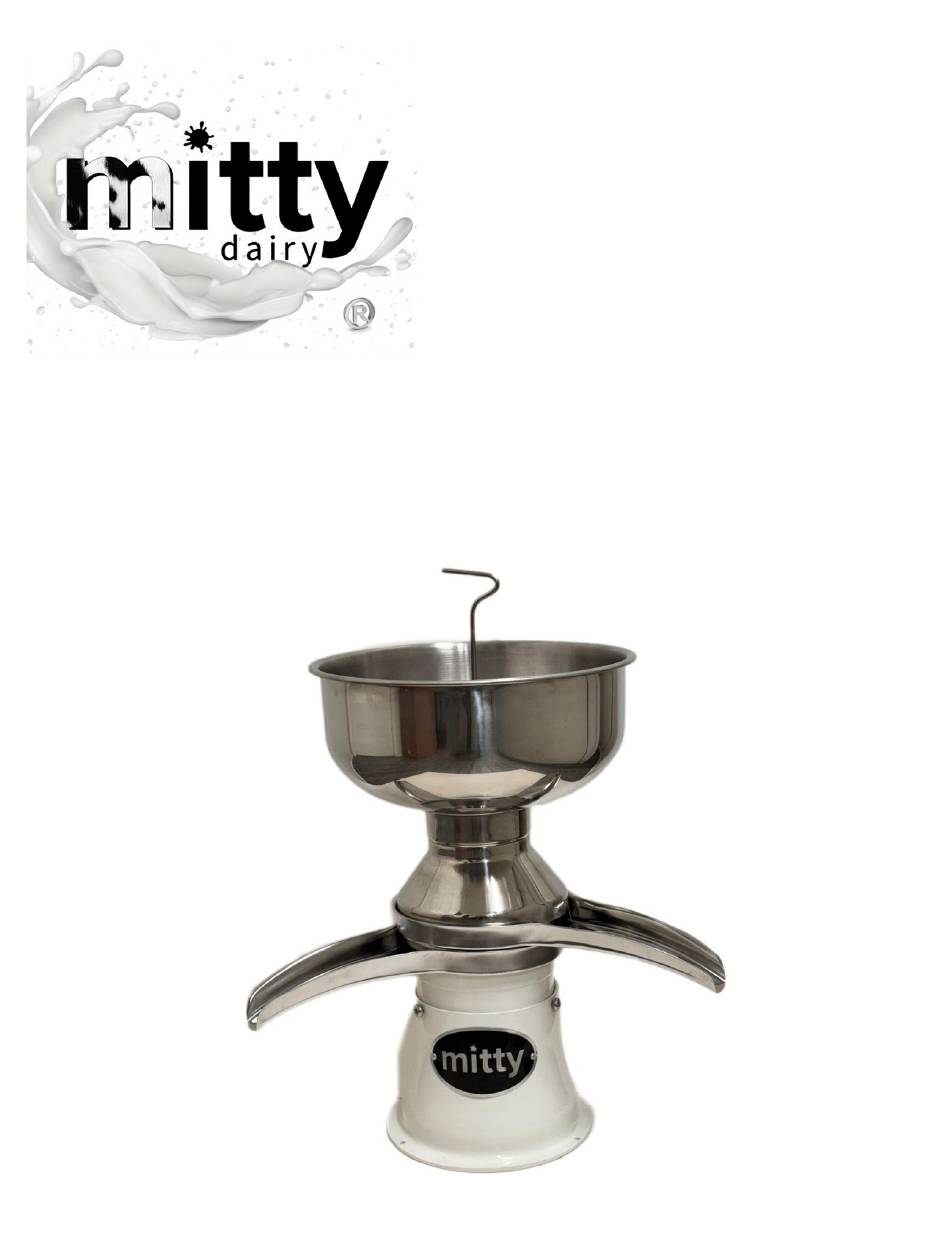

- Page 1 MD-01 ELECTRIC CREAM SEPARATOR INSTRUCTIONS...
- Page 2 I.- ASSEMBLY Wash all components of the cream separator with warm and soapy water. Set apart the drum. Take the key and open your drum. Insert the metal pins on the back of the key into the holes at the top of the drum. Turn the key to the left to loose the nut at the top of the drum.
- Page 3 When assembling the drum, it is necessary to have all pieces in the correct order; otherwise, the separation will not work properly and may cause damage to your machine. Assembly starts with the base of the drum unit and installation of the silicone O-ring in the groove near the bottom of the base.
- Page 4 Installing the discs starts with identifying the single unique disc; 14 discs are smooth on the bottom while 1 disc has 5 distinct bumps. The unique disc must be placed first followed by the other 14. The cone will then be placed on top. (Picture 4) Drum/Cover Cone to keep the discs in place Notice that the cone has a little...
- Page 5 Product Assembly Please follow these steps to ensure proper assembly. Once your components are washed and dried please follow the order assembly in picture 5. Picture 5...
- Page 6 Step 1. Take the assembled separator drum and set it on the motor shaft ensuring that the notched portion of the shaft aligns with the horizontal pin going into the bottom hole of the drum. (Picture 6) Picture 6 Step 2. Of the 2 feeders, take the skim milk feeder and make sure that it is securely seated on the top of the body of the machine.
- Page 7 Step 4. Set the cream feeder on top of the nozzle seat. Step 5. Set the funnel seat on the cream feeder making sure to align the indented portion on the seat with the notch on the cream feeder. (Picture 8) Picture 8 Step 6.
- Page 8 III. Adjusting the Cream Consistency To adjust the cream thickness, the machine must be turned off and the drum removed from the machine. The thickness is controlled by the brass screw on the side of the drum. It can be adjusted using the key provided.
-
Page 9: Cleaning Process
IV. Cleaning Process After the separation of cream, let the motor work for 1 minute. Finally, turn off the power and disconnect the power cord. Disassembly follows the assembly pattern in reverse order. Please ensure that the separator drum is disassembled after each use and cleaned thoroughly as well. Use warm water and a mild dish detergent and wash all parts. - Page 10 Notes: 1. Please be familiar with the instructions before using. 2. When solar power is used as the power source, solar panels with a capacity of more than 25W and batteries with a capacity of more than 40AH are the best power sources. 3.
- Page 11 9. It should be frequently checked that the milk overflow hole in the four grooves of the head of the main engine should not be blocked by impurities, so as to avoid the milk entering the motor from the motor shaft hole and causing damage to the motor. The nut on the top of the drum must be tightened, the cross pin in the drum must be stuck on the shaft of the motor, otherwise it will cause serious accidents when the separating bowl rotates.
