CC03 3.5''TFT screen Display user's manual
A.Security Statements
For your riding safety and Enjoying use this product, please read this manual carefully
and follow the instructions in the manual.。
Please pay attention on the road conditions during the cycling and don't be distracted
by the instrument to avoid the occurrence of traffic accidents. If you want to check the menu
carefully, stop riding and check it.
B.Product specification
B.1 Usuage

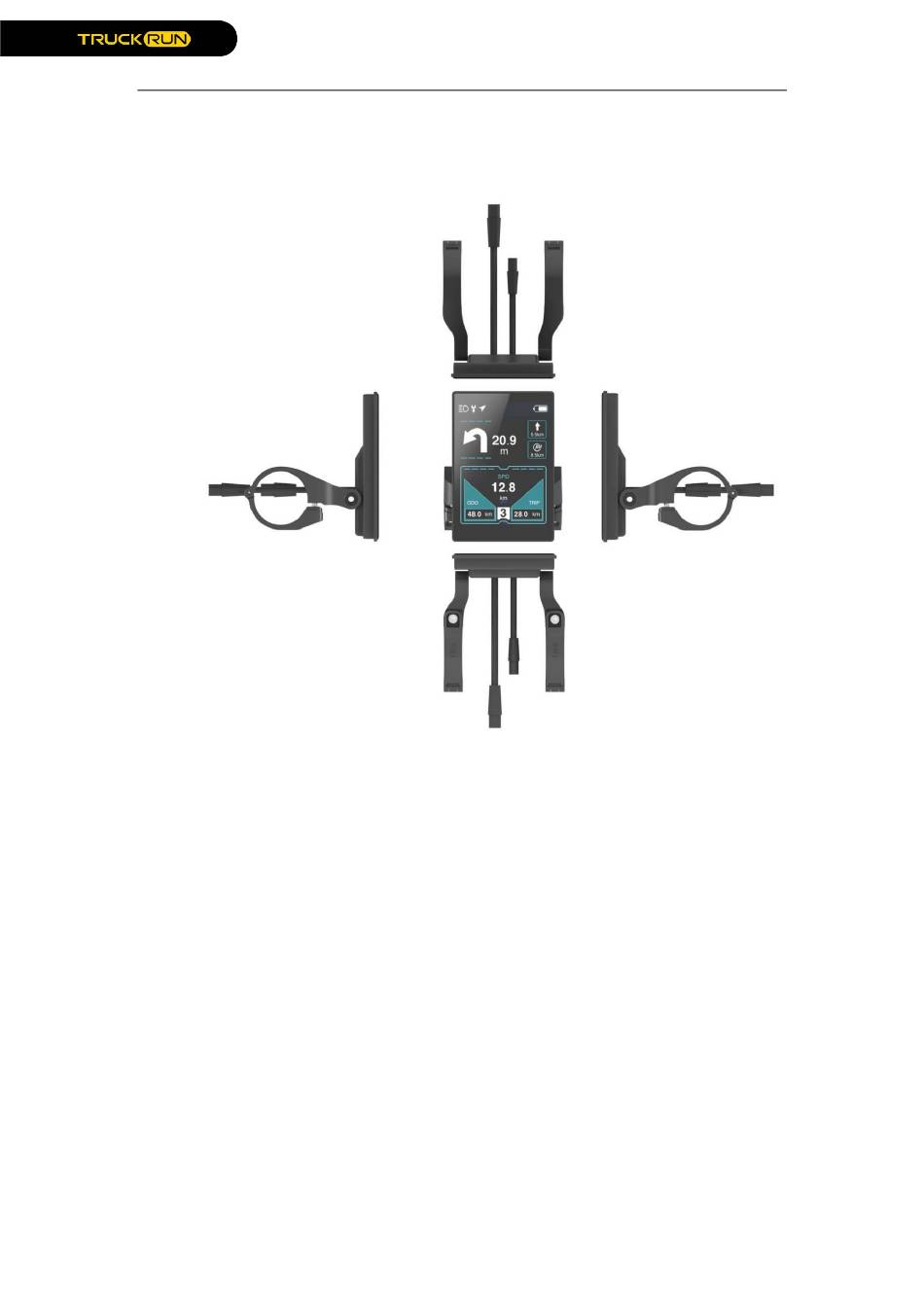

This Display is used to control the e-bike drive system and display cycling data of Truckrun
drive motor.
Wuxi Truckrun Motor CO.,Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the CC03 and is the answer not in the manual?

Questions and answers

Related Manuals for TRUCKRUN CC03

Summary of Contents for TRUCKRUN CC03

  • Page 1 If you want to check the menu carefully, stop riding and check it. B.Product specification B.1 Usuage This Display is used to control the e-bike drive system and display cycling data of Truckrun drive motor.
  • Page 2 Wuxi Truckrun Motor CO.,Ltd It supports customized function, support customized start-up LOGO and video. (b) (c) (d) B.2 Display menu a.Light b.Error c.Navigation d.Bluetooth e.Battery f.Battery bar g.Speed and Unit h.Speed dial scale value i.Dynamic velocity bar j.Menu level,contents: ODO:...
  • Page 3 Wuxi Truckrun Motor CO.,Ltd C.3 Turn on/off Power-off state Press and hold button ，Display light-up then release button， System-on；Power on state Press and hold ，Display light-off，System off。 System-on state，In a time (usually 5min，The automatic shutdown time can be set manually，Setting method check C.9.1.2). No operation or bikeno speed, The system will be off automaticly。...
  • Page 4 Wuxi Truckrun Motor CO.,Ltd C.8 Error Display When E-bike system has error，On the top shows ，Error code is on Speed position， Error code meaning check List 1。 Error display Error code Reason Error code Reason 0x03 Brake-on(not display) 0x04 Throttle fault UnderVoltage（not display）...
  • Page 5 Wuxi Truckrun Motor CO.,Ltd 仪表设置界面 Option Function Option Function Display Setting Set display function, such as Themes Change UI style Unit/Brightness etc Information Adjust limited speed/wheel Password Set start-up password size/system information Language Select language Exit Back to main menu Press + or －Select any one option，Then press...
  • Page 6 Wuxi Truckrun Motor CO.,Ltd Auto off menu Notes: After setting Auto off ，meets B.1 conditions，The system will automatically shut down when the automatic shutdown time is reached，Select“OFF”It does not shut down, that is, it will keep on when the battery power supply is normal and the system is not faulty.
  • Page 7 Wuxi Truckrun Motor CO.,Ltd Press+or－select“Light sensitivity”，press will see options：Low， Mid，High. High means the strongest。Press+or－to select it，select and press finish setting，press －select“back”backup previous menu，Press +and-at the same time to backup main menu. Adjust max gear C.9.2. Select Information C.9.2.1 Wheel size viewing and setting Press+or－Select“Wheel Size”，Press...
  • Page 8 Wuxi Truckrun Motor CO.,Ltd Speed limit setting C.9.2.3 Check display information Press+ or －Select“Display Info”，Press again to check display’t hardware & software version No., Press backup previous menu，Press +and－backup main menu. Check display information C.9.2.4 Check controller’s information Press+or－Select“Ctrl Info”， Press again to check controller’s hardware&software versions.
  • Page 9 Wuxi Truckrun Motor CO.,Ltd Check battery information Name Meaning Name Meaning TEMP Battery temperature Cycle Times cycle index TotaVolt Battery’s toal Voltage M.N.T Max uncharge time Current Mainline electric current L.N.T Last uncharge time Res Cap The rest capacity Software version NO.
  • Page 10 Wuxi Truckrun Motor CO.,Ltd Select Language C.9.4 Select Themes Pres check UI Options， Press+or－to select it， Select and press to finish it， Press+or －select“back”to backup previous menu， Press+and－to back up main menu. UI change C.9.5 Select Password Password Press will see password options：...
  • Page 11 Wuxi Truckrun Motor CO.,Ltd C.9.5.1 Set startup password： Step1.Press+or－Select“Start Password”（Start Password state is“OFF”）。 Step2.Press to reset it, Input password in dislog box，Press +or－to select numbers 0- 9，select and confirm. After confirmation, the input position will be automatically switched to the next dialog box。...

  • Page 12: Bluetooth Navigation

    Press+and－to back up main menu. Reset startup password D. Bluetooth Navigation Run TRUCKRUN APP，Connect to display CC03via bluetooth，When you run the navigation in the APP, It will show navigation menu, and the path indicator information will...
  • Page 13 Wuxi Truckrun Motor CO.,Ltd be displayed in the form of arrows and numbers.，app steps as below: Step1. Trun on TRUCKRUN，connect to CC03 display，Press Navigation button to start navigate menu in app. Step2. Press search in navigation menu，search map。 Step3. Input desitination in search box, press search to reback navigation UI.

  • Page 14: Warranty

    Step3. PLug-in connector with integrated wiring harness as indicated. F. Warranty： Wuxi Truckrun Motor Co., LTD. (hereinafter referred to as "Truckrun Motor") guarantees that during the warranty period, Truckrun Motor provides warranty services to vehicle manufacturers and dealers which purchased from Truckrun Motor.
  • Page 15 Please contact the vehicle manufacturer or dealer directly if you need to repair the parts of Truckrun motor which install on the vehicle. In case of any conflict between this warranty statement and the current laws of China, the laws shall prevail.
