Finn-Lumor 607511 Instructions Manual

EN Terrace light set
READ, FOLLOW AND SAVE THESE INSTRUCTIONS.

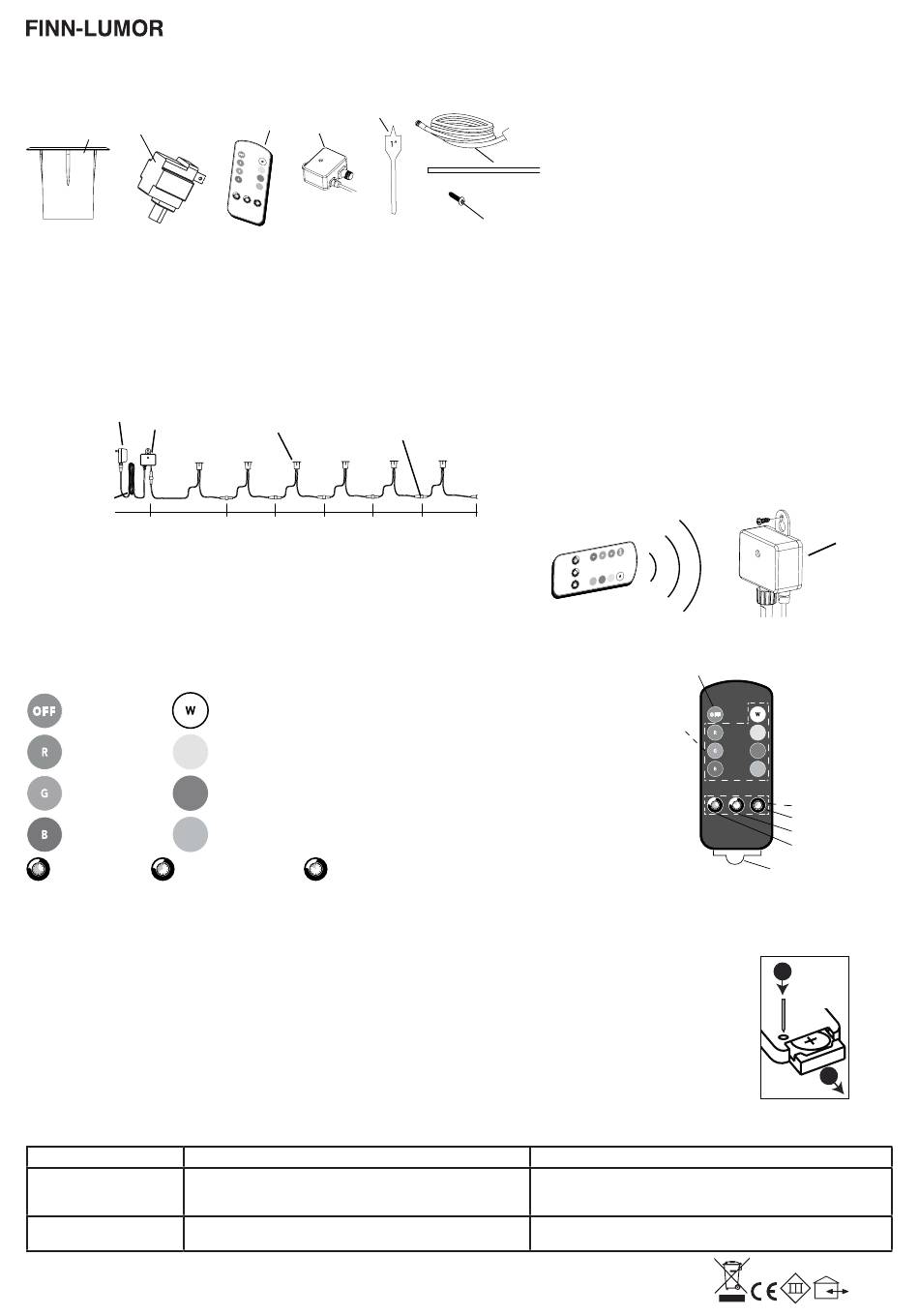

PACKAGE CONTENTS
B
A
Assembly and Installation
1 Attaching and installing the lights
• Connect the transformer (B), control box (D), extension wire (F) and all light fixtures end-to-end making one long wire connection. This is the distance available when positioning
your lights.
• Position the light fixtures making sure that they will reach the controller.
• Once in their proper position drill out holes using the included 1 in. drill bit (E).
IMPORTANT NOTE: Please make sure that you have properly calculated your distances and are confident of the positioning of the deck lights before drilling holes into your deck.
• Disconnect the lights from each other and insert each fixture into its corresponding hole by feeding the two (2) wires first then pressing the fixture firmly into the hole so that it fits
tightly against the deck surface. Repeat this step for all six (6) lights (A).
• Connect the male end of the extension wire to the connection of the controller and the female end to the first light fixture. Repeat for each fixture (A).
Transformer Control box
Extension wire
(4.5m) (1.5m)
2 Finding a location for the transformer and controller
• Both the transformer (B) and control box (D) are designed for outdoor use and are weather resistant.
• Make sure that the control box (D) can be installed in a location that will allow a direct line of sight with
the remote (C) to operate properly.
• Any objects between the front of the control box and the remote control will reduce the range.
Remote Operation
The unfit must be operated with the provfided remote control.
NOTE: Remove the pull-tab to allow the remote control to function.
• FIXED COLOR SELECTION
Sets the fixtures on the desired color
OFF
RED
GREEN
BLUE
TIMER
5 HOUR TIMER, 8 HOUR TIMER AND
• With any fixed color selected, press one of the timer buttons.
• The fixtures will blink once for 5 hours, three times for 8 hours and twice for 10 hours to confirm the command has been received.
• The fixtures will turn off after 5, 8 or 10 hours depending on which button was pressed. Changing the color at this point will NOT
deactivate the timer function.
• The following day, if the OFF button has not been pressed, the fixtures will turn ON at the same time that it was set the previous day and
then turn off after 5, 8 or 10 hours depending on which button was initially pressed.
• To change the starting time, press one of the timer buttons at the desired start time.
• To disable the timer, press OFF and then back on in any of the fixed colors.
REMOTE CONTROL BATTERY REPLACEMENT
1. Push the tab down using a pin-like tool (not included), while pulling out the battery compartment as shown. (ill.1)
2. Remove used battery and replace with either a new CR2032 or a CR2025 3V Lithium battery in proper polarity as indicated. (ill.1)
Clean the battery contacts.
3. Close the battery door on the remote control.
NOTE: If the remote distance is significantly reduced, replacing the battery should improve the range.
Troubleshooting
Problem Possible cause
The fixture will not light. There is no power.
There is a disconnection or break in the wire.
Only some lights work. The problem is with the fixture's connector.
Info/Tootja/Ražotājs/Gamintojas/ Изготовитель:
Finn-Lumor, PO Box 499, FI-33101 Tampere, Finland/
Тампере,Финляндия
E
C D
Light fixture
.
(1.5m) (1.5m) (1.5m) (1.5m)
WHITE
YELLOW
MAGENTA
CYAN
10 HOUR TIMER
transformer/ muuntaja/transformator/
muundur/transformators/transformatorius/ трансформатор: IP44
input: 230V, 50Hz
output: 12V 50Hz 6W
A
B
C
D
F
E
F
G
G
Connector
Remote
(1.5m)
NOTE: Do not expose the remote to wet locations
Solution
Check that the power is on.
Check if there is a loose connection at the transfomer screw terminal.
Check that the power switch is not in the OFF setting.
Check that the connectors to make sure that they are all connected
properly.
Deck light 6
Transformer 1
Remote 1
Control box 1
1 in. Drill bit 1
Extension wire 1
Screw 1
OFF
FIXED COLOR
607511
ko0521
Control box
TIMER FUNCTIONS
8H TIMER
10H TIMER
5H TIMER
Remove pull-tab
1
Push tab
down using
pin-like tool
2
ill.1
