ATS CONTROLLER
[ ACD-A ]
User's Manual
※ OSEMCO reserves the right, without notice, to change
design or construction of any products and to discontinue.
O-Sung Electric Machinery Co., Ltd.
136, Hataemal-gil, Wollong-Myeon Paju-si, Gyeonggi-do, Korea
Tel : 82-31-944-3521 / Fax : 82-31- 944-3525
http://www.osemco.com
/ os@osemco.com
Advertisement
Table of Contents
Related Manuals for OSEMCO ACD-A
Summary of Contents for OSEMCO ACD-A
- Page 1 ATS CONTROLLER [ ACD-A ] User's Manual ※ OSEMCO reserves the right, without notice, to change design or construction of any products and to discontinue. O-Sung Electric Machinery Co., Ltd. 136, Hataemal-gil, Wollong-Myeon Paju-si, Gyeonggi-do, Korea Tel : 82-31-944-3521 / Fax : 82-31- 944-3525 http://www.osemco.com...
-
Page 2: Table Of Contents
- TABLE OF CONTENTS – 1. Safety Notice 1.1 Transportation Precaution 1.2 Installation Precaution 1.3 Operation Precaution 1.4 Precaution of Maintenance, Inspection and Replacement 2. Construction of Controller 2.1 Specifications 2.2 External view 2.3 LED Display 2.4 Function button 2.5 Rear view 2.6 Terminal configuration 2.7 Setting switches 2.8 Time Delay setting... -
Page 3: Safety Notice
1. Safety Notice These Safety Notice describes the important information for operator’s safety. Before commencing installation or operation of this equipment, please read all notices carefully and note the details. These safety notice are classified as “Danger” and “Caution” according to the hazard level. Danger Caution Emergency situation, which may cause... -
Page 4: Operation Precaution
1.3 Operation Precaution - Do not touch the main circuit and control terminal while power activated. Otherwise, electric shock may occur. - Do not store at outdoor non-controlled. Danger This can cause the electric shock, damage or fire due to penetration of water or water vapor. 1.4 Precaution of Maintenance, Inspection and Replacement. -
Page 5: External View

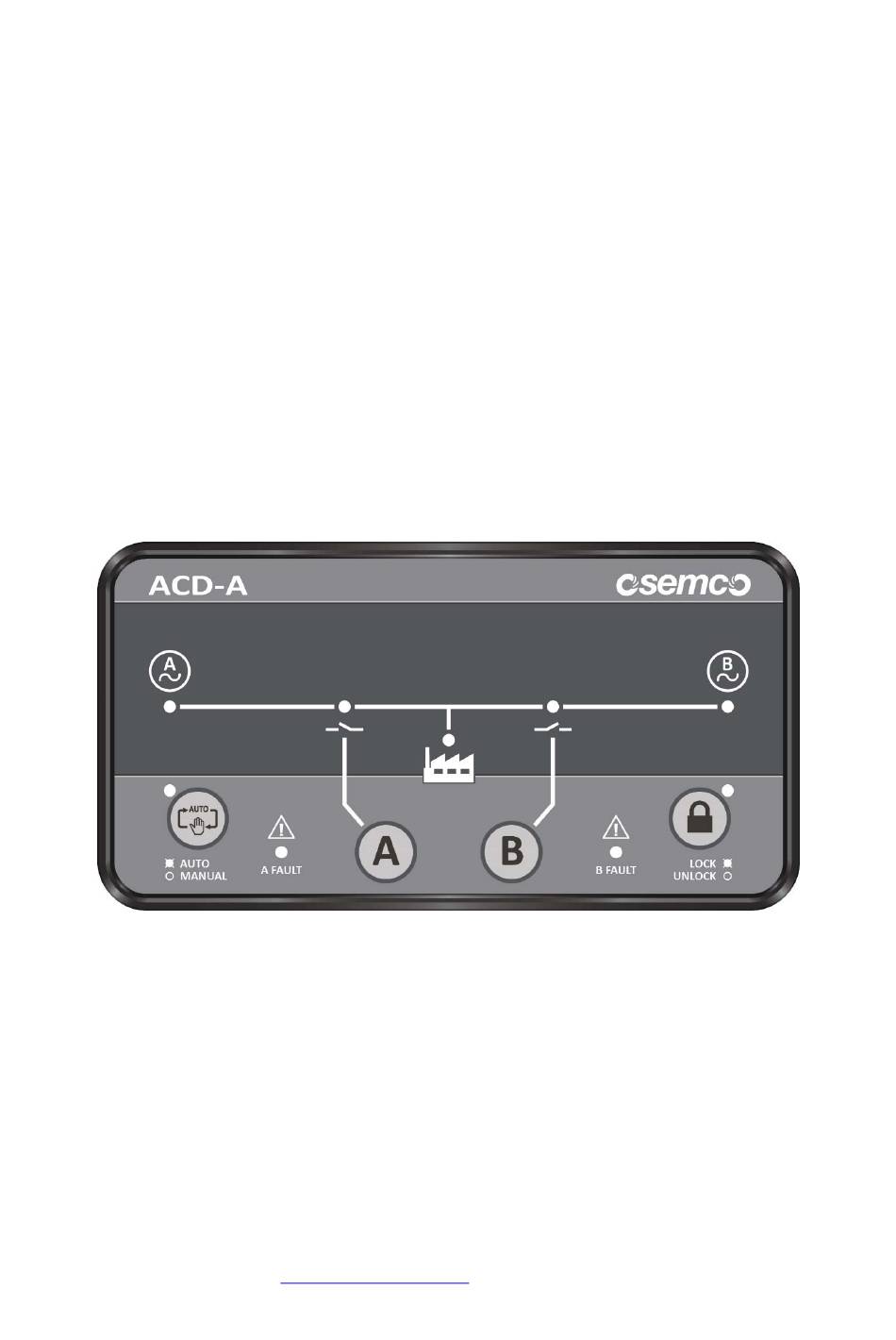

2.2 External View 2.3 LED Display Color Functions Indicating lamp lights while A-Power is normal Indicating lamp off when A-Power is blackout ① A-POWER Green Indicating lamp flickering in 0.1sec interval when A-Power is abnormal(Over/under voltage, Over/under frequency) Indicating lamp lights while B-Power is normal Indicating lamp off when B-Power is blackout ②... -
Page 6: Function Button
2.4 Function Button Button Name Function A-POWER ON A-Power closing note 1) B-POWER ON B-Power closing note 1) AUTO/MANUAL Auto/Manual operation change LOCK/UNLOCK Lock/Unlock operation change Note 1) Button should be pressed for 0.5sec in minimum. 2.5 Rear view A-Power Setting Indicate Set-up Switch... -
Page 7: Setting Switches
B Power B power voltage B power sensed voltage input input※ (AC 220V or 230V) B power closing Closing command output for ATS B power output (B power AC volts output) ※ Please do not voltage withstand test because surge protective varistor is built. 2.7 Setting switches PARAMETER SETTING Use※... -
Page 8: Function Of Setting Button
2.9 Function of setting button Button Normal status When you press manual operation button for 1sec then you may enter setting status Setting status Go to next menu without record a set value Increase value (99sec max) Decrease value (0sec min) Normal status Lamp test will be done when button pressed for 1set under manual operation mode Setting status... -
Page 9: Enter The Menu And Setting
3. Time switch setting 3.1 Enter menu and setting 1) With pressing [Setup] for 1sec under manual operation mode then you may enter time delay menu. 2) If you want to record data and go to next menu please press [Enter] button, and you will go to normal mode at last menu. 3) If you press [Setup] button while setting, you may go to next menu without data record. -
Page 10: Lock/Unlock Mode (Standard)
When the controller is reboot, LOCK/UNLOCK maintains previous condition. UNLOCK Mode 4.1.1 1) The white light off in UNLOCK mode 2) Using button of ACD-A, You may operate and control LOCK Mode 4.1.2 1) The white light on in LOCK Mode 2) Using button of ACD-A, You may operate and control 4.2 Manual operation... -
Page 11: Automatic Operation
4.3 Automatic operation 1) The controller make ATS A-power or B-power ON, or synchronized switching after time delay while sensing of power condition. 2) Automatic operation: ① According to [Power Priority] set, ATS will make switching when both power is normal condition. ②... -
Page 12: Outline Dimensions
5. Outline dimensions 5.1 Outline dimensions 5.2 Panel cutting... -
Page 13: Wiring Diagram
6. Wiring diagram 6.1 T3 or TO-Type 6.2 PC or PSO-Type... - Page 14 6.3 TN-Type...
