Summary of Contents for Iconic PF1

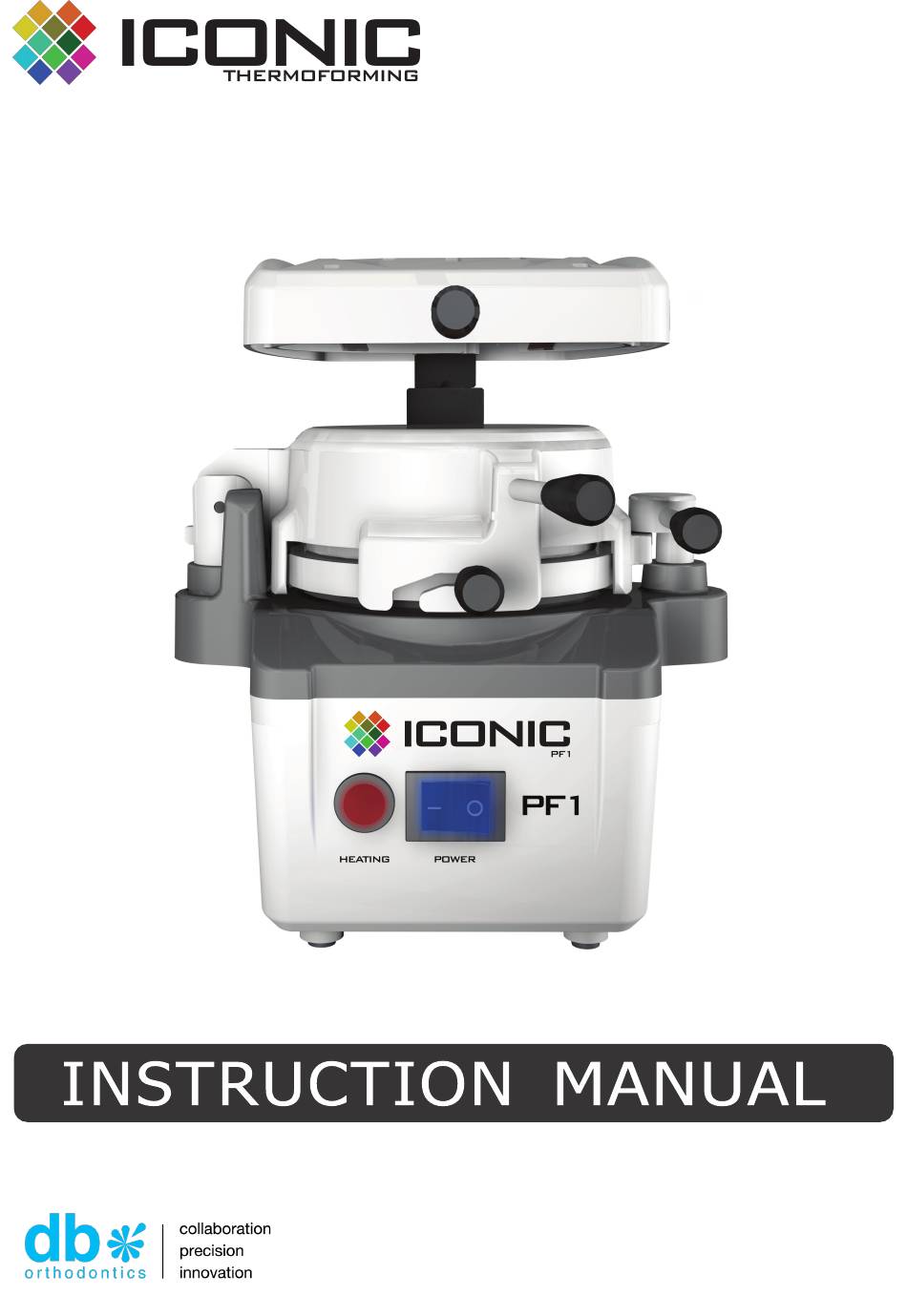

- Page 1 Iconic PF1 Pressure Forming Machine...
-
Page 2: Table Of Contents
• 1 - INTRODUCTION Thank you for purchasing the Iconic PF1 Pressure Forming Machine. The PF1 is designed to be used in the fabrication of high quality dental thermoformed appliances. It maximises the accuracy of fit and compliments DB’s Iconic range of thermoforming materials. -
Page 3: Technical Specifications
Round plate............From Ø 120 to Ø 134 mm Square plate............From 120mm x 120mm à 130mm x 130mm 3 - PACKAGE CONTENTS 01 – PF1 Unit 127V or 220V ..01 unit 02 - Glass grit......250g 03 - Instruction manual....01 unit 04 - Model holder. -
Page 4: Symbols Used In The Product
Maximum stacking Keep in a dry place This side Up Watch out! Compressed air 5 - DESCRIPTION OF THE COMPONENTS 6 - IDENTIFICATION ICONIC PF1 01 – Heating unit 02 – Heating unit knob 03 – Pressure chamber 04 – Pressure chamber rotary axis 05 –... -
Page 5: Installation
7.3 - Check the voltage of the local network before connecting the PF1 to the outlet, remember that this machine does not have dual voltage, so check the supply voltage (127V or 220V) before turning it on. -
Page 6: Use Instructions
Use a single-pole circuit breaker if the electrical network has only one phase. - Do not use a tee connector or other similar type of plug to connect the PF1 to the same outlet where another product is already installed. - Page 7 8.3 - Open the pressure chamber (03), pulling it up and to the left, through its knob (07), until it is positioned with its opening fully facing up (Image 03). Img. 03 8.3 - Place the model on the model holder (14) and then place the assembly in the cavity on the cabinet cover (09) (Image 04).
- Page 8 Note: During this operation, it is natural for the shots to come off the plate and fall onto the bench. To prevent this from happening, we suggest handling it inside a container (tray). 8.3.2 - Flat Position: Allows a copy of the entire extent of the model. For a better result, cut out the model eliminating its retentions and obtaining a flat base.
- Page 9 8.5 - Position the blank’s locking ring (11) in the pressure chamber opening (03), observing that its knob (12) and diametrically opposite pin match the pressure chamber slots (Images 16 and 17). Img. 17 Img. 16 8.6 - Press the locking ring (11) against the pressure chamber (03) using its handle and pin as a guide and turn it to the left clockwise, locking the blank.
- Page 10 (01) back to the posterior position (Images 22 and 22a) During the first few uses of the Iconic PF1, if in doubt, move the heating unit (01) slightly backwards and then back to the...
- Page 11 Img. 23 8.12 - Lock the pressure chamber (03) in its position by turning its lock knob (08) fully to the left, clockwise. If locking is difficult, it is because the blank locking ring (11) and/or the pressure chamber (03) are out of their correct position (Image 24).
- Page 12 8.18 - After removing the blank already with the plasticised model, replace the locking ring (11) in the pressure chamber (03), returning it to the initial position, that is, closed. Also return the heating unit (01) to the front position, reducing the space occupied by the Iconic PF1 machine during its storage (Image 27).
-
Page 13: Replacement Of The Power Cord
9 - REPLACEMENT OF THE POWER SUPPLY CORD If there is any damage to the power cable (19), stop using the PF1 immediately and replace it only with another of the same type. Attention: Only replace the power cable with others with the following specification: PP cable, 2P +... -
Page 14: Safety Precautions
10.13 - Do not connect the Iconic PF1 to compressed air lines with pressures greater than 8 bar (116 psi). 10.14 - Do not disconnect the air hose extender (16) that is connected to the Iconic PF1. It has a silicone tube to protect against heating the resistor and a quick "sacrificial"... -
Page 15: Special Storage Conditions
12 – SPECIAL STORAGE INSTRUCTIONS If the Iconic PF1 needs to be left unused for a long period, we recommend after cleaning it as described in chapter 11, and storing it in its original packaging in a dry, ventilated place, free from vibrations and protected from sunlight. -
Page 16: Warranty And Technical Assistance Term
14 – WARRANTY AND TECHNICAL ASSISTANCE TERMS DB Orthodontics Limited gives one (1) year warranty (from date of purchase) for the Iconic PF1 machine. This warranty comprises any and all manufacturing defect, provided by repairing the product... - Page 17 That the product was correctly used, according to the instructions supplied. We remind that the Iconic PF1 pressure former must be handled, transported and stored carefully. Falls or hits on the equipment will be cause of misuse, leading to loss of warranty.
- Page 18 DB Orthodontics LTD 6 Ryefield Way, Silsden, BD20 0EF +44 (0) 1535 656 999 sales@dbortho.com www.dbortho.com IFU049 - Issue 1 - 24.05.2024...
