Description
WiMER10 is a universal transmitter for reading analog signal from a sensor with either 0-
10 VDC output or 4-20 mA output. WiMER10 ensures accurate results with a 16-bit high-
precision ADC and offers convenient wireless data collection via Bluetooth Low Energy.
Included in the Package
● WiMER10 Transmitter 1x
● USB C Power Cable 1x
● USB Power Adapter 1x
6

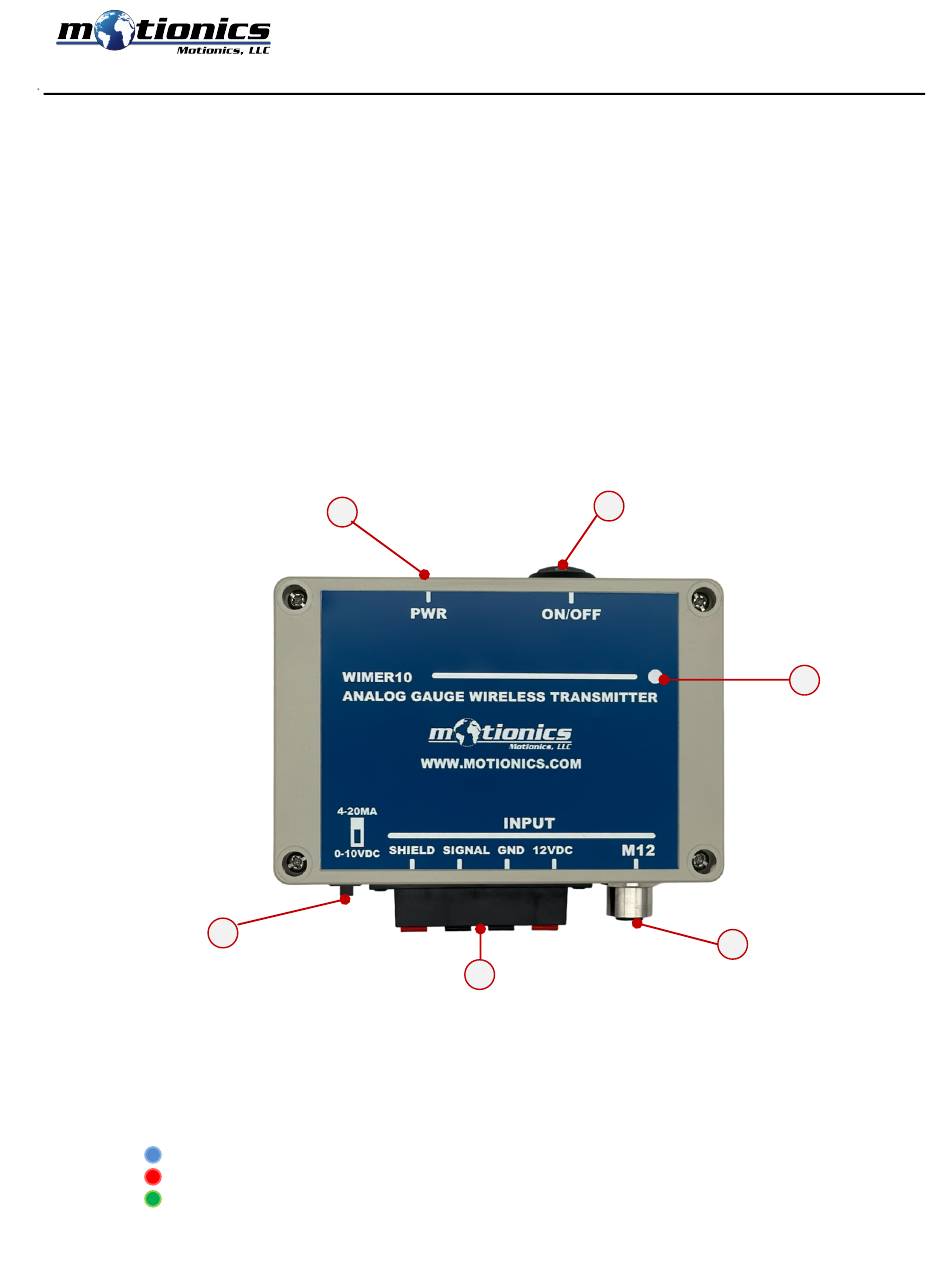

Hardware Description
1. Power Port—connect to USB C cable to charge battery
2. On/Off Switch —turn the device on/off
3. Status LED
Device is on
Device is charging
Device is fully charged
4. M12 Connector—connect to analog sensor
8500 Shoal Creek Blvd Bldg 4 Suite 209 Austin TX 78757 USA
+1(205) 264-1896 www.motionics.com info@motionics.com
Motionics WiMER10
User Guide
1
2
5
3
4
Advertisement
Summary of Contents for Motionics WiMER10
- Page 1 8500 Shoal Creek Blvd Bldg 4 Suite 209 Austin TX 78757 USA +1(205) 264-1896 www.motionics.com info@motionics.com Motionics WiMER10 User Guide Description WiMER10 is a universal transmitter for reading analog signal from a sensor with either 0- 10 VDC output or 4-20 mA output. WiMER10 ensures accurate results with a 16-bit high- precision ADC and offers convenient wireless data collection via Bluetooth Low Energy. Included in the Package ● WiMER10 Transmitter 1x ● USB C Power Cable 1x ● USB Power Adapter 1x Hardware Description 1. Power Port—connect to USB C cable to charge battery 2. On/Off Switch —turn the device on/off 3. Status LED Device is on Device is charging Device is fully charged 4. M12 Connector—connect to analog sensor...
- Page 2 Quick Start 1. Connect an analog sensor to either M12 connector or terminal connector. 4-20mA two wire type: 12V (WiMER10) — + (Sensor) Signal (WiMER10) — - (Sensor) 4-20mA three wire type: 12V (WiMER10) — + (Sensor) Signal (WiMER10) — Signal (Sensor) GND (WiMER10) — - (Sensor) 0-10V type: 12V (WiMER10) — + (Sensor) Signal (WiMER10) — Signal (Sensor) GND (WiMER10) — - (Sensor) 2. Select sensor input type according using the sensor switch. 3. Turn on the device. 4. Install and run MultiGage Reader. 5. Plug in USB Bluetooth dongle if using Windows PC. 6. In the main page, tap the Scan/+ button to bring up a new pairing page. 7. Wait for the software to finish scanning nearby devices, then select WiMERXXXX to connect. 8. After device is connected, tap device name on the panel to open device setting page. Select corresponding sensor type, enter measurement range and unit, press Save. These settings are persistently saved on WiMER10 and there is no need to change them unless a new sensor is being used. 9. WiMER10 reading will be displayed in the software. Important Notes ● Turn off the device after use. It will NOT turn off automatically. ● Do NOT open the device. Opening causes permanent damage and voids the warranty.
