L663 Britpart 90 Boot Basket
(DA3979)
Installation Guide

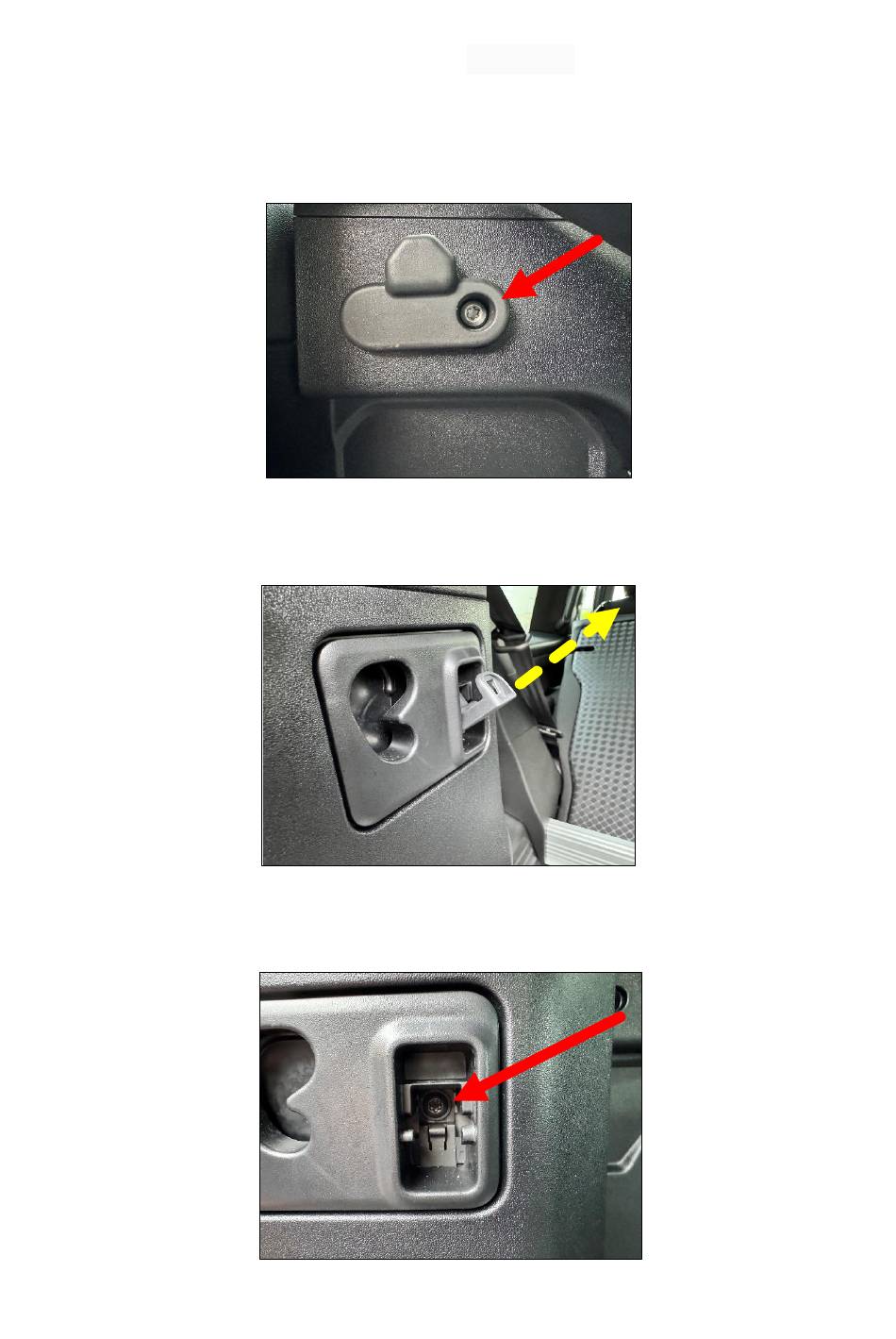

Remove both of the forwardmost plastic 'parcel shelf' supports by removing the
single TX27 Torx fastener that holds them in place. Remove the 2 x shelf supports
and set-aside safely with their 2 x fixings.
Hinge the fold out 'coat-hooks' downwards to approx' 45-degrees and then pull on
the hook upwards to unclip the coat-hooks from their housing.
With the coat-hook removed this will reveal the TX27 Torx fastener located within the
coat hook location. Remove this fixing.
Advertisement
Summary of Contents for MUD UK DA3979
- Page 1 L663 Britpart 90 Boot Basket (DA3979) Installation Guide Remove both of the forwardmost plastic ‘parcel shelf’ supports by removing the single TX27 Torx fastener that holds them in place. Remove the 2 x shelf supports and set-aside safely with their 2 x fixings.
- Page 2 The use of long nosed piers or a magnet will make removing the fixings easier from this location. Set aside the 2 x fixings with the hooks and shelf supports and their fixings. These can be re-installed should you wish to remove the boot basket in the future.
- Page 3 Once both support brackets are in place, sit the basket onto the support brackets and check the basket is level. Support bracket holes are elongated to allow for adjustment. Once you’re happy the basket is level, tighten the 4 x support bracket fixings down.
