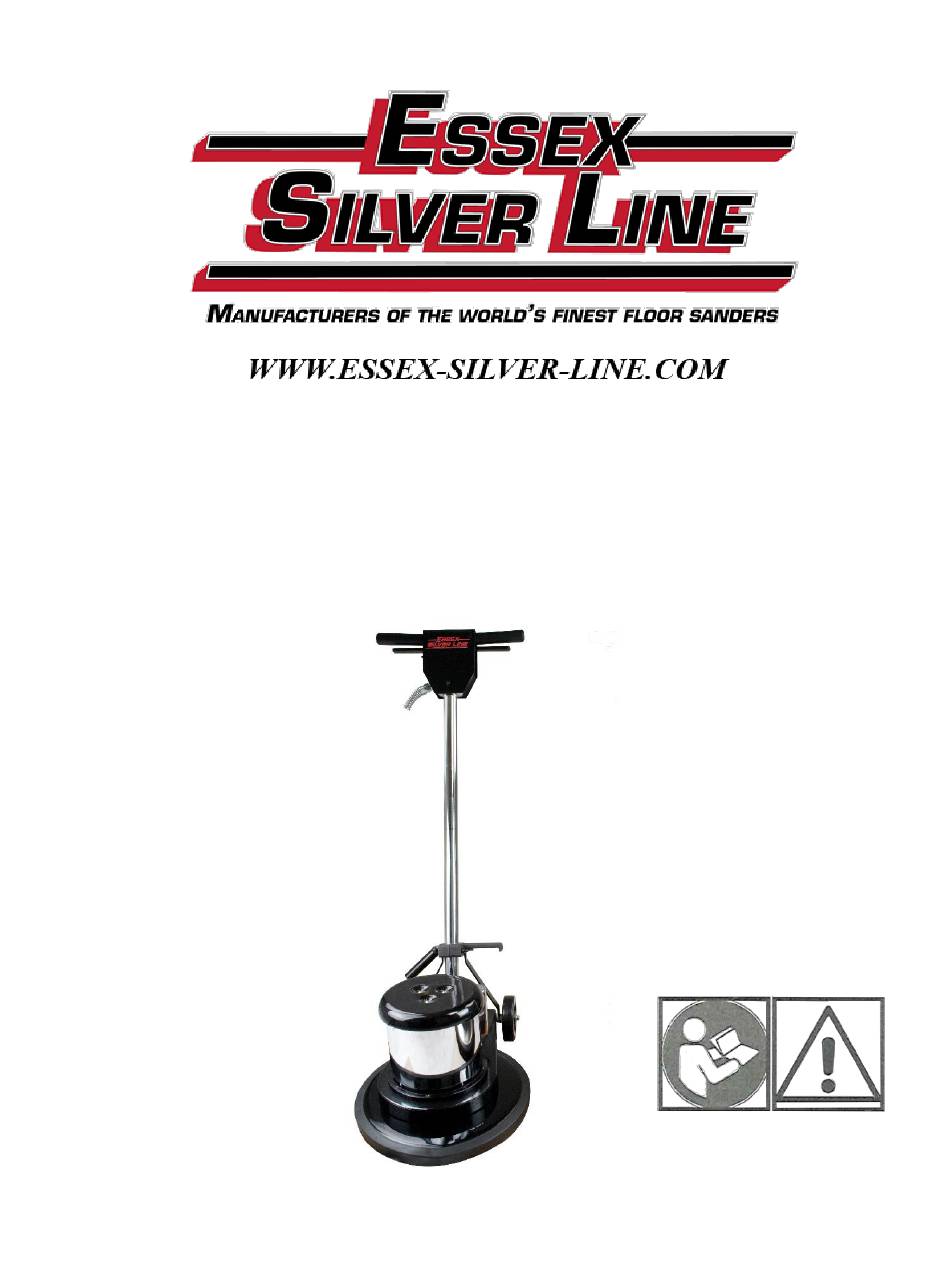

- Page 1 ESL17-SV Low Speed Rotary Polisher 2024 September Revised Prices Subject to Change w/o notice 2/1/2024...
- Page 2 When your package is delivered, check each of the 3 cartons carefully for signs of rough handling. If the ESL17-SV is damaged, notify the carrier immediately and request and inspection. Be sure to keep the cartons, packing inserts, packing lists and carrier’s receipt until the inspector has verified your claim.
- Page 3 FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS AND INSTRUCTIONS WILL VOID THE WARRANTY. WARNING! • Do not operate the machine unless trained and authorized. • Do not leave the machine unattended when plugged in. Unplug from outlet when not in use, before servicing, and when changing the brushes or pads.
-
Page 4: Proper Lifting Techniques
Proper Lifting Techniques: 1. Stand close to the load with your feet spread shoulder width apart. One foot should be slightly in front of the other for balance. 2. Squat down, bending at the knees (not your waist). Tuck your chin while keeping your back as vertical as possible. -
Page 5: Grounding Instructions
The Green (or Green/Yellow) wire in the cord is the grounding wire. When replacing the plug, this wire must be attached to the grounding pin only. DO NOT use extension cords. Servicing: In the event that your ESL17-SV requires service, please contact Essex Silver Line at: 800-451-5560 or email info@essex-silver-line.com. Do not attempt repairs yourself. Notes:... -
Page 6: Preparing The Machine For Operation
Final Assembly Instructions: Please read the manual completely before proceeding to final assembly instructions. Preparing The Machine For Operation Your floor machine will operate in a wide variety of hard floors and carpet cleaning applications. Consult with Essex Silver Line to select the correct accessories for the job you are going to perform. -
Page 7: Machine Operation
Machine Operation: Install the pad driver and pad, brush or attachment. Plug in machine. Lower the handle to the desired operating position. Place both hands on the handle grips with your fingers around the ON/OFF lever which extends from one side to the other underneath the handle grips. The safety LOCK-OUT lever is located underneath the right side handle grip and ON/OFF lever. - Page 8 Final Assembly Procedure for ESL17-SV Low Speed Floor Machine 1) Before the final assembly, please check that you have received three cartons. 2) Carton one is labeled as Base Assembly, Carton two is labeled as Handle Assembly and Carton Three is labeled as Brush Cover Assembly 3) Open all cartons and pull out assemblies.
- Page 9 5) Bring the handle to the upright Motor Base 6) Unscrew the nut (C13100) from the pivot axle screw (C22558) Slide the screw from the handle bracket on the motot base frame 7) Insert the pivot tube on the handle between the handle bracket and align the holes 8) Insert the Pivot axle screw and nut, finger tighten first, then use a wrench...
- Page 10 Assembly of the Locking Clamp to the Handle Assembly 1) Unfasten the nut (C11558) on the locking clamp handle assembly 2) Take the locking clamp assembly out of the braces 3) Insert the locking clamp assembly throught the left and right braces and the Cord Hook Clamp Assembly.
- Page 11 5) Cord hook clamp should move freely up and down on the handle when the locking handle is in the unlock position (UP) 6) Stop and lock the handle (down position) in several locations on the handle 7) Tighten the nut by hand until you feel the handle locks and unlocks firmly. Test in several locations, the clamp should move freely when unlocked 8) Assembly is done, review pad driver installation before installing your pad driver.
- Page 13 Item # Part Number & Description EDI-B11487 Power Cord, 14-3, 50 ft, SJTW EDI-K11498 Grip EDI-C11528 Screw, 10-32 X .25 in EDI-H12066 Label, 0.5 HP, Saturn EDI-H11831 Label, EDIC, Black-Silver EDI-D11496B Switch Box Cover, Black EDI-H11493 Label, Safety, Floor Machine EDI-C11529 Screw, 10-32 X .375 in EDI-K11519 Lever Grip, Lockout, Black EDI-C00278 Locknut, 10-32, Nylon, SS...
- Page 14 Item # Part Number & Description EDI-D11483 Frame, Motor, Black EDI-G11468 Motor w/Gearbox, 1.5HP EDI-D11481 Handle Brace, Left, Black EDI-H10976-1 Label, UL STD 561-507 EDI-H00565-5 Label, Serial #, Standard EDI-H03545 Cover, Serial #, Label EDI-D11490B Drip Cover, Black EDI-H12913 Label, Drip Cover White EDI-C11916 Screw 10/32 x .375 Phillips EDI-C13100 Nut, 9/16-12 Nylon EDI-B10734 Strain Relief, Handle...
