INDE 492GNA Quick Start Manual

Top-of-the-line
Tests ESD wearing status quickly and conveniently ANSI ESD S20.20 Compliant
This top-of-the-line Combo ESD Tester is according to GJB 3007-97, SJ/T 10694-2006 and ANSI ESD S20.20 standards. It can
test ESD wearing status quickly and conveniently of the Wrist Straps and the ESD Footwears (feet loops, conductive footwear
and antistatic footwear). Practical measurement range is 100k

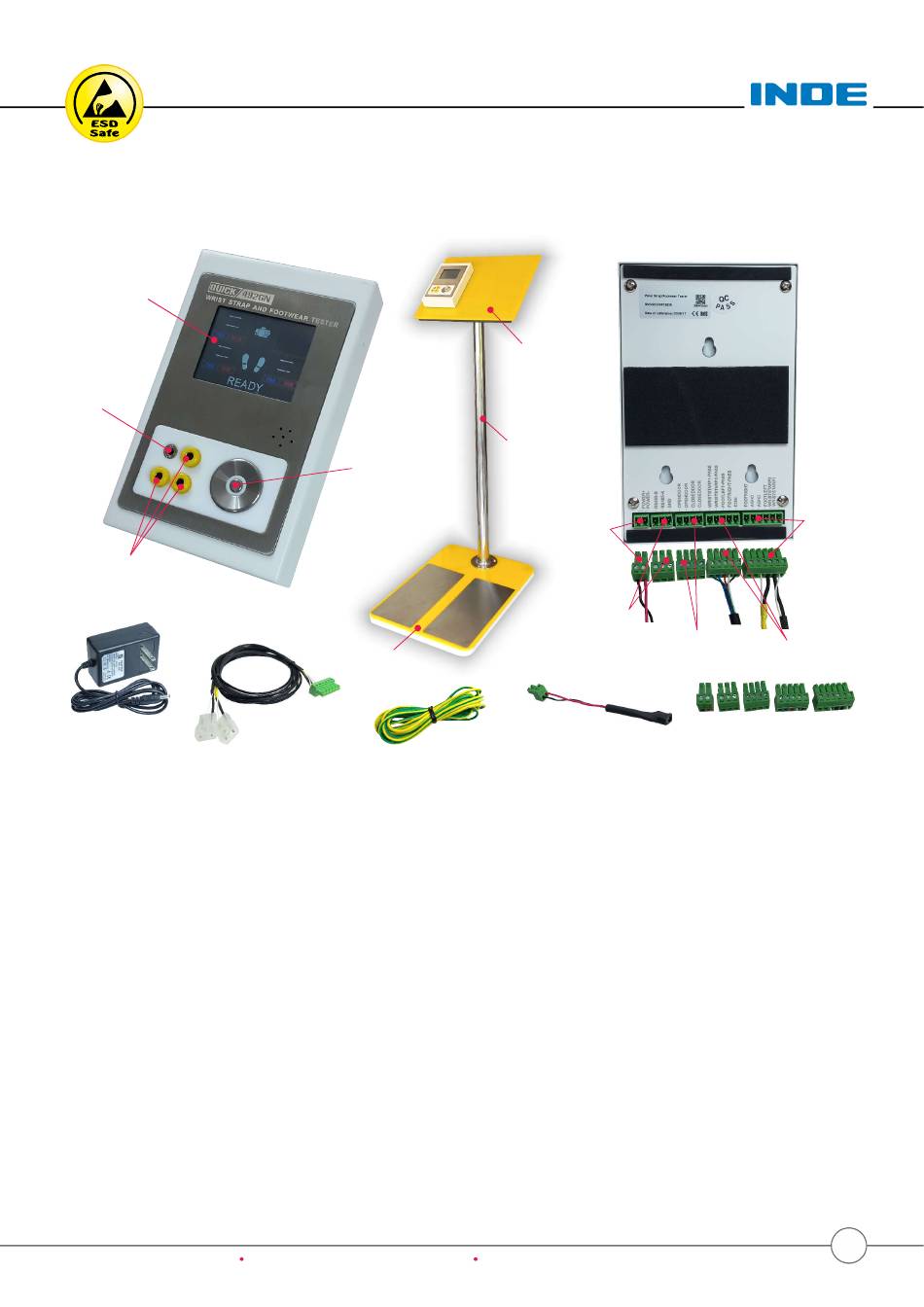

Display
Panel
Jacks for
Dual wire
Wrist Strap
Jacks for
single wire Wrist Straps
AC Coupling
Adaptor 8~12VDC
Features:
1 Has 2 Test Modes:
1.1 Single Test Mode: checks the ESD status of Wrist Strap or Footwear.
1.2 Comprehensive Test Mode: checks the ESD Status of both Wrist Strap and Footwear.
2. Touch screen type LCD Display
3. Customer can connect it to Door Control System thru Access System Control Signal from this ESD Tester.
4. Wrist Strap & Footwear Combo Tester Model 492GNA uses mini-current testing for stable and accurate results.
5. Can be connected to customer's computer by RS485 cable to record data for controlling and checking.
Specications
Power supply
Working Mode
Touch-Point Switching Output
Accuracy (Approximate)
PC Interface
Dimensions (approx)
Weight (approx)
Warranty is 12 months from the date of invoice.
It excludes any mechanically damaged and electrically misused part.
While the information contained herein in, has been carefully compiled to the best of our knowledge, nothing is intended as representation and warranty on our part; and no statement shall be construed as recommendation to infringe any of existing
patents. We accept no liability of whatsoever for any faults and errors in the information contained herein. Contents of this catalogue and specifications of the products, are subject to change without notice due to continuous improvements.
Website: www.indeonline.in
Digital Wrist Strap & Footwear
Test
Button
Foot Plate
Wire Assembly
to connect Footplate
: AC coupling adaptor (8-12VDC)
: Stand-alone operation runs the test independently
: Voltage ≤ 400V (Max.) peak value, DC or AC)
Switch Current maximum 100 mA, Touch-Point Resistance is about 30Ω
Qualied and disqualied signal output in different ways
: Wrist Strap testing: ± 10%
Footwear testing: ± 10%
: via Rs485 Cable
: 102 mm (L) x 162 mm (W) x 30 mm (H)
: 8.9 kg
Phones: 9316134502 & 9815600745
Combo
•
Ω~1 Ω G which is adjustable with accuracy of
Platform
Pole
Power
Supply
RS485
Communication
Wire Assembly
Grounding Wire for Power Supply
Email: romesh1947@gmail.com &
Tester 492 GNA
reliable & caring since 1976
less than 10%
Door Access
Control Signal
Connectors for power supply,
PC interface, control signal etc.
on-site services can be provided at extra charges
if pre-paid by customer in advance
info @indeonline.in
Right & Left
Footplate
Test Report
Output Signal
