DKK-TOA ODL-1600A Specification Sheet

Oil Film Detector
(Non-Explosion-Proof Version)

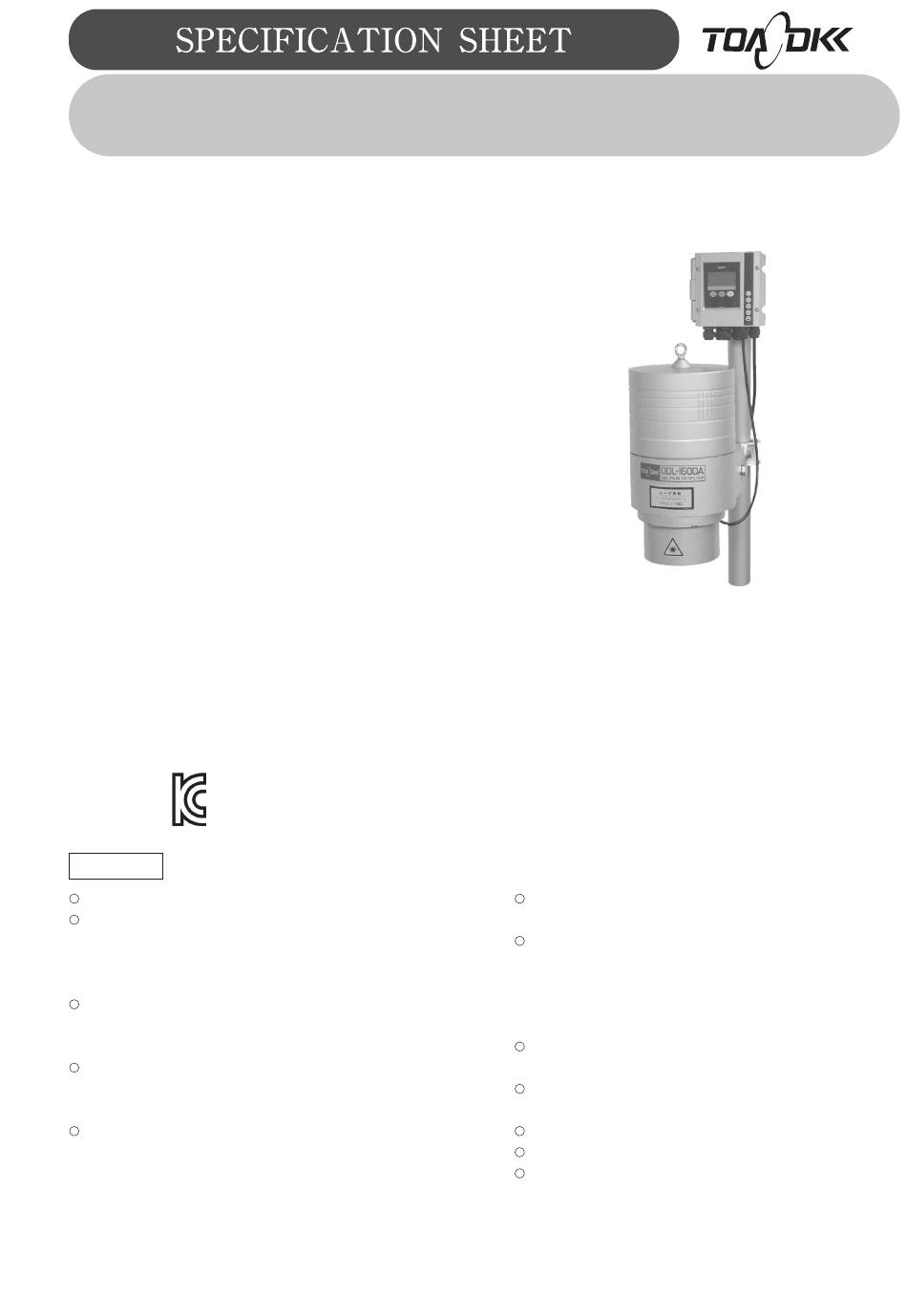

The Model ODL-1600A monitors a water surface for
the presence of an oil film floating on the surface. The
instrument projects a laser beam onto the water
surface and measures the differences in the reflection
properties between water and oil at an early stage.
Our series of oil on water monitors have been field
proven over decades and are used in a wide variety of
installations worldwide. These instruments include
the Models ODL-12 and ODL-20.
This instrument is a slightly enhanced version of the
existing oil film detector ODL-1600. While it inherits
the proven technology employed by the existing model,
such as laser beam scanning and high-speed pulsing,
this model also comes with optimized optical design
and higher level of noise immunity to accommodate
v a rio us co nd it i o ns in t he fie ld . The se de s i gn
enhancements enable the ODL-1600A to deliver more
reliable oil detection.
If installation in hazardous areas is required, we
recommend our flameproof enclosure type Model
SODL-1600.
Features
Non-contact laser beam detection system.
Scanning laser beam system provides enhanced
detection even under difficult surface conditions
such as the presence of floating debris, bubbles or
curved oil surfaces with higher reliability.
Laser scanning system contains no moving parts
reducing power consumption and increasing
reliability in continuous run.
Fast signal processing and short pulse cycle of laser
beam provides excellent detection ability even on
water surfaces with ripples and waves.
Internal micro-computer provides comprehensive
diagnostic and maintenance information including
reflected light intensity, oil detection history etc.
The instrument is also capable of detecting leakage
of water or oil on dry surfaces.
Optimized optical design enables mounting of the
detector from 0.3m up to 4m from the water surface
(mounting up to 6.5m is possible for smooth water
s u r f a c e s ) . D e t e c t i o n a t w a t e r s u r f a c e w i t h
turbulence is now enabled.
Rugged, cast aluminum enclosures suitable for
mounting in harsh, industrial environments.
The optional simple, easy to adjust mounting
brackets allow easy installation and maintenance.
A single transmitter can control up to two detectors.
The Korean KC mark acquired.
ODL-1600A
