Technical data :
Power supply:
Operating frequency:
Transmission power:
Operating temperature:
Operating range:
Receiver memory:
S-SOLAR type drives are the drives with a built-in radio transmitter, which allows the wireless operation with a
remote control. They are intended for automated operation of external (front mounted) roller shutters. They are
equipped with remote control programmable limit switches. A built-in battery allows the user to install a drive
without any required connection to an external power supply. The S-SOLAR type drives are compatible with
dedicated SRR and SPRN transmitters.
S-SOLAR 40/13RM
S-SOLAR 60/20RM
12V DC
433 MHz
<10 mW
from -10 °C to +50 °C
Determined by the system architecture
and regulatory factors
up to 10 transmitters
User manual
of drives
Advertisement
Summary of Contents for Portos S-SOLAR 40/13RM

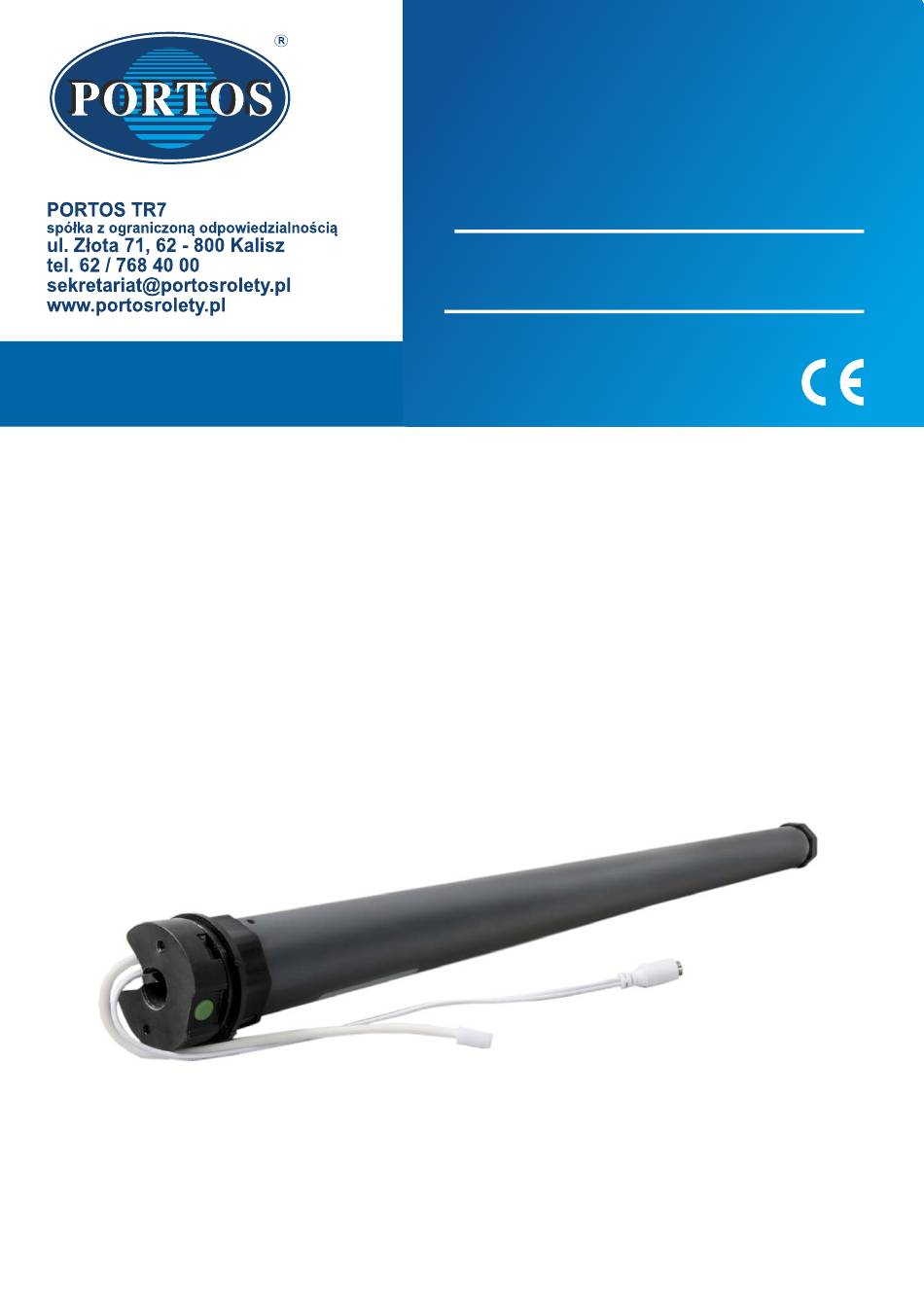

- Page 1 User manual of drives S-SOLAR 40/13RM S-SOLAR 60/20RM Technical data : Power supply: 12V DC Operating frequency: 433 MHz Transmission power: <10 mW Operating temperature: from -10 °C to +50 °C Operating range: Determined by the system architecture and regulatory factors...
-
Page 2: Technical Data
1. TECHNICAL DATA: ANTENNA CHARGING SOCKET BATTERY MOTOR GEAR RADIO RECEIVER, LIMIT SWITCHES PROGRAMMING BUTTON FUNCTIONS OF THE PROGRAMMING BUTTON: Single button press Drive control in the step mode Pressing the programming button and holding it for 3 seconds Programming a new transmitter or removing an already (up to the first movement). - Page 3 3. CHARGING: 1. The drive is equipped with a built-in 12 V lithium-ion battery with an integrated charging module. 2. Maximum voltage and power of the charger: 12.6 V 1 A. 3. Before the motor is used for the first time, it shall be charged for approx. 6 hours. 4.
- Page 4 5. DIRECTION CHANGE OF THE DRIVE OPERATION: METHOD NO. 1: This method of changing the direction of the drive operation can be used only before the end positions have been programmed. 1. The DOWN button controls the roller shutter opening . 2.
- Page 5 A. UPPER END POSITION: 1. Using the control buttons set the roller shutter in the position that is to be its upper end position. 2. Press and hold the UP and STOP buttons simultaneously for 3 seconds to confirm the upper end position.
-
Page 6: Adjustment Of End Positions
7. ADJUSTMENT OF END POSITIONS: Even if the end positions are already set, the upper or lower end position can always be adjusted. An interval longer than 2 minutes between the subsequent button presses will result in an automatic exit from the programming mode and the changes will not be saved. ADJUSTMENT OF THE UPPER END POSITION: 1. - Page 7 8. PROGRAMMING THE FAVOURITE POSITION: Once the upper and lower end positions are set, you can set the third position (the favourite position) in-between the two end positions. Hold the STOP button for 3 seconds to set the third position. PROGRAMMING THE FAVOURITE POSITION: 1.
- Page 8 10. PROGRAMMING ANOTHER REMOTE CONTROL / CHANNEL COPYING. A receiver can be controlled by 10 transmitters at the maximum. An interval longer than 10 seconds between subsequent button presses will result in an automatic exit from the programming mode and the changes will not be saved. A channel can be copied on the same remote control in order to create a group channel.
- Page 9 METHOD NO. 2: 1. Press the P2 programming button on the remote control A. The roller shutter will make short up/down movements. The drive will generate an audio signal. 2. Press the P2 programming button on the remote control A. The roller shutter will make short up/down movements.
- Page 10 11. DELETION OF A CHANNEL / REMOTE CONTROL: Remote Control A - a channel or remote control other than B from which a drive is to be deleted. Remote Control B - a channel or remote control from which a drive is to be deleted. METHOD NO.
- Page 11 12. SWITCHING BETWEEN OPERATION WITH / WITHOUT POWER BACKUP : An interval longer than 2 minutes between subsequent button presses will result in an automatic exit from the programming mode and the changes will not be saved. To switch the pulse mode on, follow the procedure described below. If you want to switch off a given mode, the same procedure shall be repeated.
- Page 12 3. Press the DOWN button. The roller shutter will make two short UP/ DOWN movements. The drive will generate several audio signals. WARNING - FOR THE SAFETY OF PEOPLE, IT IS IMPORTANT TO FOLLOW THIS USER MANUAL. KEEP THIS USER MANUAL AT ALL TIMES. PORTOS TR7 spółka z ograniczoną odpowiedzialnością...
