Related Manuals for Teufel AIRY TWS PRO
Summary of Contents for Teufel AIRY TWS PRO

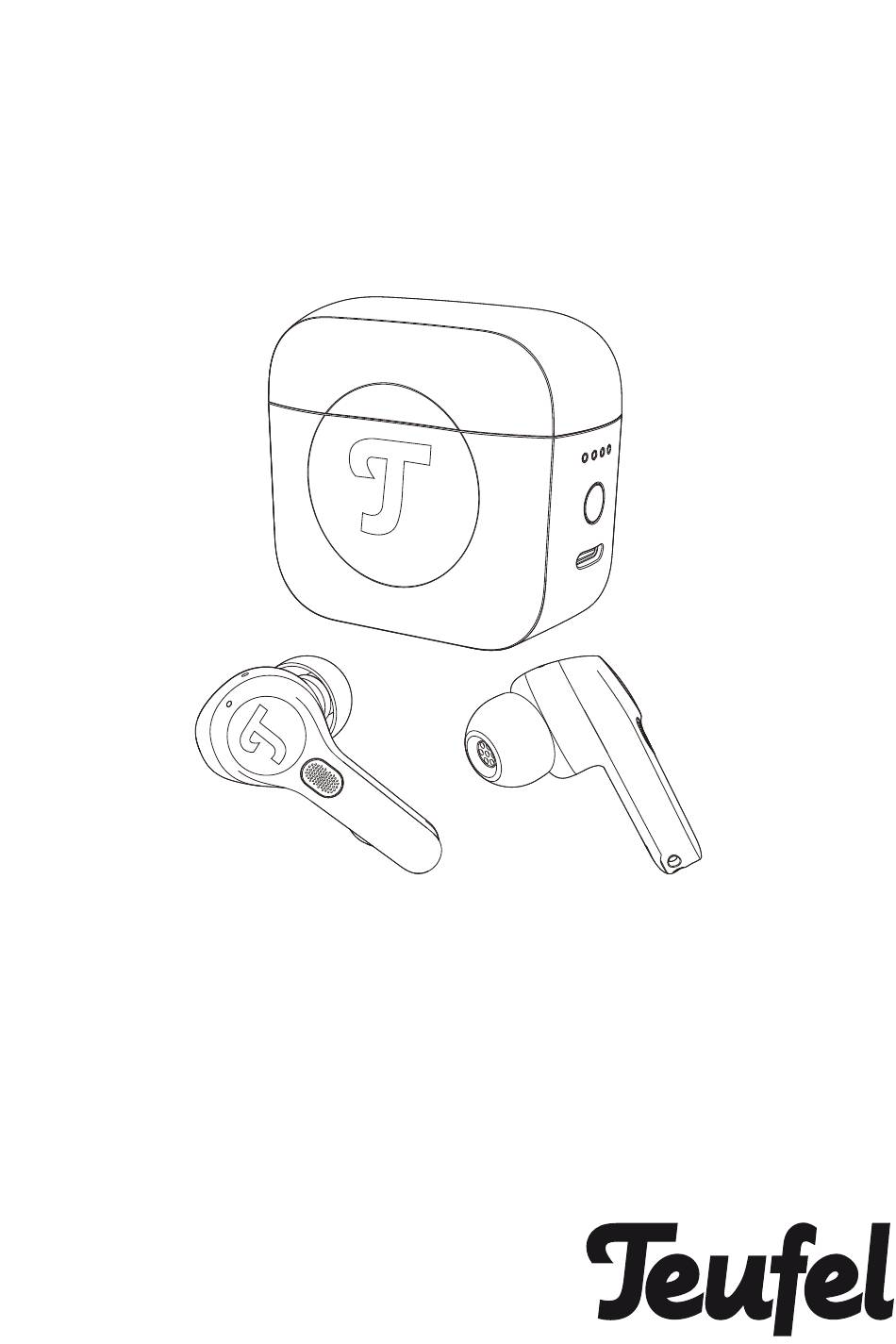

- Page 1 Technical Description And User Manual AIRY ® AIRY TWS PRO Bluetooth In-Ear Earphone...
-
Page 2: Table Of Contents
2.4 Charging case LED 6.2 Storing the earphones in the indications ........11 charging case ......18 3. Getting started ......13 7. Teufel Headphone App ....19 3.1 Powering on & off ....13 8. Troubleshooting ......20 3.2 Choosing the correct 9. Technical Data ......23 eartips .........13... -
Page 3: Introduction
Introduction Thank you for purchasing the Teufel AIRY TWS PRO Bluetooth earphones which are designed to bring an extraordinary sound experience for your entertainment. Please read this user manual before using the earphones for the first time, it will provide you with useful information and help you get started. -
Page 4: General Information
Lautsprecher Teufel The invoice number can be found GmbH. on the sales slip (enclosed with the... -
Page 5: For Your Safety
For Your Safety Proper Use Before operating the earphones, please first read The “Teufel AIRY TWS PRO” Earphone the safety notes and user are designed for the playback of manual carefully. This is the audio signals that can be wirelessly... -
Page 6: Trademarks
Android and Google Assistant are trademarks of Google LLC. The Bluetooth word mark and logos ® are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Lautsprecher Teufel is under license. • AIRY TWS PRO... -
Page 7: What's In The Box
1x pair of Earphones with eartips 1x Case 4x pairs of ear tips 1x Type C to Type A cable 1x Multi-language Quick Start Guide 1x Safety Booklet • AIRY TWS PRO... -
Page 8: Product Overview
2. Product overview 2.1 Earphones The User Interface of “AIRY TWS PRO” has the following elements: 1. Status LED 2. Touch Slider 3. Force Button 4. Wear Detection Sensor 5. Microphones • AIRY TWS PRO... -
Page 9: Charging Case
2.2 Charging Case 6. Status LED (white) (x4) 7. Push Button 8. USB-C 9. Wireless Charging (back side of case) • AIRY TWS PRO... -
Page 10: Earphone Led Indications
Fast flash blue until device is paired or time-out passed (1 BT Pairing Mode minute) BT Connected Solid blue for 3 seconds Breathing blue until a device is connected or time-out Standby elapsed Clear device list Fast Flash blue, red, blue, then off. • AIRY TWS PRO... -
Page 11: Charging Case Led Indications
100% power: All 4 LEDs stay solid on for 1 minute, then Charging Complete off. LEDs display current battery level for one second and On connecting charging then repeat charging pattern according to charging cable progress. • AIRY TWS PRO... - Page 12 Charging Case State Charging Case LED Behavior On disconnecting charging LEDs display current battery level for 3s. Then off. cable • AIRY TWS PRO...
-
Page 13: Getting Started
NOTICE To test the fit, try speaking aloud. Your voice should sound muffled in both ears; if not, select another tip size. This should be done under ANC OFF mode. • AIRY TWS PRO... -
Page 14: Connecting With The Earphones
If your audio source supports high- 2. Enable Bluetooth on your device resolution audio encoding methods and search for the “Teufel AIRY SBC, AAC, it will automatically play TWS PRO”. LED will stay solid high audio quality music. on for 3 seconds blue when it is The paired devices immediately connected. -
Page 15: Using The Earphones
Short press the case button to show battery status. Middle press the case button for Bluetooth Pairing. 1.5 sec Long press the case button to clear device list. 4 sec Very long press the case button for TWS pairing. 8 sec • AIRY TWS PRO... -
Page 16: Charging
To get the real-time battery level, use a Battery Widget for Android or iOS or the companion app. While charging the earphones When an earphone is inserted, its corresponding charging indicator glows according to charging status. • AIRY TWS PRO... -
Page 17: Usb-C Charging
USB cable into the USB-C port. 5.3 Charging wirelessly 2. Connect the other end into a USB wall charger (not provided). NOTICE Before charging, be sure that the earphones are at the correct operating temperature of between 0°C and 45°C. • AIRY TWS PRO... -
Page 18: Care And Maintenance
– Open the charging case, lift the top cover, and insert the left earphone into the left charging compartment and the right earphone into the right charging compartment. The earphones are magnetically pulled into the charging compartments. – Close the charging case. • AIRY TWS PRO... -
Page 19: Teufel Headphone App
7. Teufel Headphone App • AIRY TWS PRO... -
Page 20: Troubleshooting
1. Make sure your mobile device supports Bluetooth technology. 2. On your mobile device: Turn the Bluetooth feature off and then on. 3. Delete your Teufel AIRY TWS PRO earphones from the Bluetooth list on your mobile device. Connect Earphones don’t again. - Page 21 4. Move your mobile device closer to the earphones (10 m) and away from any interference or obstructions. 5. Clear any debris or wax buildup from the earphones and earphones nozzles. Eartips falling off Securely attach the tips to the earphones. • AIRY TWS PRO...
- Page 22 TWS Pairing (for Lost and purchase a new 2. Put the two earphones in the charging case. earbud) 3. The pairing will be done with 3 short presses on both earphones respectively. • AIRY TWS PRO...
-
Page 23: Technical Data
You can find further technical data on our website. Technical changes reserved! 2,5 W The power delivered by the charger must be between min 2,5 Watts required by the radio equipment, and max 2,5 Watts in order to achieve the maximum charging speed. • AIRY TWS PRO... -
Page 24: Declaration Of Conformity
10. Declaration Of Conformity Lautsprecher Teufel GmbH declares that this product complies with Directive 2014/53/EU. The full text of the EU declaration of conformity can be found at these Internet addresses: www.teufel.de/konformitaetserklaerungen www.teufelaudio.com/declaration-of-conformity • AIRY TWS PRO... - Page 25 Please contact our customer service department with any questions, suggestions, or complaints: Lautsprecher Teufel GmbH Bikini Telefon: Berlin, Budapester Str. 44 10787 Berlin (Germany) Deutschland: +49 (0)30 217 84 217 Österreich: +43 12 05 22 3 www.teufelaudio.com Schweiz: +41 43 50 84 08 3 www.teufel.de...
