Better Packages 333 PLUS Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
333 PLUS SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 333 PLUS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Better Packages 333 PLUS Series

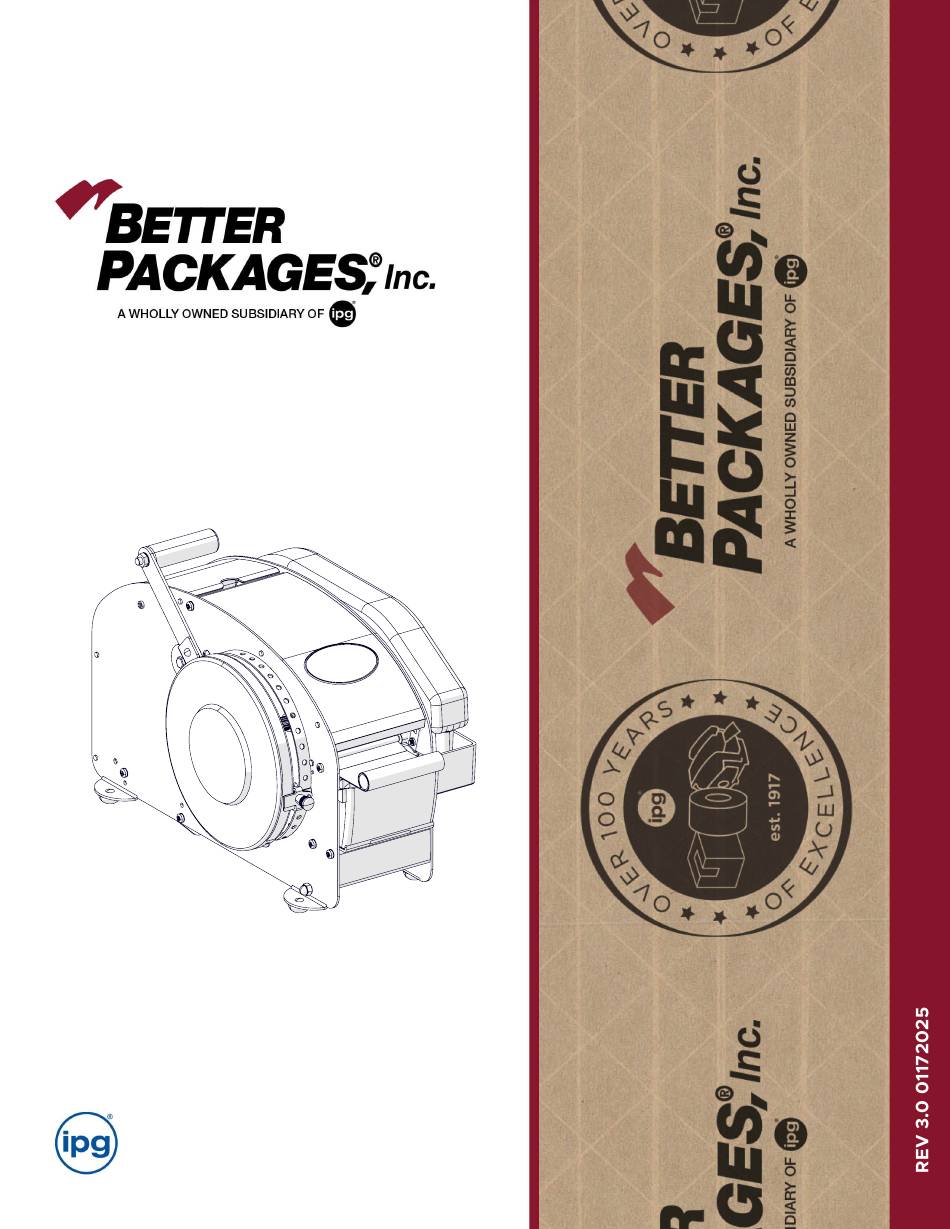

  • Page 1 USER MANUAL 333 PLUS SERIES...

  • Page 2: User Notes

    User Notes Better Packages 333 Plus Rev 3.0...

  • Page 3: Table Of Contents

    Table of Contents Technical Assistance Replacement Parts Warranty Information Warranty Information Warranty Registration General Information Description of the 333 Plus Definitions Optional Equipment Heater Important Safeguards Label Placement Label Descriptions Machine Nameplate Important Safeguards Explanation of Signal Word Consequences Operator Skill Level Descriptions Specifications 333 Plus Dimensions 333 Plus Components...

  • Page 4: Technical Assistance

    Technical Assistance This is the Better Packages Model 333 Plus Series WAT Tape Dispenser you ordered. It has been set up and tested in our factory with IPG manufactured water activated tapes. If any problems occur when setting up or operating this equipment, please contact the authorized distributor from where you purchased this item.

  • Page 5: Warranty Information

    Better Packages replacement parts shall also make this warranty null and void. Better Packages shall have no obligation to repair or replace (1) those parts failing due to operator misuse, carelessness, or due to any accidental cause other than equipment failure, or (2) parts that fail due to: Misapplication, lack of proper maintenance, abuse, improper installation, or abnormal conditions such as temperature, moisture, dirt, or corrosive matter, etc.

  • Page 6: Warranty Information

    Warranty Information Warranty Service Better Packages will replace or repair (at the company’s discretion) any defective parts within the warranty period, on a no- charge basis. The Authorized Distributor/Service Center will furnish, without charge, necessary labor to service the machine.

  • Page 7: General Information

    The Better Packages 333 Plus Series is water-activated tape dispenser (also known as a paper tape dispenser, gummed, or gum tape water-activated tape dispenser) and comes standard with a large capacity tape basket. The 333 Plus series is designed for medium to high volume shipping and packaging areas. This allows for up to a 600 ft. long or 7.75” diameter roll of tape (305 meter long or 182.8mm diameter roll).

  • Page 8: Optional Equipment

    Heater The Better Packages 333 Plus can be equipped with an optional heater(order number TH55PXXXK). It is recommended to use the heater in cooler environments where the water will be less than 50º F (10º C). While not necessary for normal operation the use of warmer water will activate the adhesive sooner.

  • Page 9: Important Safeguards

    Important Safeguards There are a number of safety labels used on the 555e. These labels are placed at different locations on the dispenser to warn operators and service personnel of possible dangers. Please read the labels on the machine and the following safety precautions before using the machine.

  • Page 10: Label Placement

    FILE TYPE: FILE NAME: 900-405-0-B.ai PROPRIETARY INFORMATION: Adobe Illustrator, 9.0 This Artwork is the property of Better Packages, Inc. and may not be reproduced, used or disclosed in whole or in part SCALE DWG. No. : 900-405-0 without the written consent of Better Packages, Inc.

  • Page 11: Label Descriptions

    FILE TYPE: FILE NAME: 900-405-0-B.ai PROPRIETARY INFORMATION: Adobe Illustrator, 9.0 This Artwork is the property of Better Packages, Inc. and may not be reproduced, used or disclosed in whole or in part SCALE DWG. No. : 900-405-0 without the written consent of Better Packages, Inc.

  • Page 12: Machine Nameplate

    Machine Nameplate DESCRIPTION UPDATE ADDRESS AND WEBSI Model Number Serial Number Manufacturer Details Serial Label Reorder Number Figure 5: Machine Nameplate Better Packages 333 Plus Rev 3.0...

  • Page 13: Important Safeguards

    Important Safeguards Explanation of Signal Word Consequences WARNING: INDICATES A POTENTIALLY HAZARDOUS SITUATION, WHICH IF NOT AVOIDED COULD RESULT IN DEATH OR SERIOUS INJURY OR PROPERTY DAMAGE CAUTION: INDICATES A POTENTIALLY HAZARDOUS SITUATION, WHICH IF NOT AVOIDED COULD RESULT IN MINOR OR MODERATE INJURY OR PROPERTY DAMAGE WARNING To reduce the risk associated with mechanical, pneumatic, and electrical hazards: ◦...

  • Page 14: Operator Skill Level Descriptions

    Tape Roll Replacement Feed Wheel Adjustment Blade Replacement Springs Disconnected Ordinary Maintenance and Springs Disconnected Preventative Maintenance Better Packages offers a mail in factory maintenance program. Contact your Authorized IPG Representative for more information. Better Packages 333 Plus Rev 3.0...

  • Page 15: Specifications

    Specifications 333 Plus Dimensions Dispenser Weight (without tape roll): 22 lbs (10kg) Maximum tape roll diameter: 7.75in (197mm) Maximum tape roll length: Up to 600ft (182.8m) 19.3” 490mm 9.5” 242mm 15.8” 400mm Figure 6: Dispenser Dimensions Rev 3.0 333...

  • Page 16: 333 Plus Components

    Specifications 333 Plus Components Lids shown in open position. Handle Feed Wheel Water Bottle Cutting Blade Upper Tape Plate Water Tank Adjustment Knob Figure 7: 555e Components Better Packages 333 Plus Rev 3.0...

  • Page 17: Operating Conditions

    Specifications Operating Conditions Use in a dry, relatively clean environment at 40 to 105º F (5º to 40º C). Humidity not to exceed 90% at a temperature of 68º F (20º C). The 333 Plus will be capable of operating correctly at altitudes up to 10,000 ft. (3,000 m) above sea level. Tape Requirements Use only IPG Brand Water Activated Tape.

  • Page 18: Set-Up Procedure

    The roll guides are mounted onto a tie rod and seated into indexing grooves. The bottom of the guides fit into slots in the bottom of the tape basket. To adjust the position lift up on the guide (1) and move it to the desired indexing position (2). Roll Guides Figure 9: Roll Guides Better Packages 333 Plus Rev 3.0...

  • Page 19: Loading The Tape Gum Side In

    Set-up Procedure Loading the Tape Gum Side In Open the lids. Using scissors cut the end of the tape so it is a square clean cut. Place the roll in the tape basket so that: ◦ The roll is vertical. ◦...

  • Page 20: Checking The Upper Tape Plate

    Guide Bar Figure 11: Upper Tape Plate The Upper Tape Plate is vital for the correct functionality of the Dispenser. If the plate is not in position or is missing the tape will jam. Better Packages 333 Plus Rev 3.0...

  • Page 21: Installing The Brushes And Water Tank

    Set-up Procedure Installing the Brushes and Water Tank The 333 Plus comes with two brushes. Installing both are necessary for the proper operation of the dispenser. To install the brushes: Orient the brush in the proper direction with the shortest bristles closest to the rear of tank. Place the brush in the opening allowing it rest against the molded ribs of tank.

  • Page 22: Water Tank Install

    CAUTION: UNDER NORMAL OPERATIONAL CONDITIONS THE BOTTOM OF THE HEATER WILL BE HOT. HANDLE THE HEATER ONLY USING THE TABS ON EITHER SIDE OF THE HEATER OR ALLOW TIME FOR THEM TO FULLY COOL BEFORE HANDLING. Better Packages 333 Plus Rev 3.0...

  • Page 23: Water Bottle Install

    Set-up Procedure Water Bottle Install The 333 Plus dispensers all use the same 46oz (1.3 liter) water bottle. Fill it with room temperature or warm water for best results. There is no need for any special water such as distilled water. In the event your facility has hard water or water with a higher than normal mineral count you may want to consider using filtered water.

  • Page 24: Operation

    The operator may then grip the tape from the edges and place it on the carton. WARNING: DO NOT PULL THE HANDLE WHILE THE COVERS ARE OPEN. THE BLADE OPERATES ON A SPRING MECHANISM AND CAN RESULT IN INJURY. Figure 16: Dispensing Tape Better Packages 333 Plus Rev 3.0...

  • Page 25: Applying Tape To A Carton

    Applying Tape to a Carton Choosing the Correct Tape Type TYPE CHARACTERISTIC Paper Tape or Made from paper only, with no additional reinforcing material Kraft Paper Tape Reinforced Tape or Made from paper and contains additional strands of reinforcing Reinforced Paper Tape material, typically fiberglass IPG offers a variety of different grades of Paper Tape or Kraft Paper...

  • Page 26: Applying Tape To A Carton

    “H” pattern and the “Belly Band.” It is used for extremely heavy items. Figure 18: “H” Pattern Figure 19: Belly Band Figure 20: “X” Pattern Better Packages 333 Plus Rev 3.0...

  • Page 27: Preventative Maintenance

    Preventative Maintenance Suggested Preventative Maintenance Schedule WARNING: THE CUT-OFF BLADE IS EXTREMELY SHARP USE CUT RESISTANT GLOVES WHEN SERVICING OR REPLACING THE BLADE. IF THE OPTIONAL HEATER IS INSTALLED IT WILL BE HOT. ALLOW TIME TO COOL PRIOR TO SERVICING. Weekly •...

  • Page 28: Troubleshooting

    IPG Machinery Support at +1 813-345-3070 between the hours of 8am and 7pm Eastern Standard Time or via email at machsupp@itape.com. Proper preventative maintenance will improve the longevity of the 333 Plus Dispenser extending its life to decades. Better Packages 333 Plus Rev 3.0...

  • Page 29: Spring Identification

    Troubleshooting Spring Identification The 333 Plus contains two main springs, two blade springs, and one spring for the rocker stop bar. The main spring FM-48-AX (yellow below) is attached to the front of the dispenser and the cam attached to the handle shaft. The main spring FM-33-AX (red below) is connected to the tape basket and a shaft on the cutting yoke, this helps the return of the blade to cut the tape when the handle is returned to its home position.

  • Page 30: Appendix

    *Components with multiple call outs will have the associated 333 Plus model in the description. If you are unsure of the model of your 333 Plus please contact IPG Machinery Support 813-345-3070 or machsupp@itape.com. To order parts please contact Better Packages Customer Service 1-203-926-3700 or 1-800-237-9151 (United States only), parts can also be found directly at www.betterpackages.com/parts Single Components...
  • Page 31 Appendix Water Components ITEM PART NUMBER DESCRIPTION FF-610-0 WATER BOTTLE PW-107A-K BRUSK KIT FM-6-AX WATER TANK ASSY 1 Rev 3.0 333...
  • Page 32 #10-24 x 3/8" PHILLIPS FM-110-XX FEED STOP ASSY FM-41-FX CRANK HANDLE ASSY K-50CR ROLL PIN 3/16 x 1 1/4" GE-79-X DRIVE GEAR ASSY K-35-A WASHER 1/32 FM-49-X SHAFT PINION SUB-ASSY FM-100 NUT TINNERMAN FM-460X SHAFT CAM ASSY Better Packages 333 Plus Rev 3.0...
  • Page 33 Appendix Right Frame Assembly ITEM PART NUMBER DESCRIPTION 0237710 #10-16 x 3/4" PHILIPS FM-2-FX R FRAME COMPLETE SUB ASSY 1 FF-612-P BOTTLE BRACKET FM-14 WASHER ST-1949 #10-24 x 3/8" PHILIPS FM-90 RIVET 3/16 x 1/4" PW-17-NK RIVET 3/16 x 3/8" PACK OF 2 A-47-K RUBBER FOOT PACK OF 4 FM-22-R...
  • Page 34 TAPE ROLLER ASSY FM-56 SLOTTED TIE ROD FM-48-AX SPRING HOOK ASSY TAPE DRIVE FM-33-AX SPRING HOOK SUB ASSY HANDLE RETURN 1 FM-57-X TAPE BASKET FM-310 ROLL GUIDE FM-64 SPRING TO-256 1/4-20 x 1/2" PHILIPS Better Packages 333 Plus Rev 3.0...

  • Page 35: Cutting Assembly

    Appendix Cutting Assembly ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION FM-12EL UPPER TAPE PLATE FM-3 LOWER FRONT COVER FM-313 UPPER SHEAR BLADE ASSY FM-40 TANK SHELF GRAY SA-10-XXK FELT AND BRACKET KIT TS33-032-01 SAFETY BAFFLE E555-065-00 FEED WHEEL FM-130-JX SUPPORT BRACKET ST-2528 FENDER WASHER...
  • Page 36 ROCKER STOP BAR SUB ASSY 1 ST-2882 1/4-20 KEPS NUT FM-14 WASHER FM-58P VERTICAL TIE PLATE ST-2895 WAVE WASHER FM-11X LWR TAPE PLATE SUB ASSY FM-59X TAPE ROLLER ASSY FM-26-XX ROCKER SUB ASSY WK-21-BS RETAINING RING Better Packages 333 Plus Rev 3.0...
  • Page 37 Appendix Handle ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION K-417-A 5/16-18 HEX NUT K-45 SPRING 1218SS 5/16 LOCK WASHER 1 GE-94 SPRING STUD FM-70 HANDLE FM-43 PAWL STUD SX-49-B 9/16 WASHER K-44-B PAWL FM-71 HANDLE BOLT FM-41-X HANDLE SUB ASSY 1 Rev 3.0 333...
  • Page 38 Early models of the 333, those with a brown color and red serial label, may have a different water bottle. This can be upgraded to the current bottle by purchasing the Philips screws, Bottle Brackets, and Water Bottle. The holes will already exist in the older model. Better Packages 333 Plus Rev 3.0...
  • Page 39 User Notes Rev 3.0 333...
