Summary of Contents for Classic DoubleDeck Bike Rack

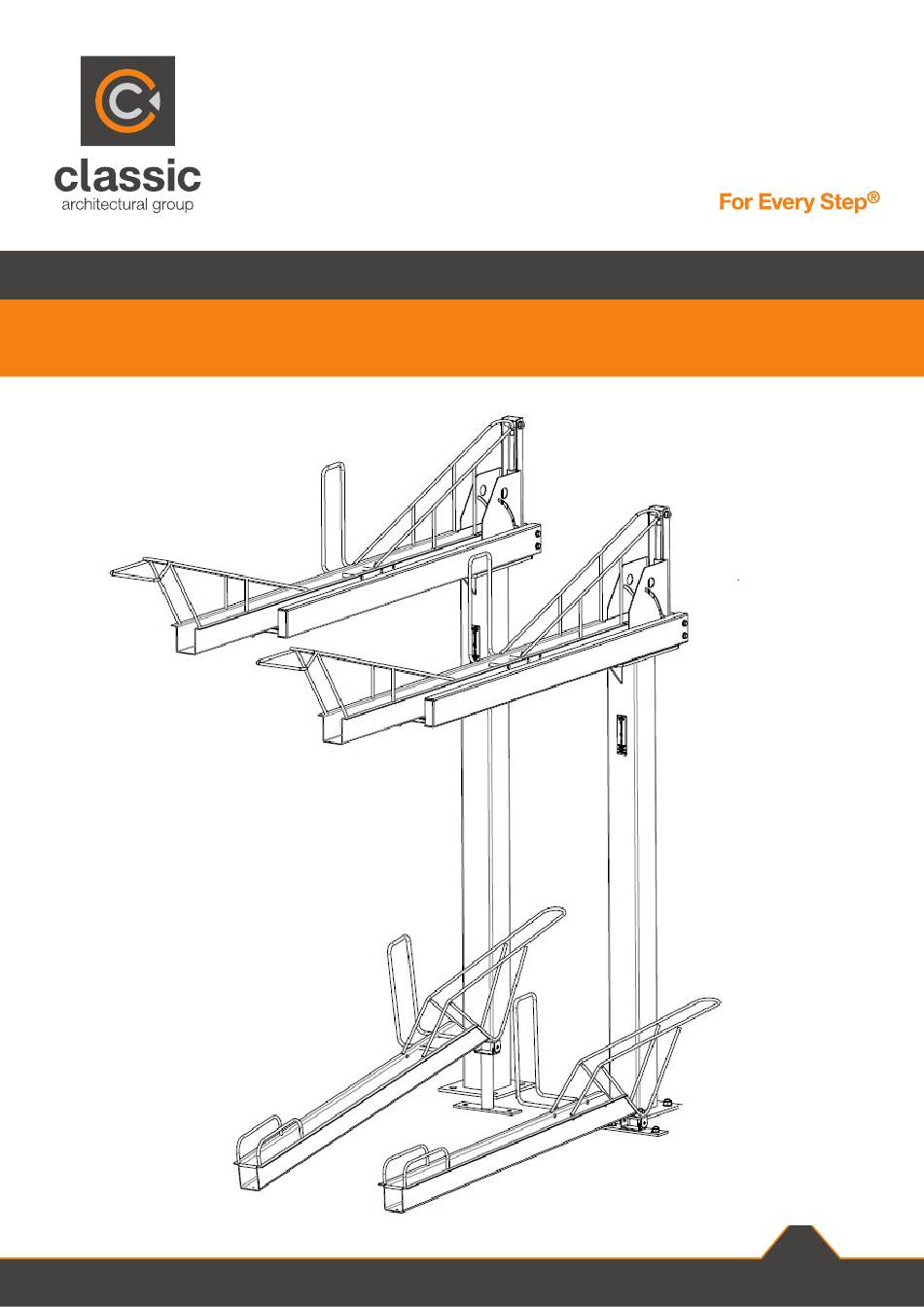

- Page 1 Installation Guide DoubleDeck Bike Rack www.classic-arch.com...
- Page 2 Installation Guide DoubleDeck Bike Rack Parts & Fittings x 16 Parts & Fittings DESCRIPTION NO. QTY DESCRIPTION Top Wheel Track SS304 Hex Bolt M10x25mm Bottom Wheel Track SS304 Nylon Hex Nut M 10 Main Post (Low Unit Post - 1240mm, High Unit Post -...
-
Page 3: Tools Required
Installation Guide DoubleDeck Bike Rack Tools Required • Hammer • Masonry Drill • 16mm Masonry bit and 12mm Masonry bit • Socket Set x 2 (including 24mm, 19mm, 17mm & 14mm socket) • Threadlocker Fluid • Air Compressor Important Notes •... - Page 4 Installation Guide DoubleDeck Bike Rack Step 1 - Measurements & Set Out - Clearance & Access High Rack Unit Low Rack Unit Example of rack with bikes stored: www.classic-arch.com...
- Page 5 Installation Guide DoubleDeck Bike Rack Step 2 - Required Rack Spacing NOTE: This view is from the WALL SIDE looking out into the bike parking area. Low Rack High Rack Unit Unit www.classic-arch.com...
- Page 6 Installation Guide DoubleDeck Bike Rack Step 2 - Required Rack Spacing www.classic-arch.com...
- Page 7 Installation Guide DoubleDeck Bike Rack Step 3 - Fix Main Posts to the Ground www.classic-arch.com...
- Page 8 Installation Guide DoubleDeck Bike Rack Step 3 - Fix Main Posts to the Ground High Rack Unit Low Rack Unit Baseplates www.classic-arch.com...
- Page 9 Installation Guide DoubleDeck Bike Rack Step 3 - Fix Main Posts to the Ground High Post Low Post 190mm off wall (see diagram on previous page) Wall 500mm (see diagram on previous page) www.classic-arch.com...
- Page 10 Installation Guide DoubleDeck Bike Rack Step 4 - Fix Lower Rail Brackets to Ground 100mm from front of post base (see diagram on page 8) 150mm from left edge of post base (see diagram on page 8) Wall 150mm www.classic-arch.com...
- Page 11 Installation Guide DoubleDeck Bike Rack Step 5 - Mount Sliding Upper Rack Assemblies to Posts Sliding www.classic-arch.com...
- Page 12 Installation Guide DoubleDeck Bike Rack Step 6 - Mount Lower Rail Assemblies to Ground Brackets www.classic-arch.com...
