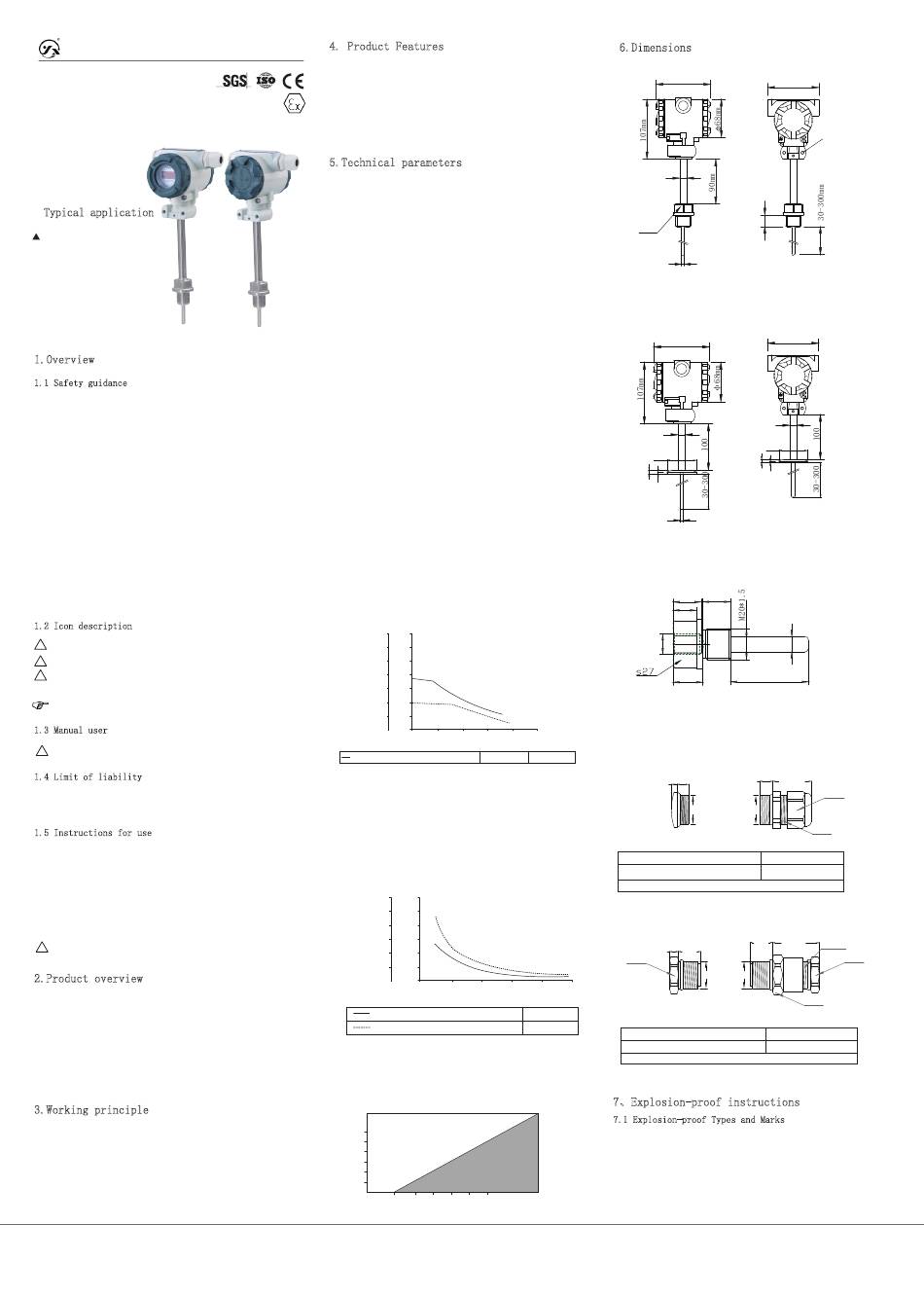

Star Meter CWDZ15 Instruction Manual

An instruction manual
CWDZ15 Temperature transmitter
Typical application
Widely used
in various
industrial fields
1.Overview
1.1 Safety guidance
This operational manual contains important information on how to use the
transmitter correctly. The installation personnel of the transmitter should
read this manual carefully before operation. In case of further explanation
or special questions, which cannot be addressed in this manual, please
contact our company for assistance on necessary information.
Please pay attention to the warning signs on the manual!
The operator must strictly follow the safety instructions and user's
manual during operation. Furthermore, the operator should comply with the
occupational safety rules, the accident prevention guidelines, the national
standards and engineering specifications as well.
Please keep this manual in a safe place near the transmitter for easy
access.
The copyright of this operational manual is protected. This version of
operational manual was edited according to the functions of corresponding
products, the product functions and operation procedures are described as
complete as possible. If there is any error, please don't hesitate to
contact us. The company is not responsible, in regard of any fault
description or its possible consequences.
–The right to modify the technical parameters is retained–
1.2 Icon description
！ Danger! - Hazard that may result in death or serious injury.
！
Warning!- Potential hazard that may result in death orserious injury.
！ Cautious!-Potential hazard that may cause minor injury.
！ Reminder!-Potential hazard that may result in personal injury.
Tips!-Tips and information for smooth operation of the equipment.
1.3 Manual user
！ Warning! This manual is suitable for technicians.
1.4 Limit of liability
The company will not be held responsible nor provide any warranty
service, in case of transmitter damages caused by failure to follow the
instruction manual, inappropriate use, self-modification or destruction.
1.5 Instructions for use
The temperature transmitter CWDZ15 is suitable for temperature
measurement in liquid or gas and process industries. Operators are
responsible for checking whether the equipment is suitable for operating
conditions. If you have any questions, please contact our sales department
to ensure the correct application of the transmitter. The Company shall not
bear any responsibility for the influence caused by improper selection.
The purchased model is suitable for certain gas or liquid medium as
described in the measurement samples. The user must ensure the
compatibility of contact media and transmitter.
！
Warning!
Inappropriate use may lead to danger!
2.Product overview
CWDZ15 series temperature transmitter products use PT100 as signal
measuring element, and through computer automatic testing, the temperature
compensation of zero point and sensitivity in wide temperature range is
carried out by laser resistance adjustment technology. The amplification
circuit is located in the stainless steel case, which converts the sensor
signal into standard output signal, giving full play to the technical
advantages of the sensor, so that the CWDZ15 series temperature transmitter
has excellent performance. It has anti-interference, overload, small
temperature drift, high stability, high measurement accuracy, and is an
ideal temperature measurement instrument in the field of industrial
automation.
3.Working principle
Temperature transmitter is the resistance effect produced by PT100
sensor under the influence of temperature. It generates a differential
voltage signal by special processing unit conversion. This signal is
transformed into standard analog or digital signal by special amplifier.
STAR METER
24-hour service hotline：400-600-4496
星仪传感器
4. Product Features
STAR METER
a) Wide Voltage Supply, Nonlinear Correction, High Precision
b) Easy installation and high temperature resistance
c) Strong anti-lightning, frequency-cut jamming design and
anti-jamming ability
d) Connection Reverse and Overvoltage Protection and Current
Limiting Protection
5.Technical parameters
Measuring media : Liquid 、 gas
Integral Material: Protective Pipe Material 304 Stainless Steel
(Contact)
Process Connection 304 Stainless Steel (Contact)
Die Cast Aluminum for Shell
Display Head ABS Engineering Plastics (Digital Tube Display)
Overall weight： ≈1kg
Casing weight
120g（L=35mm）
140g（L=135mm） 150g（L=185mm）
170g（L=285mm）
measuring range：-50～300℃ （Detailed range parameter selection table）
Power supply voltage： 12～36VDC
15～36VDC（With Display）
24VDC Intrinsically safe / dust intrinsically safe
output signal： 4～20mA、RS485 （Standard Modbus-RTU Protocol）
measurement accuracy： 0.5%FS
ambient temperature： -40～85℃
Stability performance： ±0.1% FS/year
Explosion-proof type: Flameproof type Ex d Ⅱ C T6 Gb
Intrinsically safe Ex ia ⅡC T6 Ga（Current Output Limited）
Essential Safety Type of Dust Ex iaD 20 T80℃（Current Output
Limited）
Note: Essential safety must be powered by safety grids or
intrinsically safe power supplies
Protection Level: Standard IP65
Flameproof IP66
Intrinsically Secure IP65
Dust intrinsically safe IP66
Note: The above protection level refers to the level achieved after
the electrical connection is complete.
Seismic performance： 10g(20...2000Hz)
Working conditions: ambient temperature-40～85℃
Ambient humidity0%～95%RH（No condensation, no condensation）
Pressure Resistance: Pressure on thermal protection tube varies with
length as shown in the figure below.
P（PSI）P（MPa）
5000 35
4300
30
3600 25
2900 20
2100 15
1400 10
700 5
0 0
150
L （ m m ）
Diameter of protective tube6/10mm Tube wall thickness 1mm
Note: Flameproof thermal protective tube with pressure (≥300%) of conventional type.
Response time: 18S without casing and 55s with casing
（If it is necessary to increase the response speed, heat conducting medium
can be added to the casing.）
（accord withIEC60751,0.4m/s Flow，10℃ Stepping）
Note: Flameproof response time≥300% Conventional type
Medium velocity: The range of medium velocity that the protective
tube bears decreases with the increase of insertion depth as shown in
the figure below.
v（tf/s）v（m/s）
30
100
25
80
20
65
15
50
30 10
15
5
0
0
L （ m m ）
Diameter of protective tube
Diameter of protective tube
Note: Flow velocity of flameproof protective pipe≥300%Conventional type.
Power range : Current type≤0.02Us(W) Digital type≤0.015Us(W)
Note:Us=Supplied voltage
Load characteristics: Current type load≤{（Us-9）/0.02（Us=Power
supply voltage）}Ω
Load resistance （4～20）mA DC
RL（Ω）
1200
1000
800
600
400
200
15 20
9
130g（L=85mm）
A Medium temperature T=50℃
B Medium temperature T=400℃
A
B
200 250 300 350 400
L: P:
Immersion length Process pressure
water，T=50℃
100 200 300 400 500
6mm 1mm
Tube wall thickness L:
Immersion length
10mm 1mm
Tube wall thickness V:
Current Speed
Working zone
Us（VDC）
25 30 36 Working volt
Figure5-1
1
6.Dimensions
No display95mm
90mm
display105mm
12mm
15/18mm
S27
φ6(Note 1)
Figure 6-1 Thread Connection Dimension Diagram
No display95mm
90mm
display105mm
12
50.5
50.5
6
3
6
3
φ6(Note 1)
Figure 6-2 Size Diagram of Hoop Connection
18 18mm
15mm
φ10mm（Note 2）
G1/4（注3）
19
(35/85/135/185/285)mm
Figure 6-3 Casing Size Diagram
Note 1: When the isolation explosion-proof type, the outer diameter
is 12 mm and the wall thickness is 3 mm.
Note 2: When the isolation explosion-proof type is used, the outer
diameter is 16 mm and the wall thickness is 1 mm.
Note 3: When the isolation explosion-proof type, the thread here is M20*1.5.
8mm
9mm 21～26mm
4mm
M20*1.5 M20*1.5
Plug Lock wire connector
Texture of material
P Type I Out-line Protection Converter
nylon
Applicable standard type and intrinsically safe type
Note: Lock line diameter 5-9 mm
Figure 6-4 P type protection converter
17mm
30～33mm
6mm 17mm
S=24
M20*1.5 M20*1.5
Plug Lock wire connector
G-type outgoing protection converter
Texture of material
Suitable for flameproof type and
304 stainless steel
dust intrinsically safe type
Note: Lock line diameter 5-6 mm
Figure 6-5G Protection Converter
7、Explosion-proof instructions
7.1 Explosion-proof Types and Marks
The transmitter is divided into three types: flameproof type,
intrinsically safe type and dust explosion-proof intrinsically safe
type.
（1）、Flameproof type: GB3836.1-2010, GB3836.2-2010
Explosion-proof sign: Ex D II C T6 Gb
Explosion-proof certificate number: CE19.1406
version number19.5.18
Executive standard JB∕T 12599-2016
