Summary of Contents for Hilltop Leister UNIFLOOR E

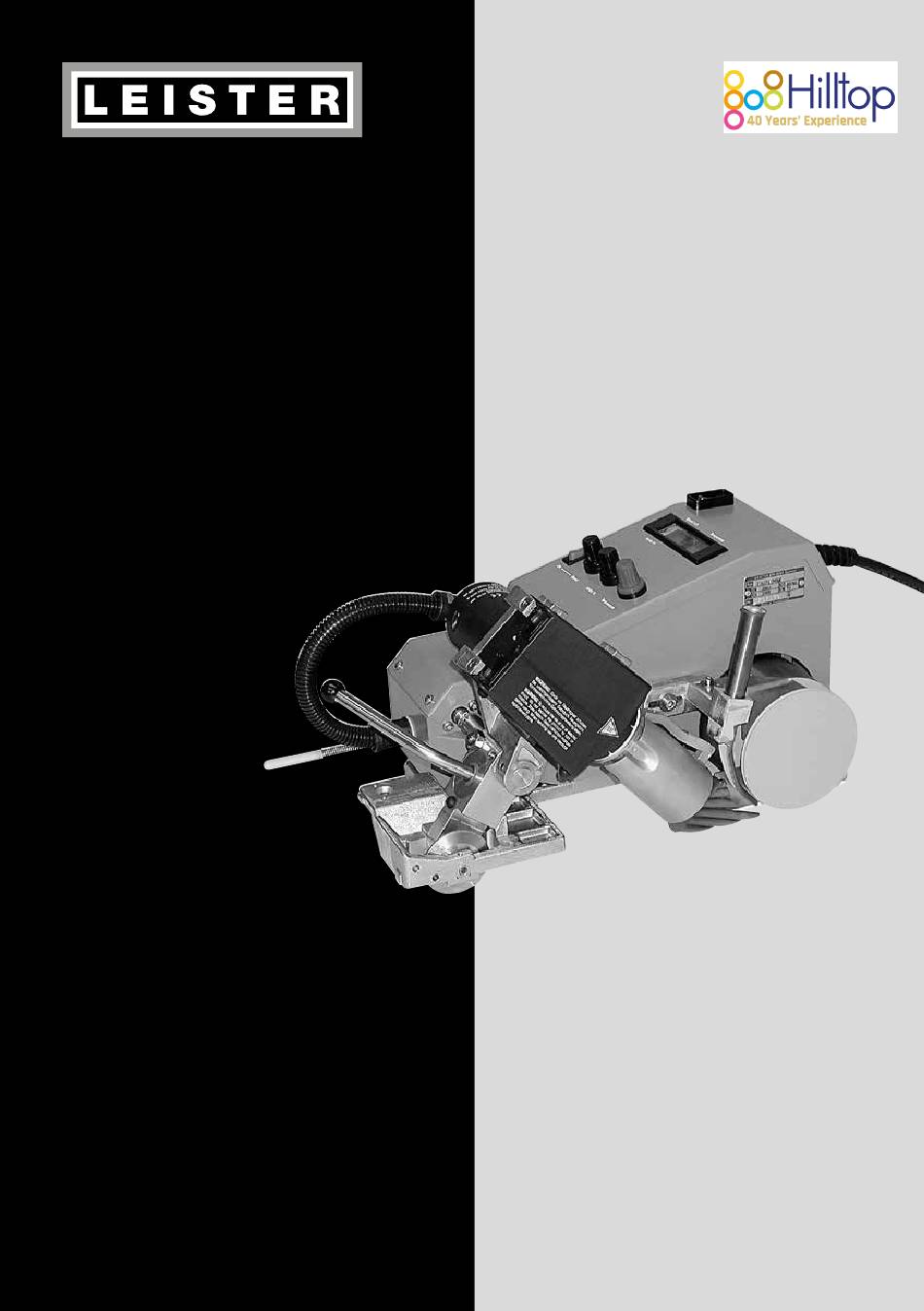

- Page 1 ® UNIFLOOR E Hilltop Products Ltd - www.hilltop-products.co.uk - Tel: +44 1942 723101 - Email: sales@hilltop-products.co.uk...
- Page 2 Operating Instructions (Translation of the original operating instructions) Please read operating instructions carefully before use and keep for future reference. Leister UNIFLOOR E Automatic hot air welding machine Application • Welding of PVC coverings and melt welding of linoleum floor coverings.
-
Page 3: Technical Data
Conformity Leister Technologies AG, Galileo-Strasse 10, CH-6056 Kaegiswil/Switzerland confirms that this product, in the version as brought into circulation through us, fulfils the requirements of the following EC directives. Directives: 2006/42, 2014/30, 2014/35, 2011/65 Harmonised standards: EN ISO 12100, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 62233, EN 60335-1, EN 60335-2-45, EN 50581 Kaegiswil, 06.02.2018 Bruno von Wyl, CTO... -
Page 4: Tool Description
Tool Description Main components Operating components 1. Housing 14. Main switch 2. Mains cable 15. Drive switch 3. Hot air blower 16. Potentiometer for welding speed 4. Welding nozzle 17. Potentiometer for air flow 5. Connection hose 18. Potentiometer for air temperature 6. -
Page 5: Operation
Operation Operational condition: Accessories • If the welding rod de-reeler (24) and lifting device (26) are available: – Attach welding rod de-reeler (24) to the Unifloor E tool using cheese head screw M8 × 20 (25). – Attach lifting device (26) to the tool using socket head cap screw M6 × 30 (27). Accessories Accessories Welding rod de-reeler... -
Page 6: Tool Positioning
Operation Tool positioning • Swivel hot air blower (3), using swivel lever (19) up to the stop. • Operate lifting device (26) by means of lifting device lever (13) so that welding rod pressure roller (6) and drive roller (7) are at no-load. •... -
Page 7: Maintenance
Accessories • Only LEISTER accessories should be used. • Welding rod de-reeler (24) • Lifting device (26) Training • LEISTER Process Technologies and its authorised Service Centres offer free welding courses and training. Maintenance • Clean the tool‘s air filter (10) with a brush when dirty. •...
