Summary of Contents for Pixii Master Gateway

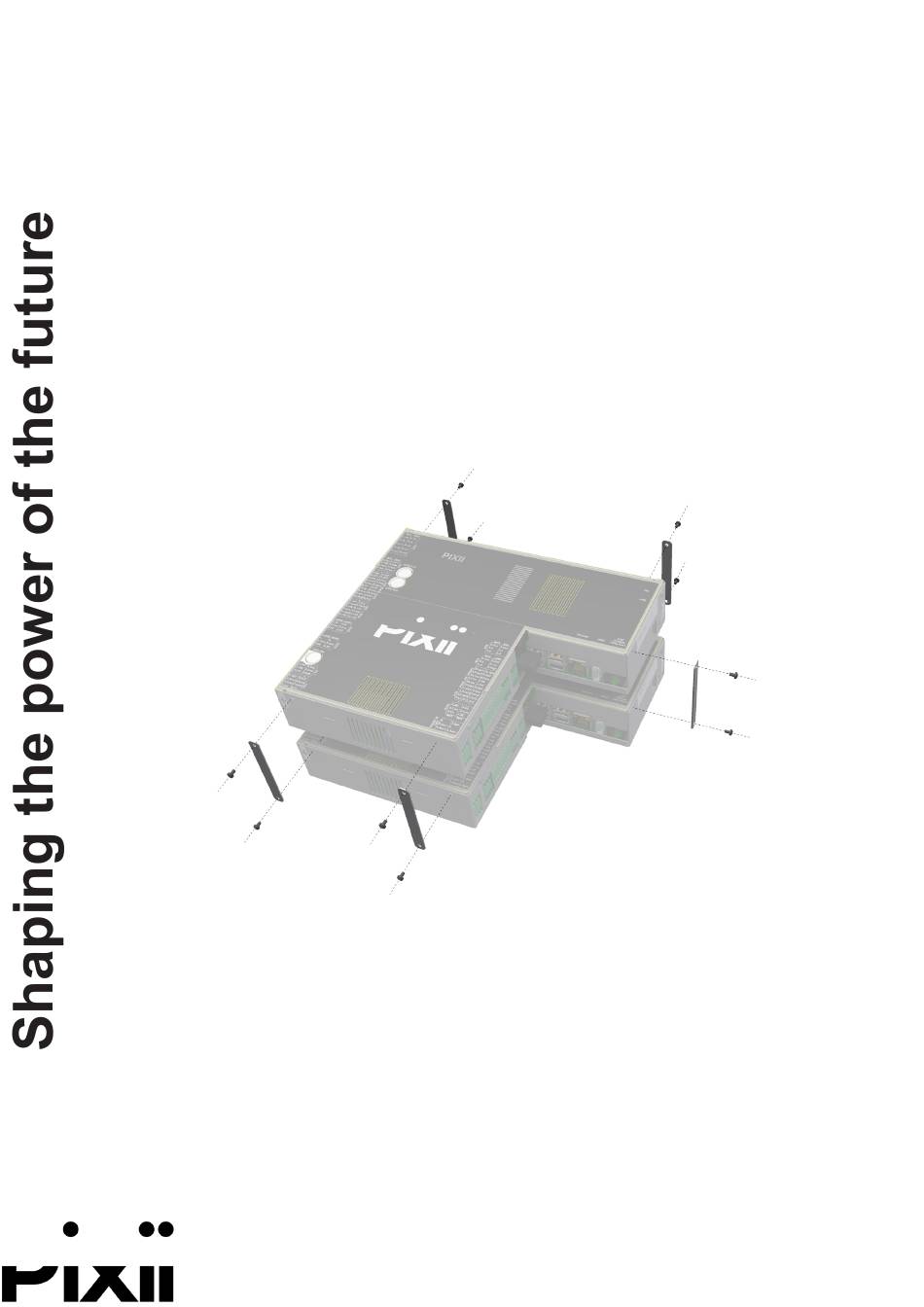

- Page 1 Installation Guide Master Gateway Controller Installation Document number: 14633, rev. 0.1 Issue date: 25.08.2022...
-
Page 2: Table Of Contents
5 Configuration � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11 Installation Guide ● Master Gateway Controller Installation... - Page 3 Revision Date Comment 2022-08-25 Initial Installation Guide ● Master Gateway Controller Installation...
-
Page 4: Introduction
Description` 1 Introduction Master Gateway controller is dedicated to secure data collection and communication with slave and switch cabinets. The Gateway in the master cabinet/unit must have the “Multicabinet role” defined as “Master”. This is a Gateway that does not have active converters and batteries connected to it. This is suitable for larger multicabinet systems from 6 –... - Page 5 Figure 2.2 Left side view WiFi activation button USB slot Ethernet Module CAN connection 2x USB Serial COM2, 3 Serial COM4, CAN 2 Inputs and outputs Relay outputs Power In Earthing screw Figure 2.3 Right side view Installation Guide ● Master Gateway Controller Installation...
-
Page 6: Mechanical Installation
Extract all green connectors. Do NOT remove cabling from connectors. Remove 4G router USB cable. Remove protective earth (PE) cable by releasing M2.5x4 torx screw on the bottom of the control unit. Remove ethernet cable. Figure 3.1 Removing the connectors Installation Guide ● Master Gateway Controller Installation... - Page 7 Remove 4x fixing brackets (2x on the top, 2x on the bottom) by releasing M4x10 torx screws. Extract control unit. Figure 3.2 Removing the unit. NOTE: Replace MAC address label from bottom Gateway from front side to the right side. Installation Guide ● Master Gateway Controller Installation...
-
Page 8: Assemble
Mount assembly of two control units to the origin position on the door and fix it with 4x fixing brackets (2x on the top, 2x on the bottom) with 4x M4x10 torx screws. Figure 3.4 Inserting the assembly Installation Guide ● Master Gateway Controller Installation... -
Page 9: Electrical Installation
Using the same technique, connect attached cables to the existing power cables from power supply (-AF1:J201:4, -AF1:J201:5) and connect them to the additional Gateway controller terminal -AF2:J201:4 and -AF2:J201:5. Figure 4.2 Connecting the power cables Installation Guide ● Master Gateway Controller Installation... -
Page 10: Slave Gateway Connections
Electrical installation` 4.3 Slave Gateway connections Insert back: All green connectors to their origin position in the slave (top) control unit. 4G router USB cable Ethernet Figure 4.3 Connecting the connectors and 4G router Installation Guide ● Master Gateway Controller Installation... -
Page 11: Ethernet
If the system does NOT contain switch, route cable through the cable glands to the external switch. Figure 4.4 Connecting the ethernet cable 5 Configuration For proper function of 2 Gateway, see configuration guides or contact Pixii for detailed information. Installation Guide ● Master Gateway Controller Installation...
