Tronair EAGLE eTT12 Parts And Service Manual

Table of Contents

Quick Links

Download this manual

Parts and Service Manual

Vehicle Types: eTT12

Table of Contents

Troubleshooting

Need help?

Do you have a question about the EAGLE eTT12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tronair EAGLE eTT12

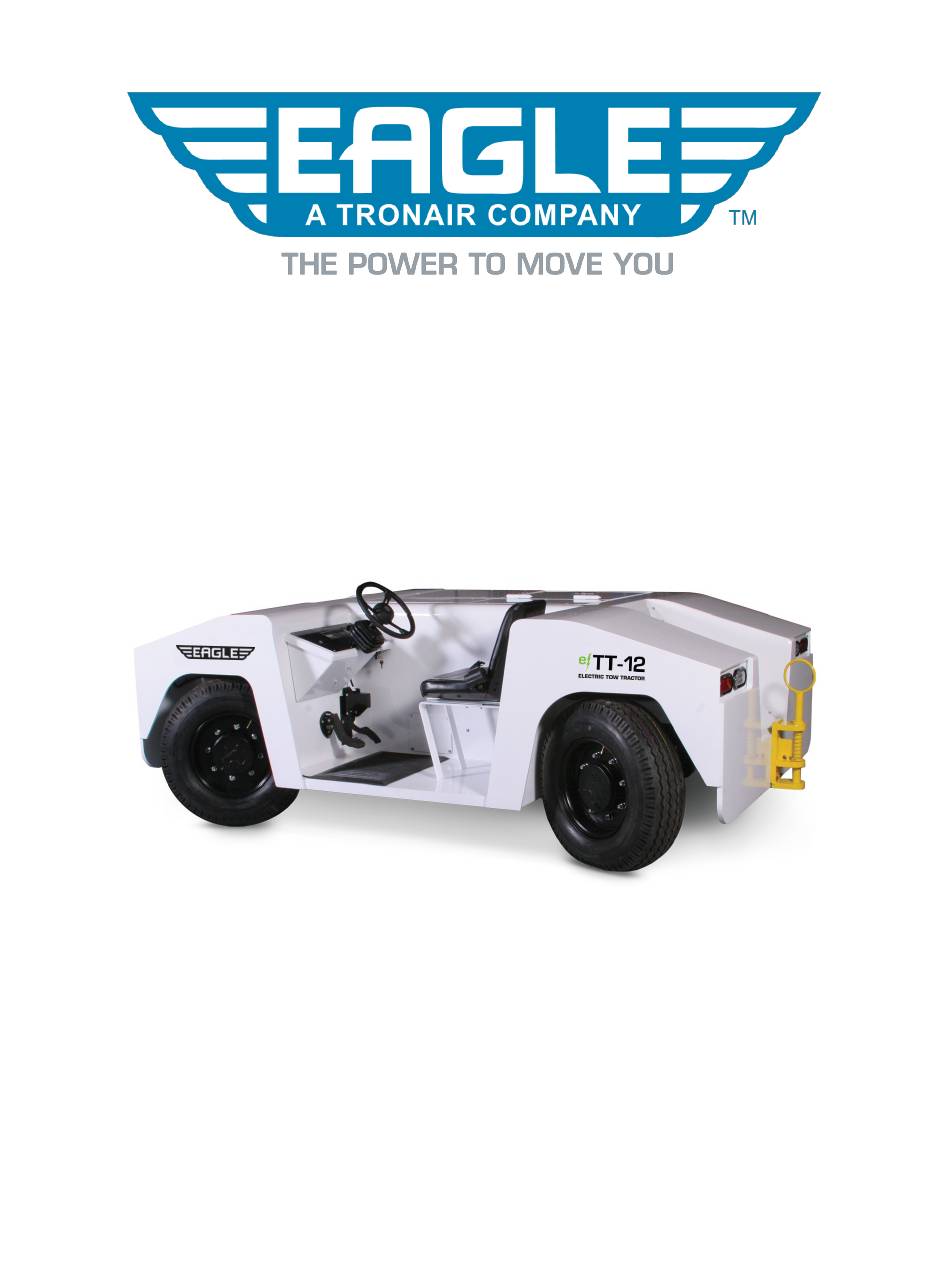

Page 1 Parts and Service Manual Vehicle Types: eTT12...
Page 2 Parts and Service Manual - eTT8/eTT12/eTT16 - Introduction Introduction From everyone at Eagle Tugs, we would like to say thank you for purchasing an Eagle eTT series tow tractor. We take a lot of pride in the quality of the products that we build, as well as, our continued customer service. Our goal is to build a long term relationship with our customers.
Page 3: General Safety
Parts and Service Manual - eTT8/eTT12/eTT16 - Introduction General Safety Important Safety Notice Appropriate service methods and proper repair procedures are essential for the safe and reliable operation of all industrial equipment as well as the personal safety of the individual performing the work. This service manual provides general directions for accomplishing service and repair work with tested and effective techniques.
Page 4 Parts and Service Manual - eTT8/eTT12/eTT16 - Introduction This page intentionally left blank. Rev C, 6-Jun-2016...
Page 5 Parts and Service Manual - eTT8/eTT12/eTT16 - Introduction Table of Contents Section Contents 1 - Introduction General Usage, Contact Information, Table of Contents 2 - Motor Assembly Electric Motor, Transfer Case, Bearing Housings, Cradle Assembly 3 - Drivetrain Axle Installation, Driveshafts, Wheels and Tires 4 - Electrical Subassemblies Drive Inverters, Contactor Assembly, Dash Panel, Fuse Box 5 - Electrical System...
Page 6: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Introduction Revision Log Date Description Appr. 20-Feb-2014 Original release for production 20-Jan-2015 Corrected appendix section letters 6-Jun-2016 Changed eXL16 model name to eTT16 Rev C, 6-Jun-2016...
Page 7: Table Of Contents
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Table of Contents Section 2 - Motor Assembly Description Page Motor Bearing Housing Transfer Case Bearing Housing Transfer Case to Bracket Traction Motor to Bracket Motor Driveshaft Motor Driveshaft Subassembly Cradle to Chassis Revision Log 2-10 Rev E, 23-Aug-2016...
Page 8: Motor Bearing Housing
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Motor Bearing Housing This page applies to units S/N 12E112 and 8E108, 12E115, 16E103 and later units only. Apply Loctite® 638™ retaining compound or comparable to bearing bores during install. Bearings must be installed using a bearing press. Item Part Number Qty.
Page 9: Transfer Case Bearing Housing
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Transfer Case Bearing Housing This page applies to units S/N 12E112 and 8E108, 12E115, 16E103 and later units only. Apply Loctite® 638™ retaining compound or comparable to bearing bores during install. Bearings must be installed using a bearing press.
Page 10: Transfer Case To Bracket
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Transfer Case to Bracket This page applies to units S/N 8E114, 12E126, 16E102 and earlier units only. Gear position sensors must be removed temporarily to install/remove item 3 to item 1. Item Part Number Qty.
Page 11 Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Transfer Case to Bracket This page applies to units S/N 8E115, 12E127, 16E103 and later units only. Item Part Number Qty. Description ET00-03-001-SA MOTOR CRADLE WELDMENT ET00-04-008-KA TRANSFER CASE HOUSING, COMPLETE A-ES12-0434 TWO-SPEED GEARBOX A-ES12-028193...
Page 12: Traction Motor To Bracket
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Traction Motor to Bracket Item Part Number Qty. Description A-ES12-0420 TRACTION MOTOR ET00-04-007-KA MOTOR BEARING HOUSING, COMPLETE HCS, .375-16 UNC X 1 LOCK WASHER, .375 SHCS, M10X1.5 X 35 LOCK WASHER, M10 Rev E, 23-Aug-2016...
Page 13: Motor Driveshaft
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Motor Driveshaft TORQUE TO 35 ft-lb Note correct part number for item 2 based on motor cradle part number. Item Part Number Qty. Description A-ES12-0403 MOTOR DRIVESHAFT A-ES12-0392 MOTOR DRIVESHAFT SHIELD (FOR A-ES12-0390 CRADLE ONLY) ET00-03-004-SA MOTOR DRIVESHAFT SHIELD (FOR ET00-03-001-SA CRADLE ONLY) SHCS, .375-24 UNF X 1...
Page 14: Motor Driveshaft Subassembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Motor Driveshaft Subassembly Item Part Number Qty. Description A-ES12-0403 MOTOR DRIVESHAFT COMPLETE A-ES12-22459 FLANGE YOKE A-ES12-1310 U-JOINT A-ES12-28258X YOKE SHAFT A-ES12-21121X DUST CAP A-ES12-23128KX SLIP YOKE Rev E, 23-Aug-2016...
Page 15: Cradle To Chassis
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Cradle to Chassis Item Part Number Qty. Description ET00-03-005-CA ISOLATOR MOUNT A-TT5D-00010 MOUNT WASHER HCS, 3/4-10 UNC X 3.5 FLAT WASHER, 3/4 LOCK NUT, 3/4-10 UNC eTT12 chassis shown, eTT8 and eTT16 chassis will differ. Rev E, 23-Aug-2016...
Page 16: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Motor Assembly Revision Log Date Description Appr. 20-Feb-2014 Original release for production 04-Sep-2014 Added part number for motor encoder bearing 20-Jan-2015 Corrected hardware quantity, hardware lengths (cradle assy) 6-Jun-2016 Changed eXL16 model name to eTT16 23-Aug-2016 Corrected O-Ring part number.
Page 17 Parts and Service Manual - eTT12/eTT16 - Drivetrain Table of Contents Section 3 - Drivetrain Description Page FRONT AND REAR AXLE SUSPENSION AXLE TO CHASSIS (FRONT AND REAR) STEER SENSOR CONNECTOR (FRONT AND REAR) FRONT AXLE PARKING BRAKE BRACKET DRIVESHAFTS FRONT DRIVESHAFT ASSEMBLY 3-10 REAR DRIVESHAFT ASSEMBLY...
Page 18: Front Axle Suspension
Parts and Service Manual - eTT12/eTT16 - Drivetrain Applies to tractors: S/N 12E140 and earlier S/N 16E107 and earlier Front Axle Suspension TORQUE TO 740 ft-lb Item Part Number Qty. Description A-ES12-0430 FRONT AXLE A-ES12-0510 1-14 UNS U-BOLT KIT (2 BOLTS, 4 WASHERS, 4 NUTS) FLAT WASHER, 1 (INCLUDED WITH ITEM 2) HIGH NUT, 1-14 UNS (INCLUDED WITH ITEM 2) A-ES12-0345...
Page 19 Parts and Service Manual - eTT12/eTT16 - Drivetrain Applies to tractors: S/N 12E140 and earlier S/N 16E107 and earlier Rear Axle Suspension TORQUE TO 740 ft-lb Item Part Number Qty. Description A-ES12-0432 REAR AXLE A-ES12-0510 1-14 UNS U-BOLT KIT (2 BOLTS, 4 WASHERS, 4 NUTS) FLAT WASHER, 1 (INCLUDED WITH ITEM 2) HIGH NUT, 1-14 UNS (INCLUDED WITH ITEM 2) A-ES12-0345...
Page 20 Parts and Service Manual - eTT12/eTT16 - Drivetrain Applies to tractors: S/N 12E141 and later S/N 16E108 and later Front Axle Suspension TORQUE TO 170 ft-lb Item Part Number Qty. Description A-ES12-0430 FRONT AXLE ET12-04-003-SA 5/8-18 UNF U-BOLT KIT (2 BOLTS, 4 WASHERS, 4 NUTS) ET12-04-004-SA U-BOLT SPACER ET12-04-001-SA...
Page 21 Parts and Service Manual - eTT12/eTT16 - Drivetrain Applies to tractors: S/N 12E141 and later S/N 16E108 and later Rear Axle Suspension TORQUE TO 170 ft-lb Item Part Number Qty. Description A-ES12-0432 REAR AXLE ET12-04-003-SA 5/8-18 UNF U-BOLT KIT (2 BOLTS, 4 WASHERS, 4 NUTS) ET12-04-004-SA U-BOLT SPACER ET12-04-001-SA...
Page 22: Axle To Chassis (Front And Rear)
Parts and Service Manual - eTT12/eTT16 - Drivetrain Axle to Chassis (Front and Rear) Item Part Number Qty. Description HCS, 9/16-18 UNC X 3.5, GR 8 LOCK NUT, 9/16-18 UNC HCS, 3/8-16 UNC X 3.5, GR 8 FLAT WASHER, 3/8 LOCK NUT, 3/8-16 UNC eTT12 chassis shown, eTT16 chassis will differ.
Page 23: Steer Sensor Connector (Front And Rear)
Parts and Service Manual - eTT12/eTT16 - Drivetrain Steer Sensor Connector (Front and Rear) Item Part Number Qty. Description HCS, 1/4-20 UNC X 1 LOCK WASHER, 1/4 FLAT WASHER, 1/4 CUSHIONED LOOP CLAMP, 3/4 LOCK NUT, 1/4-20 UNC Note that front and rear sensors share the same hardware and installation type. Rev E, 6-Jun-2016...
Page 24: Front Axle Parking Brake Bracket
Parts and Service Manual - eTT12/eTT16 - Drivetrain Front Axle Parking Brake Bracket TORQUE TO 235 ft-lb Remove and discard the factory installed M10x25 HCS securing the brake disc in place. Install specified components using Loctite®Threadlocker Red 271®thread retaining compound or comparable. Remove the two M16x150 axle bolts as shown and re-install through item 1 to the axle.
Page 25: Driveshafts
Parts and Service Manual - eTT12/eTT16 - Drivetrain Driveshafts TORQUE TORQUE TO 35 ft-lb TO 51 ft-lb TORQUE TORQUE TO 35 ft-lb TO 35 ft-lb Item Part Number Qty. Description A-ES12-0401 FRONT DRIVESHAFT A-ES12-0402 REAR DRIVESHAFT A-ES12-0398 HEX NUT, M10X1.5, GR 10.9 A-TT4-00130 U-JOINT STRAP KIT, 1410 LOCK WASHER, M10...
Page 26 Parts and Service Manual - eTT12/eTT16 - Drivetrain Front Driveshaft Subassembly Item Part Number Qty. Description A-ES12-0401 FRONT DRIVESHAFT - COMPLETE A-ES12-321159 FLANGE YOKE A-ES12-5801X U-JOINT A-ES12-0401-A SHAFT YOKE A-ES12-211932X BOOT A-ES12-33118KX SLIP YOKE 3-10 Rev E, 6-Jun-2016...
Page 27: Rear Driveshaft Assembly
Parts and Service Manual - eTT12/eTT16 - Drivetrain Rear Driveshaft Subassembly Item Part Number Qty. Description A-ES12-0402 REAR DRIVESHAFT - COMPLETE A-ES12-5801X U-JOINT A-ES12-0402-A SHAFT YOKE TUBE WELDMENT A-ES12-211932X BOOT A-ES12-33118KX SLIP YOKE 3-11 Rev E, 6-Jun-2016...
Page 28: Wheels And Tires
Parts and Service Manual - eTT12/eTT16 - Drivetrain Wheels and Tires TORQUE TO 250 ft-lb Inflate per sidewall specifications. When replacing tires with a different model, verify that capacity is sufficient for the tractor weight. Refer to the tractor data plate for gross vehicle weight. Item Part Number Qty.
Page 29: Revision Log
Parts and Service Manual - eTT12/eTT16 - Drivetrain Revision Log Date Description Appr. 21-Feb-2014 Original release for production 17-Apr-2015 Added missing lock washers to Driveshaft Assembly. 22-May-2015 Updated for eTT12G / eXL16G tractors. 21-Oct-2015 Added wheel nut part number. 6-Jun-2016 Changed eXL16 model name to eTT16 3-13 Rev E, 6-Jun-2016...
Page 30: Rev E, 6-Jun-2016
Parts and Service Manual - eTT12/eTT16 - Drivetrain This page intentionally left blank. 3-14 Rev E, 6-Jun-2016...
Page 31 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Table of Contents Section 4 - Electrical Subassemblies Description Page Traction Drive Subassembly Contactors and Fuses Charge Jack Assembly Dash Panel Subassembly 4-10 Power Distribution Box 4-12 Revision Log 4-18 Rev H, 28-Jul-2016...
Page 32: Traction Drive Subassembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E117 and earlier S/N 8E109 and earlier Traction Drive Subassembly S/N 16E102 and earlier TORQUE TO 17 ft-lb Apply 1/2 fl oz. (30 grams) of Dow Corning® 340 Heat Sink Compound or equivalent to the interface between items 1 and 2.
Page 33 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E118 and later S/N 8E110 and later Traction Drive Subassembly S/N 16E103 and later TORQUE TO 7.5 ft-lb Fans must be installed with airflow direction away from drive. Item Part Number Qty.
Page 34: Contactors And Fuses
Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E105 and later S/N 8E102 and later Contactors and Fuses S/N 16E101 and later If a dual battery option is required, this lug must be replaced with 1.5 inch long bolt. Item Part Number Qty.
Page 35 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E105 and later S/N 8E102 and later Contactors and Fuses - Rigid Bus bars S/N 16E101 and later TORQUE TO 7 ft-lb Rigid bus bars are being phased out and being replaced with flexible ones. Please see the next page for equivalent replacement parts.
Page 36 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E105 and later S/N 8E102 and later Contactors and Fuses - Flexible Bus bars S/N 16E101 and later TORQUE TO 7 ft-lb Item Part Number Qty. Description ET00-05-004-SA FLEXIBLE POWER CABLE, TRACTION CONTACTOR TO DRIVE ET00-05-006-SA...
Page 37 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E105 and later S/N 8E102 and later Contactors and Fuses S/N 16E101 and later TORQUE TO 7 ft-lb Tighten item 2 only enough to fully compress the spring lock washer. This resistor only is not present on tractors with DC hydraulic pump.
Page 38: Charge Jack Assembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E142 and earlier S/N 8E125 and earlier Charge Jack Assembly S/N 16E107 and earlier Adjust switch position to put the roller wheel centerline just outside the Burton socket. Item Part Number Qty.
Page 39 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E143 and later S/N 8E126 and later Charge Jack Assembly S/N 16E108 and later Item Part Number Qty. Description ET00-02-001-SA CHARGE JACK WELDMENT ET00-02-002-SA CHARGE JACK REAR COVER A-ES12-0442 BURTON CONNECTOR 82050000...
Page 40: Dash Panel Subassembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E117 and earlier S/N 8E112 and earlier Dash Panel Subassembly S/N 16E102 and earlier S/N 12E124 Item Part Number Qty. Description A-ES12-0800 REV 4 DASH PANEL A-RTT-00415 DIGITAL DISPLAY PANEL (INCLUDES MOUNTING HARDWARE) A-ES12-0801 ROCKER SWITCH...
Page 41 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E118 and later S/N 8E113 and later Dash Panel Subassembly S/N 16E103 and later Excluding S/N 12E124 Item Part Number Qty. Description A-ES12-0800 REV 5 DASH PANEL A-RTT-00415 DIGITAL DISPLAY PANEL (INCLUDES MOUNTING HARDWARE) NVSP-14-001-CA...
Page 42: Power Distribution Box
Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E117 and earlier S/N 8E112 and earlier Power Distribution Box S/N 16E102 and earlier S/N 12E124 GREEN Item Part Number Qty. Description A-ES12-0101 POWER DISTRIBUTION MOUNTING BRACKET A-ES12-0412-1R POWER DISTRIBUTION BOX A A-ES12-0412-1L...
Page 43 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E117 and earlier S/N 8E112 and earlier Power Distribution Box Layout S/N 16E102 and earlier S/N 12E124 Item Part Number Description MINI FUSE, 30 AMP MINI FUSE, 30 AMP MINI FUSE, 10 AMP MINI FUSE, 5 AMP MINI FUSE, 5 AMP...
Page 44 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E118 thru 12E140 S/N 8E113 thru 8E119 Power Distribution Box S/N 16E103 and 16E107 Excluding S/N 12E124 ORANGE Item Part Number Qty. Description A-ES12-0202 POWER DISTRIBUTION MOUNTING BRACKET ET00-05-001-SA POWER DISTRIBUTION BOX FLAT WASHER, 5/16...
Page 45 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E141 and later S/N 8E120 and later Power Distribution Box S/N 16E108 and later Item Part Number Qty. Description ET12-02-005-SA POWER DISTRIBUTION MOUNTING BRACKET ET00-05-001-SA POWER DISTRIBUTION BOX FLAT WASHER, 5/16 LOCK WASHER, 5/16 HEX NUT, 5/16-18 UNC...
Page 46 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Applies to tractors: S/N 12E118 and later S/N 8E113 and later Power Distribution Box Layout S/N 16E103 and later Excluding S/N 12E124 Item Part Number Description MINI FUSE, 5 AMP MINI FUSE, 10 AMP MINI FUSE, 2 AMP MINI FUSE, 2 AMP MINI FUSE, 5 AMP...
Page 47 Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies This page intentionally left blank. 4-17 Rev H, 28-Jul-2016...
Page 48: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Electrical Subassemblies Revision Log Date Description Appr. 20-Feb-2014 Original release for production 27-Mar-2014 Changed F15 fuse size in power distribution box 04-Sep-2014 Added part numbers for headlight switch 20-Jan-2015 Added RevG power distribution bracket 29-Apr-2015 Application serial number range updated to reflect production sequencing 18-Feb-2016...
Page 49: Section 5 - Electrical System
Parts and Service Manual - eTT8/eTT12 - Electrical System Table of Contents Section 5 - Electrical System Description Page Front Lighting Rear Lighting Power Distribution Box Throttle Pedal, Key Switch 5-11 Center Bulkhead Drive Components 5-12 DC-DC Converters, Vehicle Controller, Relay 5-14 Horn 5-15...
Page 50: Front Lighting
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E119 and earlier S/N 12E140 and earlier Front Lighting Rev M, 23-May-2017...
Page 51 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E119 and earlier S/N 12E140 and earlier Front Lighting Item Part Number Qty. Description A-ES12-0492 HEADLIGHT A-ES12-0111-A HEADLIGHT BAFFLE WELDMENT, RH A-ES12-0111-B HEADLIGHT BAFFLE WELDMENT, LH LOCK WASHER, 5/16 (PART OF ITEM 2) NUT, 5/16-18 UNC (PART OF ITEM 2) NVSP-34-006-CA TURN INDICATOR, AMBER...
Page 52 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later S/N 12E141 and later Front Lighting Rev M, 23-May-2017...
Page 53 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later S/N 12E141 and later Front Lighting Item Part Number Qty. Description ET12-02-001-SB HEADLIGHT POCKET WELDMENT, RH ET12-02-001-SA HEADLIGHT POCKET WELDMENT, LH RIVET NUTS, 1/4-20 UNC, OPEN ENDED, .135 GRIP NVSP-34-007-CA HEADLIGHT, LED, SQUARE 500 LUMEN LOCK WASHER (PART OF ITEM 3)
Page 54: Rear Lighting
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: All eTT-12 eTT-8 S/N 8E120 and later Rear Lighting Item Part Number Qty. Description A-ES12-0494 REVERSE LAMP A-RTT12E-00292 STOP LAMP A-RTT12E-00287 LIGHT GROMMET NVSP-34-001-CA SIDE INDICATOR LIGHT, RED SHCS, #8-32 UNC X .625, SS FLAT WASHER, #8 LOCK NUT, NYLON INSERT, #8-32 UNC, SS...
Page 55 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: eTT-8 S/N 8E119 and earlier Rear Lighting Item Part Number Qty. Description A-MTT5-0491 TAIL LIGHT HCS, #10-32 UNF X 1.25 A-EXL16-0490-1 FLAT WASHER, #10 A-RTT12E-00292 LOCK NUT, #10-32 NVSP-34-001-CA SIDE INDICATOR LIGHT, RED SHCS, #8-32 UNC X .625, SS...
Page 56: Power Distribution Box
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E117 and earlier S/N 12E124 Power Distribution Box S/N 8E112 and earlier Item Part Number Qty. Description POWER DISTRIBUTION SUBASSEMBLY (SEE SECTION 4) HCS, 1/4-20 UNC X 2.00 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC Rev M, 23-May-2017...
Page 57 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E118 thru S/N 12E140 Excluding S/N 12E124 Power Distribution Box S/N 8E113 thru S/N 8E119 Item Part Number Qty. Description POWER DISTRIBUTION SUBASSEMBLY (SEE SECTION 4) HCS, 1/4-20 UNC X 1.25 LOCK WASHER, 1/4 FLAT WASHER, 1/4 PANEL SUPPORT WELDMENT (SEE SECTION 8)
Page 58 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later S/N 12E141 and later Power Distribution Box Item Part Number Qty. Description POWER DISTRIBUTION/FUSE BOX ASSEMBLY (SEE SECTION 4) HCS, 1/4-20 UNC X 1.0 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC 5-10...
Page 59: Throttle Pedal, Key Switch
Parts and Service Manual - eTT8/eTT12 - Electrical System Throttle Pedal and Key Switch Item Part Number Qty. Description NVSP-14-028-KA THROTTLE PEDAL, DUAL ANALOG (INCLUDES ADAPTOR HARNESS) NVSP-14-032-KA THROTTLE PEDAL, DUAL ANALOG (INCLUDES ADAPTOR HARNESS) NVSP-05-005-CA IGNITION SWITCH NVSP-05-005-CB IGNITION SWITCH (KEYLESS OPTION) NVSP-14-025-SA KEY SWITCH BRACKET HCS, 5/16-18 UNC X 1.25...
Page 60: Center Bulkhead Drive Components
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E140 and earlier eTT-8 all Center Bulkhead Drive Components Apply 1/4 fl oz. (15 grams) of Dow Corning® 340 Heat Sink Compound or equivalent to the surface of item 2. The thermal compound should be applied evenly over the entire mating surface.
Page 61 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E141 and later Center Bulkhead Drive Components Apply 1/4 fl oz. (15 grams) of Dow Corning® 340 Heat Sink Compound or equivalent to the surface of item 2. The thermal compound should be applied evenly over the entire mating surface.
Page 62: Dc-Dc Converters, Vehicle Controller, Relay
Parts and Service Manual - eTT8/eTT12 - Electrical System DC-DC Converters, Vehicle Controller, Relay Item Part Number Qty. Description A-ES12-0414 12V DC-DC CONVERTER A-ES12-0424 VEHICLE MASTER CONTROLLER 7A5012 ACS RELAY A-ES12-0413 5V DC-DC CONVERTER HCS, #10-32 UNF X .5 FLAT WASHER, #10 PHS, #10-32 UNF X .75 SHCS, #8-32 UNC X .625 FLAT WASHER, #8...
Page 63: Horn
Parts and Service Manual - eTT8/eTT12 - Electrical System Horn Item Part Number Qty. Description A-RTT12-00052 HORN CARRIAGE BOLT, 3/8-16 UNC X 1 (INCLUDED WITH ITEM 1) FLANGE NUT, 3/8-16 UNC (INCLUDED WITH ITEM 1) 5-15 Rev M, 23-May-2017...
Page 64: Charge Jack
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E125 and earlier S/N 12E142 and earlier Charge Jack Item Part Number Qty. Description CHARGE JACK ASSEMBLY (SEE SECTION 4) FHS, 1/4-20 UNC X 1.5, SS 5-16 Rev M, 23-May-2017...
Page 65 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E126 and later S/N 12E143 and later Charge Jack Item Part Number Qty. Description CHARGE JACK ASSEMBLY (SEE SECTION 4) FHS, 1/4-20 UNC X 1, SS 5-17 Rev M, 23-May-2017...
Page 66: Inching Switches
Parts and Service Manual - eTT8/eTT12 - Electrical System Inching Switches Item Part Number Qty. Description ET00-14-001-CA INCHING SWITCH (WITH ETCHED ARROWS) A-ES12-0803 INCHING SWITCH (SOLID BLACK) Note: Inching switches must be replaced with like kind. For solid black switch only, replace dielectric grease in electrical connections on inching switch every 6 months to prevent moisture from getting inside switch.
Page 67: Battery Cable Schematic
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E102 thru 8E105 Battery Cable Schematic WIRE END A END B ITEM GAGE COLOR LENGTH TYPE TYPE A-ES12-0498 49” A-ES12-0497 STRAIGHT A-ES12-0447 EURO BLACK A-ES12-0499 49” A-ES12-0497 STRAIGHT A-ES12-0498 72”...
Page 68 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: 8E106 thru 8E119 Battery Cable Schematic WIRE END A END B ITEM GAGE COLOR LENGTH TYPE TYPE A-ES12-0498 49” A-ES12-0497 STRAIGHT A-ES12-0447 EURO BLACK A-ES12-0499 49” A-ES12-0497 STRAIGHT A-ES12-0498 72”...
Page 69 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later Battery Cable Schematic WIRE END A END B ITEM GAGE COLOR LENGTH TYPE TYPE A-ES12-0498 33” A-ES12-0497 STRAIGHT A-ES12-0447 EURO BLACK A-ES12-0499 28” A-ES12-0497 STRAIGHT A-ES12-0498 69”...
Page 70 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E105 thru S/N 12E111 S/N 12E113 Battery Cable Schematic Excluding AC pump retrofits WIRE END A END B ITEM GAGE COLOR LENGTH TYPE TYPE A-ES12-0498 46” A-ES12-0497 STRAIGHT A-ES12-0447 EURO...
Page 71 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E112 S/N 12E114 thru 12E140 Battery Cable Schematic WIRE END A END B ITEM GAGE COLOR LENGTH TYPE TYPE A-ES12-0498 46” A-ES12-0497 STRAIGHT A-ES12-0447 EURO BLACK A-ES12-0499 46”...
Page 72 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E141 and later Battery Cable Schematic WIRE END A END B ITEM GAGE COLOR LENGTH TYPE TYPE A-ES12-0498 27” A-ES12-0497 STRAIGHT A-ES12-0447 EURO BLACK A-ES12-0499 28” A-ES12-0497 STRAIGHT A-ES12-0498 72”...
Page 73: Battery Cables - Hydraulic Pump Drive
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E112 S/N 12E114 thru 12E140 Battery Cables - Hydraulic Pump Drive S/N 8E119 and earlier TORQUE TO 15 ft-lb TORQUE TO 15 ft-lb TORQUE TO 15 ft-lb Item Part Number Qty.
Page 74 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later Battery Cables - Hydraulic Pump Drive TORQUE TO 15 ft-lb TORQUE TO 15 ft-lb TORQUE TO 15 ft-lb Cushioned loop clamp mounted to rear of AC pump motor. Cushioned loop clamp mounted using AC pump controller mounting hardware.
Page 75 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E141 and later Battery Cables - Hydraulic Pump Drive TORQUE TO 15 ft-lb TORQUE TO 15 ft-lb TORQUE TO 15 ft-lb Cushioned loop clamp mounted to rear of AC pump motor. Cushioned loop clamp mounted using AC pump controller mounting hardware.
Page 76: Battery Cables - Traction Drive
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E119 and earlier S/N 12E140 and earlier Battery Cables - Traction Drive TORQUE TO 7 ft-lb TORQUE TORQUE TO 15 ft-lb TORQUE TO 15 ft-lb TO 15 ft-lb Item Part Number Qty.
Page 77 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later S/N 12E141 and later Battery Cables - Traction Drive TORQUE TO 15 ft-lb TORQUE TO 7 ft-lb TORQUE TO 15 ft-lb TORQUE TO 15 ft-lb Item Part Number Qty.
Page 78: Battery Cables - Battery Connector
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E119 and earlier S/N 12E140 and earlier Battery Cables - Battery Connector Second loop clamp is behind the panel. See following pages for details. Item Part Number Qty.
Page 79 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later S/N 12E141 and later Battery Cables - Battery Connector INSET FOR ETT8 ONLY Loop clamp is behind the panel. See following pages for details. Item Part Number Qty.
Page 80 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E119 and earlier S/N 12E140 and earlier Battery Cables - Charge Jack and Traction Motor TORQUE TO 19 ft-lb Item Part Number Qty. Description HCS, M8X1.25 X 20 FLAT WASHER, M8 CUSHIONED LOOP CLAMP, 1.25 LOCK NUT, #10-32 UNF...
Page 81 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later S/N 12E141 and later Battery Cables - Charge Jack and Traction Motor TORQUE TO 19 ft-lb Item Part Number Qty. Description HCS, M8X1.25 X 20 FLAT WASHER, M8 CUSHIONED LOOP CLAMP, 1.25 HCS, 1/4-20 UNC X .50...
Page 82: Vehicle Harness - Front
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E113 and later S/N 12E118 and later Vehicle Harness - Front S/N 12E124 excluded Connector is tied to harness if optional equipment is not present. Item Part Number Qty.
Page 83 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E113 and later S/N 12E118 and later Vehicle Harness - Front S/N 12E124 excluded Item Part Number Qty. Description AS REQ. PLASTIC LOOP CLAMP AS REQ. LOCK NUT, #10-32 UNF 5-35 Rev M, 23-May-2017...
Page 84: Vehicle Harness - Manifold Block Connections
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E119 and earlier S/N 12E140 and earlier Vehicle Harness - Manifold Block Connections Wire Colors in Vehicle Harness Description/Function 8E112 and earlier 8E113 - 8E119 12E117 and earlier, and 12E124 12E118 - 12E140, excluding 12E124 STEER SOLENOID (TOP) PINK / BROWN...
Page 85 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later S/N 12E141 and later Vehicle Harness - Manifold Block Connections Description/Function Wire Colors in Vehicle Harness STEER SOLENOID (TOP) BLUE / BROWN STEER SOLENOID (BOTTOM) GREEN / WHITE SHIFT LOW GREY / TAN...
Page 86: Vehicle Harness - Power Distribution
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E113 thru 8E119 S/N 12E118 thru 12E140 Vehicle Harness - Power Distribution S/N 12E124 excluded Adhere to sheet metal using included double-sided adhesive. Item Part Number Qty. Description PLASTIC LOOP CLAMP LOCK NUT, #10-32 UNF CUSHIONED LOOP CLAMP...
Page 87 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E120 and later S/N 12E141 and later Vehicle Harness - Power Distribution HIGH (FRONT) REAR (LOW) RED/LBL WHT/GRN Adhere to sheet metal using included double-sided adhesive. Item Part Number Qty.
Page 88 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E113 and later S/N 12E118 thru 12E140 Vehicle Harness - Power Distribution S/N 12E124 excluded Item Part Number Qty. Description PLASTIC LOOP CLAMP LOCK NUT, #10-32 UNF CUSHIONED LOOP CLAMP 5-40 Rev M, 23-May-2017...
Page 89: Vehicle Harness - Traction And Pump Drives
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 12E141 and later Vehicle Harness - Traction and Pump Drives Item Part Number Qty. Description PLASTIC LOOP CLAMP LOCK NUT, #10-32 UNF 5-41 Rev M, 23-May-2017...
Page 90: Vehicle Harness - Rear
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E113 and later S/N 12E118 and later Vehicle Harness - Rear S/N 12E124 excluded Connector is tied to harness if optional equipment is not present. Item Part Number Qty.
Page 91 Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E113 and later S/N 12E118 and later Vehicle Harness - Rear S/N 12E124 excluded Connector is tied to harness if optional equipment is not present. Item Part Number Qty.
Page 92: Vehicle Harness - Under Dash
Parts and Service Manual - eTT8/eTT12 - Electrical System Applies to tractors: S/N 8E113 and later S/N 12E118 and later Vehicle Harness - Under Dash S/N 12E124 excluded 5-44 Rev M, 23-May-2017...
Page 93: Battery Installation
Parts and Service Manual - eTT8/eTT12 - Electrical System Battery Installation Item Part Number Qty. Description AE-OPT-1200-ETT8 TRACTION BATTERY, 80V, 400 AH (eTT8 ONLY) AE-OPT-1200 TRACTION BATTERY, 80V, 625 AH (eTT12 ONLY) A-ES12-0448 SELF-ADHESIVE BATTERY PAD (APPLY AS SHOWN) 5-45 Rev M, 23-May-2017...
Page 94: Revision Log
Parts and Service Manual - eTT8/eTT12 - Electrical System Revision Log Date Description Appr. 27-Mar-2014 Original release for production. 23-Jun-2014 Updated for new throttle pedal and adaptor harness. 08-Aug-2014 Updated throttle pedal part number. 02-Sep-2014 Added historical throttle pedal information. 2-Feb-2015 Updated for eTT rev G tractors 1-May-2015...
Page 95 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Table of Contents Section 6 - Hydraulic Sub-Assemblies Description Page Hydraulic Pump Assembly Manifold Pressure Switches Hydraulic Manifold Assembly Manifold Assembly With Filter and Accumulator 6-13 Brake Pedal Assembly 6-14 Cooler Assembly 6-15 Return Filter Assembly 6-16...
Page 96: Hydraulic Pump Assembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 12E104 and earlier Unless retrofit for AC pump Hydraulic Pump Assembly Item Part Number Qty. Description A-ES12-0475 DC HYDRAULIC MOTOR A-ES12-0450 GEAR PUMP A-ES12-0473 PUMP ADAPTOR A-ES12-0471 COUPLING HALF (MOTOR SIDE) CUP POINT SET SCREW, 5/16-18 UNC X .375 SQUARE KEY, 1/4 X 1.25 LG...
Page 97 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 12E105-12E111, 12E113 Unless retrofit for AC pump Hydraulic Pump Assembly This applies to unit S/N’s: 12E105 through 12E111 and 12E113 only (unless retrofit for AC Pump). Item Part Number Qty.
Page 98 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 8E101 and later S/N 12E114 and later Hydraulic Pump Assembly S/N 16E101 and later S/N 12E112 and retrofit units Item Part Number Qty. Description A-ES12-0475-2 AC HYDRAULIC MOTOR A-ES12-0201 MOTOR MOUNT A-ES12-0450-2...
Page 99: Manifold Pressure Switches
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 12E140 and earlier S/N 8E119 and earlier Manifold Pressure Switches S/N 16E107 and earlier Item Part Number Qty. Description A-ETT8-0455* LOW PRESSURE SWITCH, 1800 F A-ETT8-0456* HIGH PRESSURE SWITCH, 2500 R C5315X4 ADAPTOR - 4 SAE ORB M - 4 JIC M C5256X4X4...
Page 100: Hydraulic Manifold Assembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N E12265 Hydraulic Manifold Assembly Item Part Number Qty. Description A-ES12-0479-2 MANIFOLD BLOCK ASSEMBLY COMPLETE ET00-59-008-CA SAHR VALVE A (N.O.) COMPLETE ET00-59-009-CA SAHR VALVE B (N.C.) COMPLETE ET00-59-001-CA SHIFT VALVE COMPLETE ET00-59-002-CA STEER VALVE COMPLETE...
Page 101 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N E12265 Manifold Schematic Rev H, 22-May-2017...
Page 102 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 8E119 and earlier S/N E12271-12E140 Hydraulic Manifold Assembly S/N 16E107 and earlier SHIFT LOW SHIFT HIGH Item Part Number Qty. Description A-ES12-0479-2 MANIFOLD BLOCK ASSEMBLY COMPLETE ET00-59-001-CA SHIFT VALVE COMPLETE ET00-59-002-CA STEER VALVE COMPLETE...
Page 103 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 8E119 and earlier S/N E12271-12E140 Manifold Schematic S/N 16E107 and earlier Rev H, 22-May-2017...
Page 104 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 8E120 and later S/N 12E141 and later Hydraulic Manifold Assembly S/N 16E108 and later SHIFT HIGH SHIFT Item Part Number Qty. Description ET00-09-001-SA HYDRAULIC MANIFOLD ASSEMBLY - CONTAINS ITEMS 1 THRU 25 A-ETT8-0455 LOW PRESSURE SWITCH, 1800 F A-ETT8-0456...
Page 105 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 8E120 and later S/N 12E141 and later Manifold Schematic S/N 16E108 and later Item Part Number Qty. Description ET00-59-021-CA COIL, 12V A-ES12-4303624* SHIFT COIL, 24V 7237X4 HEX PLUG, 4 SAE ORB A-ES12-4303724 STEER COIL, 24V CONNECTOR LOCK...
Page 106 Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies This page intentionally left blank. 6-12 Rev H, 22-May-2017...
Page 107: Manifold Assembly With Filter And Accumulator
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 8E120 and later S/N 12E141 and later Manifold Assembly With Filter and Accumulator S/N 16E108 and later Item Part Number Qty. Description MANIFOLD ASSEMBLY (SEE PREVIOUS PAGES FOR P/N) A-ES12-0486 FILTER HEAD A-ES12-0485...
Page 108: Brake Pedal Assembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: eTT-12 units eTT-16 units Brake Pedal Assembly TORQUE TO 20 ft-lb Travel screw must be adjusted for minimum pre-travel of the brake pedal without compressing the main valve spring and moving the valve body. Item Part Number Qty.
Page 109: Cooler Assembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 8E106-8E119 S/N 12E112, 12E114-12E140 Cooler Assembly S/N 16E101-16E107 And retrofit units The cooler assembly should be assembled so that the temp switch is in-line with the intake flow. Verify based on tractor hose routing and re-assemble if necessary.
Page 110: Return Filter Assembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Applies to tractors: S/N 12E140 and earlier S/N 8E119 and earlier Return Filter Assembly S/N 16E107 and earlier Flow direction should be away from the return manifold block. Item Part Number Qty.
Page 111: Tank Assembly
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Tank Assembly /eTT16 TOP MOUNT Item Part Number Qty. Description A-ETT8-0469 ETT8, HYDRAULIC TANK, FRONT/REAR MOUNT A-ETT8-0469-1 ETT8, HYDRAULIC TANK, TOP MOUNT A-ES12-0469-1 ETT12, HYDRAULIC TANK, FRONT/REAR MOUNT A-ES12-0469-2 ETT12/ETT16, HYDRAULIC TANK, TOP MOUNT A-EXL16-0469 ETT16, HYDRAULIC TANK, RIGHT/TOP MOUNT A-ES12-0550...
Page 112: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Hydraulic Sub-Assemblies Revision Log Date Description Appr. 21-Feb-2014 Original release for production 04-Sep-2014 Corrected typographical errors 09-Feb-2014 Added schematics for manifolds. Updated for eTT rev G tractors 14-Apr-2015 Revised model information for Tank Assembly. Corrected Hyd Tank Part Number. 20-May-2015 Application serial number range updated to reflect production sequencing.
Page 113: Section 7 - Hydraulic System
Parts and Service Manual - eTT12 - Hydraulic System Table of Contents Section 7 - Hydraulic System Description Page Hydraulic Diagram Brake Pedal Installation 7-11 Steering and Brake Hoses 7-12 Hydraulic Cooler Installation and Hoses 7-14 Hydraulic Tank and Pump Installation 7-16 Main Accumulator Installation and Hoses 7-20...
Page 114: Hydraulic Hose Diagram
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E140 and earlier Hydraulic Hose Diagram Rev E, 24-Aug-2016...
Page 115 Applies to tractors: S/N 12E140 and earlier Parts and Service Manual - eTT12 - Hydraulic System Hydraulic Hose Diagram Rev E, 24-Aug-2016...
Page 116: Hydraulic Hoses
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E140 and earlier Hydraulic Hoses Part Number Item Hose Description End A - Length - End B 12U-616-9.5-12U-652 H14512 ACCUMULATOR 3/4” SUCTION HOSE X 32” LONG 12GMV, 32 12 GMV 08U-668-26-08U-668 H14508...
Page 117: Hydraulic Fittings
Applies to tractors: S/N 12E140 and earlier Parts and Service Manual - eTT12 - Hydraulic System Hydraulic Fittings Item Part Number Qty. Description C5315X6X8 ADAPTOR - 8 SAE ORB M - 6 JIC M C5315X8 ADAPTOR - 8 SAE ORB M - 8 JIC M C5706X4 TEE - 2X 4 JIC M - 4 JIC F C5315X4X6...
Page 118 Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E141 and later Hydraulic Hose Diagram Rev E, 24-Aug-2016...
Page 119 Applies to tractors: S/N 12E141 and later Parts and Service Manual - eTT12 - Hydraulic System Hydraulic Hose Diagram Rev E, 24-Aug-2016...
Page 120 Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E141 and later Hydraulic Hoses Part Number Item Hose Description End A - Length - End B 08U-608-13.5-08U-688 H14508 ACCUMULATOR 3/4” SUCTION HOSE X 32” LONG 12GMV, 32 12GMV 06U-668-22-06U-666 H14506...
Page 121 Applies to tractors: S/N 12E141 and later Parts and Service Manual - eTT12 - Hydraulic System Hydraulic Fittings Item Part Number Qty. Description C5315X6 ADAPTOR - 6 SAE ORB M - 6 JIC M C5315X4 ADAPTOR - 4 SAE ORB M - 4 JIC M C5315X8 ADAPTOR - 8 SAE ORB M - 8 JIC M C5314X12X12...
Page 122 Parts and Service Manual - eTT12 - Hydraulic System This page intentionally left blank. 7-10 Rev E, 24-Aug-2016...
Page 123: Brake Pedal Installation
Parts and Service Manual - eTT12 - Hydraulic System Brake Pedal Installation TORQUE TO 20 ft-lb Item Part Number Qty. Description BRAKE VALVE AND PEDAL ASSEMBLY (SEE SECTION 6) HCS, 5/16-18 UNC X 1.5, GR 8, ZN PLATED FLAT WASHER, 5/16 LOCK NUT, 5/16-18 UNC 7-11 Rev E, 24-Aug-2016...
Page 124: Steering And Brake Hoses
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E140 and earlier Steering And Brake Hoses Item Part Number Qty. Description STEER ORBITAL (SEE SECTION 8 FOR INSTALLATION) BRAKE MODULATING VALVE (SEE BRAKE PEDAL INSTALLATION) 7-12 Rev E, 24-Aug-2016...
Page 125 Applies to tractors: S/N 12E141 and later Parts and Service Manual - eTT12 - Hydraulic System Steering And Brake Hoses Item Part Number Qty. Description STEER ORBITAL (SEE SECTION 8 FOR INSTALLATION) BRAKE VALVE (SEE BRAKE PEDAL INSTALLATION) A-ES12-0468-1 BRAKE PRESSURE SWITCH CUSHIONED LOOP CLAMP HCS, 1/4-20 UNC X 1 FLAT WASHER, 1/4...
Page 126: Hydraulic Cooler Installation And Hoses
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E112, 12E114-12E140 and retrofit units Hydraulic Cooler Installation and Hoses Verify temp switch is installed inline with cooler inlet. Item Part Number Qty. Description COOLER ASSEMBLY (SEE SECTION 6) A-ES12-0542 HYDRAULIC COOLER BRACKET HCS, 1/4-20 UNC X 1...
Page 127 Applies to tractors: S/N 12E141 and later Parts and Service Manual - eTT12 - Hydraulic System Hydraulic Cooler Installation and Hoses Item Part Number Qty. Description ET00-09-002-CA HYDRAULIC COOLER ASSEMBLY ET00-59-011-CA HYD COOLER FAN (INCLUDED IN ITEM 1) ET00-59-010-CA HYD COOLER TEMP SWITCH (INCLUDED IN ITEM 1) HCS, 1/4-20 UNC X 1 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC...
Page 128: Tank Installation
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E116 and later Tank Installation Use Permatex® Anti-Seize Lubricant or equivalent. Item Part Number Qty. Description HYDRAULIC TANK ASSEMBLY (SEE SECTION 6) FHCS, 3/8-16 UNC X 1, SS 7-16 Rev E, 24-Aug-2016...
Page 129: Pump Installation
Applies to tractors: S/N 12E112, 12E114 and Parts and Service Manual - eTT12 - Hydraulic System later and all retrofit units Pump Installation Install specified components using Loctite®Threadlocker Blue 242®thread retaining compound or comparable Item Part Number Qty. Description HYDRAULIC PUMP ASSEMBLY (SEE SECTION 6) NUT, 5/16-18 UNC LOCK WASHER, 5/16 FLAT WASHER, 5/16...
Page 130 Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E140 and earlier Tank and Pump Hoses Item Part Number Qty. Description SAE HOSE CLAMP, #12 7-18 Rev E, 24-Aug-2016...
Page 131 Applies to tractors: S/N 12E141 and later Parts and Service Manual - eTT12 - Hydraulic System Tank and Pump Hoses Item Part Number Qty. Description CUSHIONED LOOP CLAMP HCS, 1/4-20 UNC X 1.25 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC SAE HOSE CLAMPS, #12 7-19 Rev E, 24-Aug-2016...
Page 132: Main Accumulator Installation And Hoses
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E140 and earlier Main Accumulator Installation and Hoses Pre-charge accumulator with dry nitrogen gas to 1600 psi ± 200 psi. Secure to bracket using SAE hose clamps as needed. Item Part Number Qty.
Page 133 Applies to tractors: S/N 12E141 and later Parts and Service Manual - eTT12 - Hydraulic System Main Accumulator Installation and Hoses Pre-charge accumulator with dry nitrogen gas to 1600 psi ± 200 psi. Item Part Number Qty. Description A-ES12-0454-1 ACCUMULATOR, 2.5 GAL ET00-59-009-CA ACCUMULATOR REPAIR KIT, 2.5 GAL - BLADDER, VALVE, SEALS NVSP-59-001-CA...
Page 134: Brake Accumulator Installation And Hoses
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E107 - 12E140 Brake Accumulator Installation and Hoses Arrow on check valve to point toward Accumulator. Pre-charge accumulator with dry nitrogen gas to 750 psi ± 100 psi. Item Part Number Qty.
Page 135: Return Filter Assembly Installation And Hoses
Applies to tractors: S/N 12E140 and earlier Parts and Service Manual - eTT12 - Hydraulic System Return Filter Assembly Installation and Hoses Item Part Number Qty. Description RETURN FILTER ASSEMBLY (SEE SECTION 6) HCS, 1/4-20 UNC X 3 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC 7-23 Rev E, 24-Aug-2016...
Page 136: Manifold Installation And Hoses
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E140 and earlier Manifold Installation and Hoses to Front Item Part Number Qty. Description HYDRAULIC MANIFOLD ASSEMBLY (SEE SECTION 6) HCS, 3/8-16 UNC X 4.5 FLAT WASHER, 3/8 LOCK NUT, 3/8-16 UNC A-ES12-0484-2 TEMPERATURE SWITCH...
Page 137 Applies to tractors: S/N 12E140 and earlier Parts and Service Manual - eTT12 - Hydraulic System Manifold Hoses to Back Secure HLV to HLT using plastic zip ties, 3 places. Item Part Number Qty. Description CUSHIONED LOOP CLAMP HCS, 1/4-20 UNC X 1 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC FLAT WASHER, #10...
Page 138 Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E141 and later Manifold Installation and Hoses to Front TORQUE TO 13 ft-lb Item Part Number Qty. Description MANIFOLD ASSEMBLY (SEE SECTION 6 FOR PART NUMBERS) HCS, 5/16-18 UNC X 1.25 LOCK WASHER, 5/16 FLAT WASHER, 5/16 CUSHION LOOP CLAMP, 3/4...
Page 139 Applies to tractors: S/N 12E141 and later Parts and Service Manual - eTT12 - Hydraulic System Manifold Hoses to Back Item Part Number Qty. Description MANIFOLD ASSEMBLY (SEE SECTION 6 FOR PART NUMBERS) NVSP-24-015-CG SMOOTH HYDRAULIC CLAMP, DUAL 16MM (2 HALVES) NVSP-24-017-CC HYDRAULIC CLAMP COVER PLATE, TWIN SIZE 2 HCS, 5/16-18 UNC X 1.5...
Page 140: Axle Hoses
Parts and Service Manual - eTT12 - Hydraulic System Applies to tractors: S/N 12E140 and earlier Axle Hoses FRONT AXLE Item Part Number Qty. Description A-ES12-0468-1 BRAKE PRESSURE SWITCH REAR AXLE 7-28 Rev E, 24-Aug-2016...
Page 141 Applies to tractors: S/N 12E141 and later Parts and Service Manual - eTT12 - Hydraulic System Axle Hoses FRONT AXLE REAR AXLE 7-29 Rev E, 24-Aug-2016...
Page 142: Revision Log
Parts and Service Manual - eTT12 - Hydraulic System Revision Log Date Description Appr. 17-Apr-2014 Original release for production 05-Sep-2014 Corrected accumulator pre-charge values 20-May-2015 Revised and rearranged pages in section. Updated for eTT12 rev G tractors. 26-Aug-2015 Added shift dampener hose (HLX) and fittings. 24-Aug-2016 Updated hydraulic hose schematic and fittings table 7-30...
Page 143 Parts and Service Manual - eTT12 - Operator Interface and Chassis Table of Contents Section 8 - Operator Interface and Chassis System Description Page Park Brake Steering Valve, Column, Wheel Dash Panel Seats and Floor Mats Charge Jack Cover Body Cover Panels 8-10 Revision Log 8-14...
Page 144 Parts and Service Manual - eTT12 - Operator Interface and Chassis Park Brake Handle, Cable Item Part Number Qty. Description A-TT4-00141 PARK BRAKE HANDLE A-ES12-0150 PARK BRAKE CABLE 81008429 PARK BRAKE CONTACT PIN 82050000 PROXIMITY SENSOR 82066700 SCREW, SELF-TAPPING, #12 X .5, TYPE B HCS, 1/4-20 UNC X 1.25 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC...
Page 145 Parts and Service Manual - eTT12 - Operator Interface and Chassis Park Brake Cable Routing Item Part Number Qty. Description A-ES12-0152 CLEVIS PIN Rev E, 29-Nov-2016...
Page 146 Parts and Service Manual - eTT12 - Operator Interface and Chassis Steering Valve, Column, Wheel TORQUE TO 38 ft-lb TORQUE TO 35 ft-lb Item Part Number Qty. Description A-ES12-0457 STEER VALVE A-ES12-0807 STEERING COLUMN A-TN4-00809E STEERING WHEEL A-TT10-00813 WHEEL NUT, 13/16-20 UNEF A-TT10-00811 HORN BUTTON HCS, 3/8-16 UNC X 1.25...
Page 147: Dash Panel
Parts and Service Manual - eTT12 - Operator Interface and Chassis Dash Panel Use Permatex® Anti-Seize Lubricant or equivalent. Item Part Number Qty. Description DASH PANEL ASSEMBLY, (SEE SECTION 4) BHCS, 1/4-20 UNC X 1, SS Rev E, 29-Nov-2016...
Page 148 Parts and Service Manual - eTT12 - Operator Interface and Chassis Rev E, 29-Nov-2016...
Page 149: Seats And Floor Mats
Parts and Service Manual - eTT12 - Operator Interface and Chassis Seats and Floor Mats Prime back surface of PVC decking with Bulldog® Adhesion Promoter or equivalent. Adhere to chassis with SEM 39337 Door Skin & SMC Adhesive or equivalent. Item Part Number Qty.
Page 150: Charge Jack Cover
Parts and Service Manual - eTT12 - Operator Interface and Chassis Charge Jack Cover Applies to tractors: S/N 12E140 and earlier Items 1 and 2 are installed using Aluminum Pop Rivets, 3/16. Item Part Number Qty. Description A-ES12-0109 BATTERY CHARGE JACK COVER (S/N 12E140 AND EARLIER) HINGE, CHARGE JACK COVER Applies to tractors: S/N 12E141 and 12E142...
Page 151 Parts and Service Manual - eTT12 - Operator Interface and Chassis Charge Jack Cover Applies to tractors: S/N 12E143 and later Item installed using Aluminum Pop Rivets, 3/16. Item Part Number Qty. Description ET00-02-003-SA BATTERY CHARGE JACK COVER (S/N 12E143 AND LATER) ET00-02-004-SA HINGE, CHARGE JACK COVER HCS, #10-32 UNF X .5...
Page 152: Body Cover Panels
Parts and Service Manual - eTT12 - Operator Interface and Chassis Applies to tractors: S/N 12E140 and earlier Body Cover Panels Use Permatex® Anti-Seize Lubricant or equivalent. Item Part Number Qty. Description A-ES12-0325 LOUVER HCS, 1/4-20 UNC X 1 LOCK WASHER, 1/4 FLAT WASHER, 1/4 A-ES12-0335 CENTER ACCESS PANEL COVER...
Page 153 Parts and Service Manual - eTT12 - Operator Interface and Chassis Applies to tractors: S/N 12E140 and earlier Body Cover Panels Items 3 is installed using Aluminum Pop Rivets, 3/16. Item Part Number Qty. Description A-ES12-0320 BATTERY HOOD A-ES12-0310 MOTOR COVER C-TT4-0012-3 LOCKING T-HANDLE SH-TT8-0012-3...
Page 154 Parts and Service Manual - eTT12 - Operator Interface and Chassis Applies to tractors: S/N 12E141 and later Body Cover Panels Use Permatex® Anti-Seize Lubricant or equivalent. Install specified components using Loctite®Threadlocker Blue 242®thread retaining compound or comparable. Item Part Number Qty.
Page 155 Parts and Service Manual - eTT12 - Operator Interface and Chassis Applies to tractors: S/N 12E141 and later Body Cover Panels Items 7 is installed using Pop Rivets, 5/32 X .375. Item Part Number Qty. Description ET12-02-002-SA FRONT BATTERY HOOD ET12-02-002-SB REAR BATTERY HOOD NVSP-21-004-CA...
Page 156: Revision Log
Parts and Service Manual - eTT12 - Operator Interface and Chassis Revision Log Date Description Appr. 22-Apr-2014 Original release for production 28-Apr-2014 Added part number for Dash Wiring Cover. Corrected part number of Panel Sup- port Weldment. 09-Mar-2015 Added information for Rev G tractors. 27-July-2016 Added new charge jack cover 29-Nov-2016...
Page 157: Section 9 - Optional Equipment
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Table of Contents Section 9 - Optional Equipment Description Page Spotlights Post Mounted Beacon Backup Alarm Turn Signals Dual Battery Option - eTT16 only Cab Heater - eTT8/eTT12 9-13 PVC Decking 9-16 Revision Log 9-18...
Page 158 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Spotlights Item Part Number Qty. Description A-TT4-00291-LED SPOTLIGHT, LED (MOUNTING HARDWARE INCLUDED) NVSP-14-008-CA TOGGLE SWITCH, LIT TIP (SEE DASH PANEL ASY, SECTION 4) DT04-2P ELECTRICAL CONNECTOR (INSTALLED TO ITEM 1) CONNECTOR LOCK (INSTALLED TO ITEM 1) 0460-215-16141 CONNECTOR PINS (INSTALLED TO ITEM 1) DT04-4P...
Page 159: Spotlights
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Spotlights Item 1 to be wired as shown below: Item 2 to be wired as shown below (for tractor S/N’s: 12E118 / 8E113 / 16E103 and later only (excluding 12E124)): Rev E, 6-Jun-2016...
Page 160: Post Mounted Beacon
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Post Mounted Beacon Item Part Number Qty. Description AE-OPT-0007-LED AMBER STROBE BEACON, LED AE-OPT-0009-LED HALF COVER, LED BEACON AE-OPT-0082-LED BEACON POST, LED HCS, #10-32 UNC X 1 LOCK NUT, #10-32 UNC HCS, 1/4-20 UNC X 1.5 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC...
Page 161: Backup Alarm
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Backup Alarm Item Part Number Qty. Description AE-OPT-0001 BACKUP ALARM HCS, 1/4-20 UNC X 1 FLAT WASHER, 1/4 LOCK NUT, 1/4-20 UNC DT04-2P ELECTRICAL CONNECTOR (INSTALLED TO ITEM 1) CONNECTOR LOCK (INSTALLED TO ITEM 1) 0460-215-16141 CONNECTOR PINS (INSTALLED TO ITEM 1) RING TERMINAL, #10 (INSTALLED TO ITEM 1)
Page 162: Turn Signals
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Applies to tractors: S/N 12E118 and later S/N 8E113 and later Turn Signals S/N 16E103 and later (Excluding 12E124) This page applies to unit S/N’s: 12E118 / 8E113 / 16E103 and later only (excluding 12E124) Turn signal harness is routed through tractor to switch base in dash panel.
Page 163 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Applies to tractors: S/N 12E118 and later S/N 8E113 and later Turn Signals S/N 16E103 and later (Excluding 12E124) This page applies to unit S/N’s: 12E118 / 8E113 / 16E103 and later only (excluding 12E124) 52”...
Page 164: Dual Battery Option - Ett16 Only
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Dual Battery Option - eTT16 only Battery must be installed before hoods, gas shocks, and prop rods and before mating connector is mounted. Item Part Number Qty. Description A-ES12-1200 TRACTION BATTERY, 80V, 625 AH A-ES12-0448 SELF-ADHESIVE BATTERY PAD (APPLY AS SHOWN) Rev E, 6-Jun-2016...
Page 165 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Dual Battery Option - eTT16 only Terminating lug in fuse holder must be replaced with 1.5 inch long bolt to secure A-AUX. Item Part Number Qty. Description CUSHIONED LOOP CLAMP Rev E, 6-Jun-2016...
Page 166 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Applies to tractors: S/N 16E107 and earlier Dual Battery Option - eTT16 only Item Part Number Qty. Description A-ES12-0447 EURO/DIN BATTERY CONNECTOR KIT A-EXL16-0119 SECOND BATTERY EURO CONNECTOR BRACKET HCS, 1/4-20 UNC X 2.5 FLAT WASHER, 1/4 SPACER, Ø.5 OD X .5 TALL LOCK NUT, 1/4-20 UNC...
Page 167 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Applies to tractors: S/N 16E108 and later Dual Battery Option - eTT16 only Item Part Number Qty. Description A-ES12-0447 EURO/DIN BATTERY CONNECTOR KIT EX16-02-007-SA EURO CONN BRKT, FRONT, DUAL BATTERY EX16-02-008-SA EURO CONN BRKT, REAR, DUAL BATTERY HCS, 1/4-20 UNC X 2 FLAT WASHER, 1/4...
Page 168 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Dual Battery Option - eTT16 only WIRE END A END B ITEM GAGE COLOR LENGTH TYPE TYPE A-AUX A-ES12-0498 30.5” A-ES12-0447 EURO A-ES12-0497 STRAIGHT B-AUX BLACK A-ES12-0499 31.5” A-ES12-0447 EURO A-ES12-0497 STRAIGHT 9-12 Rev E, 6-Jun-2016...
Page 169 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Cab Heater Schematic- eTT8/eTT12 9-13 Rev E, 6-Jun-2016...
Page 170: Cab Heater - Ett8/Ett12
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Cab Heater - eTT8/eTT12 9-14 Rev E, 6-Jun-2016...
Page 171 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Cab Heater - eTT8/eTT12 Item Part Number Qty. Description A-ES12-0210 HEATER MODULE WELDMENT A-ES12-0211 HEATER MODULE FRONT COVER A-ES12-0212 HEATER MODULE FAN BRACKET AE-OPT-0320-B DC/DC CONVERTER A-MTT5-0235 FAN, Ø5.2 AE-OPT-0300-B HEATER CORE A-MTT5-0236 ADJUSTABLE LOUVER A-ES12-0415-1...
Page 172: Pvc Decking
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Applies to tractors: S/N 8E119 and earlier S/N 12E140 and earlier PVC Decking S/N 16E107 and earlier Item Part Number Qty. Description AE-OPT-ETT8-0115 PVC DECKING KIT (9 PCS) AE-OPT-ETT12-0115 PVC DECKING KIT (9 PCS) AE-OPT-ETT16-0115 PVC DECKING KIT (9 PCS) 9-16...
Page 173 Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Applies to tractors: S/N 8E120 and later S/N 12E141 and later PVC Decking S/N 16E108 and later Item Part Number Qty. Description OPT-ET08-002-A PVC DECKING KIT (8 PCS) OPT-ET12-001-A PVC DECKING KIT (8 PCS) OPT-ET16-004-A PVC DECKING KIT (8 PCS) 9-17...
Page 174: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Optional Equipment Revision Log Date Description Appr. 25-Feb-2014 Original release for production 30-Apr-2014 Corrected cab heater illustrations and schematic. 15-May-2015 Added information for Rev G tractors. 7-Jan-2016 Corrected contactor part number. 6-Jun-2016 Changed eXL16 model name to eTT16 9-18 Rev E, 6-Jun-2016...
Page 175: Section 10 - Specifications
Parts and Service Manual - eTT12 - Specifications Table of Contents Section 10 - Specifications Description Page Full Specifications 10-2 Fluids and Filters 10-4 Tractor Drawing 10-5 Revision Log 10-6 10-1 Rev B, 26-May-2015...
Page 176: Full Specifications
Parts and Service Manual - eTT12 - Specifications Full Specifications Chassis System Length (Not Including Hitches) 130 inches 3302 mm Chassis Width 71.9 inches 1826 mm Chassis Height 43.3 inches 1100 mm Height at Seat Back 45.6 inches 1157 mm Step-in Height 11 inches 279 mm...
Page 177 Parts and Service Manual - eTT12 - Specifications Full Specifications Axles Wheelbase 90 inches 2286 mm Track Width 62.6 inches 1591 mm Inside Tire Steering Angle 35° Center Differential Ratio 2.909 Planetary Ratio 6.000 Overall Ratio 17.454 Maximum Brake Pressure 638 psi 44 bar Service Brakes...
Page 178 Parts and Service Manual - eTT12 - Specifications Fluids and Filters Fluid Specifications Fluid Recommendation Requirement Volume (approx.) Hydraulic Fluid Castrol Dual Range HV 32 10.3 gallons / 47 liters Transfer Case Oil Castrol Trans-C SAE 50 API GL4 4.3 quarts / 4.0 liters Front Axle Gear Oil Castrol Trans-C SAE 50 API GL4...
Page 179 Parts and Service Manual - eTT12 - Specifications Tractor Drawing Optional equipment shown; customer tractor may vary. 10-5 Rev B, 26-May-2015...
Page 180 Parts and Service Manual - eTT12 - Specifications Revision Log Date Description Appr. 17-Apr-2014 Original release for production. 26-May-2015 Corrected axle fill volume. 10-6 Rev B, 26-May-2015...
Page 181 Parts and Service Manual - eTT8/eTT12/eTT16 - Preventive Maintenance Table of Contents Section 11 - Preventive Maintenance Description Page Preventive Maintenance Schedule 11-2 Hydraulic Filter and Fluid 11-3 Axles 11-4 Transfer Case 11-5 Grease Points 11-6 Hitch Wear 11-7 Revision Log 11-8 11-1 Rev D, 6-Jun-2016...
Page 182: Preventive Maintenance
Parts and Service Manual - eTT8/eTT12/eTT16 - Preventive Maintenance Preventive Maintenance Preventive Maintenance Item Perform daily pre-operation checklist (see Operations Manual) Check hydraulic fluid level and top off if necessary Verify tire pressure and add air as necessary Perform a battery equalization charge then water Re-torque front and rear axle U-bolts Drain and replace axle oil;...
Page 183: Hydraulic Fluid And Filter
Parts and Service Manual - eTT8/eTT12/eTT16 - Preventive Maintenance Hydraulic Fluid and Filter Warning: correct hydraulic level is to the center of the sight glass with the steering system charged. Filling past the sight glass can result in overflow due to stored volume in the accumulators. System Volume (approx.) Fluid Recommendation...
Page 184: Axles
Parts and Service Manual - eTT8/eTT12/eTT16 - Preventive Maintenance Axles Tractors eTT12 and eTT16: Tractors eTT8: Fill planetary ends to the bottom of the fill hole with the axle end rotated so that the arrow on the casting is horizontal. Axle must also be horizontal. Fill to the bottom of the fill hole with the axle horizontal.
Page 185: Transfer Case
Parts and Service Manual - eTT8/eTT12/eTT16 - Preventive Maintenance Transfer Case Volume (approx.) Fluid Recommendation Requirement Gearbox Oil Castrol Trans-C SAE 50 API GL4 4.3 quarts / 4.0 liters 11-5 Rev D, 6-Jun-2016...
Page 186: Grease Points
Parts and Service Manual - eTT8/eTT12/eTT16 - Preventive Maintenance Grease Points Grease points should have grease added per the Preventive Maintenance Schedule. Grease should be added until old grease is visible being extruded from the joint. Fluid Spec Multi Purpose Grease NGLI 2 11-6 Rev D, 6-Jun-2016...
Page 187: Hitch Wear
Parts and Service Manual - eTT8/eTT12/eTT16 - Preventive Maintenance Hitch Wear Hitch pins should be replaced if the pin surface wear exceeds .125” or 3mm from the original surface profile (on any height position). 11-7 Rev D, 6-Jun-2016...
Page 188: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Preventive Maintenance Revision Log Date Description Appr. 26-Feb-2014 Original release for production 15-May-2015 Corrected axle fluid quantities. 7-Oct-2015 Modified eXL-16 transfer case fluid fill location 6-Jun-2016 Changed eXL16 model name to eTT16 11-8 Rev D, 6-Jun-2016...
Page 189: Section 12 - Safe Handling
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Table of Contents Section 12 - Safe Handling Description Page Tie-Downs 12-2 Jack and Jack Stand Locations 12-3 Weight Distribution Without Battery 12-4 Flat Towing 12-5 Center of Gravity - eTT8 12-6 Center of Gravity - eTT12 12-7...
Page 190: Tie-Downs
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Tie-Downs Tractors eTT16: Tractors eTT8 and eTT12: The eTT is equipped with four heavy duty tie-down rings located on the front and rear of the tractor. These tie-downs provide for safe ground transportation. When securing the tractor, chains/straps should not make contact with the tractor in any area other than the tie- down rings.
Page 191 Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Jacking and Jack-Stand Locations Tractors eTT16: Tractors eTT8 and eTT12: When lifting the eTT with jacks use the locations shown above for maximum safety. Jacks and jack stands should be rated for 5 short tons or 5 metric tons minimum when using one located at each corner of the tractor.
Page 192: Weight Distribution Without Battery
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Weight Distribution Without Battery The battery or batteries of the eTT series tractor constitutes a large portion of the total tractor weight. Removal of the battery will result in a large shift in center of gravity location. When transporting or handling a tractor without a battery installed, the new center of gravity needs to be taken into account.
Page 193: Flat Towing
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Flat Towing Should the eTT tractor be disabled, it can be flat towed for short distances without any modification as long as the following is observed:  The maximum speed should never exceed 5 mph / 4.5 kph. ...
Page 194: Center Of Gravity - Ett8
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Center of Gravity - eTT8 12-6 Rev C, 6-Jun-2016...
Page 195: Center Of Gravity - Ett12
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Center of Gravity - eTT12 12-7 Rev C, 6-Jun-2016...
Page 196: Center Of Gravity - Ett16
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Center of Gravity - eTT16 12-8 Rev C, 6-Jun-2016...
Page 197: Lifting Provisions
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Lifting Provisions The eTT tractors as of Jan 2015 can be optionally equipped with lifting lugs integrated into the chassis. These lugs provide a safe mechanism for overhead lifting of the eTT tractor. It is the responsibility of the customer to supply four 3/4”...
Page 198: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Safe Handling Revision Log Date Description Appr. 26-Feb-2014 Original release for production 12-Feb-2015 Added lifting provision information 6-Jun-2016 Changed eXL16 model name to eTT16 12-10 Rev C, 6-Jun-2016...
Page 199: Section 13 - Troubleshooting
Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Table of Contents Section 13 - Troubleshooting Description Page OPT10 Diagnostic Usage 13-2 Error Code Troubleshooting 13-3 Operational Troubleshooting 13-12 13-1 Rev B, 6-Jun-2016...
Page 200 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting OPT10 Diagnostic Usage The OPT10 digital display is capable of displaying many tractor inputs and outputs. These are extremely helpful when trying to diagnose an issue with the tractor. This section will explain how to use the OPT10 to examine this diagnostic data.
Page 201: Error Code Troubleshooting
Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting Should the eTT tractor encounter a system error, the OPT10 display may display one or more error codes. These codes are intended to direct technicians to the most likely cause of the error. Making use of both the error codes as well as the diagnostic abilities of the OPT10 greatly facilitate troubleshooting.
Page 202 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting 15: WARN. TRACTION TEMPERATURE SENSOR The eTT traction motor features a built-in thermal sensor.  Verify resistance of the thermal sensor on the motor (2-pin connector mounted to the traction motor).
Page 203 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting 23: ERR. TRACTION HIGH VOLTAGE This error happens when the regenerative braking system is unable to put excess energy back into the battery.  If the battery is fully charged the braking energy has nowhere to go. Modify the driving and charging procedures to prevent extensive downhill usage with a completely full battery.
Page 204 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting 41: HIGH HYDRAULIC FLUID TEMPERATURE The normally open hydraulic temperature switch input has closed indicating the hydraulic fluid has exceeded 160°F/71°C. Test the temperature of the hydraulic fluid in the hydraulic tank. If the fluid in the hydraulic tank exceeds 140°F take the tractor out of service to prevent component damage and check the following.
Page 205 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting 44: SHIFTING FAULT The shifting has timed-out. This happens when the tractor attempts to shift gears and the gear detection switches don’t confirm that the shift has completed. Use the OPT10 to verify that the inputs LOW SHIFT SWITCH and HIGH SHIFT SWITCH match the physical positioning of the shift switch (when the switch is in tow, the LOW SHIFT SWITCH input should be 1).
Page 206 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting 48: FRONT STEER SENSOR FAULT If the throttle is also disabled, the cause is most likely a failure of the 5V DC-DC converter that powers the steering sensors and throttle pedal. ...
Page 207 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting 50: STEER ERROR FAULT The tractor has been unable to coordinate the front and rear axle steering and has timed out. If the throttle is disabled, the cause is most likely a failure of the 5V DC-DC converter that powers the steering sensors and throttle pedal.
Page 208 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting 60: WARN. PUMP DC BUS LOW The most likely cause is a bad connection on the pre-charge resistor. The resistor allows the pump drive to charge the on-board capacitors without the main contactor being closed. ...
Page 209 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Error Code Troubleshooting 74: ERR. PUMP MOTOR TEMP HIGH The eTT pump motor features a built-in thermal sensor. This sensor will cause an error when over a certain temperature threshold; motor power output will also be disabled. ...
Page 210: Operational Troubleshooting
Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Operational Troubleshooting Tractor won't move when the throttle pedal is pressed Verify that the parking brake is released. Confirm by looking at the OPT10 parking brake icon. If the indicator LED does not turn off the parking brake proximity sensor is not working correctly. Verify that the tractor is in the selected gear by looking at the dash mounted shift switch and LED indicators.
Page 211 Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Operational Troubleshooting Tractor battery does not last long before needing to be charged (error 42 or limp-home mode) Battery life is directly dependent on usage of the tractor. If you do not feel that you are getting the battery life out of the tractor you expect please inspect the following items.
Page 212: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Troubleshooting Revision Log Date Description Appr. 26-Feb-2014 Original release for production 6-Jun-2016 Changed eXL16 model name to eTT16 13-14 Rev B, 6-Jun-2016...
Page 213: Appendix A - Logic, Controls, And 4Ws System
Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Table of Contents Appendix A - Logic, Controls, and 4WS System Description Page Drive System Overview Hydraulic System Overview Hydraulic Manifold Overview Steering System Overview A-10 Steering Calibration Procedure A-11 Regenerative Braking Tuning Procedure A-12...
Page 214: Drive System Overview
Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Drive System Overview The eTT tractor drivetrain is composed of both electrical and mechanical components. This section will provide details on each component and how it fits into the system. Traction Battery The eTT traction battery is an 80V lead-acid type battery.
Page 215 Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Drive System Overview OPT10 The OPT10 is a graphical interface for the drive system. It interfaces with the VMC30 and provides operator information, diagnostic codes and diagnostic tools. CAN Bus The AC Drive, VMC30, and OPT10 communicate using a protocol called CAN.
Page 216: Hydraulic System Overview
Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Hydraulic System Overview The eTT tractor hydraulic system works as an on-demand system. The purpose is to limit the amount of time the hydraulic pump is in operation. This reduces battery load and extends time between charges. This is accomplished through a combination of hydraulic components that store and monitor hydraulic pressure.
Page 217 Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Hydraulic System Overview Hydraulic Pump The hydraulic pump pulls fluid from the reservoir and pressurizes it to charge the system accumulator. The pump is a hydraulic gear pump mounted to an AC induction motor. The speed of the motor is controlled by the VMC30 controller based on logic inputs to the system.
Page 218 Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System S/N 8E119 and earlier Applies to tractors: S/N 12E140 and earlier S/N 16E107 and earlier Hydraulic Manifold Overview The eTT tractor hydraulic manifold contains several valves and switches to facilitate operation of the eTT hydraulic system.
Page 219 S/N 8E119 and earlier Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Applies to tractors: S/N 12E140 and earlier S/N 16E107 and earlier Hydraulic Manifold Overview PS1 and PS2 The low and high pressure switches are installed to these two ports. The switches monitor the manifold pressure to determine when the hydraulic pump should be running.
Page 220 Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System S/N 8E120 and later Applies to tractors: S/N 12E141 and later Hydraulic Manifold Overview S/N 16E108 and later The eTT tractor hydraulic manifold contains several valves and switches to facilitate operation of the eTT hydraulic system.
Page 221 S/N 8E120 and later Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Applies to tractors: S/N 12E141 and later S/N 16E108 and later Hydraulic Manifold Overview PS1 and PS2 The low and high pressure switches are installed to these two ports. The switches monitor the manifold pressure to determine when the hydraulic pump should be running.
Page 222 Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Steering System Overview The eTT tractor features a computer controlled four wheel steering system. The system operates in a slave/master configuration treating the front axle as the master and the rear axle as the slave. The process proceeds as follows: ...
Page 223 Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Steering Calibration Procedure The eTT tractor steering has been calibrated at the factory to ensure that the front and rear steering coordinate properly. Should an axle be serviced or a steering sensor be serviced, it may be necessary to re-calibrate the four wheel steering system.
Page 224 Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Regenerative Braking Tuning Instructions The eTT tractor features regenerative braking. This feature converts tractor motion to electrical energy which is then used to put a small amount of charge back into the battery. The regenerative braking slows the tractor at a rate proportional to the amount of electrical energy removed.
Page 225: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System Revision Log Date Description Appr. 25-Feb-2014 Original release for production 12-Feb-2015 Added revision G manifold schematic and information 6-Jun-2016 Changed eXL16 model name to eTT16 A-13 Rev C, 6-Jun-2016...
Page 226 Parts and Service Manual - eTT8/eTT12/eTT16 - Logic, Controls, and 4WS System This page intentionally left blank. A-14 Rev C, 6-Jun-2016...
Page 227 Parts and Service Manual - eTT8/eTT12/eTT16 - Battery Care Table of Contents Appendix B - Battery Care Description Page Battery Basics Charger Basics Battery Care Cold Weather Battery Usage Revision Log Rev B, 6-Jun-2016...
Page 228: Battery Basics
Parts and Service Manual - eTT8/eTT12/eTT16 - Battery Care Battery Basics Eagle Tugs is not a battery nor charger manufacturer, but Eagle may recommend certain brands and models. The below information applies regardless of what brand and model traction battery or charger is on the truck. Battery Basics The eTT traction battery is a heavy duty industrial battery designed specifically for electrical vehicle usage.
Page 229: Charger Basics
Parts and Service Manual - eTT8/eTT12/eTT16 - Battery Care Charger Basics Charger Basics The purpose of the charger is to use electrical power to reverse the chemical reaction in the battery and return it to a charged state. During the charge process the lead plates in the battery reverse their chemical change and the electrolyte acid becomes more concentrated.
Page 230: Battery Care
Parts and Service Manual - eTT8/eTT12/eTT16 - Battery Care Battery Care The flooded lead acid batteries used in the eTT series tractors are not maintenance free. The battery must be regularly maintained to ensure safe operation and battery longevity. Battery Watering Flooded lead acid batteries lose water during charging and regular usage.
Page 231: Cold Weather Battery Usage
Parts and Service Manual - eTT8/eTT12/eTT16 - Battery Care Cold Weather Battery Usage There are two issues that batteries face in extremely cold weather; Reduced Capacity and Freezing Electrolyte. Reduced Capacity As the battery temperature drops, the internal resistance of the battery increases and the usable capacity is decreased.
Page 232 Parts and Service Manual - eTT8/eTT12/eTT16 - Battery Care This page intentionally left blank Rev B, 6-Jun-2016...
Page 233 Parts and Service Manual - eTT8/eTT12/eTT16 - Battery Care Cold Weather Battery Usage (Continued) Electrolyte Freezing The electrolyte in the eTT traction battery is a weak sulfuric acid solution. As the battery is discharged, the acid is absorbed by the battery plates and the electrolyte becomes weaker turning into mostly water. A deeply discharged battery will readily freeze in cold weather.
Page 234: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Battery Care Revision Log Date Description Appr. 25-Feb-2014 Original release for production 6-Jun-2016 Changed eXL16 model name to eTT16, added battery care information Rev B, 6-Jun-2016...
Page 235 Parts and Service Manual - eTT12/eTT16 - Axles Table of Contents Appendix C - Axles Description Page Axle Service Procedure Brake Disc Inspection Toe-in and Toe-out Adjustment Steer Angle Adjustment Axle Housing - Front Axle Bevel Gear Set - Front Axle Brake Caliper - Front Axle Axle Housing - Rear Axle Bevel Gear Set - Rear Axle...
Page 236: Axle Service Procedure
Parts and Service Manual - eTT12/eTT16 - Axles Axle Service Procedure Tractors Under Warranty For servicing of axles installed in tractors under warranty, please contact Eagle Tugs at 800.671.0431. Eagle Tugs will work with Carraro to determine the best servicing procedure. Tractors Out of Warranty If your tractor is no longer under warranty coverage, Eagle Tugs highly recommends working with your local Carraro certified service provider.
Page 237: Brake Disc Inspection
Parts and Service Manual - eTT12/eTT16 - Axles Brake Disc Inspection The eTT tractor is equipped with immersed wet disk brakes. The brakes should be checked for wear according to the preventive maintenance schedule. Wear is determined by measuring the thickness of both the friction plates and the separator plates.
Page 238: Toe-In And Toe-Out Adjustment
Parts and Service Manual - eTT12/eTT16 - Axles Toe-in and Toe-out Adjustment The toe adjustment on the eTT axles was set at the factory. Should a tire-rod ever need to be replaced or should the tractor exhibit abnormal tire wear, the toe may need to be adjusted. To perform an adjustment, follow the below procedure.
Page 239: Steer Angle Adjustment
Parts and Service Manual - eTT12/eTT16 - Axles Steer Angle Adjustment The steering stops on the eTT axles were set at the factory and should not need to be adjusted. Should adjustment ever be necessary however, follow the below procedure. ...
Page 240: Axle Housing - Front Axle
Parts and Service Manual - eTT12/eTT16 - Axles Axle Housing - Front Axle Item Part Number Qty. Description A-ES12-392131 TRUMPET A-ES12-021558 PLUG M10X1 A-ES12-028562 O-RING A-ES12-116792 BREATHER M10X1 A-ES12-125280 PLUG M30X2 A-ES12-141210 CENTRAL BODY A-ES12-140330 LH BRAKE CYLINDER A-ES12-030740 PLUG A-ES12-128633 BELLEVILLE WASHER A-ES12-021334...
Page 241: Bevel Gear Set - Front Axle
Parts and Service Manual - eTT12/eTT16 - Axles Bevel Gear Set - Front Axle Item Part Number Qty. Description A-ES12-068401 BEVEL GEAR SET 11/32 (INCLUDES ITEMS 2-5) A-ES12-113717 LOCK WASHER A-ES12-115054 RING NUT M40X1.5 A-ES12-125829 WASHER A-ES12-125806 COLLAPSIBLE WASHER A-ES12-132265 SHIM 2.50 MM A-ES12-132266 SHIM 2.60 MM...
Page 242: Brake Caliper - Front Axle
Parts and Service Manual - eTT12/eTT16 - Axles Brake Caliper - Front Axle Item Part Number Qty. Description A-ES12-148947 BRAKE CALIPER (INCLUDES ITEM 2) A-ES12-049479 LINING KIT A-ES12-149033 BRAKE DISC A-ES12-020851 BOLT M10X25 A-ES12-021408 BOLT M10X30 Rev C, 6-Jun-2016...
Page 243: Axle Housing - Rear Axle
Parts and Service Manual - eTT12/eTT16 - Axles Axle Housing - Rear Axle Item Part Number Qty. Description A-ES12-145533 TRUMPET A-ES12-021558 PLUG M10X1 A-ES12-028562 O-RING A-ES12-116792 BREATHER M10X1 A-ES12-125280 PLUG M30X2 A-ES12-641263 CENTRAL BODY A-ES12-140330 LH BRAKE CYLINDER A-ES12-030740 PLUG A-ES12-128633 BELLEVILLE WASHER A-ES12-021334...
Page 244: Bevel Gear Set - Rear Axle
Parts and Service Manual - eTT12/eTT16 - Axles Bevel Gear Set - Rear Axle Item Part Number Qty. Description A-ES12-065598 BEVEL GEAR SET 11/32 (INCLUDES ITEMS 2-5) A-ES12-113717 LOCK WASHER A-ES12-115054 RING NUT M40X1.5 A-ES12-125829 WASHER A-ES12-125806 COLLAPSIBLE SPACER A-ES12-132265 SHIM 2.50 MM A-ES12-132266 SHIM 2.60 MM...
Page 245: Potentiometer - Front And Rear Axle
Parts and Service Manual - eTT12/eTT16 - Axles Potentiometer - Front and Rear Axle Item Part Number Qty. Description A-ES12-020798 BOLT M8X50 A-ES12-643375 POTENTIOMETER CABLE KIT (INCLUDES ITEMS 3 THRU 6) A-ES12-130608 CONNECTOR A-ES12-131283 PLATE A-ES12-643377 SENSOR A-ES12-643334 COVER A-ES12-021356 BOLT M4X20 A-ES12-021354 BOLT M4X12...
Page 246: Swivel Housings And Steer Cylinder - Front And Rear Axle
Parts and Service Manual - eTT12/eTT16 - Axles Swivel Housings and Steer Cylinder - Front and Rear Axle Item Part Number Qty. Description A-ES12-024210 GREASE FITTING M6X1 A-ES12-126922 SCREW M14X35 A-ES12-128880 KINGPIN A-ES12-145015 LH SWIVEL HOUSING A-ES12-128881 KINGPIN A-ES12-022129 NUT M16 A-ES12-124748 SCREW M16X100 A-ES12-022431...
Page 247: Differential - Front And Rear Axle
Parts and Service Manual - eTT12/eTT16 - Axles Differential - Front and Rear Axle Item Part Number Qty. Description A-ES12-066161 DIFFERENTIAL KIT (INCLUDES ITEMS 2-5) A-ES12-120361 DRIVE PLATE A-ES12-116451 PIN D7X40 A-ES12-115731 SHAFT A-ES12-115730 THRUST WASHER A-ES12-027309 BEARING A-ES12-107400 RING NUT A-ES12-137972 DIFFERENTIAL HOUSING A-ES12-128440...
Page 248: Double U-Joint - Front And Rear Axle
Parts and Service Manual - eTT12/eTT16 - Axles Double U-Joint - Front and Rear Axle Item Part Number Qty. Description A-ES12-131810 SHAFT KIT (INCLUDES ITEMS 2-6) A-ES12-046267 FORK (DIFFERENTIAL SIDE) A-ES12-046196 CENTRAL BODY A-ES12-046252 SPIDER A-ES12-046191 FORK (WHEEL SIDE) A-ES12-040822 SNAP RING A-ES12-132165 WASHER...
Page 249: Brakes - Front And Rear Axle
Parts and Service Manual - eTT12/eTT16 - Axles Brakes - Front and Rear Axle Item Part Number Qty. Description A-ES12-141939 O-RING A-ES12-141937 O-RING A-ES12-143289 BRAKE PISTON A-ES12-136644 DRIVE PLATE A-ES12-136648 SLEEVE A-ES12-136112 BRAKE DISC A-ES12-024819 SNAP RING D75 A-ES12-136155 DRIVE PLATE A-ES12-066573 SELF-ADJUST KIT C-15...
Page 250 Parts and Service Manual - eTT12/eTT16 - Axles Wheel Hub - Front and Rear Axle Item Part Number Qty. Description A-ES12-047702 SEAL RING A-ES12-045180 BEARING A-ES12-066993 WHEEL HUB KIT (INCLUDES ITEM 4) A-ES12-130679 STUD A-ES12-028668 O-RING A-ES12-125344 CIRCLIP A-ES12-134298 WHEEL CARRIER A-ES12-125452 CROWN GEAR Z=60 A-ES12-141196...
Page 251: Final Reduction - Front And Rear Axle
Parts and Service Manual - eTT12/eTT16 - Axles Final Reduction - Front and Rear Axle Item Part Number Qty. Description A-ES12-020490 BOLT M8X20 A-ES12-125280 PLUG M30X2 A-ES12-065587 PLANETARY CARRIER KIT A-ES12-115634 THRUST WASHER A-ES12-028299 BEARING NEEDLES (BY 10) A-ES12-125455 GEAR Z=23 A-ES12-123318 THRUST WASHER A-ES12-024789...
Page 252: Revision Log
Parts and Service Manual - eTT12/eTT16 - Axles Revision Log Date Description Appr. 26-Feb-2014 Original release for production 21-Oct-2015 Corrected wheel nut part number and removed washer from wheel hub assembly. 6-Jun-2016 Changed eXL16 model name to eTT16. C-18 Rev C, 6-Jun-2016...
Page 253 Parts and Service Manual - eTT8/eTT12/eTT16 - Transfer Case Table of Contents Appendix D - Transfer Case Description Page Transfer Case Service Procedure Parts - Transfer Case Housing Parts - Gears and Shafts Parts - Rear Support Revision Log REV B, 6-Jun-2012...
Page 254: Transfer Case Service Procedure
Parts and Service Manual - eTT8/eTT12/eTT16 - Transfer Case Transfer Case Service Procedure Tractors Under Warranty For servicing of transfer cases installed in tractors under warranty, please contact Eagle Tugs at 800.671.0431. Eagle Tugs will work with Carraro to determine the best servicing procedure. Tractors Out of Warranty If your tractor is no longer under warranty coverage, Eagle Tugs highly recommends working with your local Carraro certified service provider.
Page 255: Parts - Transfer Case Housing
Parts and Service Manual - eTT8/eTT12/eTT16 - Transfer Case Parts - Transfer Case Housing Item Part Number Qty. Description A-ES12-021338 BOLT M8X25 A-ES12-398329 FLANGE A-ES12-028543 O-RING A-ES12-125280 PLUG A-ES12-020861 BOLT M10X50 A-ES12-398328 FRONT HALF HOUSING A-ES12-146821 SWITCH A-ES12-028230 O-RING A-ES12-643646 A-ES12-137474 BREATHER A-ES12-121710...
Page 256: Parts - Gears And Shafts
Parts and Service Manual - eTT8/eTT12/eTT16 - Transfer Case Parts - Gears and Shafts Item Part Number Qty. Description A-ES12-028193 O-RING A-ES12-021410 BOLT M10X30 A-ES12-021430 BOLT M10X10 A-ES12-127663 MOTOR FLANGE A-ES12-028611 O-RING A-ES12-021134 BOLT M12X25 A-ES12-129924 WASHER A-ES12-028161 O-RING A-ES12-148854 FLANGE A-ES12-025485 OIL SEAL...
Page 257: Parts - Rear Support
Parts and Service Manual - eTT8/eTT12/eTT16 - Transfer Case Parts - Rear Support Item Part Number Qty. Description A-ES12-371957 OIL SEAL A-ES12-643395 PISTON A-ES12-644311 A-ES12-028266 BALL A-ES12-117124 ROLL A-ES12-071352 SPRING A-ES12-023288 WASHER A-ES12-138003 BOLT M12X16 A-ES12-644310 FORK 1ST-2ND A-ES12-106333 BOLT A-ES12-644337 LEVER PIN A-ES12-025111...
Page 258: Revision Log
Parts and Service Manual - eTT8/eTT12/eTT16 - Transfer Case Revision Log Date Description Appr. 26-Feb-2014 Original release for production 6-Jun-2016 Changed eXL16 model name to eTT16 REV B, 6-Jun-2012...
