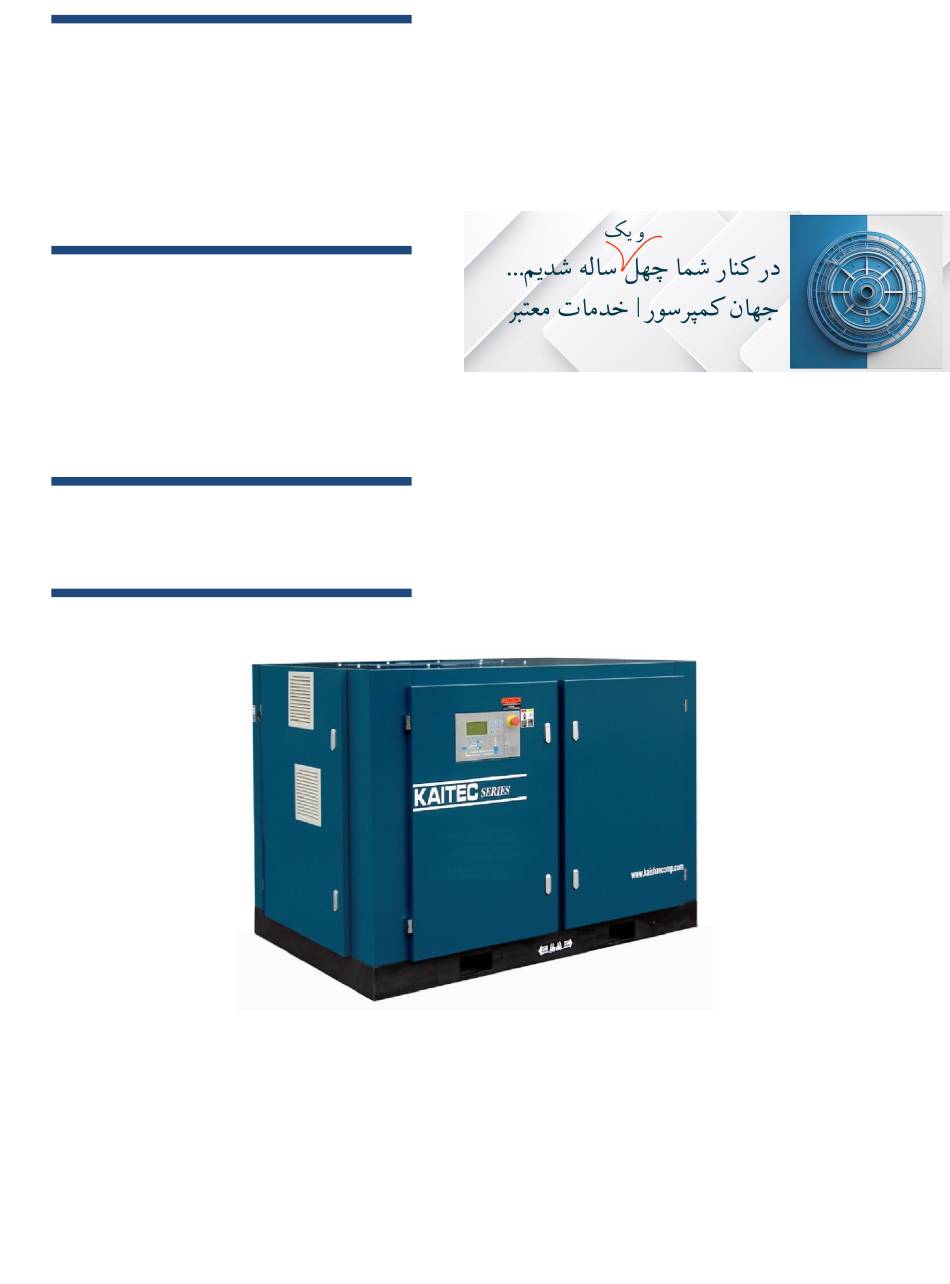

- Page 1 Kaishan Rotary Screw Air Compressor KHE Series Instruction Manual Direct Drive Release Oct. 2013...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 2. Safety Information………………...…………………………………………… 3. …4 Safety Alert Symbols………………………………………………………………4 Safety Precautions………………………………………………...………………...5 Pressure……………………………………..……………………………………….5 Fire and Explosion…………………………..……………………………………...6 Moving Parts………………………………………………..………………………6 Hot Surfaces…………………………….………………………….……………….6 Proper Compressed Air Applications..........6 Electrical Shock……………………………………………….…………………….7 General Information………………………………………………………………8 Introduction…………………………………………………………………………8 The Compression Cycle…………………………………………………………….9 Compressor Lubrication and Cooling System…………………………..……...10 Compressor Discharge System…………………………………….……………..11 Air-end, Inlet Valve and Filtration System…………………………………….12 Control panel Layout…………………………………………………….. -
Page 3: Safety Information
Safety Information Thank you for choosing Kaishan Compressor. Please read this instruction manual carefully before using the compressor. This manual must be kept in the safe place for future reference. Kaishan Compressor’s authorized distributors provide maintenance service for Kaitec series rotary screw compressors. -
Page 4: Safety Precautions
Identifies important installation, This symbol identifies immediate operation or maintenance hot surface hazards which will information which is not hazard result in severe personal injury. NOTICE related. Safety Information SAFETY PRECAUTIONS This manual describes the safety precautions, structure and functions of all systems and components, as well as the operation and maintenance methods for the KHE series rotary screw air compressors. -
Page 5: Fire And Explosion
blockage point. Failure to install a pressure relief valve could result in the rupturing or explosion of some system component. Relieve all pressure internally to the compressor prior to servicing. Do not depend on check valves to hold system pressure. Do not change the pressure setting of the pressure relief valve, restrict the function of the pressure relief valve, or replace the pressure relief valve with a plug. -
Page 6: Electrical Shock
Air from this compressor will cause severe injury or death if used for breathing or food processing. Air used for those processes must meet OSHA and applicable industry regulations. This compressor is designed for use in the compression of normal atmospheric air only. -
Page 7: General Information
printing this manual. Compressor reserves the right to change specifications without incurring any obligation for equipment previously or subsequently sold. General Information 2.1 INTRODUCTION A complete package consists of following: Compressor (Air End) Electric motor Starter Air Inlet System ... -
Page 8: The Compression Cycle
General Information 2.2 THE COMPRESSION CYCLE The compressor housing contains of four rotors; 2 Male and 2 Female rotors. The male rotors have five lobes and female rotors have six flutes. They are constantly and precisely meshed, and housed in the cylinder with two parallel adjoining bores. -
Page 9: Compressor Lubrication And Cooling System
General Information 2.3 COMPRESSOR LUBRICATION AND COOLING SYSTEM The lubrication and cooling system consists of a reservoir, centrifugal fan, fan motor, aluminum finned fluid-cooler and after-cooler, thermal valve & fluid filter. High pressure forces the lubricant through a series of direction changes in the reservoir where it is separated from the air. -
Page 10: Compressor Discharge System
315-400 1425 2.4 COMPRESSOR DISCHARGE SYSTEM Air/fluid mixture has been forced into reservoir after compression. The reservoir has two basic functions: It acts as a primary fluid separator. It serves as the compressor fluid sump. The compressed air/fluid mixture enters the reservoir and is directed against the internal baffle. -
Page 11: Airend, Inletvalve And Filtration System
General Information 2.5 AIREND, INLETVALVE AND FILTRATION SYSTEM The compressor inlet system consists of a Kerry air filter, Kerry inlet valve. & SKK airend. The Kerry inlet valve controls the air intake volume. It is also acts as the check valve to prevent the reverse pressure and rotation when compressor is shutting down. - Page 12 55kw or below system flowchart...
- Page 13 75kw-90kw system flowchart...
- Page 14 110kw and above system flowchart...
-
Page 15: Technical Data
2.7 KHE TECHNICAL DATA Air cooling Pressure Capacity Power Outlet Dimension Model Weigh Connectio 20.0 KHE90-20/8-Ⅱ 2560x1620x192 DN65 3400 16.5 KHE90-17/10-Ⅱ 13.5 KHE90-14/13-Ⅱ 24.0 KHE110-24/8-Ⅱ 3110x1790x207 DN65 4650 19.5 KHE110-19.5/10-Ⅱ KHE110-17/13- 17.0 Ⅱ 28.0 KHE132-28/8-Ⅱ 3110x1790x207 DN65 4800 KHE132-23/10- 23.0 KHE132-19/13- Ⅱ... - Page 16 Water Cooling Pressure Capacity Power Weight Dimension Outlet Model Connection 19.5 KHE90W-19.5/8-Ⅱ DN65 3400 2560x1630x1880 16.5 KHE90W-17/10-Ⅱ 13.5 KHE90W-14/13-Ⅱ 24.0 KHE110W-24/8-Ⅱ 2860 x 1790 x 2020 DN65 4000 19.5 KHE110W-19.5/10-Ⅱ 17.0 KHE110W-17/13-Ⅱ 28.0 KHE132W-28/8-Ⅱ DN65 4050 2860X1790X2020 23.0 KHE132W-23/10-Ⅱ 19.0 KHE132W-19/13-Ⅱ...
- Page 17 Air cooling Frequency Conversion Pressure Capacity Power Outlet Model Connection Weight Dimension 20.0 KHE90-20/8-Ⅱ DN65 3500 2710x1620x1920 16.5 KHE90-17/10-Ⅱ 13.5 KHE90-14/13-Ⅱ 24.0 KHE110-24/8-Ⅱ 3210x1790x2070 DN65 4500 19.5 KHE110-19.5/10-Ⅱ 17.0 KHE110-17/13-Ⅱ 28.0 KHE132-28/8-Ⅱ DN65 4600 3210x1790x2070 23.0 KHE132-23/10-Ⅱ 19.0 KHE132-19/13-Ⅱ 33.0 1165 KHE160-33/8-Ⅱ...
-
Page 18: Fluid Information
Fluid Information 3.1 FLUID GUIDE KHE compressors are filled & tested with Kerry lubricant. Refer Figure 3-1 for filler port, sightglass, quarter-turn valve location on the reservoir. The compressor is filled with the manufacturer’s recommended quantity of Kerry fluid. Inspection of the reservoir fluid level during installation or operation is recommended. -
Page 19: Ventilation And Cooling
clearance around the compressor is recommended for daily inspection and easy access to all compressor components. The area must have sufficient lighting for technicians to safely operate the compressor as well as perform maintenance work. The location should be free from standing water. The compressor’s base must be securely bolted to the floor with lag bolts. -
Page 20: Piping Connection
Maintain clean & fresh air, dust free, metal particle free and chemical vapor free in the compressor’s room. Housing the compressor within a poorly ventilated enclosure will cause higher operating temperature. Under no circumstances should a compressor be installed in an area exposed to toxic, volatile or corrosive atmosphere, nor should toxic, volatile or corrosive agents be stored near the compressor. -
Page 21: Fluid Level Inspection
Release system pressure by opening manual pressure relief valve prior to servicing. Failure to relieve system pressure could result in death or serious injury and property damage. The compressor after-cooler comes with an automatic condensate drain. The drain line should be installed to remove the condensate during compressor operation. -
Page 22: Motor Rotation Inspection
Installation Kaishan Compressor would like to emphasize the importance of providing adequate grounding for air compressors. The common practice of grounding units to a building’s structural steel may not provide adequate grounding protection, as paint and corrosion build-up may exist. -
Page 23: Fan Rotation Inspection
Installation 4.7 FAN ROTATION INSPECTION Fan motor rotation should be inspected. KHE compressors uses an axial fan for cooling. Fan rotation is inspected through an arrow shaped observation hole above the fan motor. The fan must rotate in the direction indicated by the arrow. Always inspect fan rotation through the observation hole. -
Page 24: Control Panel Layout
Provisions should be made to have the instruction manual readily available to the operator and maintenance personnel. If, for any reason, any parts of the manual become illegible or if the manual is lost, have it replaced immediately. The instruction manual should be read periodically to refresh one’s memory. This may prevent a serious accident. - Page 25 Households Register...
- Page 26 Use Note Before use, carefully read the Instructions for Use. Only professional technicians allows you to install MAM * * * . Mechanical installation, be sure to fully take into account the location, make sure that the thermal good and reduce electromagnetic interference.
- Page 27 The wiring, press strong, flea power separate cabling cabling rules, to reduce electromagnetic interference. Relay output control of AC contactors, etc. inductive load must be connected to the wave absorption. Power on very carefully before you check the input/output wiring. The organism of the earth (ground) Terminal properly grounded (3) ground), to improve the noise immunity.
- Page 28 â ¢ Full color touch screen display, it is easy to learn and easy to use. â ¢ Support for a variety of model selection. â ¢ equipped with a private message cats, SMS, alarm. â ¢ Record up to 100 days of the historical failure information. â...
- Page 29 三、型号规格..............................12 1、控制器型号说明..........................12 2、触摸型号说明............................12 3、适用电机功率规格表..........................12 四、安装................................13 1、互感器安装............................13 2、控制器安装............................13 3、触摸屏开孔尺寸..........................14 五、预警与提示............................14 1、文本显示器提示..........................14 六、安全保护..............................15 2、排气超温保护............................15 3、空压机防逆转保护..........................15 4、供气压力超压保护..........................15 5、传感器失灵保护..........................15 七、常见故障的处理............................16 八、短信报警功能介绍..........................17 九、电气接线图............................17 1、工频电气图............................17 2、软启电气图............................18 3、主机变频电气图..........................18 4、风机变频电气图..........................19 5、主机、风机变频电气图........................19...
- Page 30 The introduction of the functions 1, a controller, parts, and features Controller consists of a main controller, touch-screen display, a short letter CAT, phone cards, transformers, lines of communication and related accessories. related features, as shown in the figure.
- Page 31 The central control room, and read the Air Compressor Running the data, and send the power on, power off, load and unload command to air compressor The touch screen the first 2-WAY 485 interface will air compressor running data to be sent to the DCS system The mobile phone network The touch screen, 1-WAY 485 reads...
- Page 32 The touch screen after power on to a start-up time, start the following interface Figure 1.2. Time delay after a period of time (touch screen start-up time it takes approximately 30 seconds), the Compressor animation screen. As shown in the following illustration Text displays the current air The touch screen with an SMS...
- Page 33 As shown in Figure2.1 2 as shown in the next screen, click the Run button to run Parameter View interface view in various operating parameters(Note: See the running parameters, the touch screen is needed to control the normal traffic) 3, the management interface In Figure 1.2.2 as shown in the screen, click the Manage button to enter as shown in the following figure interface that allows the user interface to enter the parameter settings interface to set various parameters.
- Page 34 Set blower start-up time, the blower will start time start time, Blower time delay 0006 seconds during this time, excessive loads are not protective, and to escapethe motor startup surge current Star point delay 0006 seconds Star point buck start delay time Load delay time 0002 seconds corner has been run, the delay time to load...
- Page 35 Oil is accumulated for a period of time longer than here when a Oil is allowed to value is set, the warning prompt; set to " 0000" is, the oil, use * * * * hours time warning does not work.(To modify this parameter, verify service password, or factory advanced key pier) Air Filter accumulated for a period of time longer than here when a value is set, the pre-warning prompts;...
- Page 36 frequency rate-of-drop, in order to prevent air pressure in air The frequency drop cart, the frequency drops too large, causing motor speed drops 0010 rate too fast.(this parameter only if the model set to host variable frequency or the main fan variable frequency is visible) Set air pressure is stable when running the exhaust air temperature, when the exhaust gas temperature near here Frequency...
- Page 37 pressure down Unloading pressure Used for Factory Limited user the maximum allows you to set the 0.80 MPa high limit unloading pressure, unloading pressure≤here to set value When the (maximum phase current/minimum phase current) = (1 + (Set/ 10) when elected, imbalance protection Current imbalance.
- Page 38 temperature is below the set temperature value protection, down-time, temperature is too low. Pressure unit MPa/Bar/PSI Set the pressure of the unit. Units °C/ °F Set the temperature of the unit. Temperature Set voltage limit value, the test voltage is less than this value, the Voltage too low 0340 V alarm shut-down;...
- Page 39 Do not set to " 0000 ". Controller interval setting of the time, a PID operator to adjust Host PID cycle 001.0 seconds the speed. Main Motor Drive configuration of the number. The touch screen can be up to deposit 50 different types of converter mailing Host Code address.(communications read converter parameters, there is a...
- Page 40 minimum operating frequency Adjust the temperature during more than frequency operating Blower upper limit temperature, allows for the output of the maximum operating of frequency frequency. Test temperature (set variable frequency operating temperature - and the point range), the points to set value operators; Temperature Points 0005 an initial value...
- Page 41 converter station converter station. number Slow Down: The factory parameters down to slow down when the machine is shut down, the Controller received after the stop command, the load valve disconnected, the control transformer fan running Terminal disconnected, the converter in accordance with the deceleration time to slow down.
- Page 42 zero point and calibration factor. Host phase Calibrate the current, input factor. controller to display current value = 1.000 current factor sample value x factor, setting range: 0.800 - 1.200. Host phase Calibrate the current, input factor. controller to display current value = 1.000 current factor sample value x factor, setting range: 0.800 - 1.200.
- Page 43 temperature Alternate 1.000 coefficient Temperature 60 Alternate Used to calibrate the voltage value. Voltage Coefficient setting range: 0.800 - 1.200. Voltage Coefficient 1.000 Voltage value = test voltage value x Voltage Coefficient Used to calibrate the gas pressure value. Pressure factor setting range: 0.800 - 1.200.
- Page 44 Controller provides multiple passwords and rights management, according to the different levels of passwords to provide different levels of access to operations, different level password and permissions are as follows: User Password: factory-set to: _ _ _ _ _ _ _ _ _ _ _ permissions: Allows you to modify some parameters, and the user password.(You cannot modify oil filter, oil, air filter, oil, grease) Service Password: fixed to: _ _ _ _ _ _ _ _ _ _ _...
- Page 45 3, the anti-time protection features (time in seconds), see the following table (Table 2.1). Scaling = I real-time/I setup,when the motor running current is greater than or equal to the Set Current of 1.2 times to 3.0 times, press the overload factor and the motion time delay. real- time â...
- Page 46 6070 MAM IH Wei Lun 6070 IH touch screen 3, the applicable motor power specifications table Parameters The main motor Current Range Note Description Specifications Power (KW) 18 KY S (20) 8 to 20 4 to 10 Blower flow with 0.2 ~2.5 A 18 KY S (40) 16 ~ 40 8 to 20...
- Page 47 Figure 4.1.1, CT1 structure size (Liechtenstein36 holes) figure 4.1 2, CT1 installation size Figure 4.1 3, CT 2 structural dimensions (Liechtenstein 10 holes) figure 4.1 4, CT 2 installation size 2, controller installation Controller installed in the control cabinet, the controller around the room for easy wiring. Specific dimensions as follows:...
- Page 48 Controller unit size 3, the touch screen hole size Figure 4.1 6 display the hole size 5, early warning and prompt 1, the text display tips...
- Page 49 1,Air filter warning indicator (1), the switch signal detection warning Controller detected by Air filter differential pressure switch in the text on the display prompts the air filter blocked. (2)and set an empty filter usage time warning Air filter using the time, the text on the display prompts, the air filter using the time. 2,Oil Filter Warning Indicator (1), the switch signal detection warning Controller detects Oil Filter Differential Pressure Switch in the text on the display prompts the...
- Page 50 6, security 18 KY S Air Compressor controller the main motor overload, the Sang, imbalance protection, high voltage, low voltage protection, the wind turbine has been contained, plug in, and short circuit protection. Electrical Troubleshooting Display Cause reasons failure On-site troubleshooting display the host Load too large, worn bearings, and other Overload or blower overload"...
- Page 51 7, a common problem of processing Cause reasons Approach Failure Exhaust Check ventilation, level, Heat, oil, etc. Temperature etc. Temperature Check the line and PT 100 sensor is out burnout, PT 1 OO bad, etc. of order Actual Pressure ultra- Check the machine pressure and Pressure high high, the sensor is not...
- Page 52 8, SMS alarm features 18 KY S controller is defective, and early-warning send SMS function, the controller has detected a failure or early-warning information, to the user's settings, SMS CAT, send failure or warning to specify the phone. Set up the phone message page entry method is to enter the page select the communication settings button to switch the page, and then select the settings SMS Module button to enter SMS Settings page.
- Page 53 预 运 故 行 警 障 供 系 排 远 公 急 缺 油 油 空 公 气 统 气 程 共 停 水 滤 分 滤 共 压 压 温 开 端 端 力 力 度 关 2, soft Kai Electrical diagrams 运...
- Page 54 供 系 排 远 急 主 缺 油 油 空 变 公 公 气 统 气 程 共 停 电 水 滤 分 滤 频 共 开 压 压 温 器 端 机 端 关 力 力 度 故 风 输...
- Page 55 风 供 系 排 远 主 公 急 缺 油 油 空 公 气 统 气 程 机 机 停 水 滤 分 滤 共 共 压 压 温 开 变 变 端 端 力 力 度 关 频 频 器...
-
Page 56: Operation
Operation 5.6 Control Principle (Refer to the attached for the Electric schematic circuit) Page 56 of 94... - Page 57 （A）Individual Control （1）Local Automatic control(ON/OFF mode: Beside Machine; Loading method: ① Press ‘I’ to start:（Y— Starting △ ） When the controller is powered on, it will perform a 3S self-checking. Press the ‘I’ button cannot start the machine until the self-checking is completed. The starting process of the host will be as the following: KM3 is powered on, KM2 is Powered on ...
- Page 58 contactor will loss power, the host and fan will stop running, after the restarting delay completed, the unload magnetic will loss power. Only pressing the button ‘I’ could restart the motor. ④ Frequency starting prevent control The motor can not be started immediately unless after a while of time delay after stopped by pressing ‘O’...
-
Page 59: Network Control
Local Manual Control (On/Off mode: beside machine; Load mode: Manual) The Starting and stopping control is the same as the automatic control, the only difference is that when the starting procedure finished in this mode, the machine is at the load free state and will be loaded by pressing the button ‘S’. When the air supply pressure is higher than the unload pressure, the unit will load automatically, if the button ‘S’... - Page 60 5.10 Alarm and Notices (1) Text Display tips ① Air filter Alarm tips a. Check the alarm using the switch signal The controller can display the message on the text display to remind the operator that ‘the air filter is blocked’ by checking the pressure difference switch operating state. b.
-
Page 61: Safety Protection
（ 2（ Main Controller Tips Item Meaning and Functions Lights Status POWER Controller Power on PWR Lights Controller run RUN Lights Failure Detect failure and Stop the unit ERR Blinking Input Terminal 20（ 12 Input switching IN00~08 lights, but if there is no function at Switching value activate the input point, no light lighting... -
Page 62: Fluid Change
⑤Sensor Failure Protection When the cable of the pressure sensor or the temperature sensor is broken, the controller will alarm and stop the machine and the local failure displays ‘** sensor failure’. ⑥ Interlock Protection The Host is running and the air exhaust temperature reaches the Fan starting temperature but the Fan does not run, the controller alarm, the local failure displays ‘... -
Page 63: Air Filter
Remove the drain plug and attach the 1/4 NPT barb fitting and drain tube (supplied with the unit) to the drain on the oil/air separator tank. Slowly open the 1/4 turn valve on the drain of oil/air separator tank. The pressure remaining in the tank will force the fluid out. -
Page 64: Air/Oil Separator
operating temperature Every 2,000 hours Every fluid change The fluid filter maintenance indicator may read high upon start up on cool mornings due to sluggish fluid creating higher than normal differential NOTICE pressures. Monitor indicator after the fluid warms up. 6.4 AIR/OIL SEPARATOR The air/oil separator is using coalescent filter element. -
Page 65: Troubleshooting Guide
connection. Every 1000 hours Clean air filter or replace with new element. Clean after-cooler fins. Every 2000 hours Replace air filter. Check oil level. Check safety valve Replace fluid filter. Every 4000 hours Clean after-cooler fins. Check oil level. Every 8000 hours Replace air/oil separator. - Page 66 Loose wire connections Check all wiring terminals for contact and tightness Air-end failure Contact a local authorized distributor. Compressor shuts High ambient temperature Make fresh air intake openings or install down during loaded ducts to discharge the hot air. condition Low incoming voltage Check voltage and power source, or contact local power company.
- Page 67 High air discharge Incorrect fluid brand Check oil code number, replace as temperature necessary High ambient temperature Check air exhaust, reduce room temperature. Plugged oil filter Change oil filter Plugged internal aftercooler Chemical cleaning for after-cooler Dusty after-cooler fins Chemical wash for after-cooler fins Fan motor setting Adjust Temperature sensor failure...
- Page 68 Minimum pressure valve Check for leaking, replace as necessary failure Table 7-1: TROUBLE SHOOTING GUIDE (Continued) Symptom Possible Cause Solution Unloading failure at Pressure loading setting Adjust as necessary working pressure, Solenoid valve failure Check and replace as necessary causing safety valve to release pressure Plugged air/oil separator Check and replace as necessary...
-
Page 69: Microprocessor Controller
Oil level too high Drain off oil until the correct level. Fluid foaming Drain off oil and change Oil return line or orifice Clean and replace as necessary. clogged Operation 8. Microprocessor Controller (touch screen) ⑴,Controller components and functions Controller including the main controller, touch screen display, current transformer, communication lines and other related accessories. - Page 70 Figu Read air compressor running data send start-up, shutdown, loading and unloading instructions to air compressor Touch screen through the second 485 prot, send the air compressor running data to the DCS system through the first 485 Touch screen prot,, sending the user control for air compressor, check and modify the parameters of air compressor Controller according to the set of...
- Page 71 Figure 1.2.1 Delay after some time (touch screen takes approximately 30 seconds to start-up), enter the compressor running animated display. As shown below Start button, press and hold time more than 100 Compressor load milliseconds, send running, here shown start command to a arrows and which compressor.
- Page 72 Interface shown in Figure 1.2.2, click the Manage button to enter the interface as shown below, the user through this interface into a different parameter setting interface set various parameters. (Setting parameters, the need to communicate with the controller touchscreen normal). ⑷,List of user parameters Menu Set value...
-
Page 73: Unload Time
Operating time period for air compressor Continuously operates without load; automatically stops operation if UNLOAD TIME 0600 S operates without load for time period more than this delay time The machine will not stop until this time passed the STOP DELAY TIME 0010 S load free state when stop the machine RESTART DELAY... -
Page 74: User Password
This parameter is set to reset usage time after lubricating oil is replaced LUBE USED TIME 0000H （ Modify this parameter, need to verify maintenance passwords or high factory password （ This parameter is set to reset usage time after grease is GREASE USED 0000H replaced （... - Page 75 SCREEN Adjust the display brightness. BRIGHTNESS Soft-start delay time (This parameter is only visible SOFT-START TIME 0008 S when the compressor is set to soft-start) Set the air pressure value for the stable-running value. (This parameter will visible ,only the compressor VF WORK PRESS **.**MPa models set motor frequency（...
-
Page 76: Power Unit
Set fan rated power for fan frequency work, calculate FAN RATED the actual power (This parameter will visible ,only the 0010KW POWER compressor models set fan frequency（or motor , fan frequency ) Set the fan speed runs 50HZ（it used calculate the actual fan speed（... - Page 77 set lower than this value. When (MAX phase current/MIN phase current) ≥ （ 1+ (set value/10)（ , unbalance protection is activated to stop UNBALANCE SCOPE 0006 operation; when set value ≥15, unbalance protection doesn’t function. If set time of phase failure ≥20 seconds, lack phase failure LACK PHASE STOP 002.0S doesn’t function;...
- Page 78 PRODUCTION DATE 0000-00-00 Manufacturer inputs date of shipment of air compressor Controller detects the air temperature is lower than this value, controller displayed temperature is too low, controller not LOW TEMPERATURE -0005℃ allowed to start compressor; start compressor running two PROT.
- Page 79 When Testing pressure < (Set working pressure – Integral scope) PRESS INITIAL 0020 And When Testing pressure >（Set working pressure + Integral POINTS scope（ Integral is calculated by the set value. PRESS PROPORT. Tracking the speed of set working pressure. If the value is large, GAIN 0010 it will track fast and be easily surged;...
- Page 80 ADDRESS be consistent with the inverter set. RAMP STOP（ when the stop mode is set to RAMP STOP, the controller receipt stop command, load valve disconnection, Control inverter operation terminal disconnection, inverter according to set the deceleration time, slow down; RAMP MOTOR INVERTER STOP/FREE...
- Page 81 50 different types of inverter communication protocol. (Read inverter communication parameters need inverter support NUMBER MODBUS RTU protocol) , Modify this parameter, need to verify modify inverter passwords). FAN INVERTER Displays the inverter current value MODBUS address (Modify HHHH this parameter, need to verify modify inverter passwords). CURRENT FAN INVERTER Displays the inverter voltage value MODBUS address (Modify...
- Page 82 Used to calibrate the air pressure values. Pressure coefficient setting range :0.800-1.200. PRESS COEF 1.000 Pressure value = pressure coefficient ×detected pressure value When the air pressure is less than the set value, the displayed pressure PRESSURE ZERO 0.03 value is 0.00, is used to prevent the air pressure sensor zero drift. Used to calibrate the air temperature.
- Page 83 PHASE ERROR 0.9V VOLTAGE PHASE VOLTAGE 2.8V LACK PHASE 000.0 VOLTAGE MOTOR SHORT- Controller detects the current value ≥ set rated current ×this value, stop CIRCUIT CURRENT compressor and alarm motor current short. MULT MOTOR BLOCK Controller detects the current value ≥ set rated current ×this value, stop CURRENT MULT compressor and alarm motor current block SHORT-...
- Page 84 Permissions: Allow user to modify all the user parameters, factory parameters, Can not modify High factory password. 5)Super factory password（fixed as（（___________ Permissions:（Allows modify all the user parameters, factory parameters. 6)Preset inverter parameters Password: fixed as:___________ Permissions: Preset inverter communication-related parameters, and the inverter output current, voltage, power, frequency calculation methods.
- Page 85 ⑸,Temperature protection: when actual temperature measured is larger than temperature set; response time≤2s（ 6,Measurement range displayed: ①,Air temperature :-20（150 ℃ ; precision: ±1 ℃ ②,Operation time: 0（999999 hours.（ ③,Measurement range displayed for current:0（999.9A. ④,Pressure: 0（1.60MPa. Precision: 0.01Mpa. ⑹,Contact capacity of output relay: 250V,5A（Contact endurance 500000 times ⑺,Error of displayed current is less than 1.0%.（...
- Page 86 Parameter Suited main Current range motor power Remark Description (KW) Specification KY18S（20（ 8（20 4（10 KY18S（40（ 16（40 8（20 Fan has three levels of current, KY18S（100（ 30（100 15（50 such as 0.2-2.5A, KY18S（200（ 80（200 40（100 1-5A and 4-10A, determined KY18S（400（ 160（400 80（200 according to fan’s KY18S（600/5（...
- Page 87 Figure 4.1.3,Structural dimensions of CT2 (ф10 through hole) Figure 4.1.4,Install dimensions of ⑵,Installation of controller Controller shall be installed in control cabinet and a certain space shall be arranged around the controller for convenient wiring, detailed dimensions as followed: Figure 4.2.1. Structural dimensions of main control unit Page 87 of 94...
- Page 88 ⑶,Touch screen cutout dimension Figure 4.3.1 Cutout dimension 12.Early-warning and prompts ⑴,Prompts on display 1). Air filter early warning Indication ①. Air filter block early warning The controller displays “AIR FILTER BLOCK” for block of air filter; ②. Set the running time alarm of the air filter The Text displays “AIR FILTER LIFE END”...
- Page 89 3). Oil Separator early warning indication ①. Oil separator block early warning Controller displays “O-A SEPARATOR BLOCK” ②. Setting of early warning for using time of O-A separator The Text displays “O-A SEPARATOR LIFE END” when the using time of the oil separator terminates.
- Page 90 failure of motor Display failure “HOST/FAN Poor contact of contactor, inside open- Unbalance UNBLANCE” loop of motor High voltage Display failure “HIGH VOLTGE” Low voltage Display failure “HIGH VOLTGE” ⑵,Air temperature high Protection When the air temperature is higher than the upper limit of set temperature, the controller would be stopped for warning and the on-site failure is displayed as “AIR TEMP HIGH”.
- Page 91 Failure of sensor Broken pressure sensor, wrong for gas supply Check circuits and sensors or broken wire connection pressure Power phase lacking or the Phase Lacking Check the power and contactors Contactor terminal damaged Voltage too low, tubes blocked, Bearing Wear off or other Check the set data, Voltage, bearings, Overloaded mechanical failure or wrong set...
- Page 92 ⑵,SOFT-START Schematics Air Compressor cooling fan ⑶,MOTOR VF Schematics 4,FAN VF Schematics Page 92 of 94...
- Page 93 Output ⑸,MOTOR,FAN VF Schematics Input MOTOR mA mA Air Compressor cooling fan Output Output Page 93 of 94...
- Page 94 ZHEJIANG KAISHAN COMPRESSOR CO.,LTD. ADDRESS:NO.9 KAIXUAN(W) ROAD QUZHOU ECONOMIC ZONE ZHEJIANG PROVINCE TEL: 0570-8581175; FAX: 0570-3662886 E-MAIL: oversea@kaishangroup.com Page 94 of 94...
