FAULTY OPERATION AND ITS POSSIBLE DIAGNOSIS
LED indicator does not light up
AC power failure or the battery not connected or damaged.
The luminaire does not operate in emergency mode the required time for a selected model
It is possible that the battery requires a full charge cycle (48h). If after 48 hours of charging the luminaire still does not keep a
predefined autonomy, it is possible that the battery is run-down or damaged due to possible incorrect formatting and needs to be
replaced.
RECOMMENDED PERIODICAL MAINTENANCE
The luminaire should be tested on regular basis in accordance with valid laws and regulations. The results of the tests should be
recorded and stored for the use of a fire safety inspector.
One time daily
It is suggested to check visually if the LED indicator in the luminaire lights up in green.
One time each month
It is necessary to perform a function test by disconnecting the AC power supply and checking whether the luminaire is operating in
emergency mode - the green LED indicator should turn off, and LED light source light up.
One time each year
In order to make an autonomy test, disconnect the AC power supply and test if the luminaire operates in emergency mode for a
specified time. If the autonomy time of emergency operation is not sufficient, the battery needs to be fully recharged and the test
is to be carried out again. If the result of the test continues to be negative, the battery needs to be replaced.
CAUTION!
All damage that might occur as an effect of the device being used not in accordance to this instruction will result in loss of
guarantee.
Used or damaged lamps including batteries, are subject to be recycled. They should be delivered to the point of collection
electrical and battery waste or to the manufacturer.
The light source contained in this
luminaire shall only be replaced by
the manufacturer or his service
agent or a similar qualified person.
Handling of obsolete equipment
Pursuant to the Act of 29 July 2005 on waste
electrical and electronic equipment and the
Act of 24 April 2009 on batteries and
accumulators, the presented device, after
use, due to hazardous substances contained
in it, is subject to collection of waste electrical
and
electronic
equipment.
information on WEEE collection can be
obtained from municipal authorities.
4
Intelight Sp. z o.o.
Detailed
19, Gwiaździsta str.
01-651 Warsaw, Poland
KTM 97131 – Instruction Oximia, EN, ver.20221123
of
Version:
OXIMIA LED
OV
TECHNICAL SPECIFICATIONS:
Light source (user non-replaceable):
Operating modes*:
Test versions:
Emergency autonomy*:
Battery (user non-replaceable):
Battery charging duration:
Power supply:
Max. power:
Module:
Visibility:
Enclosure IP rating:
Ambient temperature:
*- depending on model
1.
The lamp should be installed when power supply is off. Safety rules, construction and electrical installation standards should
be followed all the time.
2.
The luminaire should not be powered with circuits connected to inductive power-receiving devices at the same time. This type
of solution may cause damage to the electronic module of the luminaire.
3.
The luminaire should be used indoors.

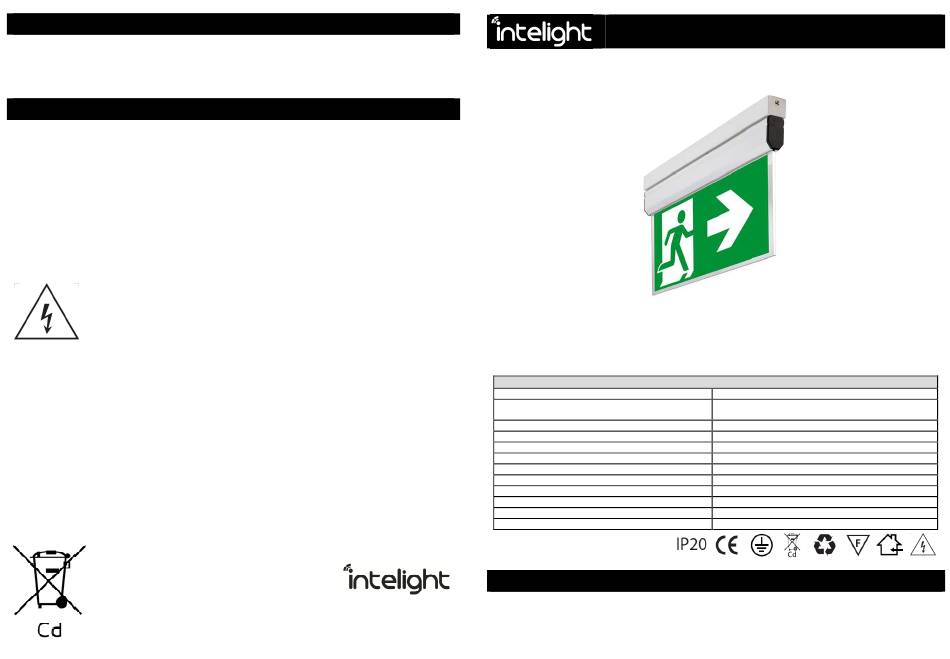

OXIMIA LED EMERGENCY LUMINAIRE
Installation and maintenance instructions
White LED
SA (M) - mains and emergency operation or
A (NM) - emergency operation
MT – manual test
2 or 3 hours
NiCd 3.6V 800mAh HT
24h
220-240V AC 50Hz
3W
Oximia LED
30 metres
IP20
10°C ÷ 55°C
INTRODUCTION
1
