PCR-1Z-SM / PCR-1Z / PCR-2Z LIGHTING
CONTROLLER INSTRUCTIONS

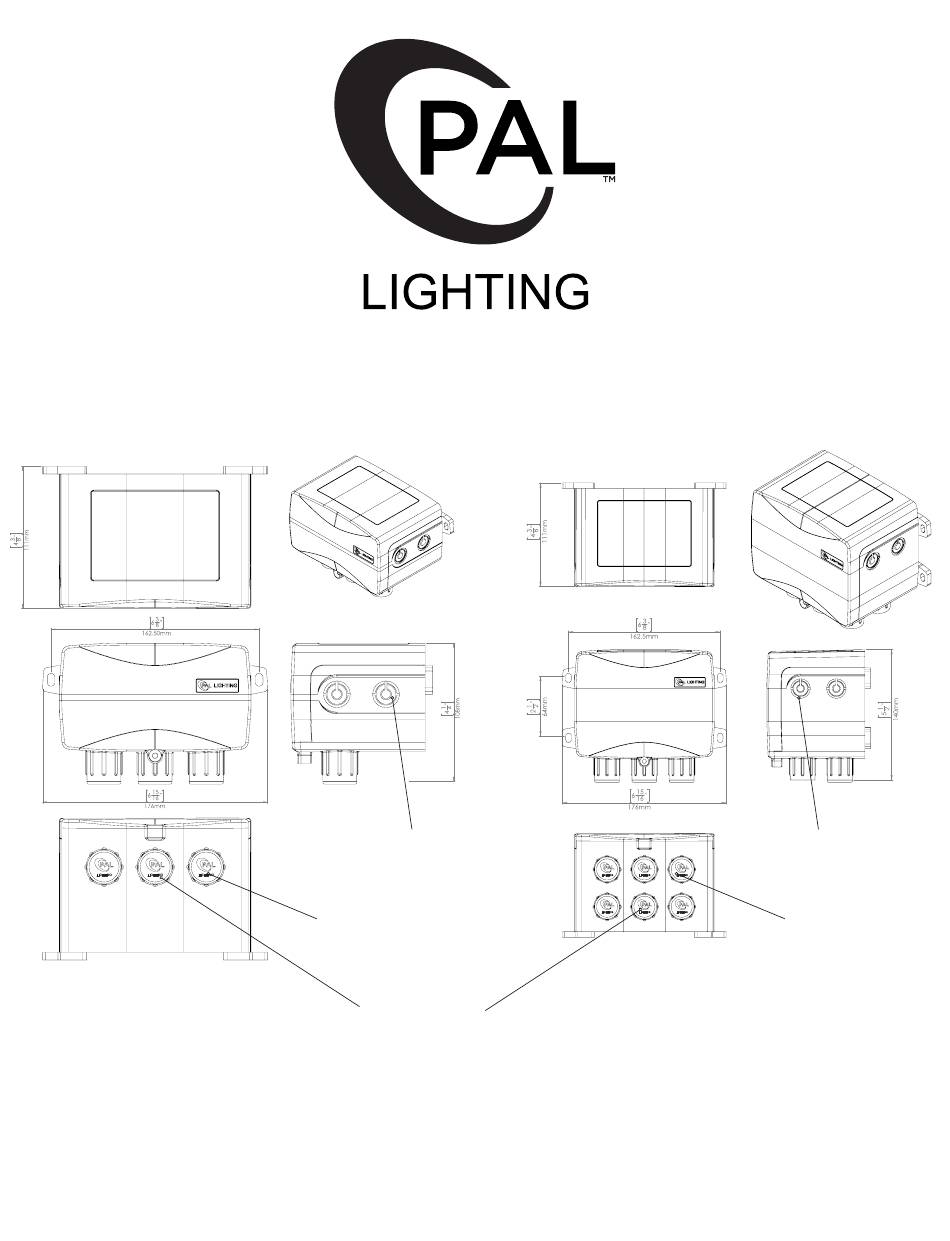

DIMENSIONS
Knockout Instructions
It is recommended that the cover is fitted and the cover screws tight when the knockouts are being removed.
When removing the knock outs place a flat blade screwdriver with a 3/16" (4mm) blade as shown and a light hit with a hammer to the head of the screw driver
will allow the Knockout to be removed.
Alternatively drill location points are located in the centre of each Knock out to allow the use of a hole saw to remove the knockouts.
13/16" / 21.0mm Knockout to
connect power supply (2 available
on each side of enclosure).
Use drill to open knockouts.
3 x conduit holes
Remove cap to utilitise conduit hole.
Leave unused conduits capped.
13/16" / 21.0mm Knockout to
connect power supply (2 available
on each side of enclosure).
Use drill to open knockouts.
6 x conduit holes
Advertisement
Related Manuals for PAL PCR-1Z-SM
Summary of Contents for PAL PCR-1Z-SM
- Page 1 PCR-1Z-SM / PCR-1Z / PCR-2Z LIGHTING CONTROLLER INSTRUCTIONS DIMENSIONS 13/16” / 21.0mm Knockout to 13/16” / 21.0mm Knockout to connect power supply (2 available connect power supply (2 available on each side of enclosure). on each side of enclosure). Use drill to open knockouts.
- Page 2 PAL 4 Wire LED Pool Lights and installed to comply with all the requirements of the National Electrical Code (NEC) and all relevant local codes and ordinances.
- Page 3 INSTALLATION INSTRUCTIONS FOR PCR-1Z-SM / PCR-1Z RGB OUTDOOR DRIVER NOTE Use the 2 x Mounting legs to fasten the enclosure to wall with appropriate fixtures for the mounting substrate Manual Operation Button Code Setting Button LED Indicator Module Code Manual...
- Page 4 WiFi module from the board if so equipped. • If the Automation does not turn the PAL lights on or off and there is power to the driver, press the Z1 button one time to turn on the PAL Driver.
- Page 5 PAL TOUCH PCZ-2 TRANSMITTER HAND HELD REMOTE ON/OFF COLOR WHEEL Can select any color from the color wheel. Can select Brightness (B) on any selected color OPERATIONAL RED LED Flashes when any remote operation is initiated BRIGHTNESS (UP/DOWN) 5 Brightness Settings (100%, 80%, 60%, 40%, 20%)
