,Simplex

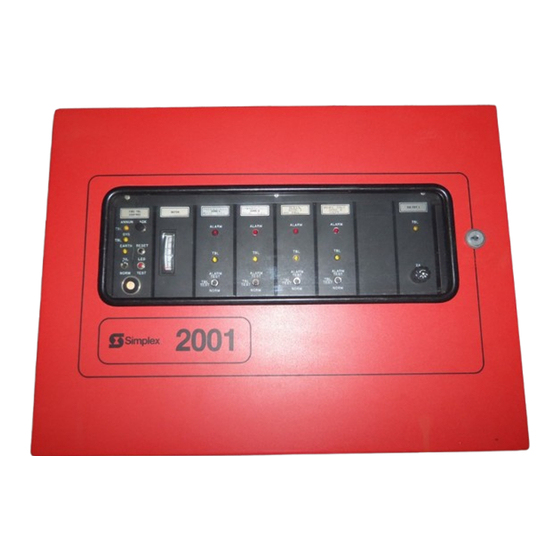

2001 Voice Communications
Tape Player and
SNI Tape Selector Modules
Module Descriptions
INTRODUCTION
(Refer to Fig. 1)
CAUTION
ELECTRICAL HAZARD
The 2001 Voice Communications
System uses the
Disconnect electrical power when making any
internal adjustments
or repalrs. Installation
2001-6046
Tape Player Module to transmit recorded
messages to the building's occupants.
and servicing should be performed
by quali-
fied Simplex Representatives.
The 2001-6058 Tape Cartridge is used with the tape player. Each track of the endless-loop,
two-track tape has
approximately
30 seconds of playing time.
The tape player contains a speaker, one TBL LED and the following manual switches:
TEST -
when set to the up position, activates tape player TBL and SYST TBL indicators, sounds the tone
device and activates the tape player's internal speaker circuit.
MESSAGE 1 -
when set to the up position (and the TEST switch is also set to the up position), activates track
1.
MESSAGE 2 -
when set to the up position (and the TEST switch is also set to the up position), activates track
2 and inhibits track 1.
TAPE EJECTION
-
when pressed, ejects the tape
from the tape player.
VOLUME CONTROL
-
adjusts
the tape
playe?s
output signal (affects the loudness
of the tape
player's speaker and the building's speakers).
TBL LED -
illuminates when tape is removed from
the tape player or when the TEST switch is set to
MESSAGE 2
MESSAGE 1
TEST
the up position.
/
TAPE
EJECTION
TBL
*VOLUME
CONTROL
SPEAKER
rsys
CONTROL
-l-mm -
RELAYS
SPEAKER
CIRCUITS
-
FIRE
ALARM
SECTION
i
--.
1 ALARM
I
ISELECT-
2 II
Refer to 2001 Voice Communications
System
Concepts
Manual for a description
of this block
2001-6046 Tape Player
diaaram.

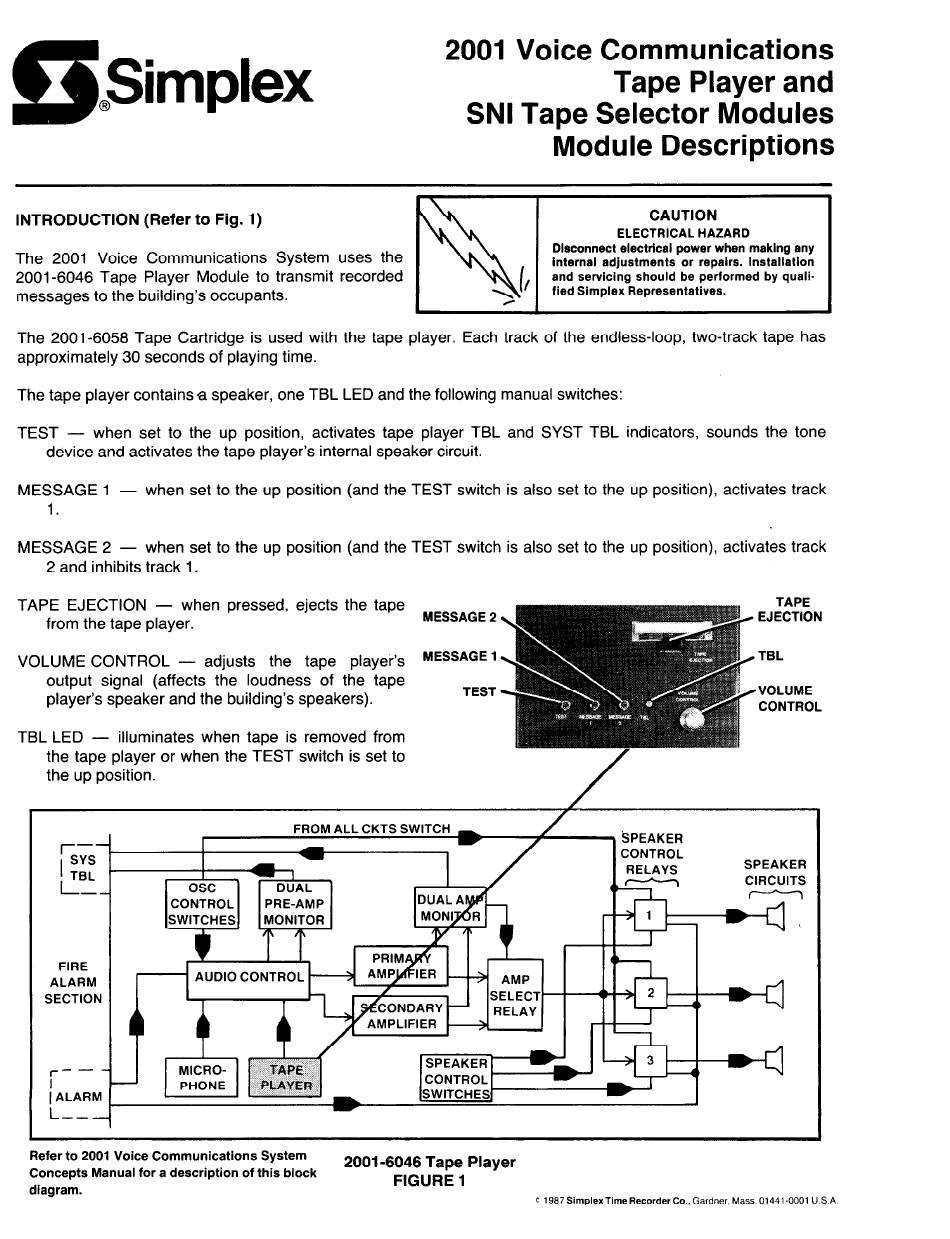

FIGURE 1
c 1987 Simplex
Time Recorder
Co., Gardner, Mass 01441-0001
U S.A
